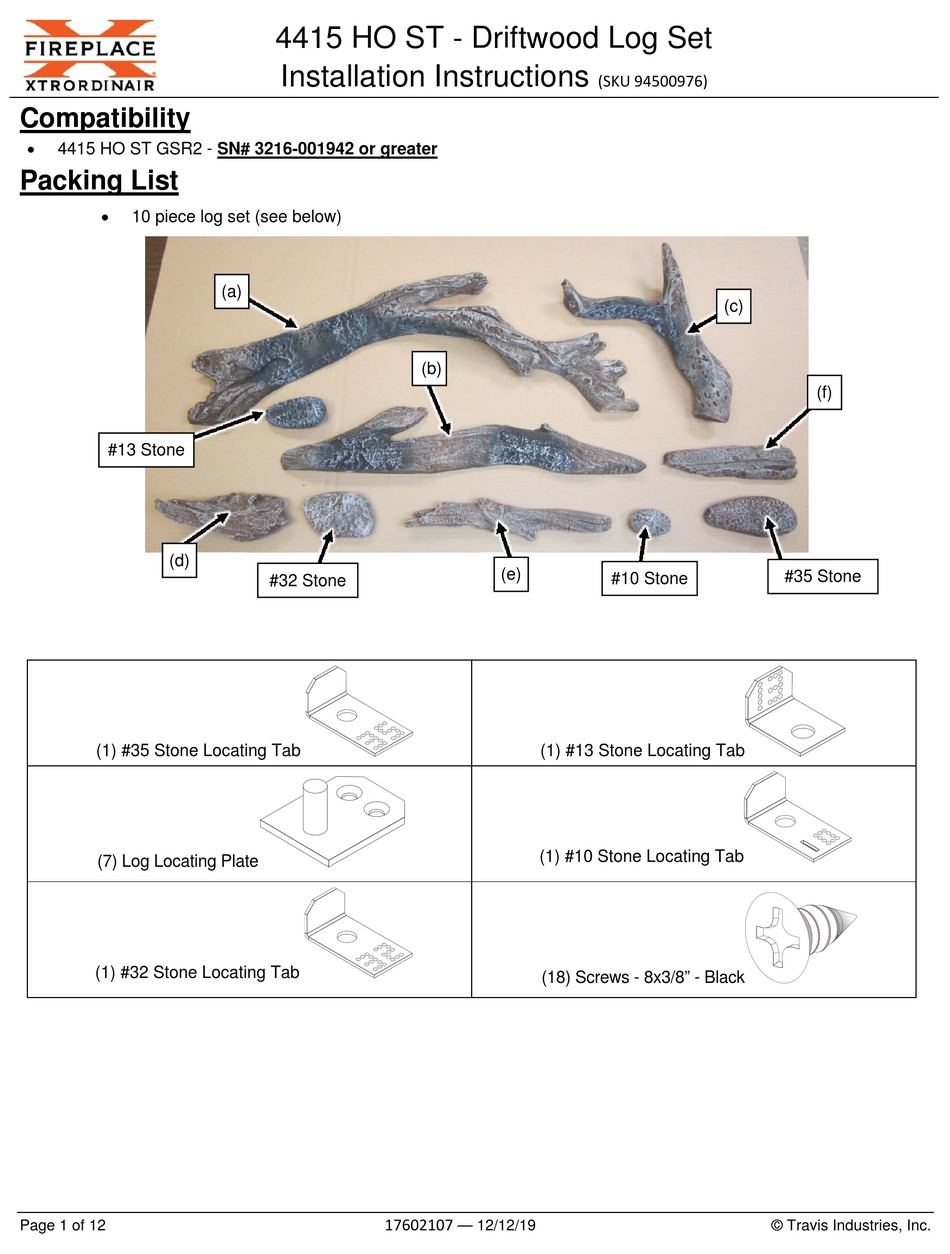

4415 HO ST - Driftwood Log Set
Installation Instructions
(SKU 94500976)
Compatibility
4415 HO ST GSR2 - SN# 3216-001942 or greater
Packing List
10 piece log set (see below)
(a)
(c)
(b)
(f)
#13 Stone
(d)
(e)
#35 Stone
#10 Stone
#32 Stone
(1) #35 Stone Locating Tab
(1) #13 Stone Locating Tab
(1) #10 Stone Locating Tab
(7) Log Locating Plate
(1) #32 Stone Locating Tab
(18) Screws - 8x3/8" - Black
17602107
Page 1 of 12
— 12/12/19
© Travis Industries, Inc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FireplaceXtrordinair 4415 HO ST
Summary of Contents for FireplaceXtrordinair 4415 HO ST
- Page 1 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Compatibility 4415 HO ST GSR2 - SN# 3216-001942 or greater Packing List 10 piece log set (see below) #13 Stone #35 Stone #10 Stone #32 Stone...
-
Page 2: Mounting Hardware Installation
4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Tools Required Philips Screwdriver Installation Notes WARNINGS: Make sure the gas control valve is OFF and the heater is cool prior to conducting service. ... - Page 3 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Log, Stone, and Crushed Glass Placement Overview - 4415 HO ST: #35 Stone #10 Stone #13 Stone #32 Stone Log and Stone Installation Details The logs are fragile, especially after being exposed to heat.
- Page 4 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Place the #13 stone as shown below (the number is printed on the back of the stone). Note how the slot on the stone fits over the tab on the stone support. The printed number on the stone faces the rear of the firebox.
- Page 5 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Place the (a) log as shown below. The post on the log support insert into the holes on the bottom of the log. NOTE: This is the only log that is placed over the burner.
- Page 6 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Place the (c) log as shown below. The post on the log support and pin on arched log insert into the holes on the bottom of the (a) log. When in place (c) log helps support the (a) log.
- Page 7 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Place the (d) log as shown below. The holes on the twig fits over the posts on the log supports. 17602107 Page 7 of 12 — 12/12/19...
- Page 8 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Place the #32 stone as shown below (the number is printed on the back of the stone). Note how the slot on the stone fits over the tab on the log support. The printed number on the stone faces the rear of the firebox.
- Page 9 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Place the #10 and #35 stones as shown below (the number is printed on the back of the stone). Note how the slot on the stone fits over the tab on the log support. The printed number on the stone faces the rear of the firebox.
- Page 10 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Place the (f) log as shown below. The twig rests on the media tray and #35 stone. Do not place the twig over the air slot or burner.
- Page 11 4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Crushed Glass Installation (see manual for additional details). Do not allow the crushed glass to block the air slots or to become too thick (maximum 1 layer deep on the burner). Failure to properly install glass may lead to sooting and improper burning.
-
Page 12: Replacement Part Numbers
4415 HO ST - Driftwood Log Set Installation Instructions (SKU 94500976) Replacement Part Numbers (a) log 250-03721 (b) log 250-03720 (c) log 250-03722 (d) log 250-03699 (e) log 250-03103 (f) log 250-03122 (#10) Stone 250-03903 (#13) Stone 250-04289...
