❏ Occasionally CD-R and CD-RW discs written by a CD-R/RW drive cannot be read by other CD
drives*. These unreadable discs may need to be read using the CD-R/RW drive they were created with
*
The disc written using the CD-R/RW drive might not be readable by CD-ROMs other than Multi-read
compatible (UDF compatible) CD-ROMs
Multiread compatible (UDF compatible) CD-ROMs are:
1. CD-ROMs that can read low reflectance.
❏ Please note: Certain software (i.e. particularly those including Video playback) may require
a considerably increased specification PC to give acceptable results. While this Super Multi
DVD Drive can read DVD-video discs, decoding them to display on your pc's monitor
requires separate MPEG decoding that is done by separate hardware (either an MPEG
decoder card or MPEG decoding done by your video card), or separate software that you
install to do MPEG decoding.
For further details, refer to the documentation that comes with MPEG software.
Software
Install the supplied CD/DVD Recording Authoring Software before using this unit.
* Please uninstall any previous CD burning software you may have loaded on your PC in order
to prevent possible compatibility issues. Once you have installed the supplied software, you may
(if you wish) begin to reinstall previous software, taking note for errors.

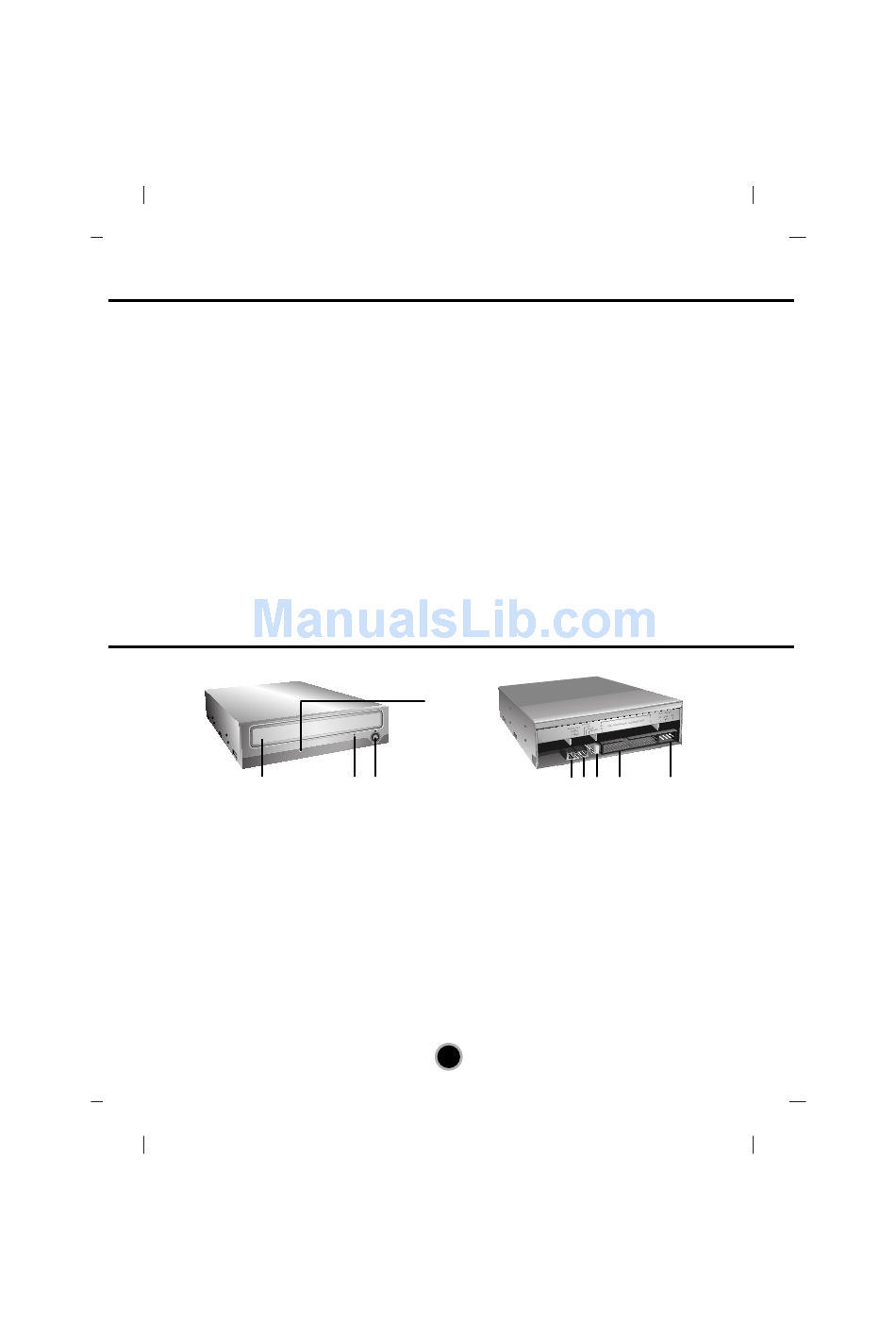

Location and Function of Controls

Front Panel
1
1. Disc Tray
2. Emergency Eject Hole
3. Stop/Eject Button
4. Drive activity indicators
The LED used to indicate the operation of
Super Multi DVD Drive.
Read:
The green color is displayed during disc reading session.
Write:
The green color is flashed during disc writing sessions.
(CD-R/RW, DVD-R/RW)
The green color is displayed during disc writing session.
(DVD-RAM, DVD+R/RW)
2. CD-ROMs that support Packet Write.
Rear Panel
4
2 3
1. Digital Audio Output Connector
This connector is not supported.
2. Analog Audio Output Connector
3. Jumper Connector
This jumper determines whether the drive is config-
ured as a master or slave. Changing the master-slave
configuration takes effect after power-on reset.
4. IDE Interface Connector
Connect to the IDE (Integrated Device Electronics)
Interface using a 40-pin flat IDE cable.
NOTE : Do not connect or disconnect the cable when
the power is on, as this could cause a short circuit
and damage the system. Always turn the power OFF
when connecting or disconnecting this cable.
5. Power Connector
3
1 2 3 4
5
