IMBA-C2060 ATX Motherboard
MODEL:
IMBA-C2060
ATX LGA1155 Motherboard for Intel® Core™ i3 Quad/Dual Core
CPU, Intel® C206 Chipset, DDR3, VGA/DVI/HDMI,
Dual Intel® PCIe GbE, Intel® AMT 7.0 Support, Two USB 3.0
Ports, Five COM Ports, Two SATA 6Gb/s Ports and RoHS

User Manual

Page i
Rev. 2.02 – June 24, 2014

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology IMBA-C2060

Summary of Contents for IEI Technology IMBA-C2060

  • Page 1: User Manual

    IMBA-C2060 ATX Motherboard MODEL: IMBA-C2060 ATX LGA1155 Motherboard for Intel® Core™ i3 Quad/Dual Core CPU, Intel® C206 Chipset, DDR3, VGA/DVI/HDMI, Dual Intel® PCIe GbE, Intel® AMT 7.0 Support, Two USB 3.0 Ports, Five COM Ports, Two SATA 6Gb/s Ports and RoHS...
  • Page 2 IMBA-C2060 ATX Motherboard Revision Date Version Changes 2.02 Modified Chapter 5: BIOS June 24, 2014 2.01 Modified Table 3-24: LAN Pinouts April 23, 2014 2.00 Updated for R20 version December 9, 2013 1.03 Added Appendix F: Intel® Matrix Storage Manager November 9, 2012 1.02...
  • Page 3 IMBA-C2060 ATX Motherboard Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    PTIONAL TEMS 3 CONNECTORS ......................14 3.1 P ..............15 ERIPHERAL NTERFACE ONNECTORS 3.1.1 IMBA-C2060 Layout..................15 3.1.2 Peripheral Interface Connectors ..............16 3.1.3 External Interface Panel Connectors............... 17 3.2 I ..............18 NTERNAL ERIPHERAL ONNECTORS 3.2.1 ATX Power Connector ..................18 3.2.2 Battery Connectors ..................
  • Page 5 IMBA-C2060 ATX Motherboard 3.2.11 Keyboard/Mouse Connector................28 3.2.12 Parallel Port Connector ................29 3.2.13 PCI Slots ......................30 3.2.14 PCIe x4 Slots....................31 3.2.15 PCIe x8 Slot ....................32 3.2.16 PCI Express x16/x8 Slot................. 32 3.2.17 SATA 3Gb/s Drive Connector ................ 33 3.2.18 SATA 6Gb/s Drive Connector ................
  • Page 6 IMBA-C2060 ATX Motherboard 4.5 E ........... 63 XTERNAL ERIPHERAL NTERFACE ONNECTION 4.5.1 Audio Connector ....................63 4.5.2 DVI Display Device Connection..............64 4.5.3 HDMI Connection.................... 65 4.5.4 LAN Connection....................66 4.5.5 PS/2 Keyboard and Mouse Connection ............66 4.5.6 Serial Device Connection ................67 4.5.7 USB Connection (Dual Connector) ..............
  • Page 7 IMBA-C2060 ATX Motherboard 5.4 C ......................... 103 HIPSET 5.4.1 PCH-IO Configuration .................. 104 5.4.1.1 PCI Express Configuration ..............105 5.4.1.2 PCH Azalia Configuration ..............106 5.4.2 System Agent (SA) Configuration ..............107 5.4.2.1 Graphics Configuration................107 5.4.2.2 NB PCIe Configuration................109 5.4.2.3 Memory Configuration ................111...
  • Page 8 IMBA-C2060 ATX Motherboard E.1 I ...................... 158 NTRODUCTION E.1.1 Precautions ....................158 E.2 F ..................159 EATURES AND ENEFITS E.3 A ® M ......... 159 CCESSING THE NTEL ATRIX TORAGE ANAGER E.4 I RAID A ......... 160 NSTALLING THE PERATING...
  • Page 9 IMBA-C2060 ATX Motherboard List of Figures Figure 1-1: IMBA-C2060 .........................2 Figure 1-2: Connectors ........................4 Figure 1-3: IMBA-C2060 Dimensions (mm)..................5 Figure 1-4: Data Flow Diagram......................6 Figure 3-1: Connectors and Jumpers..................15 Figure 3-2: ATX Power Connector Pinout Location..............18 Figure 3-3: Battery Connector Locations...................20 Figure 3-4: CPU Power Connector Location................21...
  • Page 10 IMBA-C2060 ATX Motherboard Figure 3-27: External Peripheral Interface Connector ..............43 Figure 3-28: Audio Connector .....................44 Figure 3-29: Ethernet Connector....................44 Figure 3-30: Serial Port Connector Pinouts................47 Figure 3-31: VGA Connector .......................48 Figure 4-1: Disengage the CPU Socket Load Lever..............52 Figure 4-2: Remove Protective Cover..................53 Figure 4-3: Insert the Socket LGA1155 CPU................54...
  • Page 11 IMBA-C2060 ATX Motherboard Figure 6-11: Graphics Driver Setup Operations ..............124 Figure 6-12: Graphics Driver Installation Finish Screen ............124 Figure 6-13: Intel® Network Connection Menu............... 125 Figure 6-14: LAN Driver Welcome Screen ................126 Figure 6-15: LAN Driver License Agreement ................126 Figure 6-16: LAN Driver Setup Options...................
  • Page 12 IMBA-C2060 ATX Motherboard List of Tables Table 1-1: IMBA-C2060 Specifications ..................8 Table 2-1: Packing List.........................12 Table 2-2: Optional Items......................13 Table 3-1: Peripheral Interface Connectors ................17 Table 3-2: Rear Panel Connectors ....................17 Table 3-3: ATX Power Connector Pinouts .................19 Table 3-4: Battery Connector (BT2) Pinouts................20 Table 3-5: CPU Power Connector Pinouts .................21...
  • Page 13 IMBA-C2060 ATX Motherboard Table 3-28: PS/2 Connector Pinouts...................46 Table 3-29: Serial Port Connector Pinouts ................47 Table 3-30: VGA Connector Pinouts...................47 Table 3-31: DVI Connector Pinouts.....................48 Table 4-1: Jumpers ........................58 Table 4-2: AT/ATX Power Mode Jumper Settings ..............59 Table 4-3: Clear BIOS Jumper Settings..................59 Table 4-4: Wake-on LAN Connector Pinouts ................60...
  • Page 14 IMBA-C2060 ATX Motherboard BIOS Menus BIOS Menu 1: Main ........................76 BIOS Menu 2: Advanced ......................78 BIOS Menu 3: ACPI Configuration ....................78 BIOS Menu 4: RTC Wake Settings ....................79 BIOS Menu 5: TPM Configuration ....................81 BIOS Menu 6: CPU Configuration ....................82 BIOS Menu 7: SATA Configuration .....................84...

  • Page 15: Introduction

    IMBA-C2060 ATX Motherboard Chapter Introduction Page 1...

  • Page 16: Introduction

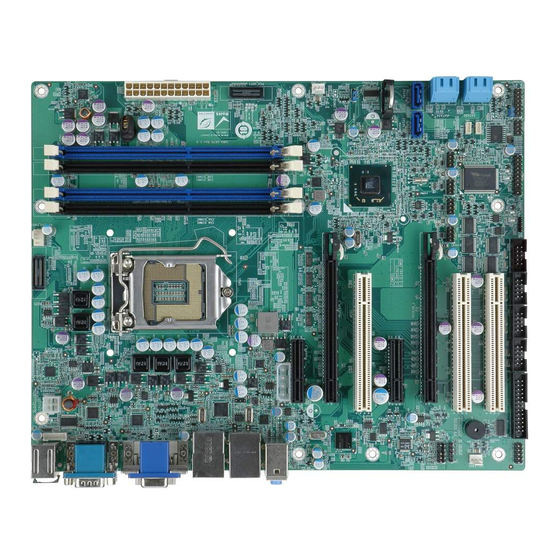

    1.1 Introduction Figure 1-1: IMBA-C2060 The IMBA-C2060 is an ATX motherboard. It accepts a Socket LGA1155 Intel® Xeon® or Core™ i3 processor with quad or dual core and supports four 240-pin 1333/1066 MHz dual-channel DDR3 DIMM modules up to 32.0 GB maximum. The IMBA-C2060 includes a VGA, HDMI, and DVI-D port.

  • Page 17: Features

    IMBA-C2060 ATX Motherboard 1.3 Features Some of the IMBA-C2060 motherboard features are listed below: ATX form factor RoHS compliant LGA1155 CPU socket Three PCI card expansion slots Multiple PCIe expansion card configurations: Slot PCIe x16 PCIe x8 PCIe x4 Configuration 1...

  • Page 18: Connectors

    IMBA-C2060 ATX Motherboard 1.4 Connectors The connectors on the IMBA-C2060 are shown in the figure below. Figure 1-2: Connectors Page 4...

  • Page 19: Dimensions

    IMBA-C2060 ATX Motherboard 1.5 Dimensions The main dimensions of the IMBA-C2060 are shown in the diagram below. Figure 1-3: IMBA-C2060 Dimensions (mm) Page 5...

  • Page 20: Data Flow

    IMBA-C2060 ATX Motherboard 1.6 Data Flow F igure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 21: Technical Specifications

    IMBA-C2060 ATX Motherboard 1.7 Technical Specifications IMBA-C2060 technical specifications are listed below. Specification/Model IMBA-C2060 Form Factor LGA1155 Intel® Xeon® or Core™ i3 processor with quad/dual core CPU Supported Intel® C206 Chipset Integrated Graphics Supports DirectX 10.1/OpenGL 3.0 Full MPEG2, VC1, AVC Decode...

  • Page 22: Table 1-1: Imba-C2060 Specifications

    (3.40 GHz Intel® Xeon® E3-1275 CPU with four 1333 MHz 2GB DDR3 memory) -10ºC–60ºC Operating Temperature -20ºC–70ºC Storage Temperature 5%–95% (non-condensing) Operating Humidity Physical Specifications 244 mm x 305 mm Dimensions 1200 g / 700 g Weight GW/NW Table 1-1: IMBA-C2060 Specifications Page 8...

  • Page 23: Packing List

    IMBA-C2060 ATX Motherboard Chapter Packing List Page 9...

  • Page 24: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the IMBA-C2060 is unpacked, please do the following: Follow the antistatic guidelines above. Make sure the packing box is facing upwards when opening.

  • Page 25: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the IMBA-C2060 was purchased from or contact an IEI sales representative directly by sending an email to s ales@ieiworld.com...

  • Page 26: Optional Items

    IMBA-C2060 ATX Motherboard Quantity Item and Part Number Image Quick Installation Guide Table 2-1: Packing List 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image Dual ports USB cable with bracket...

  • Page 27: Table 2-2: Optional Items

    IMBA-C2060 ATX Motherboard Item and Part Number Image LGA1155/LGA1156 cooler kit (95W) (P/N: CF-1156E-R11) 20-pin Infineon TPM module, S/W management tool, firmware v3.17 (P/N: TPM-IN01-R11) Table 2-2: Optional Items Page 13...

  • Page 28: Connectors

    IMBA-C2060 ATX Motherboard Chapter Connectors Page 14...

  • Page 29: Peripheral Interface Connectors

    IMBA-C2060 ATX Motherboard 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 IMBA-C2060 Layout The figures below show all the connectors and jumpers. Figure 3-1: Connectors and Jumpers Page 15...

  • Page 30: Peripheral Interface Connectors

    IMBA-C2060 ATX Motherboard 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label ATX Power connector 24-pin ATX ATX1 Battery connector 2-pin wafer Battery holder CR2032 battery holder BAT1 CPU power connector 4-pin Molex...

  • Page 31: External Interface Panel Connectors

    IMBA-C2060 ATX Motherboard Connector Type Label Serial port, RS-422/485 4-pin wafer COM4 Serial port, RS-232 10-pin box header COM1, COM2, COM3, COM5 SMBus connector 4-pin wafer SMBUS_1 SPDIF connector 5-pin header SPDIF1 SPI ROM connector 8-pin header JSPI1 TPM connector...

  • Page 32: Internal Peripheral Connectors

    IMBA-C2060 ATX Motherboard 3.2 Internal Peripheral Connectors The section describes all of the connectors on the IMBA-C2060. 3.2.1 ATX Power Connector CN Label: ATX1 24-pin ATX CN Type: CN Location: See Figure 3-2 CN Pinouts: See Table 3-3 The ATX power connector connects to an ATX power supply.

  • Page 33: Battery Connectors

    IMBA-C2060 ATX Motherboard Description Description +12V +12V +3.3V Table 3-3: ATX Power Connector Pinouts 3.2.2 Battery Connectors CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.

  • Page 34: Cpu Power Connector

    IMBA-C2060 ATX Motherboard Figure 3-3: Battery Connector Locations Description Battery+ Table 3-4: Battery Connector (BT2) Pinouts 3.2.3 CPU Power Connector CN Label: CPU12V1 CN Type: 4-pin Molex CN Location: See Figure 3-4 CN Pinouts: See Table 3-5 The CPU power input connector provides power to the CPU.

  • Page 35: Ddr3 Dimm Slots

    IMBA-C2060 ATX Motherboard Figure 3-4: CPU Power Connector Location PIN NO. DESCRIPTION +12V +12V Table 3-5: CPU Power Connector Pinouts 3.2.4 DDR3 DIMM Slots CN Label: CHA_DIMM1, CHA_DIMM2, CHB_DIMM1, CHB_DIMM2 DDR3 DIMM slot CN Type: CN Location: F igure 3-5 The DIMM slots are for DDR3 DIMM memory modules.

  • Page 36: Digital I/O Connector

    IMBA-C2060 ATX Motherboard Figure 3-5: DDR3 DIMM Slot Locations 3.2.5 Digital I/O Connector CN Label: DIO1 CN Type: 10-pin header CN Location: See Figure 3-6 CN Pinouts: See Table 3-6 The digital I/O connector provides programmable input and output for external devices.

  • Page 37: Fan Connector (Cpu)

    IMBA-C2060 ATX Motherboard Figure 3-6: Digital I/O Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 3-6: Digital I/O Connector Pinouts 3.2.6 Fan Connector (CPU)

  • Page 38: Fan Connector (System)

    IMBA-C2060 ATX Motherboard Figure 3-7: CPU Fan Connector Location PIN NO. DESCRIPTION +12 V FANIO1 Table 3-7: CPU Fan Connector Pinouts 3.2.7 Fan Connectors (System) CN Label: SYS_FAN1, SYS_FAN2 CN Type: 3-pin wafer CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 The fan connector attaches to a cooling fan.

  • Page 39: Front Panel Audio Connector

    IMBA-C2060 ATX Motherboard Figure 3-8: System Fan Connector Location PIN NO. DESCRIPTION FANIO +12 V (PWM) Table 3-8: System Fan Connector Pinouts 3.2.8 Front Panel Audio Connector CN Label: FP_AUDIO1 10-pin header CN Type: CN Location: See Figure 3-9 CN Pinouts: See Table 3-9 This connector connects to speakers, a microphone and an audio input.

  • Page 40: Front Panel Connector

    IMBA-C2060 ATX Motherboard Figure 3-9: Front Panel Audio Connector Location Description Description LMIC2_L AUD GND LMIC2_R PRESENCE# LLINE2-R MIC2-JD F_SENSE LLINE2-L LINE2-JD Table 3-9: Front Panel Audio Connector Pinouts 3.2.9 Front Panel Connector CN Label: F_PANEL1 CN Type: 14-pin header...

  • Page 41: I2C Connector

    IMBA-C2060 ATX Motherboard Figure 3-10: Front Panel Connector Location FUNCTION DESCRIPTION FUNCTION DESCRIPTION Power LED ACPILED Speaker Beep Power Power Button PWRBT_SW#_C PC Beep Reset HDD LED HDDLED EXTRST- HDDLED- Table 3-10: Front Panel Connector Pinouts 3.2.10 I2C Connector CN Label:...

  • Page 42: Keyboard/Mouse Connector

    IMBA-C2060 ATX Motherboard Figure 3-11: I2C Connector Location Description +5V_DUAL PCH_GP38_PU PCH_GP39_PU Table 3-11: I2C Connector Pinouts 3.2.11 Keyboard/Mouse Connector CN Label: KB_MS1 6-pin wafer CN Type: See Figure 3-12 CN Location: CN Pinouts: See Table 3-12 The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.

  • Page 43: Parallel Port Connector

    IMBA-C2060 ATX Motherboard Figure 3-12: Keyboard/Mouse Connector Location Description +5 V KB DATA MS DATA MS CLK KB DATA KB CLK GROUND Table 3-12: Keyboard/Mouse Connector Pinouts 3.2.12 Parallel Port Connector CN Label: LPT1 CN Type: 26-pin box header CN Location:...

  • Page 44: Pci Slots

    IMBA-C2060 ATX Motherboard Figure 3-13: Parallel Port Connector Location Description Description RSTROBE# RPD0 RPD1 RPD2 RPD3 RPD4 RPD5 RPD6 RPD7 SIO_ACK# SIO_BUSY SIO_PE SIO_SLCT SIO_AFD# SIO_ERR# SIO_INIT# SIO_SLIN# Table 3-13: Parallel Port Connector Pinouts 3.2.13 PCI Slots CN Label: PCI1, PCI2, PCI3...

  • Page 45: Pcie X4 Slots

    IMBA-C2060 ATX Motherboard The PCI slot enables a PCI expansion module to be connected to the board. Figure 3-14: PCI Slot Locations 3.2.14 PCIe x4 Slots CN Label: PCIEX4_1, PCIEX4_2 CN Type: PCIe x4 slot CN Location: See Figure 3-18 The PCIe x4 slot is for PCIe x4 expansion cards.

  • Page 46: Pcie X8 Slot

    IMBA-C2060 ATX Motherboard 3.2.15 PCIe x8 Slot CN Label: PCIEX8_1 PCIe x16 slot CN Type: CN Location: See Figure 3-18 The PCIe x8 slot provide PCIe x8 signal for PCIe expansion cards. Figure 3-16: PCIe x8 Slot Location 3.2.16 PCI Express x16/x8 Slot...

  • Page 47: Sata 3Gb/S Drive Connector

    IMBA-C2060 ATX Motherboard Figure 3-17: PCIe x16 Slot Location 3.2.17 SATA 3Gb/s Drive Connectors CN Label: SATA34, SATA56 CN Type: 14-pin SATA connector CN Location: See Figure 3-18 See Table 3-14 CN Pinouts: The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s data transfer rate.

  • Page 48: Sata 6Gb/S Drive Connector

    IMBA-C2060 ATX Motherboard Figure 3-18: SATA 3Gb/s Drive Connector Location Description Description SATATXP_A SATATXP_B SATATXN_A SATATXN_B SATARXN_A SATARXN_B SATARXP_A SATARXP_B Table 3-14: SATA 3Gb/s Drive Connector Pinouts 3.2.18 SATA 6Gb/s Drive Connectors CN Label: SATA1, SATA2 CN Type: 7-pin SATA drive connectors...

  • Page 49: Serial Port Connector, Rs-422/485

    IMBA-C2060 ATX Motherboard Figure 3-19: SATA 6Gb/s Drive Connector Location Description SATATXP SATATXN SATARXN SATARXP Table 3-15: SATA 6Gb/s Drive Connector Pinouts 3.2.19 Serial Port Connector, RS-422/485 CN Label: COM4 CN Type: 4-pin wafer CN Location: See Figure 3-20 CN Pinouts:...

  • Page 50: Figure 3-20: Rs-422/485 Connector Location

    IMBA-C2060 ATX Motherboard This connector provides RS-422 or RS-485 communications. Figure 3-20: RS-422/485 Connector Location PIN NO. DESCRIPTION RXD422- RXD422+ TXD422+/TXD485+ TXD422-/TXD485- Table 3-16: RS-422/485Connector Pinouts Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the D-sub 9 connector are listed below.

  • Page 51: Serial Port Connectors, Rs-232

    IMBA-C2060 ATX Motherboard 3.2.20 Serial Port Connectors, RS-232 CN Label: COM1, COM2, COM3, COM5 10-pin box header CN Type: CN Location: See Figure 3-21 CN Pinouts: See Table 3-18 Each of these connectors provides RS-232 connections. Figure 3-21: Serial Port Connector Location PIN NO.

  • Page 52: Spdif Connector

    IMBA-C2060 ATX Motherboard CN Pinouts: See Table 3-19 The SMBus (System Management Bus) connector provides low-speed system management communications. Figure 3-22: SMBus Connector Location Description +5V_DUAL SMBCLK SMBDATA Table 3-19: SMBus Connector Pinouts 3.2.22 SPDIF Connector CN Label: SPDIF1 CN Type:...

  • Page 53: Spi Rom Connector

    IMBA-C2060 ATX Motherboard Figure 3-23: SPDIF Connector Location DESCRIPTION SPDIFOUT SPDIFIN Table 3-20: SPDIF Connector Pinouts 3.2.23 SPI ROM Connector CN Label: JSPI1 CN Type: 8-pin header CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 The SPI connector is used to flash the BIOS.

  • Page 54: Tpm Connector

    IMBA-C2060 ATX Motherboard Figure 3-24: SPI Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CS0 SPI_CLK SPI_SO0 SPI_SI Table 3-21: SPI Connector Pinouts 3.2.24 TPM Connector CN Label: TPM1 CN Type: 20-pin header CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 The TPM connector connects to a TPM module.

  • Page 55: Usb Connectors

    IMBA-C2060 ATX Motherboard Figure 3-25: TPM Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION LCLK GND2 LERAME# LRESRT# LAD3 LAD2 LAD1 LAD0 GND3 SB3V SERIRQ GND1 GLKRUN# LPCPD# LDRQ# Table 3-22: TPM Connector Pinouts 3.2.25 USB Connectors CN Label: USB1, USB2, USB3, USB4...

  • Page 56: Figure 3-26: Usb Connector Pinout Locations

    IMBA-C2060 ATX Motherboard Figure 3-26: USB Connector Pinout Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA- DATA+ DATA+ DATA- Table 3-23: USB Port Connector Pinouts Page 42...

  • Page 57: External Peripheral Interface Connector Panel

    IMBA-C2060 ATX Motherboard 3.3 External Peripheral Interface Connector Panel The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following: Figure 3-27: External Peripheral Interface Connector 3.3.1 Audio Connector CN Label: AUDIO_CV1 CN Type:...

  • Page 58: Ethernet And Usb Connector

    IMBA-C2060 ATX Motherboard Figure 3-28: Audio Connector 3.3.2 Ethernet and USB Connector CN Label: LAN1_USB01, LAN2_USB23 CN Type: RJ-45, USB 2.0 and USB 3.0 connectors CN Location: See Figure 3-27 See Table 3-24 CN Pinouts: The LAN connector connects to a local network.

  • Page 59: Hdmi Port Connector

    IMBA-C2060 ATX Motherboard Description Description on: linked off: 10 Mb/s blinking: data is being sent/received green: 100 Mb/s orange: 1000 Mb/s Table 3-25: Connector LEDs The USB connector can be connected to a USB device. The USB 2.0 ports are labeled as USB01 and the USB 3.0 ports are labels as USB23.

  • Page 60: Keyboard/Mouse Connector

    IMBA-C2060 ATX Motherboard PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA0# HDMI_GND HDMI_CLK HDMI_GND HDMI_GND HDMI_CLK# Table 3-27: HDMI Connector Pinouts 3.3.4 Keyboard/Mouse Connector CN Label: KB_MS2 Dual PS/2 CN Type: CN Location: See Figure 3-27 CN Pinouts: See Table 3-28 The PS/2 ports are for connecting a PS/2 mouse and a PS/2 keyboard.

  • Page 61: Vga And Dvi Connector

    IMBA-C2060 ATX Motherboard PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD NDSR NRXD NRTS NTXD NCTS NDTR Table 3-29: Serial Port Connector Pinouts Figure 3-30: Serial Port Connector Pinouts 3.3.6 VGA and DVI Connector CN Label: VIDEO1 15-pin Female, 24-pin header...

  • Page 62: Figure 3-31: Vga Connector

    IMBA-C2060 ATX Motherboard Figure 3-31: VGA Connector The DVI connector connects to a monitor that supports DVI video input. DESCRIPTION DESCRIPTION DVI_TMDS_C_DATA2# DVI_TMDS_C_DATA2 DVI_DDC_SCLK DVI_DDC_SDATA DVI_TMDS_C_DATA1# DVI_TMDS_C_DATA1 +5V_DVI DVI_HPD DVI_TMDS_C_DATA0# DVI_TMDS_C_DATA0 DVI_TMDS_C_CLK DVI_TMDS_C_CLK# Table 3-31: DVI Connector Pinouts Page 48...

  • Page 63: Installation

    IMBA-C2060 ATX Motherboard Chapter Installation Page 49...

  • Page 64: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IMBA-C2060. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IMBA-C2060 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 65 This helps to prevent potential ESD damage. Turn all power to the IMBA-C2060 off: When working with the IMBA-C2060, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system.

  • Page 66: Socket Lga1155 Cpu Installation

    IMBA-C2060 ATX Motherboard 4.2.1 Socket LGA1155 CPU Installation WARNING: CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.

  • Page 67: Figure 4-2: Remove Protective Cover

    IMBA-C2060 ATX Motherboard Figure 4-2: Remove Protective Cover Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

  • Page 68: Figure 4-3: Insert The Socket Lga1155 Cpu

    IMBA-C2060 ATX Motherboard Figure 4-3: Insert the Socket LGA1155 CPU Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little to have the load plate be able to secure to the knob. Engage the load lever by pushing it back to its original position (Figure 4-4).

  • Page 69: Socket Lga1155 Cooling Kit Installation

    IMBA-C2060 ATX Motherboard 4.2.2 Socket LGA1155 Cooling Kit Installation WARNING: DO NOT attempt to install a push-pin cooling fan. The pre-installed support bracket prevents the board from bending and is ONLY compatible with captive screw type cooling fans. Figure 4-5: Cooling Kits (CF-1156A-RS and CF-1156E-RS) The cooling kit can be bought from IEI.

  • Page 70: Figure 4-6: Cooling Kit Support Bracket

    Secure the cooling kit by fastening the four retention screws of the cooling kit. Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector on the IMBA-C2060. Carefully route the cable and avoid heat generating chips and fan blades.Step 0:...

  • Page 71: Dimm Installation

    IMBA-C2060 ATX Motherboard 4.2.3 DIMM Installation To install a DIMM, please follow the steps below and refer to Figure 4-7. Figure 4-7: DIMM Installation Step 1: Open the DIMM socket handles. Open the two handles outwards as far as they can. See Figure 4-7.

  • Page 72: Jumper Settings

    IMBA-C2060 ATX Motherboard 4.3 Jumper Settings NOTE: A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To...

  • Page 73: Clear Cmos Jumper

    IMBA-C2060 ATX Motherboard Setting Description Closed ATX power (Default) Open AT power Table 4-2: AT/ATX Power Mode Jumper Settings Figure 4-8: AT/ATX Power Mode Jumper Location 4.3.2 Clear CMOS Jumper Jumper Label: J_CMOS1 3-pin header Jumper Type: Jumper Settings: See Table 4-3...

  • Page 74: Wake-On Lan Jumper

    IMBA-C2060 ATX Motherboard Figure 4-9: Clear BIOS Jumper Location 4.3.3 Wake-on LAN Jumper CN Label: WOL_SEL1 3-pin header CN Type: CN Location: See Figure 4-10 CN Pinouts: See Table 4-4 The Wake-on LAN connector allows the user to enable or disable the Wake-on LAN (WOL) function.

  • Page 75: Internal Peripheral Device Connections

    This section outlines the installation of peripheral devices to the onboard connectors. 4.4.1 SATA Drive Connection The IMBA-C2060 is shipped with four SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 76: Figure 4-11: Sata Drive Cable Connection

    IMBA-C2060 ATX Motherboard Figure 4-11: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See Figure 4-12.

  • Page 77: External Peripheral Interface Connection

    This section describes connecting devices to the external connectors on the IMBA-C2060. 4.5.1 Audio Connector The audio jacks on the external audio connector enable the IMBA-C2060 to be connected to a stereo sound setup. Each jack supports both input and output. When connecting a device, the High Definition Audio utility will automatically detect input or output.

  • Page 78: Dvi Display Device Connection

    IMBA-C2060 ATX Motherboard 4.5.2 DVI Display Device Connection The IMBA-C2060 has a single female DVI-I connector on the external peripheral interface panel. The DVI-I connector is connected to a digital display device. To connect a digital display device to the IMBA-C2060, please follow the instructions below.

  • Page 79: Hdmi Connection

    IMBA-C2060 ATX Motherboard 4.5.3 HDMI Connection The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. To connect the HDMI cable to the IMBA-C2060, follow the steps below. Step 1: Locate the HDMI connector. The location is shown in a previous section.

  • Page 80: Lan Connection

    Step 0: 4.5.5 PS/2 Keyboard and Mouse Connection The IMBA-C2060 has a dual PS/2 connector on the external peripheral interface panel. The dual PS/2 connector is used to connect to a keyboard and mouse to the system. Follow the steps below to connect a keyboard and mouse to the IMBA-C2060.

  • Page 81: Serial Device Connection

    Figure 4-17: PS/2 Keyboard/Mouse Connector 4.5.6 Serial Device Connection The IMBA-C2060 has a single male D-sub 9 connector on the external peripheral interface panel for a serial device. Follow the steps below to connect a serial device to the IMBA-C2060.

  • Page 82: Usb Connection (Dual Connector)

    IMBA-C2060 ATX Motherboard Figure 4-18: Serial Device Connector Step 3: Secure the connector. Secure the serial device connector to the external interface by tightening the two retention screws on either side of the connector. Step 0: 4.5.7 USB Connection (Dual Connector) The external USB Series "A"...

  • Page 83: Vga Monitor Connection

    Figure 4-19: USB Connector 4.5.8 VGA Monitor Connection The IMBA-C2060 has a single female D-sub 15 connector on the external peripheral interface panel. The D-sub 15 connector is connected to a CRT or VGA monitor. To connect a monitor to the IMBA-C2060, please follow the instructions below.

  • Page 84: Intel ® Amt Setup Procedure

    ® 4.6 Intel AMT Setup Procedure The IMBA-C2060 is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below. Step 1: Make sure the CHA_DIMM1 socket is installed with one DDR3 DIMM.
  • Page 85 IMBA-C2060 ATX Motherboard process. Enter the Intel® current ME password as it requires (the Intel® default password is admin). NOTE: To change the password, enter a new password following the strong password rule (containing at least one upper case letter, one lower case letter, one digit and one special character, and be at least eight characters).

  • Page 86: Bios

    IMBA-C2060 ATX Motherboard Chapter BIOS Page 72...

  • Page 87: Introduction

    IMBA-C2060 ATX Motherboard 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 88: Getting Help

    IMBA-C2060 ATX Motherboard Function Decrease the numeric value or make changes Page Up key Increase the numeric value or make changes Page Dn key Decrease the numeric value or make changes Esc key Main Menu – Quit and not save changes into CMOS...
  • Page 89 IMBA-C2060 ATX Motherboard Save & Exit – Selects exit options and loads default settings The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. Page 75...

  • Page 90: Main

    IMBA-C2060 ATX Motherboard 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 91: Advanced

    IMBA-C2060 ATX Motherboard System Overview The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information cannot be changed. The items shown in the system overview include: BIOS Information Processor Information Memory Information PCH Information SPI Clock Frequency...

  • Page 92: Acpi Settings

    IMBA-C2060 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > ACPI Settings System ACPI Parameters > RTC Wake Settings > Trusted Computing > CPU Configuration > SATA Configuration ---------------------- >...

  • Page 93: Rtc Wake Settings

    IMBA-C2060 ATX Motherboard ACPI Sleep State [S1 (CPU Stop Clock)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used. Suspend Disabled The system enters S1(POS) sleep state. The S1 only (CPU Stop EFAULT system appears off.

  • Page 94: Trusted Computing

    IMBA-C2060 ATX Motherboard Wake system with Fixed Time [Disabled] Use the Wake system with Fixed Time option to enable or disable the system wake on alarm event. Disabled The real time clock (RTC) cannot generate a wake EFAULT event Enabled...

  • Page 95: Cpu Configuration

    IMBA-C2060 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Configuration Enables or Disables BIOS Security Device Support [Disable] support for security device. O.S. will not Current Status Information show Security Device. NO Security Device Found...

  • Page 96: Bios Menu 6: Cpu Configuration

    IMBA-C2060 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced CPU Configuration Enabled for Windows XP and Linux (OS optimized Intel(R) Core(TM) i3-2120 CPU @ 3.30GHz for Hyper-Threading CPU Signature 206a7 Technology) and Disabled Microcode Patch...
  • Page 97 IMBA-C2060 ATX Motherboard L2 Cache: Lists the amount of storage space on the L2 cache. L3 Cache: Lists the amount of storage space on the L3 cache. Hyper-threading [Enabled] Use the Hyper-threading function to enable or disable the CPU hyper threading function.

  • Page 98: Sata Configuration

    IMBA-C2060 ATX Motherboard 5.3.5 SATA Configuration Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced SATA Controller(s)

  • Page 99: Intel Txt(Lt) Configuration

    IMBA-C2060 ATX Motherboard NOTE: Before accessing the RAID configuration utility, ensure to set the Option ROM Messages BIOS option in the Boot menu to Force BIOS. This is to allow the “Press <CTRL+I> to enter Configuration Utility……” message to appear during POST. Press Ctrl+I when prompted to enter the RAID configuration utility.

  • Page 100: Bios Menu 9: Amt Configuration

    IMBA-C2060 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Intel AMT [Enabled] Enable/Disable Intel (R) Un-Configure ME [Disabled] Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution.

  • Page 101: Usb Configuration

    IMBA-C2060 ATX Motherboard 5.3.8 USB Configuration Use the USB Configuration menu (BIOS Menu 10) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 102: F81866 Super Io Configuration

    IMBA-C2060 ATX Motherboard Disabled Legacy USB support disabled Legacy USB support disabled if no USB devices are Auto connected 5.3.9 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 11) to set or change the configurations for the serial ports.

  • Page 103: Serial Port N Configuration

    IMBA-C2060 ATX Motherboard 5.3.9.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 12) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Serial Port n Configuration Enable or Disable Serial...
  • Page 104 IMBA-C2060 ATX Motherboard IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt IRQ=3, 4 address is IRQ3, 4 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4 IRQ=3, 4 IO=2C0h; Serial Port I/O port address is 2C0h and the interrupt...
  • Page 105 IMBA-C2060 ATX Motherboard IO=2C8h; Serial Port I/O port address is 2C8h and the interrupt IRQ=3, 4 address is IRQ3, 4 5.3.9.1.3 Serial Port 3 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.
  • Page 106 IMBA-C2060 ATX Motherboard 5.3.9.1.4 Serial Port 4 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disabled Disable the serial port Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 107 IMBA-C2060 ATX Motherboard 5.3.9.1.5 Serial Port 5 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disabled Disable the serial port Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 108 IMBA-C2060 ATX Motherboard 5.3.9.1.6 Serial Port 6 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disabled Disable the serial port Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 109: Parallel Port Configuration

    IMBA-C2060 ATX Motherboard 5.3.9.2 Parallel Port Configuration Use the Parallel Port Configuration menu (BIOS Menu 13) to configure the parallel port. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Parallel Port Configuration Change the Printer Port mode...

  • Page 110: F81866 H/W Monitor

    IMBA-C2060 ATX Motherboard IO=278h; Parallel Port I/O port address is 278h and the IRQ=5, 7 interrupt address is IRQ5, 7 Parallel Port I/O port address is 3BCh and the IO=3BCh; interrupt address is IRQ5, 7 IRQ=5, 7 Device Mode [Printer Mode] Use the Device Mode option to select the mode the parallel port operates in.

  • Page 111: Bios Menu 14: F81866 H/W Monitor

    IMBA-C2060 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced PC Health Status Smart Fan Mode Select > Smart Fan Mode Configuration CPU Temperature : +44 C SYS Temperature : +31 C CPU_FAN1 Speed : 4983 RPM...

  • Page 112: Smart Fan Mode Configuration

    IMBA-C2060 ATX Motherboard 5.3.10.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 15) to configure fan temperature and speed settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Smart Fan Mode Configuration...

  • Page 113: Serial Port Console Redirection

    IMBA-C2060 ATX Motherboard System Temperature n Use the + or – key to change the System Temperature n value. Enter a decimal number between 0 and 100. 5.3.11 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 16) allows the console redirection options to be configured.
  • Page 114 IMBA-C2060 ATX Motherboard Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function. Disabled the console redirection function Disabled EFAULT Enabled Enabled the console redirection function NOTE: The following five options appear when the Console Redirection option is enabled.
  • Page 115 IMBA-C2060 ATX Motherboard Data Bits [8] Use the Data Bits option to specify the number of data bits. Sets the data bits at 7. Sets the data bits at 8. EFAULT Parity [None] Use the Parity option to specify the parity bit that can be sent with the data bits for detecting the transmission errors.

  • Page 116: Iei Feature

    IMBA-C2060 ATX Motherboard 5.3.12 iEi Feature Use the iEi Feature menu (BIOS Menu 17) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function...

  • Page 117: Chipset

    IMBA-C2060 ATX Motherboard 5.4 Chipset Use the Chipset menu (BIOS Menu 18) to access the PCH IO and System Agent (SA) configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 118: Pch-Io Configuration

    IMBA-C2060 ATX Motherboard 5.4.1 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 19) to configure the PCH parameters. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset Auto Power Button Status [Disable (ATX)] Select AC power state...

  • Page 119: Pci Express Configuration

    IMBA-C2060 ATX Motherboard Enabled Enable to reduce power consumption in system off state. 5.4.1.1 PCI Express Configuration Use the PCI Express Configuration menu (BIOS Menu 20) to configure the PCIe x4 expansion slot. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 120: Pch Azalia Configuration

    IMBA-C2060 ATX Motherboard 5.4.1.2 PCH Azalia Configuration Use the PCH Azalia Configuration menu (BIOS Menu 21) to configure the HD Audio controller. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset PCH Azalia Configuration Control Detection of the Azalia device.

  • Page 121: System Agent (Sa) Configuration

    IMBA-C2060 ATX Motherboard Enabled The internal HDMI codec automatically detected and EFAULT enabled. 5.4.2 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 22) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 122: Bios Menu 23: Graphics Configuration

    IMBA-C2060 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset Graphics Configuration Select which of IGFX/PEG/PCI Graphics Primary Display [Auto] device should be Primary DVMT Pre-Allocated [128M] Display Or select SG for DVMT Total Gfx Mem [MAX] Switchable Gfx.

  • Page 123: Nb Pcie Configuration

    IMBA-C2060 ATX Motherboard DVMT Total Gfx Mem [MAX] Use the DVMT Total Gfx Mem option to select DVMT5.0 total graphic memory size used by the internal graphic device. The following options are available: 128M 256M Default Primary IGFX Boot Display [VBIOS Default] Use the Primary IGFX Boot Display option to select the display device used by the system when it boots.
  • Page 124 IMBA-C2060 ATX Motherboard PEG0 – Gen X [Gen1] Use the PEG0 – Gen X option to select the support type of the PCI Express x16 slot (PCIEX16_1). The following options are available: Auto Gen1 Default Gen2 Gen3 PEG1 – Gen X [Gen1] Use the PEG1 –...

  • Page 125: Memory Configuration

    IMBA-C2060 ATX Motherboard Detect Non-Compliance Device [Enabled] Use the Detect Non-Compliance Device option to enable or disable detecting a non-compliance PCI Express device in the PEG. The following options are available: Disabled Enabled Default 5.4.2.3 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 25) to view memory information.

  • Page 126: Boot

    IMBA-C2060 ATX Motherboard 5.5 Boot Use the Boot menu (BIOS Menu 26) to configure system boot options. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Configuration Select the keyboard...
  • Page 127 IMBA-C2060 ATX Motherboard Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Normal POST messages displayed Disabled Enabled OEM Logo displayed instead of POST messages EFAULT Option ROM Messages [Force BIOS] Use the Option ROM Messages option to set the Option ROM display mode.

  • Page 128: Security

    IMBA-C2060 ATX Motherboard 5.6 Security Use the Security menu (BIOS Menu 27) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set,...

  • Page 129: Bios Menu 28: Save & Exit

    IMBA-C2060 ATX Motherboard Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Save Changes and Reset Reset the system after Discard Changes and Reset saving the changes. Restore Defaults Save as User Defaults...

  • Page 130: Software Drivers

    IMBA-C2060 ATX Motherboard Chapter Software Drivers Page 116...

  • Page 131: Available Software Drivers

    Intel® IT Director application Installation instructions are given below. 6.2 Software Installation All the drivers for the IMBA-C2060 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 132: Figure 6-1: Introduction Screen

    IMBA-C2060 ATX Motherboard Figure 6-1: Introduction Screen Step 3: Click IMBA-C2060. Step 4: A new screen with a list of available drivers appears (Figure 6-2). Figure 6-2: Available Drivers Step 5: Install all of the necessary drivers in this menu.

  • Page 133: Chipset Driver Installation

    IMBA-C2060 ATX Motherboard 6.3 Chipset Driver Installation To install the chipset driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Chipset”. Step 3: Locate the setup file and double click on it.

  • Page 134: Figure 6-4: Chipset Driver Welcome Screen

    IMBA-C2060 ATX Motherboard Figure 6-4: Chipset Driver Welcome Screen Step 7: The license agreement in Figure 6-5 appears. Step 8: Read the License Agreement. Step 9: Click Yes to continue. Figure 6-5: Chipset Driver License Agreement Step 10: The Read Me file in Figure 6-6 appears.

  • Page 135: Figure 6-6: Chipset Driver Read Me File

    IMBA-C2060 ATX Motherboard Step 11: Click Next to continue. Figure 6-6: Chipset Driver Read Me File Step 12: Setup Operations are performed as shown in Figure 6-7. Step 13: Once the Setup Operations are complete, click Next to continue. Figure 6-7: Chipset Driver Setup Operations...

  • Page 136: Graphics Driver Installation

    IMBA-C2060 ATX Motherboard Step 14: The Finish screen in Figure 6-8 appears. Step 15: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 6-8: Chipset Driver Installation Finish Screen 6.4 Graphics Driver Installation To install the Graphics driver, please do the following.

  • Page 137: Figure 6-9: Graphics Driver Welcome Screen

    IMBA-C2060 ATX Motherboard Figure 6-9: Graphics Driver Welcome Screen Step 6: The License Agreement in Figure 6-10 appears. Step 7: Click Yes to accept the agreement and continue. Figure 6-10: Graphics Driver License Agreement Step 8: Setup Operations are performed as shown in Figure 6-11.

  • Page 138: Figure 6-11: Graphics Driver Setup Operations

    IMBA-C2060 ATX Motherboard Step 9: Once the Setup Operations are complete, click Next to continue. Figure 6-11: Graphics Driver Setup Operations Step 10: The Finish screen in Figure 6-12 appears. Step 11: Select “Yes, I want to restart this computer now” and click Finish.Step 0:...

  • Page 139: Lan Driver Installation

    IMBA-C2060 ATX Motherboard 6.5 LAN Driver Installation To install the LAN driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “LAN”. Step 3: Locate the Autorun file and double click it. Step 4: The Intel®...

  • Page 140: Figure 6-14: Lan Driver Welcome Screen

    IMBA-C2060 ATX Motherboard Figure 6-14: LAN Driver Welcome Screen Step 7: Click Next to continue. Step 8: The License Agreement in Figure 6-15 appears. Step 9: Accept the agreement by selecting “I accept the terms in the license agreement”. Step 10: Click Next to continue.

  • Page 141: Figure 6-16: Lan Driver Setup Options

    IMBA-C2060 ATX Motherboard Step 11: The Setup Options screen in Figure 6-16 appears. Step 12: Select program features to install. Step 13: Click Next to continue. Figure 6-16: LAN Driver Setup Options Step 14: The Ready to Install the Program screen in Figure 6-17 appears.

  • Page 142: Figure 6-17: Lan Driver Installation

    IMBA-C2060 ATX Motherboard Figure 6-17: LAN Driver Installation Step 16: The program begins to install. Step 17: When the driver installation is complete, the screen in Figure 6-18 appears. Step 18: Click Finish to exit. Figure 6-18: LAN Driver Installation Complete...

  • Page 143: Audio Driver Installation

    IMBA-C2060 ATX Motherboard 6.6 Audio Driver Installation To install the audio driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Audio” and select the folder which corresponds to the operating system. Step 3: Double click the setup file.

  • Page 144: Figure 6-20: Audio Driver Welcome Screen

    IMBA-C2060 ATX Motherboard Figure 6-20: Audio Driver Welcome Screen Step 7: The audio driver installation begins. See Figure 6-21. Figure 6-21: Audio Driver Installation Step 8: When the installation is complete, the screen in Figure 6-22 appears. Step 9: Select “Yes, I want to restart my computer now” and click Finish.

  • Page 145: Usb 3.0 Driver Installation

    IMBA-C2060 ATX Motherboard 6.7 USB 3.0 Driver Installation To install the touch panel software driver, please follow the steps below. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “USB 3.0”. Step 3: Locate the setup file and double click on it.

  • Page 146: Figure 6-24: Usb 3.0 Driver License Agreement

    IMBA-C2060 ATX Motherboard Figure 6-24: USB 3.0 Driver License Agreement Step 8: The Install screen appears and displays the progress of the installation F igure 6-25). Figure 6-25: USB 3.0 Driver Installation Screen Step 9: When the installation is complete, click F to exit setup.

  • Page 147: Intel® Amt Driver And Application

    IMBA-C2060 ATX Motherboard Figure 6-26: USB 3.0 Driver Update Complete 6.8 Intel® AMT Driver and Application 6.8.1 Intel® Management Engine Components Installation The package of the Intel® ME components includes Intel® Management Engine Interface (Intel® ME Interface) Serial Over LAN (SOL) driver...

  • Page 148: Figure 6-27: Intel® Me Driver Welcome Screen

    IMBA-C2060 ATX Motherboard Step 4: Locate the setup file and double click it. Step 5: When the setup files are completely extracted the Welcome Screen in Figure 6-27 appears. Step 6: Click Next to continue. Figure 6-27: Intel® ME Driver Welcome Screen Step 7: The license agreement in Figure 6-28 appears.

  • Page 149: Figure 6-28: Intel® Me Driver License Agreement

    IMBA-C2060 ATX Motherboard Figure 6-28: Intel® ME Driver License Agreement Step 10: The Read Me file in Figure 6-29 appears. Step 11: Click Next to continue. Figure 6-29: Intel® ME Driver Read Me File Page 135...

  • Page 150: Figure 6-30: Intel® Me Driver Setup Operations

    IMBA-C2060 ATX Motherboard Step 12: Setup Operations are performed as shown in Figure 6-30. Step 13: Once the Setup Operations are complete, click Next to continue. Figure 6-30: Intel® ME Driver Setup Operations Step 14: The Finish screen in Figure 6-31 appears.

  • Page 151: Intel® It Director Application Installation

    IMBA-C2060 ATX Motherboard Figure 6-31: Intel® ME Driver Installation Finish Screen 6.8.2 Intel® IT Director Application Installation Intel® IT Director is an application that helps address key IT security, data protection and network health concerns of small businesses. To install the Intel® IT Director application, please do the following.

  • Page 152: Figure 6-32: It Director Welcome Screen

    IMBA-C2060 ATX Motherboard Step 5: The Welcome Screen in Figure 6-32 appears. Step 6: Click Next to continue. Figure 6-32: IT Director Welcome Screen Step 7: The license agreement in Figure 6-33 appears. Step 8: Accept the agreement by selecting “I accept the terms in the license agreement”.

  • Page 153: Figure 6-33: It Director License Agreement

    IMBA-C2060 ATX Motherboard Figure 6-33: IT Director License Agreement Step 10: Continue to choose the installation type and the destination folder for the IT Director application. Step 11: The Ready to Install the Program screen in Figure 6-34 appears. Step 12: Click Install to proceed with the installation.

  • Page 154: Figure 6-35: It Director Installation Complete

    IMBA-C2060 ATX Motherboard Step 13: The program begins to install. Step 14: When the driver installation is complete, the screen in Figure 6-35 appears. Step 15: Click Next to configure the system for remote monitoring or Cancel to exit the program and configure the system later.

  • Page 155: Figure 6-36: It Director Configuration Tool Welcome Screen

    IMBA-C2060 ATX Motherboard Figure 6-36: IT Director Configuration Tool Welcome Screen NOTE: It is recommended to open the Intel® IT Director Getting Started Guide shown in Figure 6-36 to fully understand the configuration process. Step 17: Select whether this is the first computer you are creating a password for IT Director.

  • Page 156: Figure 6-37: It Director - Creating Password

    IMBA-C2060 ATX Motherboard Figure 6-37: IT Director – Creating Password Step 18: Follow the instructions to create a new password or enter the password created previously. Step 19: When the configuration is complete, the screen in Figure 6-38 appears. Step 20: Click Finish to exit.
  • Page 157 IMBA-C2060 ATX Motherboard Step 0: NOTE: If the network connection doesn’t work after installing the Intel® IT Director in a Windows Vista system, please install the network adapter driver. The driver is located at \7-iAMT, iTPM Driver & Utility\AMT Hot Fix\V1.0C0206 of the driver CD.

  • Page 158: Abios Options

    IMBA-C2060 ATX Motherboard Appendix BIOS Options Page 144...
  • Page 159 IMBA-C2060 ATX Motherboard Below is a list of BIOS configuration options in the BIOS chapter. 　 System Overview .........................77 　 System Date [xx/xx/xx] ......................77 　 System Time [xx:xx:xx] .......................77 　 ACPI Sleep State [S1 (CPU Stop Clock)] ................79 　 Wake system with Fixed Time [Disabled]................80 　...
  • Page 160 IMBA-C2060 ATX Motherboard 　 System Temperature n ......................99 　 Console Redirection [Disabled] ..................100 　 Terminal Type [ANSI]......................100 　 Bits per second [115200]....................100 　 Data Bits [8] ........................101 　 Parity [None]........................101 　 Stop Bits [1] ........................101 　...

  • Page 161: B Terminology

    IMBA-C2060 ATX Motherboard Appendix Terminology Page 147...
  • Page 162 IMBA-C2060 ATX Motherboard AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 163 IMBA-C2060 ATX Motherboard DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module. The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices.
  • Page 164 IMBA-C2060 ATX Motherboard LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer. POST The Power-on Self Test (POST) is the pre-boot actions the system performs when the system is turned-on.

  • Page 165: C Digital I/O Interface

    IMBA-C2060 ATX Motherboard Appendix Digital I/O Interface Page 151...

  • Page 166: Introduction

    IMBA-C2060 ATX Motherboard C.1 Introduction The DIO connector on the IMBA-C2060 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 167: Enable The Dio Output Function

    IMBA-C2060 ATX Motherboard C.3.2 Enable the DIO Output Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O output functions is listed below. AX, 6F09H Sets the digital port as output BL, 09H...

  • Page 168: D Watchdog Timer

    IMBA-C2060 ATX Motherboard Appendix Watchdog Timer Page 154...
  • Page 169 IMBA-C2060 ATX Motherboard NOTE: The following discussion applies to DOS environment. Contact IEI support or visit the IEI website for specific drivers for other operating systems. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash. This condition may have occurred by external EMIs or a software bug.
  • Page 170 IMBA-C2060 ATX Motherboard NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 171: E Intel® Matrix Storage Manager

    IMBA-C2060 ATX Motherboard Appendix Intel® Matrix Storage Manager Page 157...

  • Page 172: Introduction

    IMBA-C2060 ATX Motherboard E.1 Introduction The IMBA-C2060 can provide data protection for serial ATA (SATA) disks via the Intel® Matrix Storage Manager using one of three fault-tolerant RAID levels: RAID 1, 5 or 10. When using two hard drives, matrix RAID allows RAID 0 and RAID 1 functions to be combined, where critical files can be stored on RAID 1, and RAID 0 can be used for non-critical items such as software.

  • Page 173: Features And Benefits

    IMBA-C2060 ATX Motherboard CAUTION! Do not accidentally disconnect the SATA drive cables. Carefully route the cables within the chassis to avoid system down time. E.2 Features and Benefits Supports RAID levels 0, 1, 5 and 10 Supports connectivity to two or more disk drives...

  • Page 174: Installing The Operating System To The Raid Array

    IMBA-C2060 ATX Motherboard appear during the POST. Refer to the applicable BIOS configuration section in this user manual. Step 4: Save and Exit BIOS. After the SATA support option is enabled, save and exit the BIOS. Step 5: Reboot the system. Reboot the system after saving and exiting the BIOS.

  • Page 175: F Hazardous Materials Disclosure

    IMBA-C2060 ATX Motherboard Appendix Hazardous Materials Disclosure Page 161...

  • Page 176: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    IMBA-C2060 ATX Motherboard F.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 177 IMBA-C2060 ATX Motherboard Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 178 IMBA-C2060 ATX Motherboard 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
