WHITE GOODS

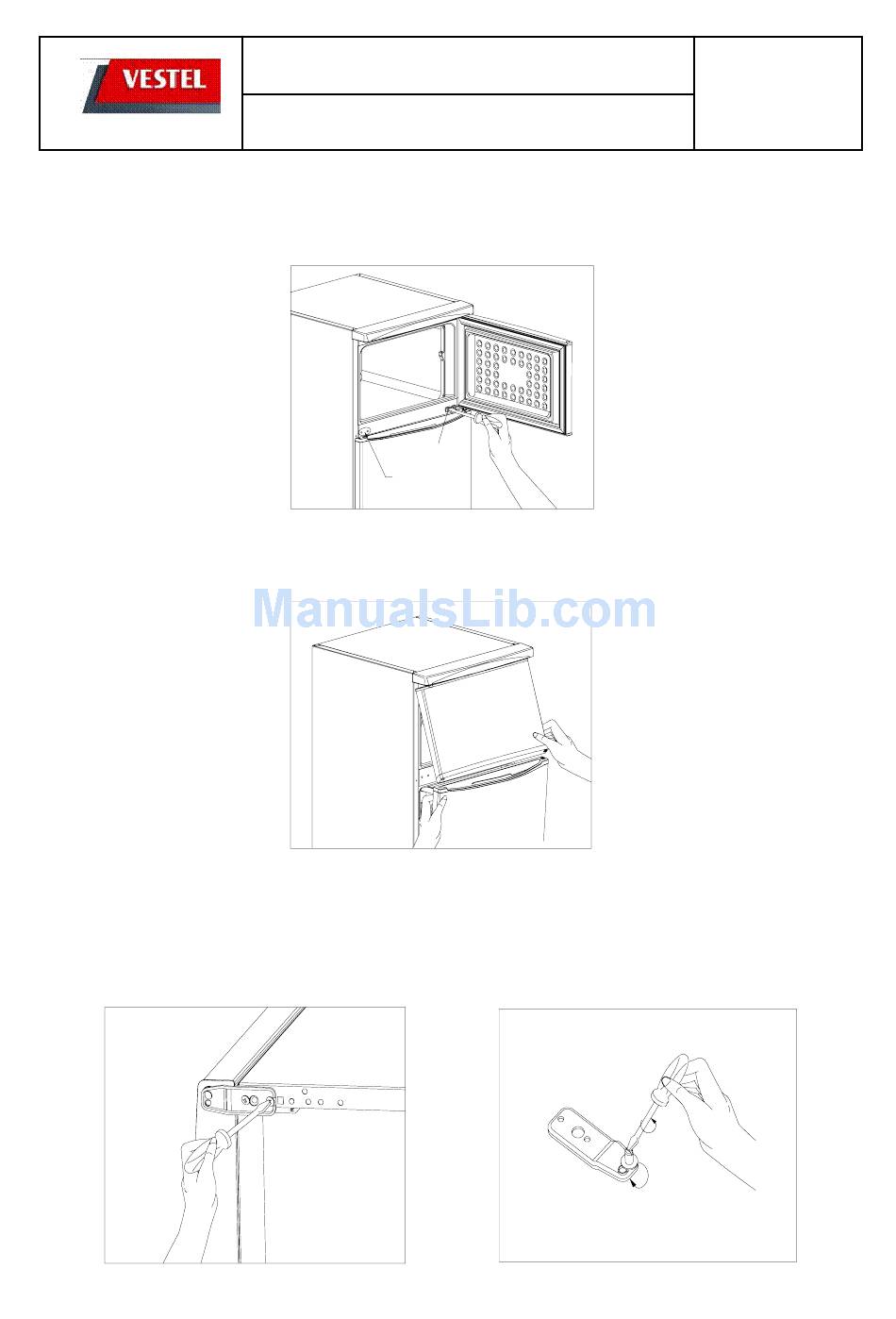

A- Changing The Door Swing Direction to Right Hand

1- Unscrew the two screws which are fixing the middle hinge and remove the two

middle hinge screw caps (big). (Fig-1)

2- Dismantle the refrigerator and freezer door from cabinet by pulling towards to you

together with the middle hinge. (Fig-2)

3- Lie down the appliance to the left side. Dismantle both leveling feet and unscrew

the bottom hinge fixing screws and remove it. (Fig-3) Unscrew the bottom hinge pin

and screw in the next hole.(Fig-4) Then screw the hinge to left side of the refrigerator.

Screw the both leveling feet.

VESTEL REFRIGERATOR

ASSEMBLE & DISASSEMBLE

Figure -3

Unscrew the two

hinge screw.

Remove the two

middle hinge

screw caps (big)

Figure - 1

Figure - 2

CUSTOMER

SUPPORT

Figure -4

Page 1 VESTEL REFRIGERATOR CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS A- Changing The Door Swing Direction to Right Hand 1- Unscrew the two screws which are fixing the middle hinge and remove the two middle hinge screw caps (big). (Fig-1) Unscrew the two hinge screw.
Page 2 VESTEL REFRIGERATOR CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS 4- Place the two middle hinge screw caps (big) as shown in the figure. (Fig-5) You can find the new caps in the user manuel bag. Insert the two middle hinge screw caps (big) here.
Page 3 VESTEL REFRIGERATOR CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS 7- Replace the top bushing and top bushing cap. (Fig-8) Remove the bottom bushing assemble it to the left hole. (Fig-8) F R E E Z E R D O O R Figure - 8 8- Turn the middle hinge 180º...
Page 4 VESTEL REFRIGERATOR CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS B - Changing The Thermostat : 1) Remove the lamp cover and unscrew the fixing screw. 2) Remove the screw cap and unscrew the fixing screw. 3) Remove the thermostat box by pulling it and disconnecting the wire connector.
Page 5: Refrigerant Cycle Diagram
VESTEL REFRIGERATOR CUSTOMER SUPPORT REFRIGERANT CYCLE DIAGRAM WHITE GOODS F EVAPORATOR HOT PIPE CONDENSER SUCTION PIPE COMPRESSOR...
