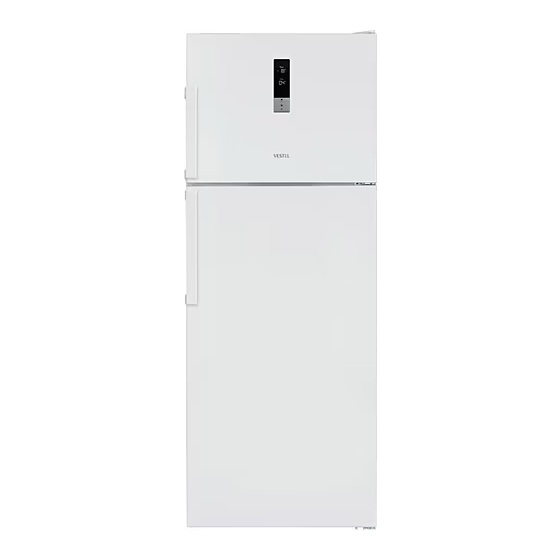

VESTEL NF480 E User Manual
  1. Manuals
  2. Brands
  3. VESTEL Manuals
  4. Refrigerator
  5. NF480 E
  6. User manual

VESTEL NF480 E User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REFRIGERATOR
USER MANUAL
NF480 E
NF480 EX
A member of Zorlu Holding

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF480 E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VESTEL NF480 E

Summary of Contents for VESTEL NF480 E

  • Page 1 REFRIGERATOR USER MANUAL NF480 E NF480 EX A member of Zorlu Holding...
  • Page 3 Your device will serve you for long years as long as you display the nec- essary care and maintenance. We hope you enjoy using your device. This product was manufactured in environmentally friendly VESTEL BEYAZ EŞYA A.Ş. facilities with no harm to the nature.
  • Page 4 WARNING: Risk of serious injury or death. CAUTION: Risk of injury or damage to properties. WARNING: Risk of fire. WARNING: Must be unplug your appliance. WARNING: Must be call to call-service. EN -4-...

  • Page 5: Table Of Contents

    Contents BEFORE USING THE APPLIANCE ..............6 General warnings ......................6 Old and out-of-order fridges ..................8 Safety warnings ......................8 Installing and operating your fridge ................9 Before Using your Fridge ....................10 Liability Limitation ......................10 THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....11 Technicial Specifications .....................12 THE VARIOUS FUNCTION AND POSSIBILITIES ..........

  • Page 6: Before Using The Appliance

    PART - 1. BEFORE USING THE APPLIANCE General warnings WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Page 7 - farm houses and by clients in hotels, motels and other resi- dential type environments - bed and breakfast type environments; - catering and similar non-retail applications • If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • Page 8: Old And Out-Of-Order Fridges

    Old and out-of-order fridges • If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

  • Page 9: Installing And Operating Your Fridge

    • Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution! • Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode. • Do not place explosive or flammable material in your fridge for your safety.

  • Page 10: Before Using Your Fridge

    If your fridge doesn’t have a fan condenser, in other words, back side of your fridge is like below: • Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° as shown in the figure to prevent the condenser from touching the wall.

  • Page 11: The Parts Of The Appliance And The Compartments

    THE PARTS OF THE APPLIANCE AND THE PART - 2. COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A. Freezer compartment B. Fridge compartment 1. Freezer door shelves 9.

  • Page 12: Technicial Specifications

    Technicial Specifications NF480 E / NF480 EX Model Energy class 1,038 (kW / 24 h) / 379 (kW / year) (Energy consumption of 379 kWh per year, calculated on the basis of results obtained in 24 hours under Energy consumption normalised test conditions.

  • Page 13: The Various Function And Possibilities

    PART - 3. THE VARIOUS FUNCTION AND POSSIBILITIES Information about New Generation Cooling Technology Fridges with new generation cooling technology have a different working system than static fridges. In normal fridges, humid air that enters into fridge and the water vapor that comes out from the foods, accumulates frost formation in freezer compart- ment.

  • Page 14: Display And Control Panel

    Display and control panel 1. It is super freeze indicator. 2. It is freezer set value screen. 3. It is super cooling indicator. 4. It is cooler set value screen. 5. It is alarm symbol. 6. It is economy mode symbol. 7.

  • Page 15: Operating Your Fridge

    Operating your fridge Super freeze mode How would it be used? Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set. During this mode: • Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.

  • Page 16: Holliday Mode

    • To cancel, you will just need to press on mode button. Holliday mode How would it be used? • Push "mode button" until holiday symbol appears • If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3 times.

  • Page 17: Light Cancelling Mode

    Light cancelling mode When would it be used? • If you want to cancel lights of cooler, you can select this mode. • While pushing the freezer and mode buttons, open and close cooler door 3 times. The mode will be selected in this way. From now on, the lights will not come on when the function is not cancelled by the same way.

  • Page 18: Cooler Temperature Settings

    Cooler temperature settings • Initial temperature value for Cooler Setting Indicator is +4 °C. • Press cooler button once. • When you first push this button, the last value appears on the setting indica- tor of the cooler. • Whenever you press on this button, lower temperature will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool) •...

  • Page 19: Accessories

    • Your fridge is designed to operate in the ambient Climate class Ambient ( temperature intervals stated in the standards, ac- 16 to 43 ( cording to the climate class stated in the information label. We do not recommend operating your fridge 16 to 38 ( out of stated temperatures value limits in terms of 16 to 32 (...

  • Page 20: Fresh Dial

    Removing the Chiller shelf • Pull the chiller shelf out toward you by sliding on rails. • Pull the chiller shelf up from rail to remove. After the chiller shelf was removed, Max. 20 kg load can be placed. Fresh dial When the humidity controler in the closed position, it allows fresh fruit and vegetables to be stored longer.

  • Page 21: Arranging Food In The Appliance

    PART - 4. ARRANGING FOOD IN THE APPLIANCE Refrigerator compartment • To reduce frost build up never place liquids with unsealed containers in the fridge compartment. • Allow warn or hot food to cool down before storing. This helps reduce power consumption. •...
  • Page 22 • While freezing fresh foods(i.e meat,fish and mincemeat),divide into portion sizes. • Once the unit has been defrosted replace the foods into freezer and remember to con- sume them in a short period of time. • Never place warm food in the freezer compartment. •...
  • Page 23 With putting the foods onto the air suction hole by extracting the the lower shelf located at freezer door, will affect the performance of the fridge, negatively. Therefore, please be careful while loading the freezer compartment in order not to close down the air suction hole.
  • Page 24 Maximum Stor- ing time Meat and fish Preparation (month) Wrapping in a foil 6 - 8 Steak Wrapping in a foil 6 - 8 Lamb meat Veal roast Wrapping in a foil 6 - 8 In small pieces 6 - 8 Veal cubes In pieces 4 - 8...
  • Page 25 Maximum Stor- Vegetables and Fruits Preparation ing time (months) String beans and Wash and cut to small pieces and boil 10 - 13 beans in water Hull and wash and boil in water Beans Cleaned and boil in water 6 - 8 Cabbage Carrot Clean and cut to slices and boil in water...

  • Page 26: Cleaning And Maintenance

    PART - 5. CLEANING AND MAINTENANCE • Make sure to unplug the fridge before starting to clean it. • Do not wash your fridge by pouring water. • You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.
  • Page 27 Replacing The Light Led (If the illumination is occured via LED strip) 1 led strip in freezer compartment and 2 led strips in cooler compartment are used to illumi- nate your appliance. Please call the service man. Note: Numbers and location of led strips may be changed according to the model. !!! Some versions may be without freezer illumination.

  • Page 28: Transportation And Changing Of Installation Position

    TRANSPORTATION AND CHANGING OF PART - 6. INSTALLATION POSITION Transportation and Changing of Installation Position • Original package and foam may be kept for re-transportation (optionally). • You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
  • Page 29 ERROR TYPE ERROR TYPE WHAT TO DO 1. Set the refrigerator tem- perature to colder values or Ideal temperature for SR – Set value set the super cooling mode "Refrigerator Ref. Compartment is +4 Blink on cooler until the compartment gets to comp.
  • Page 30 Compressor noise • Normal motor noise: This noise means that the compressor operates normally • Compressor may cause more noise for a short time when it is activated. Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

  • Page 31: Tips For Saving Energy

    Tips for saving energy 1– Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near heat source (radiator, cooker.. etc. ). Otherwise use an insulating plate. 2– Allow warm food and drinks to cool down outside the appliance. 3–...
  • Page 32 Manufacturer: and Trade General Directorate of Consumer Protection and Market Surveillance, (the Vestel Beyaz Eşya San. ve Tic. A.Ş. Manisa Şubesi duration for providing the spare parts required for functioning of the appliance) is Manisa OSB III. Kısım Keçiliköy Osb Mah.

This manual is also suitable for:

Nf480 ex
