WHITE GOODS

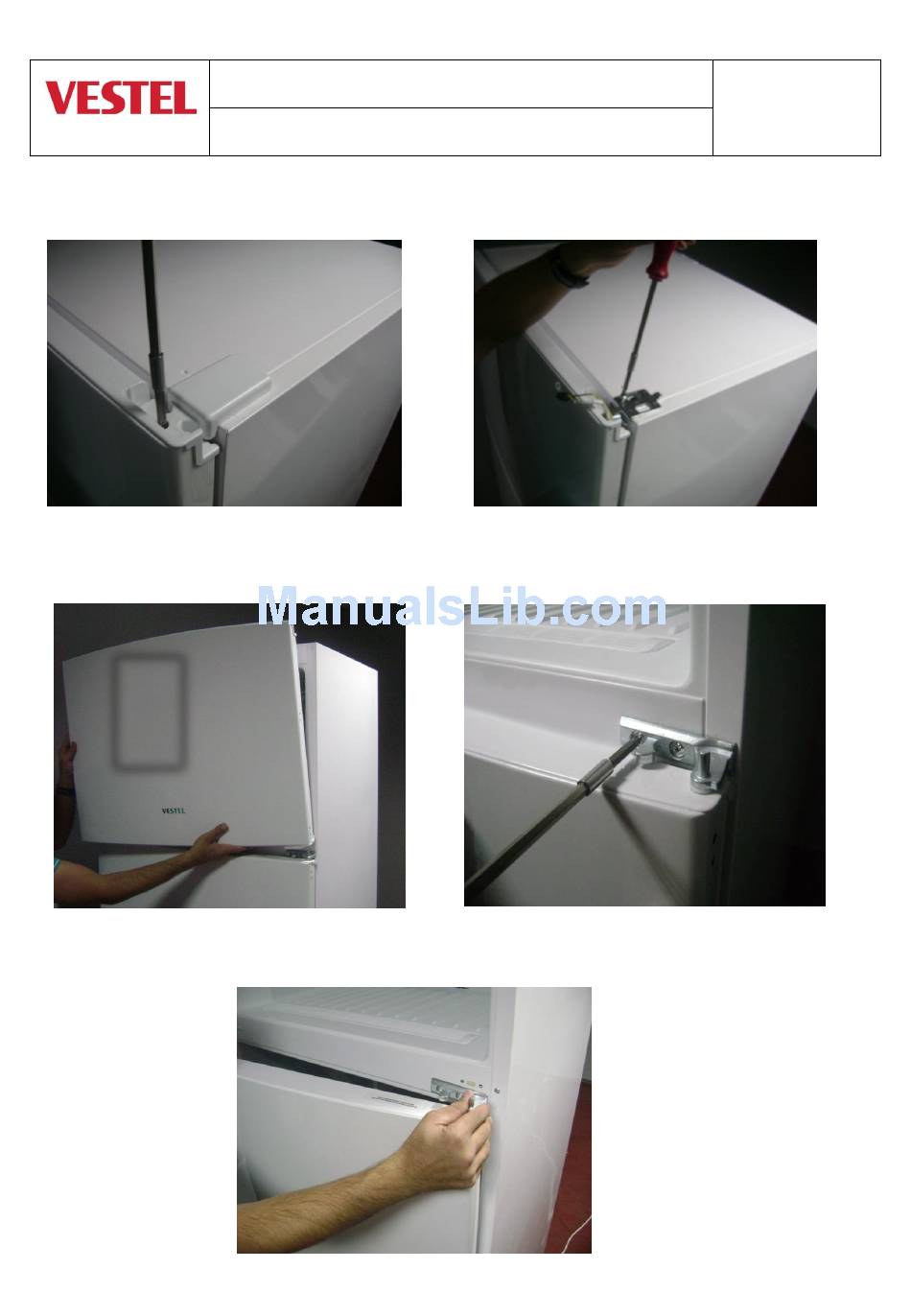

1- Unscrew the screw fixing the upper hinge
cover (Fig-1) and remove it.
Figure-1
3- Remove the freezer door. (Fig-3)
Figure-3
DOUBLE DOOR – 4561
CHANGING THE DOORWAY DIRECTION
5- Remove the refrigerator door. (Fig-5)
Figure-5
2- Unscrew the three screws fixing the
upper hinge and remove it. (Fig-2)
Figure-2
4- Unscrew the two screws which are fixing
the middle hinge. (Fig-4)
Figure-4
1
CUSTOMER
SUPPORT
DECEMBER 2014
Advertisement
Related Manuals for VESTEL 4561
Summary of Contents for VESTEL 4561
- Page 1 DOUBLE DOOR – 4561 CUSTOMER SUPPORT CHANGING THE DOORWAY DIRECTION WHITE GOODS 1- Unscrew the screw fixing the upper hinge 2- Unscrew the three screws fixing the cover (Fig-1) and remove it. upper hinge and remove it. (Fig-2) Figure-1 Figure-2 3- Remove the freezer door.
- Page 2 DOUBLE DOOR – 4561 CUSTOMER SUPPORT CHANGING THE DOORWAY DIRECTION WHITE GOODS 6- Unscrew the bottom hinge fixing screws and 7- Unscrew the stationary foot of bottom hinge remove it. (Fig-6) and screw to Hole-1 Unscrew the hinge pin and screw the pin to Hole 2. (Fig-9)
- Page 3 DOUBLE DOOR – 4561 CUSTOMER SUPPORT CHANGING THE DOORWAY DIRECTION WHITE GOODS 10- Remove the middle hinge cover on 11- Insert the middle hinge cover to the the left. (Fig-10) right side. (Fig-11) Figure-10 Figure-11 12- Replace the refrigerator door top bushing (Fig-12.1) and top bushing cap. (Fig-12.2) Figure-12.1...
- Page 4 DOUBLE DOOR – 4561 CUSTOMER SUPPORT CHANGING THE DOORWAY DIRECTION WHITE GOODS 14- Remove the freezer door right catcher (Fig-14.1) and assemble the left catcher to the left. (Fig-14.2) Figure-14.1 Figure-14.2 15- Assemble the refrigerator door. Turn the middle hinge by 180º. Fix the middle hinge by tighting the screws.
- Page 5 DOUBLE DOOR – 4561 CUSTOMER SUPPORT CHANGING THE DOORWAY DIRECTION WHITE GOODS 17- Screw the left top hinge. (Fig-17.1) and screw the hinge cover. (Fig-17.2) Figure-17.1 Figure-17.2 DECEMBER 2014...
- Page 6 DOUBLE DOOR – 4561 CUSTOMER SUPPORT Thermostat setting WHITE GOODS • Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained. «0» position shows thermostat is closed and no cooling will be avaible.
-
Page 7: Thermostat Setting
DOUBLE DOOR – 4561 CUSTOMER SUPPORT Thermostat setting WHITE GOODS Super freeze and low ambient switch (If super switch is available) a) Super freezing: If ambient temperature is more than 16°C, This switch can be used as super freeze switch. Super freeze switch should be used for freezing the fresh food or when the RED lamp on the head panel is ON. -
Page 8: Troubleshooting Chart
DOUBLE DOOR – 4561 CUSTOMER SUPPORT TROUBLE-SHOOTING CHART WHITE GOODS No/Insufficient cooling Check the Inform supply customer voltage (220-240v) (220-240v) Is it ok? Check the voltage at Is the power compressor Is compressor consumption of terminals working? compressor (220-240v) normal? - Page 9 DOUBLE DOOR – 4561 CUSTOMER SUPPORT TROUBLE-SHOOTING CHART WHITE GOODS Excessive Cooling Is the thermostat Adjust the setting appropriate thermostat to season according to conditions? seasonal conditions. Is there any Is the icing at icing the whole of formation in...
- Page 10 DOUBLE DOOR – 4561 CUSTOMER SUPPORT TROUBLE-SHOOTING CHART WHITE GOODS Door/Gasket Adjustment Is the Product ground should be on under the a firm and flat unit is surface flat? Are the Adjust the feet adjustable properly feet in correct according to...
- Page 11 DOUBLE DOOR – 4561 CUSTOMER SUPPORT TROUBLE-SHOOTING CHART WHITE GOODS Abnormal Noise Product should be Hayır Is the ground on a firm and flat under the unit is surface flat? Adjust the Are the feet adjustable properly feet in correct...
