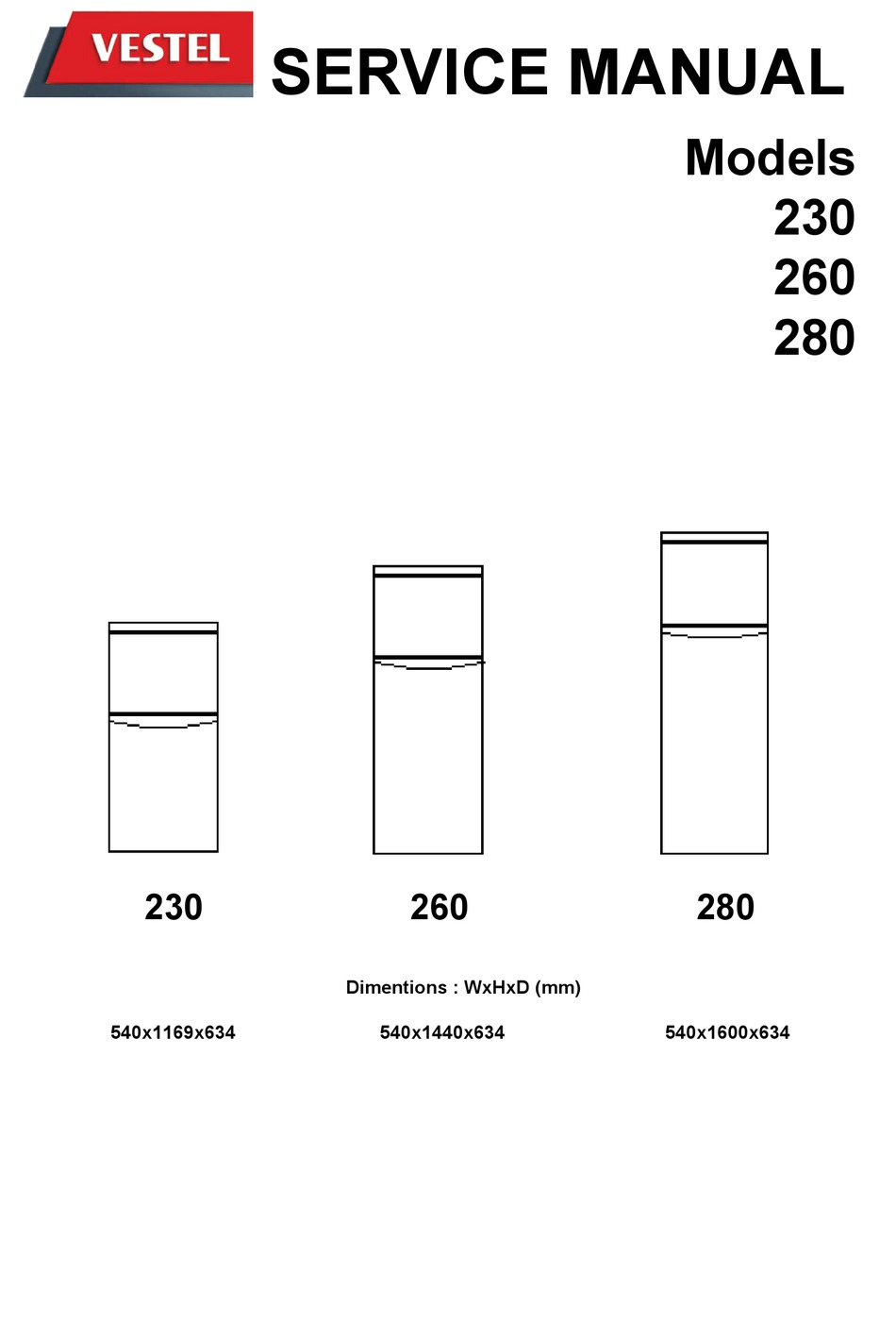

SERVICE MANUAL
230
540x1169x634
260
Dimentions : WxHxD (mm)
540x1440x634
Models
M d l
230
260
280
280
540x1600x634

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 230 and is the answer not in the manual?

Questions and answers

Summary of Contents for VESTEL 230

  • Page 1 SERVICE MANUAL M d l Models Dimentions : WxHxD (mm) 540x1169x634 540x1440x634 540x1600x634...
  • Page 2: Assemble & Disassemble

    DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS A- Changing The Door Swing Direction to Right Hand 2- Dismantle the refrigerator and freezer 1- Remove the freezer door panel caps. door from cabinet by pulling towards to you Unscrew the two screws which are fixing together with the middle hinge.
  • Page 3 DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS 4- Remove the two big caps on the middle Remove the bracket. Unscrew the two screws fixing the top middle hinge screw cap (big) hinge and remove it. Remove the top hinge screw left cap on the left side.
  • Page 4: Refrigerator Door

    DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS 7- Replace the top bushing and top bushing cap. (Fig-7) (You can find the new bushing cap in the user manual bag) Remove the bottom bushing, bottom stopper and then assemble the bottom bushing, bottom stopper to the left side.
  • Page 5 DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS 9- Turn the middle hinge by 180º . Assemble the freezer door and refrigerator door together with middle hinge. (Reverse operation of item 2) Fix the middle hinge by tighting the screws. (Fig-9) And insert the freezer door panel caps.
  • Page 6 DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE WHITE GOODS B - Changing The Thermostat : Remove the lamp cover and unscrew the fixing screw. Remove the screw cap and unscrew the fixing screw. Remove the thermostat box by pulling it and disconnecting the wire connector.
  • Page 7: Refrigerant Cycle Diagram

    DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT REFRIGERANT CYCLE DIAGRAM WHITE GOODS F EVAPORATOR HOT PIPE CONDENSER SUCTION PIPE COMPRESSOR COMPRESSOR DECEMBER 2011...
  • Page 8 DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT TROUBLE-SHOOTING CHART WHITE GOODS No/Insufficient cooling Check the Inform supply customer voltage (220-240v) (220-240v) Is it ok? Is it ok? Check the voltage at Is the power compressor Is compressor...
  • Page 9: Troubleshooting Chart

    DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT TROUBLE-SHOOTING CHART WHITE GOODS Excessive Cooling Is the thermostat Is the thermostat Adjust the setting appropriate thermostat to season according to conditions? seasonal conditions. Is there any Is the icing at...
  • Page 10 DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT TROUBLE-SHOOTING CHART WHITE GOODS Door/Gasket Adjustment Is the Product ground should be on under the a firm and flat unit is surface surface flat? Are the Adjust the feet adjustable...
  • Page 11 DOUBLE DOOR – 230 – 260 – 280 CUSTOMER SUPPORT TROUBLE-SHOOTING CHART WHITE GOODS Abnormal Noise P d t h Product should be ld b Is the ground Hayır on a firm and flat under the unit is surface flat?
