AstroJet 5000 Operator's Manual

Shuttle head printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

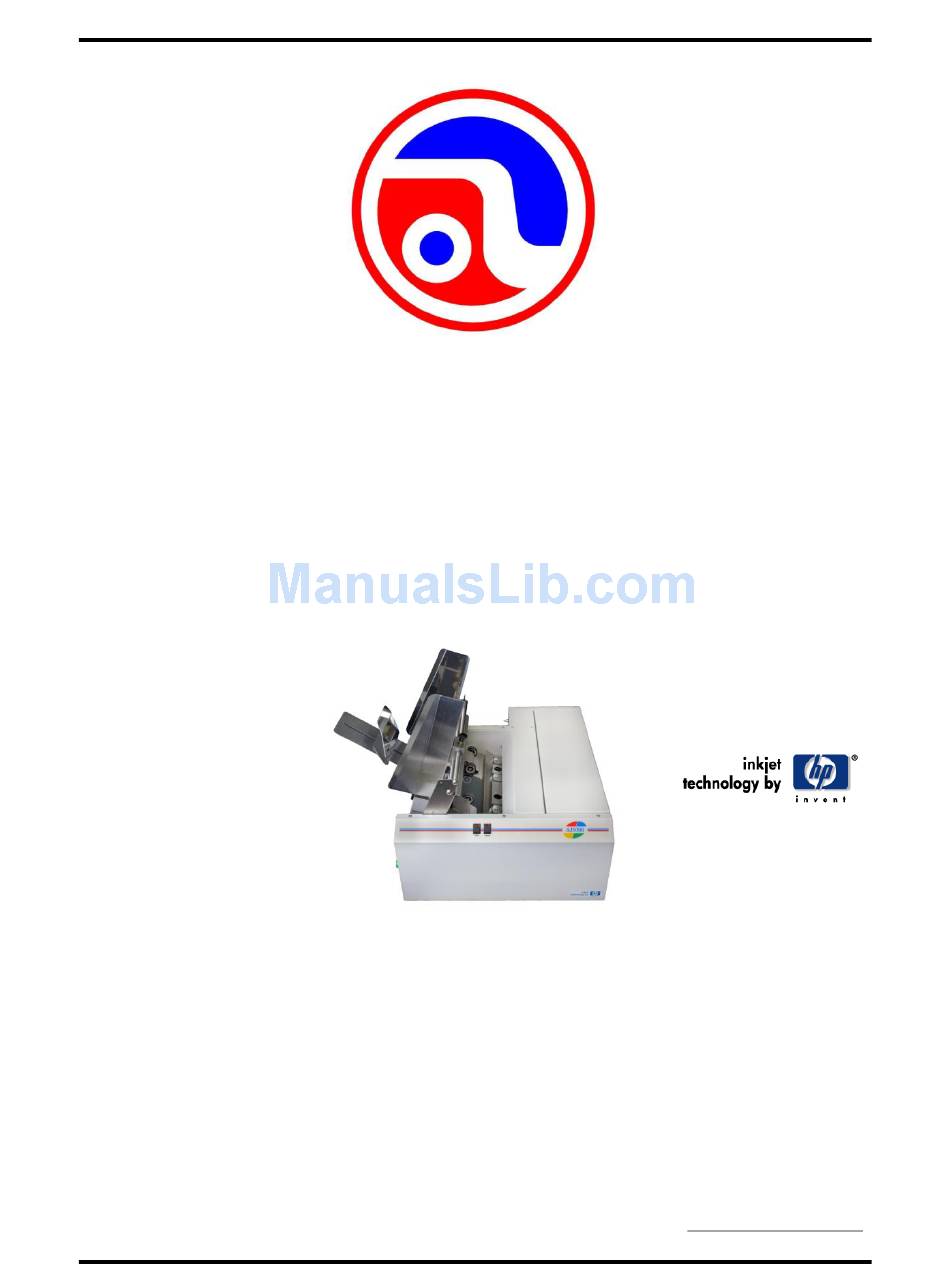

TM
AstroJet
5000
SHUTTLE HEAD
PRINTER
OPERATOR MANUAL
ASTRO MACHINE CORP.
630 Lively Blvd.
Elk Grove Village, IL 60007
Phone: (847) 364-6363
Fax: (847) 364-9898
www.astromachine.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5000 and is the answer not in the manual?

Questions and answers

Related Manuals for AstroJet 5000

Summary of Contents for AstroJet 5000

  • Page 1 AstroJet 5000 SHUTTLE HEAD PRINTER OPERATOR MANUAL ASTRO MACHINE CORP. 630 Lively Blvd. Elk Grove Village, IL 60007 Phone: (847) 364-6363 Fax: (847) 364-9898 www.astromachine.com...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS THIS EQUIPMENT PRESENTS NO PROBLEM WHEN USED PROPERLY. HOWEVER, CERTAIN SAFETY RULES SHOULD BE OBSERVED WHEN OPERATING THE ASTROJET 5000 PRINTER. BEFORE USING THE PRINTER, YOU SHOULD READ THIS MANUAL CAREFULLY AND FOLLOW THE RECOMMENDED PROCEDURES, SAFETY WARNINGS, AND INSTRUCTIONS: ...

  • Page 3: Table Of Contents

    Connecting the Computer Installing the Inkjet Cartridges Setting up the Feed Feeding Envelopes Installing the Printer Driver Section 3 – Operating the AstroJet 5000 Setting Up a Job in MS Word Printer Driver Properties Paper/Quality Tab Finishing Tab Effects Tab...
  • Page 4 TABLE OF CONTENTS NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...

  • Page 5: Section 1 - Getting Acquainted

    SECTION 1 GETTING ACQUAINTED Section 1 – Getting Acquainted Front View Paper Switch – When light blinks indicates that the next piece did not feed into position. Press it to continue printing. Cancel Switch – Press to cancel the job being printed. When the light is flashing the Printer is out of ink or a cartridge is missing.

  • Page 6: Rear View

    SECTION 1 GETTING ACQUAINTED Rear View Parallel Port Connection – Attach the Centronics Parallel cable here. USB Port Connection – USB cable attaches to the printer here. Main Power Switch – Powers up the printer when turned ON. Power Connection – Connect the Printer’s Power Pack here. Use only the Power Supply shipped with the Printer.

  • Page 7: Section 2 - Installing The Printer

    Install the Printer Driver Choose a Location The AstroJet 5000 should be placed on a sturdy worktable or cabinet at least 9 inches from any walls. Protect the AstroJet 5000 from excessive heat, dust, and moisture – avoid placing it in direct sunlight.
  • Page 8 SECTION 2 INSTALLING THE PRINTER Next install the Adjustable Side Guide using the two screws [2] provided. Attach the Rear Paper Support using the two knobs [3] provided. NOTE: The large slots fit over the socket head screws. Install the Back Guide using the thumbscrew and washer [4] provided.

  • Page 9: Connecting The Astrojet 5000

    SECTION 2 INSTALLING THE PRINTER Connecting the AstroJet 5000 Plugging in the Printer Make sure that the Main Power Switch of the Printer is in the OFF position. 1. Connect the power cord from the Power Pack to the connector [4] at the rear of the Printer.

  • Page 10: Installing The Inkjet Cartridges

    INSTALLING THE PRINTER Install the Inkjet Cartridges The AstroJet 5000 uses two Ink Cartridges, the HP57 Color Cartridge and the HP56 or HP58 Black Cartridge. Use the HP56 Black Cartridge for every day printing and the HP58 Black Cartridge for photos and high quality printing.

  • Page 11: Setting Up The Feed

    INSTALLING THE PRINTER Setting up the Feed The AstroJet Printer is equipped with four Sheet Separators, two Side Guides (one fixed and the other adjustable), and a Back Media Guide. The Sheet Separators are adjusted individually as follows: 1. Move the Adjustable Side Guide so that the locking screws on the Sheet Separator Assembly are accessible.

  • Page 12: Feeding Envelopes

    SECTION 2 INSTALLING THE PRINTER 6. Adjust the Rear Guide by loosening the locking screw and place it so that the media is raised approximately 1/2-inch above the Feed Table. 7. The same procedure is used for other media sizes and types. NOTE: The amount of media that can be stacked on the Printer is determined by the weight of the material.

  • Page 13: Installing The Printer Driver

    SECTION 2 INSTALLING THE PRINTER Installing the Printer Driver The installation procedure for the AJ5000 driver is different for USB and Parallel Ports. Follow the instructions below for installing the Printer with a USB Port. Instructions for installing the Printer on a Parallel Port follow the instructions below.
  • Page 14 SECTION 2 INSTALLING THE PRINTER 4. Once the driver is loaded the “Completing the found New Hardware Wizard” window will appear. Click FINISH. 5. The installation is complete when the “Found New Hardware” box appears in the lower right-hand corner of your screen. Parallel Port Installation 1.
  • Page 15 SECTION 2 INSTALLING THE PRINTER 4. Click on the Local printer attach to the computer and Automatically detect and install my Plug and Play printer buttons in the “Local or Network Printer” window. Then click NEXT>. 5. The “Welcome to the Found New Hardware Wizard”...
  • Page 16 SECTION 2 INSTALLING THE PRINTER 8. After a few moments you will see the “Hardware Installation” window. Click on the Continue Anyway button to continue the installation of the software. 9. When the “Completing the Found New Hardware Wizard” window opens click FINISH. 10.

  • Page 17: Section 3 - Operating The Astrojet 5000

    Printer and the paper sizes it can handle. The maximum print area for the AstroJet 5000 Printer is 8.5 inches wide by 17 inches long. The maximum paper size that the Printer can feed is 11 inches wide by 17 inches long. The diagram on the right illustrates this difference.
  • Page 18 SECTION 3 OPERATING THE ASTROJET 5000 Printing the Entire 9.5 inches on a #10 Envelope If it is necessary to be able to print the entire 9.5 inch length of the #10 envelope it can be done, however the printing speed will be greatly reduced because you will be running the envelope in the long direction.

  • Page 19: Printer Driver Properties

    OPERATING THE ASTROJET 5000 Printer Driver Properties The Printer Driver for the AstroJet 5000 works the same as any other Printer Driver for Windows. It does, however, have some enhancements to help you maximize the ability of the Printer to print variable addresses quickly and efficiently.
  • Page 20 SECTION 3 OPERATING THE ASTROJET 5000 The "Type is" box allows you to select the type of paper you are going to print. Some settings such as Photo Paper, Glossy will adjust the printing mode in the software to account for the quality of the paper.

  • Page 21: Finishing Tab

    SECTION 3 OPERATING THE ASTROJET 5000 Finishing Tab Gives you the option of printing more than one page on a single page or printing a large single page over several sheets of paper to make a sign or poster. To print more than one page on a single page, click on the "Pages per sheet"...

  • Page 22: Color Tab

    SECTION 3 OPERATING THE ASTROJET 5000 The Advanced features option on the right gives you control over Ink volume which can be used to put less ink on the paper to help drying on less porous stock. The "Dry time" option will hold the printout until the dry time has elapsed and then print the next record.

  • Page 23: Service Tab

    SECTION 3 OPERATING THE ASTROJET 5000 Service Tab Allows you to perform maintenance and check functions on the Printer. Clicking on the "Print a Test Page" button will print a sample page on the Printer as shown. Clicking on the "Print a Diagnostic" button will print the...
  • Page 24 SECTION 3 OPERATING THE ASTROJET 5000 When the "Clean the Print Cartridge" button is pressed the “Clean the Print Cartridge(s)” window appears and prints the page below. Clicking on the Intermediate Clean button opens the screen at right. Clicking on the Prime button will take you to the next level of cleaning if necessary.

  • Page 25: Tap 13

    SECTION 3 OPERATING THE ASTROJET 5000 The Calibrate Color button has no function. Pressing it will return the window at right. Tap 13 Tap 13 is a routine built into the Printer to change the way it operates. When using Tap 13, the Printer will print only the number of pieces chosen.
  • Page 26 SECTION 3 OPERATING THE ASTROJET 5000 NOTES ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________...

  • Page 27: Section 4 - Maintenance

    Printer. The Inkjet Cartridge The AstroJet 5000 Inkjet Cartridges must be replaced when out of ink, when print quality is poor, or when the built in cleaning process has not helped the image quality. The Approximate life of the Black number 56 Inkjet Cartridges, based on three lines of 20 characters at 10- point size per address, is 20,000 addresses in the Fast Draft mode.

  • Page 28: Jams In The Printer

    MAINTENANCE Cleaning the Printhead The Printheads in the AstroJet 5000 Printer are cleaned automatically each time the machine is turned on or when the Printer software decides they need cleaning. No operator intervention is required. Jams in the AstroJet 5000 Printer If a jam occurs, STOP the Printer.

  • Page 29: Replacing The Sheet Separators

    Replacement of the Sheet Separators is not difficult, simply follow the steps below: 1. Turn off the AstroJet 5000 and unplug it from the power source. 2. Release the Separator-by loosening Knob [A] and move the Paper Side Guides to their maximum open position.
  • Page 30 SECTION 4 MAINTENANCE Feed Rollers and Forwarding Rollers The Feed and Forwarding Rollers can become glazed with paper lint and ink from the media. They should be regularly cleaned with a mild abrasive household cleaner on a damp cloth. Avoid using solvents on the Rubber Rollers.

  • Page 31: Section 5 -Troubleshooting

    The following Troubleshooting Guides are provided to assist you in solving any problems that might occur with the AstroJet 5000 Printer. We have tried to make them as complete as possible. The best advice we can offer is to make sure that the system is setup properly, plugged in, that it has an adequate supply of ink before attempting to troubleshoot any problem.

  • Page 32: The Printer

    SECTION 5 TROUBLESHOOTING The Printer CONDITION PROBLEM SOLUTION Database problem. Check data in database Extra lines; losing data program. Improper output (address Wrong Interface settings. Check software or database information out of order, miss- on PC. Static electricity. feeding, etc.) Close the software and then turn Printer OFF and ON.

  • Page 33: Appendices

    APPENDIX A Appendix A – AstroJet 5000 Specifications PRINT TECHNOLOGY Inkjet, one HP 57 Color and one HP 56 or HP 58 Black Cartridge ADDRESS SPEED Up to 4,000 #10 envelopes per hour PRINT QUALITY High Quality 1200 dpi (Dots Per Inch)

  • Page 34: Appendix B - Supplies And Optional Hardware

    APPENDIX B Appendix B – Supplies and Optional Hardware The following supply items and optional hardware are available from your Astro Machine Distributor: Supplies Black Inkjet Cartridge HP 56 Photo Black Ink Cartridge HP 58 Color Cartridge HP 57 Optional Hardware Conveyor /Stacker Drop Tray...

  • Page 35: Index

    INDEX 11 x 17 Setup Inkjet Cartridge Storage Inkjet Cartridges 5, 30 Installing Inkjet Cartridges Accessories Installing Printer Adjustable Media Guide 1, 2, 4 Installing Printer Driver Adjusting Sheet Separators Automatic Detection Jams in Printer Job Saving Back Guide Basics Tab Blurry Printing Losing Data Broken Print...
  • Page 36 INDEX Soft Power Button Specifications Storing Inkjet Cartridge Tap 13 Troubleshooting Unpacking USB Port USB Port Connection...
  • Page 38 Copyright © 2012 ASTRO MACHINE CORP. Elk Grove Village, IL 60007 08/29/2012 Part Number: 200-AJ5000 Rev. D...
