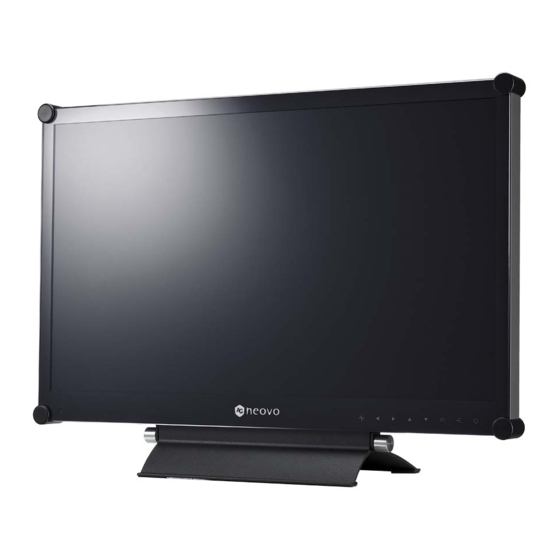

- Page 1 X-22E & X-24E LED-Backlit Display User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information FCC Declaimers ............................4 WEEE ............................... 5 Precautions Notice ............................... 6 Cautions When Setting Up ........................6 Cautions When Using ..........................7 Cleaning and Maintenance ........................7 Notice for the LCD Display ........................8 Chapter 1: Product Description 1.1 Package Contents .......................... - Page 3 Chapter 6: Appendix 6.1 Warning Messages ..........................42 6.2 Troubleshooting ..........................43 6.3 Transporting the LCD Display ......................45 Chapter 7: Specifications 7.1 Display Specification ........................46 7.2 Display Dimensions ..........................47 7.2.1 X-22E Dimensions........................47 7.2.2 X-24E Dimensions........................47...
-
Page 4: Safety Information
SAFETY INFORMATION Safety Information This FCC Class-B compliant digital device complies with the Interference-Causing Equipment Regulations of Canada. FCC Declaimers This device complies with Section 15 of the FCC listing. The operation procedures must meet the following conditions: (1) the device must not cause any damaging interference; and (2) this device must accept any received interference, including any unpredictable interference that may possibly occur. -
Page 5: Weee
SAFETY INFORMATION WEEE Information for users applicable in European Union countries. The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 6: Precautions
PRECAUTIONS Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 7: Cautions When Using
AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience. -
Page 8: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 9: Chapter 1: Product Description
CHAPTER 1: PRODUCT DESCRIPTION Chapter 1: Product Description 1.1 Package Contents When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Display Note: Power adapter User Manual Must use only the supplied power adapter: ♦... -
Page 10: Wall Mounting Installation Preparation
75mm other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display 1.2.2 Removing the Base Stand experience. -
Page 11: Lcd Display Overview
PRODUCT DESCRIPTION 1.3 LCD Display Overview 1.3.1 Front View and Keypad Buttons Display screen The LCD display screen is protected Hot Key: PIP Select by NeoV Optical Glass. • Press repeatedly to select PIP option. • During OSD menu selection, press to move up a menu or submenu. -
Page 12: Rear View
PRODUCT DESCRIPTION 1.3.2 Rear View DC IN HDMI DisplayPort AUDIO IN DC power input DisplayPort connector Use to connect the power cord. Use to connect a PC using a DisplayPort cable for digital input signal. DVI connector VGA connector Use to connect a PC using a DVI cable Use to connect a PC using a VGA cable for for digital input signal. -
Page 13: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS Chapter 2: Making Connections 2.1 Connecting the Power Connect the power cord to the power adapter. Connect the power adapter to the DC power input at the rear of the LCD display. Connect the power cord plug to a power outlet or a power supply. DC IN Caution: ♦... -
Page 14: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals 2.2.1 Connecting a Computer Using VGA Cables Connect one end of a D-sub cable to the VGA connector of the LCD display and the other end to the D-sub connector of the computer. Using DVI Cables Connect one end of a DVI cable to the DVI connector of the LCD display and the other end to the DVI connector of the computer. -
Page 15: Using Displayport Cables
MAKING CONNECTIONS Using DisplayPort Cables Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD display and the other end to the DisplayPort connector of the computer. DisplayPort Connecting an Audio Device Connect one end of an audio cable to the audio port at the rear of the LCD display and the other end to the audio out port of the computer. -
Page 16: Connecting A Video Device
MAKING CONNECTIONS 2.2.2 Connecting a Video Device Using HDMI Cables Connect one end of an HDMI cable to the HDMI connector of the LCD display and the other end to the HDMI connector of your device. HDMI... -
Page 17: Chapter 3: Using The Lcd Display
CHAPTER 3: USING THE LCD DISPLAY Chapter 3: Using the LCD Display 3.1 Turning on the Power Note: ♦ The LCD display still consumes POWER button power as long as the power LED indicator cord is connected to the power outlet. -
Page 18: Adjusting The Volume
USING THE LCD DISPLAY 3.3 Adjusting the Volume VOLUME buttons Touch the button to call out the volume bar. Touch the button to increase volume or the button to decrease volume. To mute the audio, set the volume to 0. 3.4 Locking the OSD Menu Lock the OSD menu to protect the LCD display from unauthorised users or from accidentally pressing the keypad. -
Page 19: Using Picture-In-Picture (Pip)
USING THE LCD DISPLAY 3.5 Using Picture-in-Picture (PIP) The Picture-in-Picture (PIP) feature allows viewing of more than one input source signal on the LCD display. 3.5.1 PIP Options Touch the button repeatedly to enable and scroll among the PIP options. Options are as follows: •... -
Page 20: Pip Swap
USING THE LCD DISPLAY 3.5.2 PIP Swap The main and the sub source signals set in PIP Setting can be easily swapped using the keypad. Note: Sub source ♦ PIP Swap can only be executed Main source if PIP is enabled, see page 34. Touch the button to swap the main source and the sub source signals. -
Page 21: Chapter 4: On Screen Display Menu
CHAPTER 4: ON SCREEN DISPLAY MENU Chapter 4: On Screen Display Menu 4.1 Using the OSD Menu Operation Display the main menu screen. Touch 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R... - Page 22 ON SCREEN DISPLAY MENU Operation Select the submenu item. Touch the button. 0 x 1 0 8 0 6 0 H z B R I G H T N E S S R I G H T N E S S C O N T R A S T O L O U R T E M P .
-
Page 23: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P . - Page 24 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 4. ASPECT RATIO • ASPECT RATIO See page 32. • H. ZOOM • V. ZOOM • OVERSCAN 5. PIP SETTING • PIP See page 33. • MAIN SOURCE • SUB SOURCE • SUB PICTURE SIZE •...
- Page 25 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 12. LANGUAGE Select the OSD language: EN / FR / DE / ES / IT / PY / RO / PL / CS / NL / 簡中 / 繁中 13. INFORMATION Displays settings information such as Input, Resolution, Horizontal Frequency, Vertical Frequency, Timing Mode, and Firmware Version.
-
Page 26: Chapter 5: Adjusting The Lcd Display
CHAPTER 5: ADJUSTING THE LCD DISPLAY Chapter 5: Adjusting the LCD Display 5.1 BRIGHTNESS 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S 2. - Page 27 ADJUSTING THE LCD DISPLAY Original Setting High Setting Low Setting BRIGHTNESS CONTRAST BLACK LEVEL...
-
Page 28: Colour Temp
ADJUSTING THE LCD DISPLAY 5.2 COLOUR TEMP. 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z N E U T R A L W A R M B R I G H T N E S S 2. -
Page 29: Image Setting
ADJUSTING THE LCD DISPLAY 5.3 IMAGE SETTING 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z S H A R P N E S S 2. Select IMAGE SETTING menu, then B R I G H T N E S S C O N T R A S T S A T U R A T I O N... - Page 30 ADJUSTING THE LCD DISPLAY Item Function Operation Range Adjusts black and white levels for video. FULL Touch the button to LIMIT select the setting. Note: This menu option is only available if the input source is HDMI. Signal source from PC - PC signal at a full range (Grayscale 0-255) state: COLOUR RANGE Monitor OSD colour range: Full Monitor OSD colour range: Limit...
- Page 31 ADJUSTING THE LCD DISPLAY Item Function Operation Range H. POSITION Moves the screen image to the left (Horizontal Position) or right. V. POSITION Moves the screen image up or down. (Vertical Position) Adjusts the phase timing to Touch the button to synchronise with the video signal.
-
Page 32: Aspect Ratio
ADJUSTING THE LCD DISPLAY 5.4 ASPECT RATIO 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z A S P E C T R A T I O F U L L B R I G H T N E S S 2. -
Page 33: Pip Setting
ADJUSTING THE LCD DISPLAY 5.5 PIP SETTING 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z P I P O F F B R I G H T N E S S 2. - Page 34 ADJUSTING THE LCD DISPLAY Note: Any input signal may be set as the main or the sub source signal. However, some input signals are not supported to be paired together as the main and the sub source signals. Refer to the following table for compatibility options. Table 5.1 PIP Compatibility Table Main Source Input Source...
-
Page 35: Anti-Burn-In
ADJUSTING THE LCD DISPLAY 5.6 ANTI-BURN-IN 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z E N A B L E O F F B R I G H T N E S S 2. -
Page 36: Osd Setting
ADJUSTING THE LCD DISPLAY 5.7 OSD SETTING 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z T R A N S P A R E N C Y B R I G H T N E S S 2. -
Page 37: Audio Setting
ADJUSTING THE LCD DISPLAY 5.8 AUDIO SETTING 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z V O L U M E B R I G H T N E S S 2. -
Page 38: System
ADJUSTING THE LCD DISPLAY 5.9 SYSTEM 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z P O W E R S A V I N G O F F B R I G H T N E S S 2. - Page 39 Note: This menu option is only available if the input source is HDMI. Enables or disables the logo feature. If the setting is set to ON, the AG Neovo LOGO logo is briefly displayed after the display is powered on.
-
Page 40: Eco Smart
ADJUSTING THE LCD DISPLAY 5.10 ECO SMART With the built-in EcoSmart sensor, users can enable the Eco Smart feature to automatically adjust the LCD screen brightness according to the ambient light. This feature comforts the eyes and helps optimise energy efficienc . -
Page 41: Input Select
ADJUSTING THE LCD DISPLAY 5.11 INPUT SELECT 1. Touch to call out the OSD window. 1 9 2 0 x 1 0 8 0 6 0 H z V G A D V I B R I G H T N E S S 2. -
Page 42: Chapter 6: Appendix
CHAPTER 6: APPENDIX Chapter 6: Appendix 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics I N P U T S I G N A L O U T O F R A N G E is set too high. -
Page 43: Troubleshooting
APPENDIX 6.2 Troubleshooting Problem Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power cord is properly connected to the LCD display. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... - Page 44 APPENDIX Problem Possible Cause and Solution Mist formed inside the • This happens due to humid weather conditions. This is a normal glass surface. occurrence. The mist will disappear after a few days or as soon as the weather stabilizes. Faint shadows from a •...
-
Page 45: Transporting The Lcd Display
APPENDIX 6.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. Put all the accessories in the box (if necessary). Place the two foam cushions on each side of the LCD display for protection. Place the LCD display down in the box. -
Page 46: Chapter 7: Specifications
CHAPTER 7: SPECIFICATIONS Chapter 7: Specifications 7.1 Display Specifications X-22E X-24E Panel Panel Size 21.5” 23.6” Max. Resolution 1920 x 1080 Pixel Pitch 0.24825 mm 0.2715 mm Brightness 250 cd/m 300 cd/m Contrast Ratio 2,000,000:1 (DCR) Viewing Angle (H/V) 170°/160° (Typical) Display Colour 16.7M... -
Page 47: Display Dimensions
7.2.2 X-24E Dimensions 562.4(outline dimension) 227.4 227.4 538.55 522.3(opening dimension) 16.25 16.25 (M4xL10) x8 281.2 277.4 137.4 137.4 227.4 Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2017 AG Neovo. All rights reserved. X-22E/X-24E_UM_V010...
