Summary of Contents for Mean Well PB-1000-12

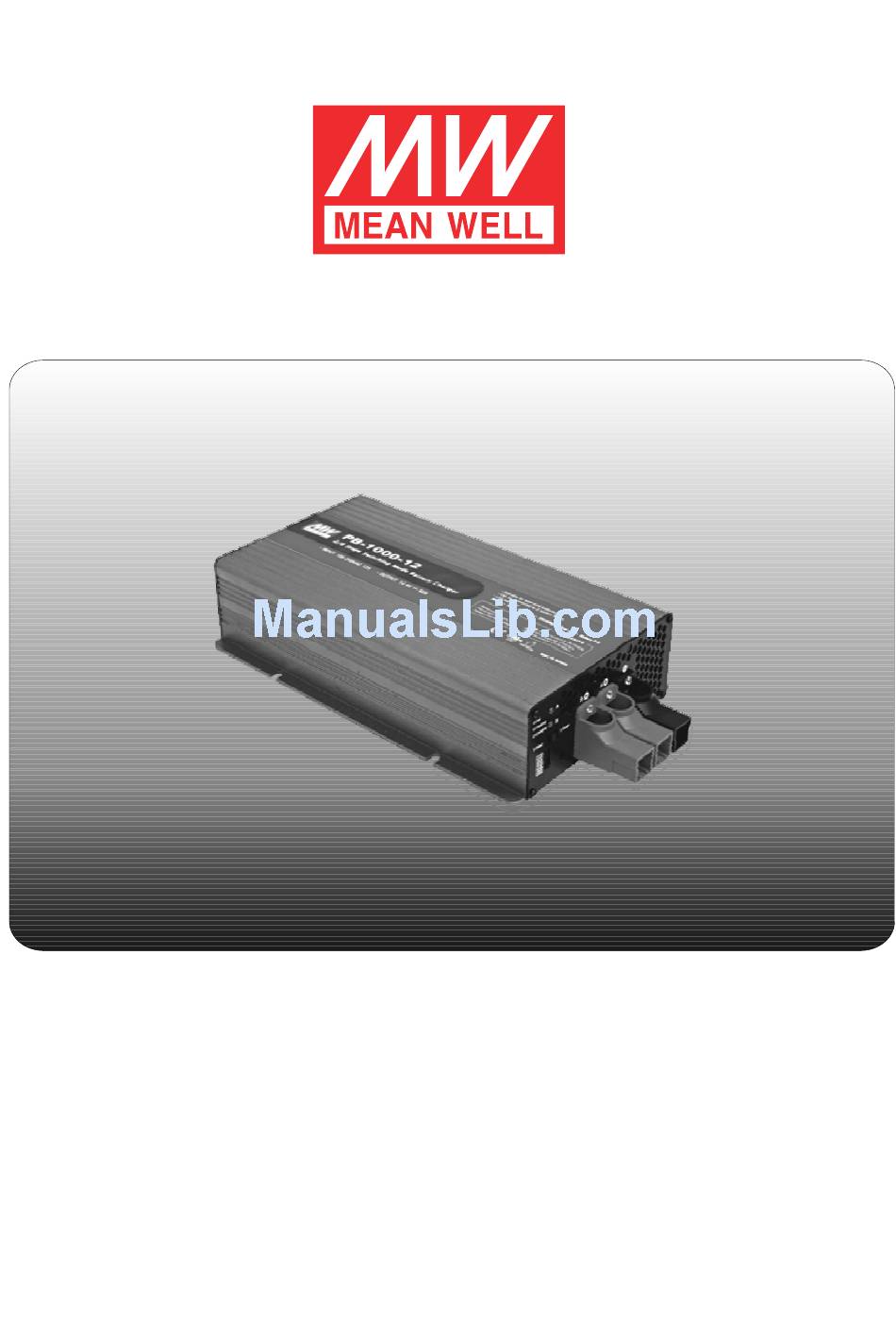

- Page 1 PB-1000 Instruction Manual...
-
Page 2: Main Specifications
2. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 3. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation. -
Page 3: Front And Back Panel
2.Front and back panel AC INLET ON/OFF SWITCH Ventilation Hole AC INPUT Figure 2.1 Front Panel Battery B Battery A Common Positive Positive Negative Indicator 2/8 stage 8 Stage 2 Stage selection switch Function Connector Battery B Battery A WARNING : Please check battery polarity before connection Figure 2.2 Back Panel... -
Page 4: Derating Curves
Battery disconnected Damaged battery Reverse polarity Incorrect battery voltage (e.g. PB-1000-12 connected to 24V battery) Activation of protection function (e.g. OTP, OVP, and Short) 6 Explanation of Operation Logic (Charging stages): 8 stages charging differ from 2 stages with the addition of pulse, soft start, analysis, recond, float, and maintain stages. 2 stages provide simple and quick charging. - Page 5 Charge Voltage 100% Charge Current stage 1 stage 2 Constant Current Constant Voltage Battery Full Orange Green Color of LED State PB-1000-12 PB-1000-24 PB-1000-48 14.4V 28.8V 57.6V boost Figure 6.1 2 Stage Charging Curve Constant 34.7A 17.4A Current 6.2 "8" stage charging (Selection switch to "8" stage) Advantage of pulse stage: Use pulse current to revive aged battery.
-
Page 6: Function Description
7.Function description 7.1 Remote Control The charger can be turned ON/OFF by using the "Remote Control" function. CN100 Between RC+(pin10) RY13 RY13 Charger and RC-(pin9) RY14 RY14 8 Stage 2 Stage SW Open RY15 RY15 SW Short Battery B Battery A 7.2 Two Battery Banks The charger may be hooked up two battery banks (A and/or B). -
Page 7: Wiring For Battery
CN100 7.4 Charger OK Relay(RY15) RY13 RY13 Charger Between pin5 and pin6 RY14 RY14 Normal work ON (Short) RY15 RY15 Failure or the protection OFF(Open) function is activating 7.5 Output OK Relay(RY13 & RY14) 1.Bank A OK (RY13) RY15 Between pin1 and pin2 Bank A Color of LED A CN100... -
Page 8: Suggested Battery Capacity
Replace with suitable wire gauge period If you are not able to clear the failure condition, please contact Mean Well or any of our distributors for repair service. WARNING : This is a class A product. In a domestic environment this product may cause radio interference in which case the user may...
