PB-600
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB-600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mean Well PB-600

Summary of Contents for Mean Well PB-600

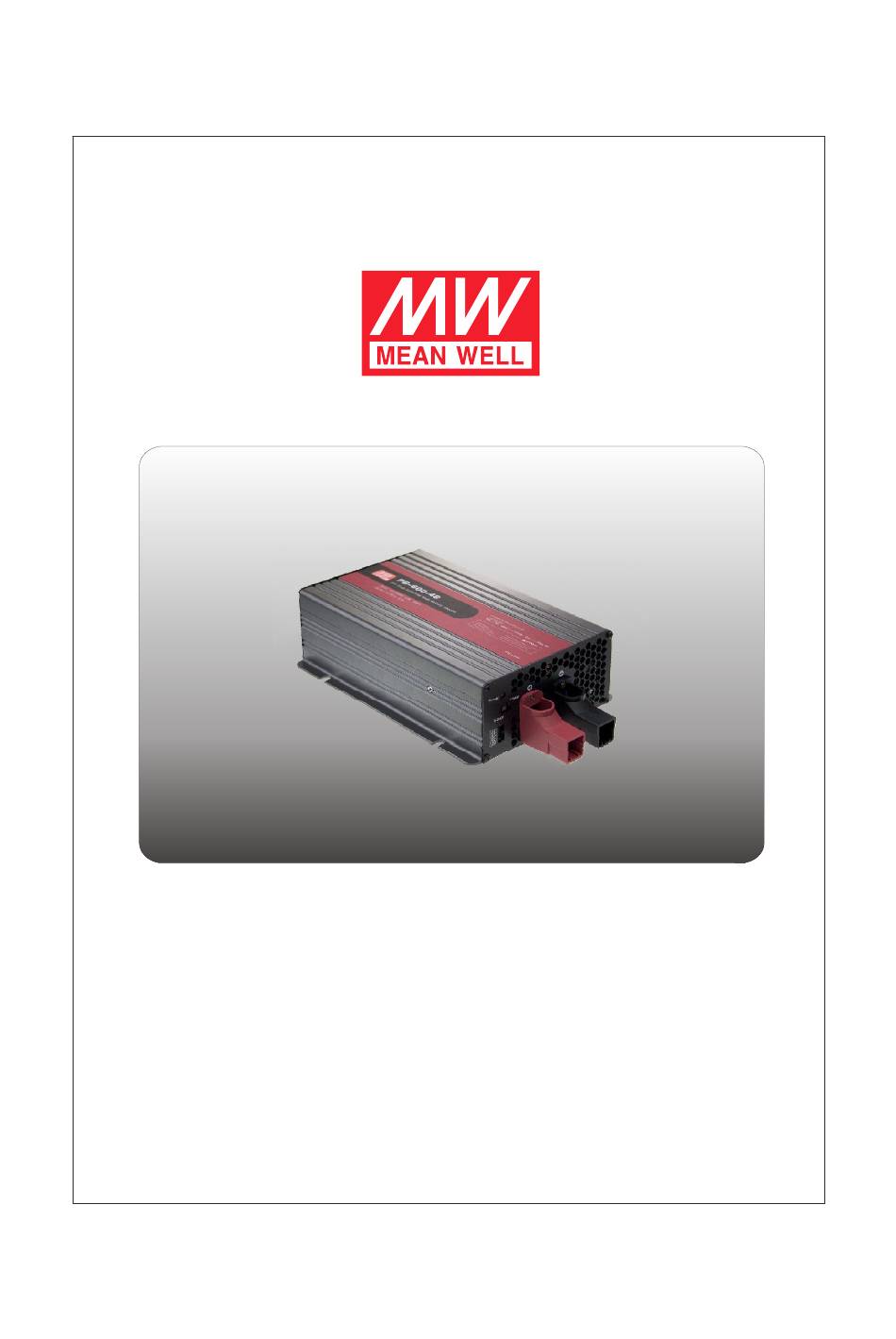

  • Page 1 PB-600 Instruction Manual...

  • Page 2: Table Of Contents

    PB-600 Instruction Manual Index 0.Product description................. 1.Notes on operation ................. 2.Front and back panel ..................................3.Derating curve Charging current VS temperature ............3.2 Charging current VS input voltage ............. 2 ............... 4.Function description for CN100 ..................5.LED Indication 6.Explanation of operation logic (charging stages) ........

  • Page 3: Product Description

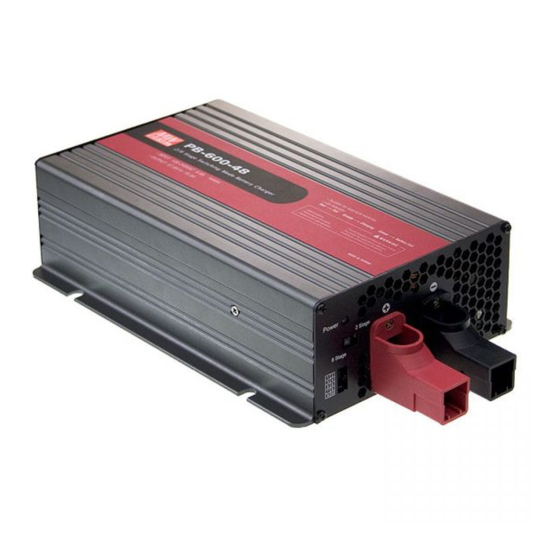

    0.Product description PB-600 is MW's next generation smart charger. It has many of the protective features that consumers would like to have in a charger including battery misconnection (wrong voltage), reverse polarity, battery disconnection or not connected, and battery failure analysis. The latest high efficiency switching topology plus microcontroller power management are utilized in its design.

  • Page 4: Derating Curve

    Battery Common Positive Negative Power Indicator Stage 8/3/2 2/3/8 stage selection switch Function Connector WARNING : Battery Please check battery polarity before Figure 2.2 Back Panel connection Assembly guidelines: 1.The charger should be turned OFF prior to battery connection. Suitable wire gauge should be chosen based on rated charging current of the charger unit.

  • Page 5: Led Indication

    Activation of protection function (e.g. OTP, OVP, and Short) 6.Explanation of operation logic (charging stages): PB-600 has a total of 3 charging modes to choose from, 2 stages, 3 stages, and 8 stages. 8 stages charging differ from 2 stages with the addition of pulse, soft start, analysis, recondition, float, and maintain stages.

  • Page 6: Stage Charging (Flick Switch To "3" Stage)

    State PB-600-12 PB-600-24 PB-600-48 Constant 10.5A Current 14.4V 28.8V 57.6V boost Figure 6.1 2 stage charging curve Explanation for 2 stages charging curve (0)Initial stage (battery analysis): Check battery voltage level to see if it is within the normal range, whether or not a battery is connected, or if the battery is already full and further charging is not required.

  • Page 7: Stage Charging (Flick Switch To "8" Stage)

    (3)Stage 3 (Float voltage): A float voltage of 2.3V per cell is provided so that the battery can maintain full charge. *For applications that utilize the charger (PB-600) to charge batteries and supply system power simultaneously(e.g. UPS system), please select "3 stage" charging for the best use of the charger.

  • Page 8: Function Description

    Explanation for 8 stages charging curve (0) Initial stage (battery analysis): Check battery voltage level to see if it is within the normal range, whether or not a battery is connected, or if the battery is already full and further charging is not required.

  • Page 9: Pfc

    ◎Built-in active PFC circuit: PF>0.95 when input voltage is between 90~230Vac with full load at the output. On the other hand, if the input voltage is >230V or output is not at full load, the PF will drop below 0.95. 7.3 Remote control The charger can be turned ON/OFF by using the "remote control"...

  • Page 10: Reverse Polarity Protection

    7.5 Reverse polarity protection With built-in battery reverse polarity detection circuit. When the battery is connected in reverse at the output terminal of the charger, the output relay circuit will remain open. 7.6 Fan speed control With built-in fan speed control circuit, the fan will automatically change speed depending on load condition.

  • Page 11: Wiring For Battery

    Max. Current(A) CROSS SECTION(mm ) ℃ UL1015(600V 105 ) 9.Suggested battery capacity Model Battery capacity PB-600-12 135-400AH PB-600-24 70-210AH PB-600-48 35-105AH Note: 1.Using battery capacity larger than the suggested value will not lead to damage of the battery. The main drawback is it may take longer to fully charge the battery.

  • Page 12: Recommended Wire Specification

    Green after a long charging Replace with suitable Output cables are too thin period wire gauge If you are not able to clear the failure condition, please contact Mean Well or any of our distributors for repair service.

  • Page 13: Sep. 2014 Version

    N o . 2 8 , W u q u a n 3 r d R d . , Wu g u D i s t . , N e w Ta i p e i C i t y 2 4 8 , Ta i w a n...

This manual is also suitable for:

Pb-600-24Pb-600-12
