Summary of Contents for Mean Well PB-600

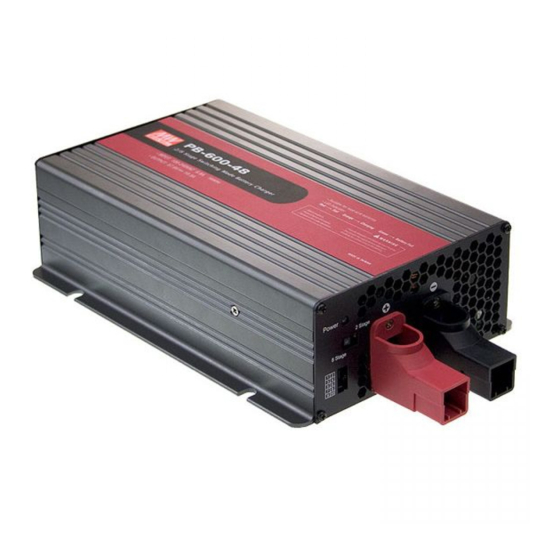

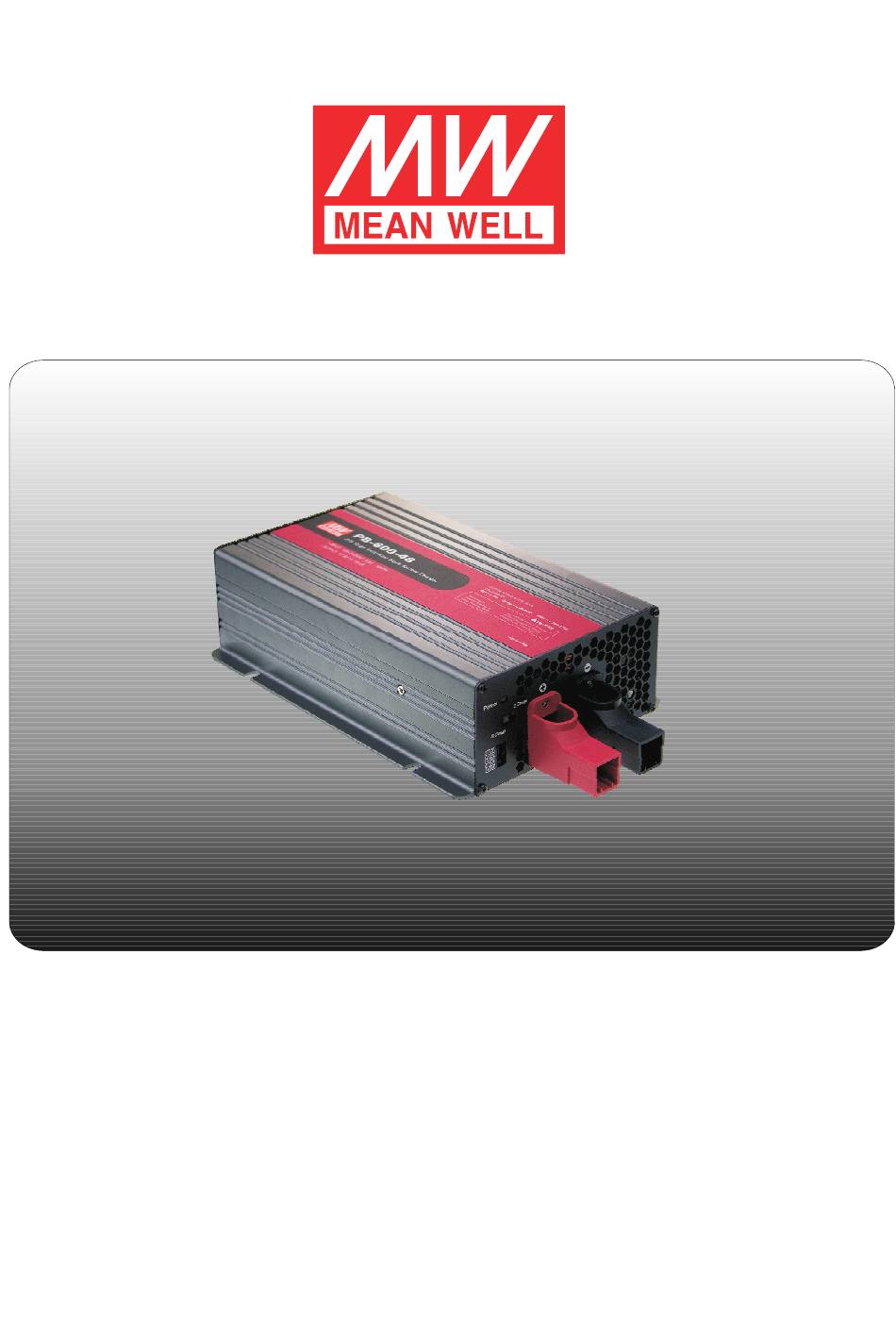

- Page 1 PB-600 Instruction Manual...
- Page 2 4.Please make sure charging voltage and current meets battery specification. 5.Refrain from connecting new and old batteries in series. 6.PB-600 should be in the OFF mode before making battery connection or disconnection. 7.Three years warranty is provided under normal operating conditions. Failure resulting from improper operation will result in cancellation of warranty.
- Page 3 Battery disconnected Damaged battery Reverse polarity Incorrect battery voltage (e.g. PB-600-12 connected to 24V battery) Activation of protection function (e.g. OTP, OVP, and Short) 5.Explanation of Operation Logic (Charging stages): 8 stages charging differ from 2 stages with the addition of pulse, soft start, analysis, recond, float, and maintain stages. 2 stages provide simple and quick charging.
- Page 4 5.2 "8" stage charging (Selection switch to "8" stage) Advantage of pulse stage: Use pulse current to revive aged battery. Advantage of recond stage: Allow full charge of battery. Advantage of Float and Maintain stage: After LED turns green, maintenance charge is provided so the battery is always in a full state.
- Page 5 Max. Current(A) CROSS SECTION(mm ) UL1015(600V 105 ) 8.Suggested battery capacity Model Battery capacity PB-600-12 135-400AH PB-600-24 70-210AH PB-600-48 35-105AH Note:1. Using battery capacity larger than the suggested value will not lead to damage of battery. The only drawback is it may take...
- Page 6 If you are not able to clear the failure condition, please contact Mean Well or any of our distributors for repair service. WARNING : This is a class A product. In a domestic environment this product may cause radio interference in which case the user...
