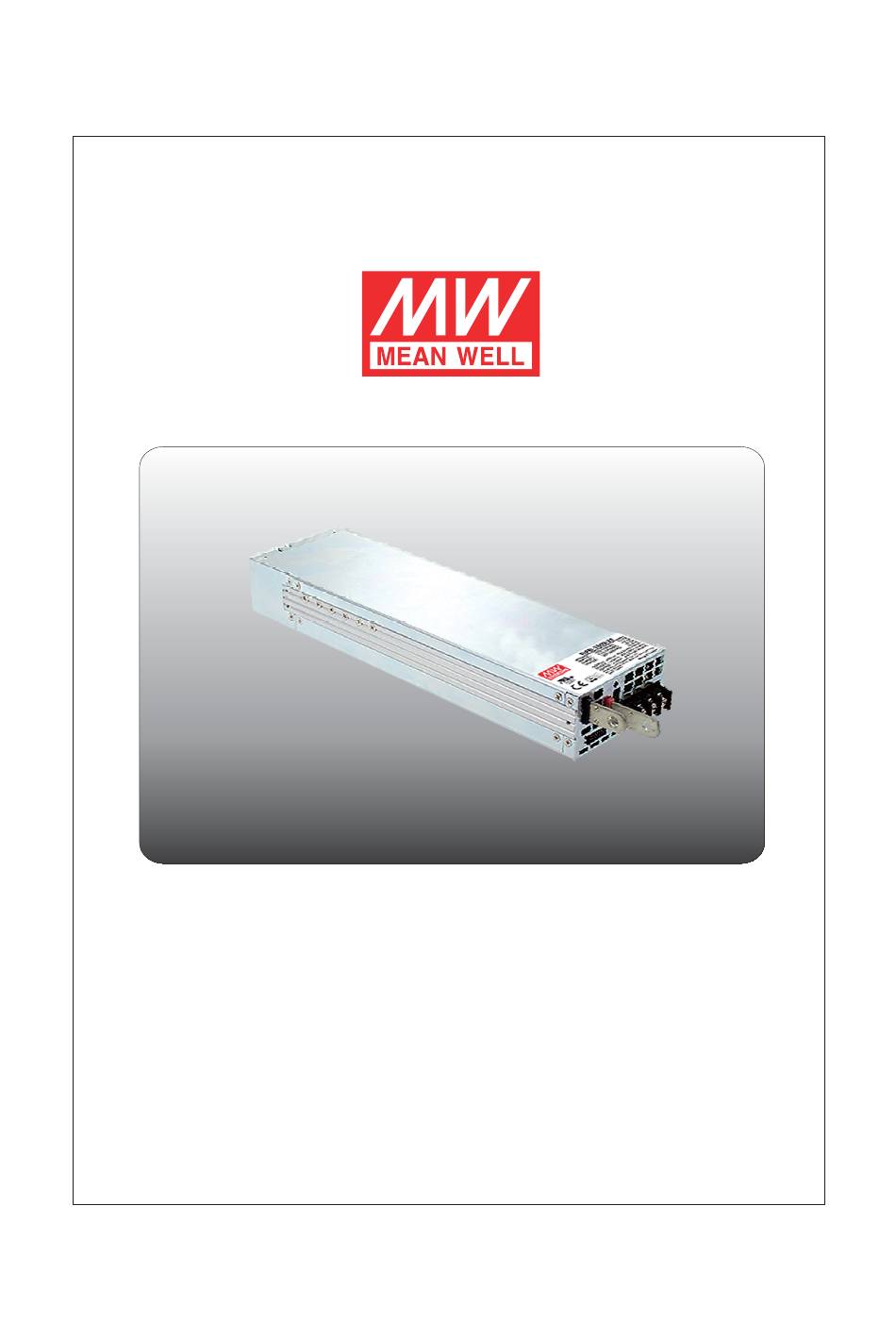

  • Page 1 RPB-1600 Instruction Manual...

  • Page 2: Table Of Contents

    RPB-1600 Instruction Manual Index 0.Product Description................. 1.Notes on Operation ................. 2.Mechanical Design and Installation Procedure ..........................3.Derating Curve Charging Current vs Temperature ............. Charging Current vs Input Voltage ............................4.Pin Assignment ..................5.LED Indication 6.Explanation of Operation Logic ..............

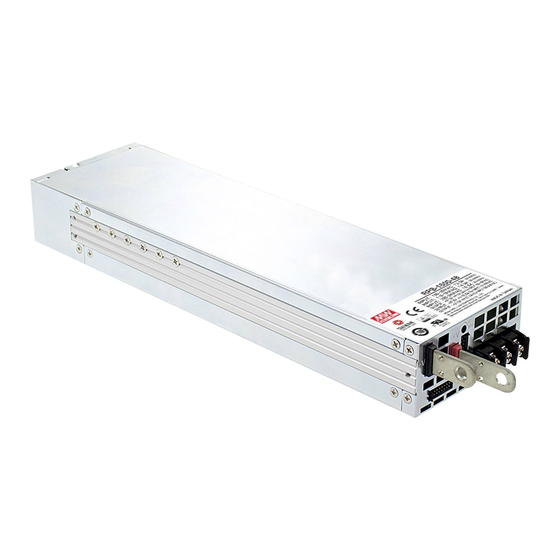

  • Page 3: Product Description

    0.Product Description RPB-1600 is MEAN WELL's new generation intelligent battery charger with high power density. Different battery brands and types (lead acid batteries, such as flooded, Gel, AGM, and so on, or lithium-ion batteries, such as lithium iron, lithium manganese, and so on) may require different charging curves and protection mechanisms for batteries.

  • Page 4: Derating Curve

    Installation Procedure: Please make sure the charger is OFF before connecting the battery to the output terminal. Choose a cable with suitable wire gauge according to the charging current to connect between the charger and the battery. Battery polarity must be connected correctly:Terminal(+) to Battery(+); Terminal(-) to Battery(-), and take notice that the positive and negative ends are not shorted.

  • Page 5: Led

    CN500 Pin No. Function Description Differential digital signal for parallel control. Differential digital signal for parallel control. Negative output voltage signal. -V (Signal) cannot be connected directly to the load. Serial clock used in the PMBus interface. Serial clock used in the PMBus interface. Pin No.

  • Page 6: Charge Curve

    Explanation for 3 stage charge curve (0) Initial stage (battery analysis)： Check battery voltage level to see whether there is a battery connected. (1) Stage 1 (constant current)： A constant current is provided so that the battery can be quickly charged to 2.4V per cell.

  • Page 7: Pmbus Communication Interface

    8.PMBus Communication Interface RPB-1600 is compliant with PMBus Rev.1.1, the maximum communication speed is 100KHz and it has the capability of identifying up to 8 addressed units. ◎ PMBus communication interface is able to provide the current operating status and information follow : 1.
  • Page 8 Charging Curve When it is opted for charging curve, D0 set to 0, charging curve function is enabled with additional PMBus commands. There are 4 built-in charging curves, “default” curve, one pre-defined curve for “gel battery”, one pre-defined curve for “flooded battery” and one pre-defined curve for “AGM battery”. Each curve can be selected by Command B4h CURVE_CONFIG.
  • Page 9 ◎ PMBus commands: The command list of the RBP-1600 is shown in Table 8-2. It is compliant with the standard protocol of PMBus Rev. 1.1. For more detailed information, please refer to PMBus official website http://pmbus.org/specs.html) Command Command Transaction # of data Description Code Name...
  • Page 10 Command Command Transaction # of data Description Code Name Type Bytes Constant current setting value of charging curve CURVE_ICHG R/W Word (format: Linear, N= -3) Constant voltage setting value of charging curve CURVE_VBST R/W Word (format: Linear, N= -9) Constant voltage setting value of charging curve CURVE_VFLOAT R/W Word (format: Linear, N= -9)
  • Page 11 ◎ Definition of Command B8h CHG_STATUS： Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 High byte FVTOF CVTOF CCTOF BTNC NTCER EEPER Low byte FULLM Low byte Bit 0 FULLM：Fully Charged 0＝NOT fully charged 1＝fully charged Bit 1 CCM：Constant Current Mode Status 0＝the charger NOT in constant current mode 1＝the charger in constant current mode Bit 2...
  • Page 12 Note: ： EEPER When EEPROM Charge Parameter Error occurs, the charger stops charging the battery and the LED indicator turns red. The charger needs to re-power on to re-start charging the battery. ： NTCER When Temperature Compensation Short occurs, the charger output will shut down and the LED indicator will turn red.
  • Page 13 PMBus Data Range and Tolerance ◎ Display parameters PMBus command Model Range Tolerance ±10V READ_VIN 80 ~ 264V ±0.18V 0 ~ 15V ±0.36V READ_VOUT 0 ~ 30V ±0.48V 0 ~ 60V ±2.5A 0 ~ 150A READ_IOUT ±1.34A 0 ~ 80A (Note.

  • Page 14: Function Description

    Note: 1.READ_IOUT will display ZERO amp when output current is less than values in the table below: Model Minimum readable current ± 5A 1A ± 2.7A 1A ± 1.3A 1A When using PMBus to adjust output voltage, VOUT_COMMAND only can be used to display the rated voltage of the unit and cannot be written .

  • Page 15: Temperature Compensation

    9 3 . Temperature Compensation Temperature sensor which comes with the charger can be connected to the unit to allow temperature compensation of the charging voltage. If the temperature sensor is not used, the charger can still work normally. PIN15 RTH+ PIN16 RTH- 10.Wiring for battery Select suitable wire guage based on rated charging current.

  • Page 16: Series And Parallel Connection

    Green after a long charging Output cables are too thin Replace with suitable wire gauge period If you are unable to clarify the problem you are facing, please contact MEAN WELL or any of our distributors for repair service.
  • Page 17 N o . 2 8 , W u q u a n 3 r d R d . , W u g u D i s t . , N e w Ta i p e i C i t y 2 4 8 , Ta i w a n...

This manual is also suitable for:

Rpb-1600-12Rpb-1600-24Rpb-1600-48
