Summary of Contents for Mean Well PB-230-48

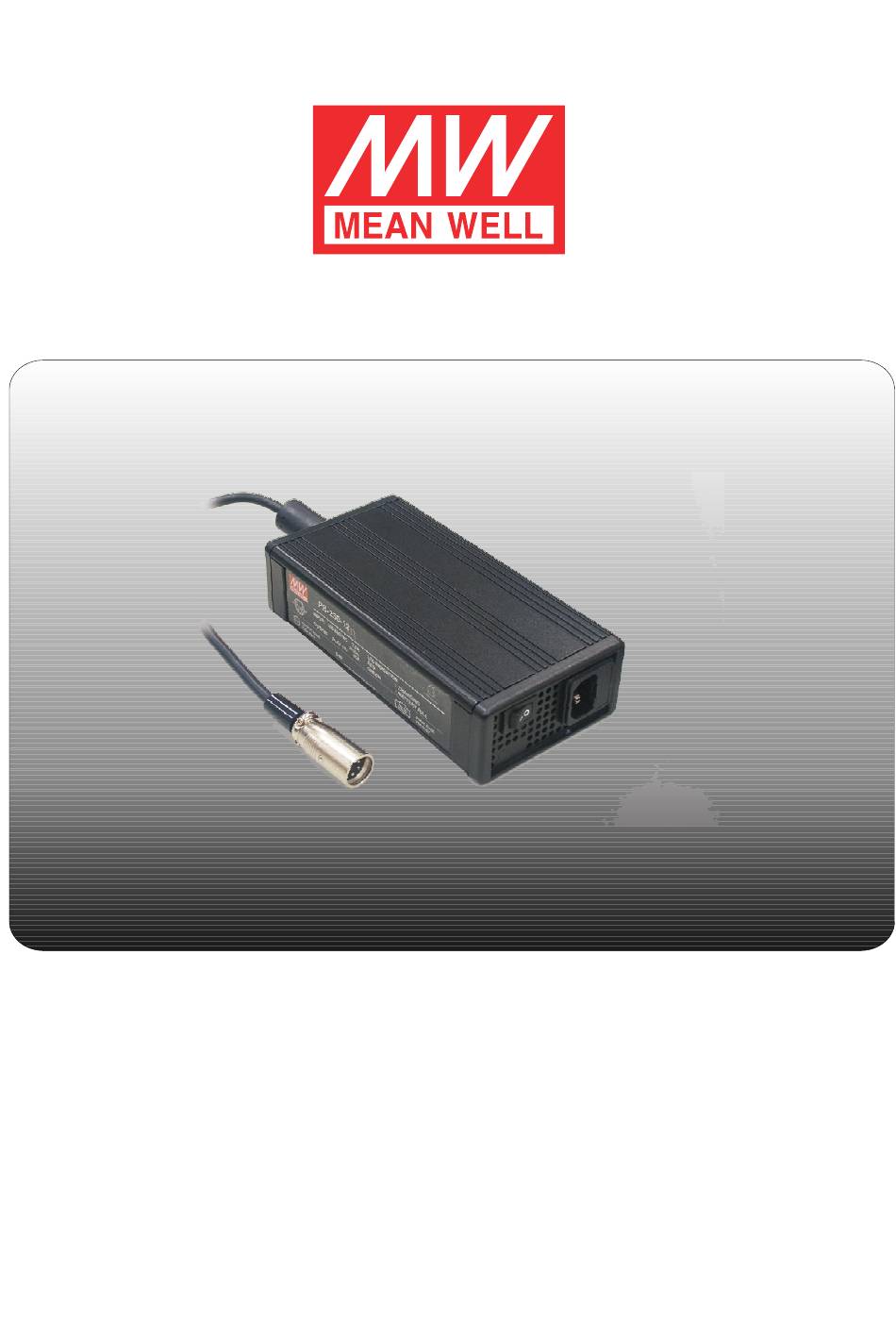

- Page 1 PB-230 Instruction Manual...
- Page 2 PB-230 Instruction Manual 115cm 5cm AD1 (optional) DC output connector (standard) DC output connector (optional) UNICABLE 89M103-4P or equivalent [ housing: Anderson 1327FP(red), 1327G6FP(black) PIN NO. OUTPUT contacts: Anderson 261G2 (45A) or equivalent ] Red(+V) Black(-V) Warning : Please make sure the polarity of the battery is connected correctly! Assembly Procedure 1.Make sure the charger is shut off and choosing suitable wires to connect the charger and batteries based on the rating of charging current.
- Page 3 2 stage 3 Constant Current Constant Voltage Float Green Color of LED State PB-230-12 PB-230-24 PB-230-48 14.4V 28.8V 57.6V boost 13.6V 27.2V 54.4V Charging Current and Ambient Temperature When ambient temperature below 45 , the charging current will carry on the charge by the maximum current surpasses 45 the charge current will reduce automatically.
- Page 4 If you still cannot eliminate the failure situation, please consult MEAN WELL or any of our distributors IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.
