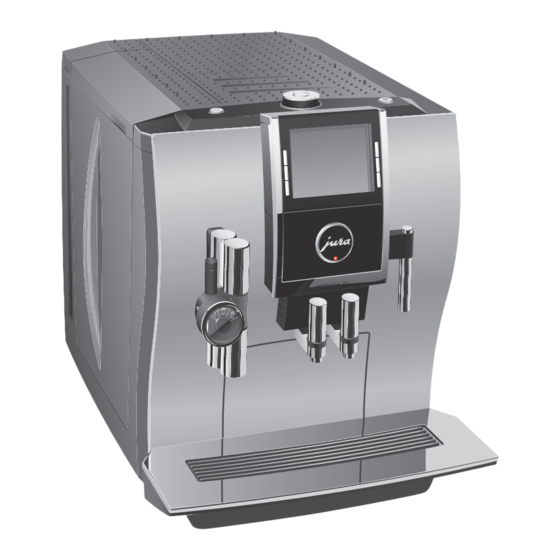

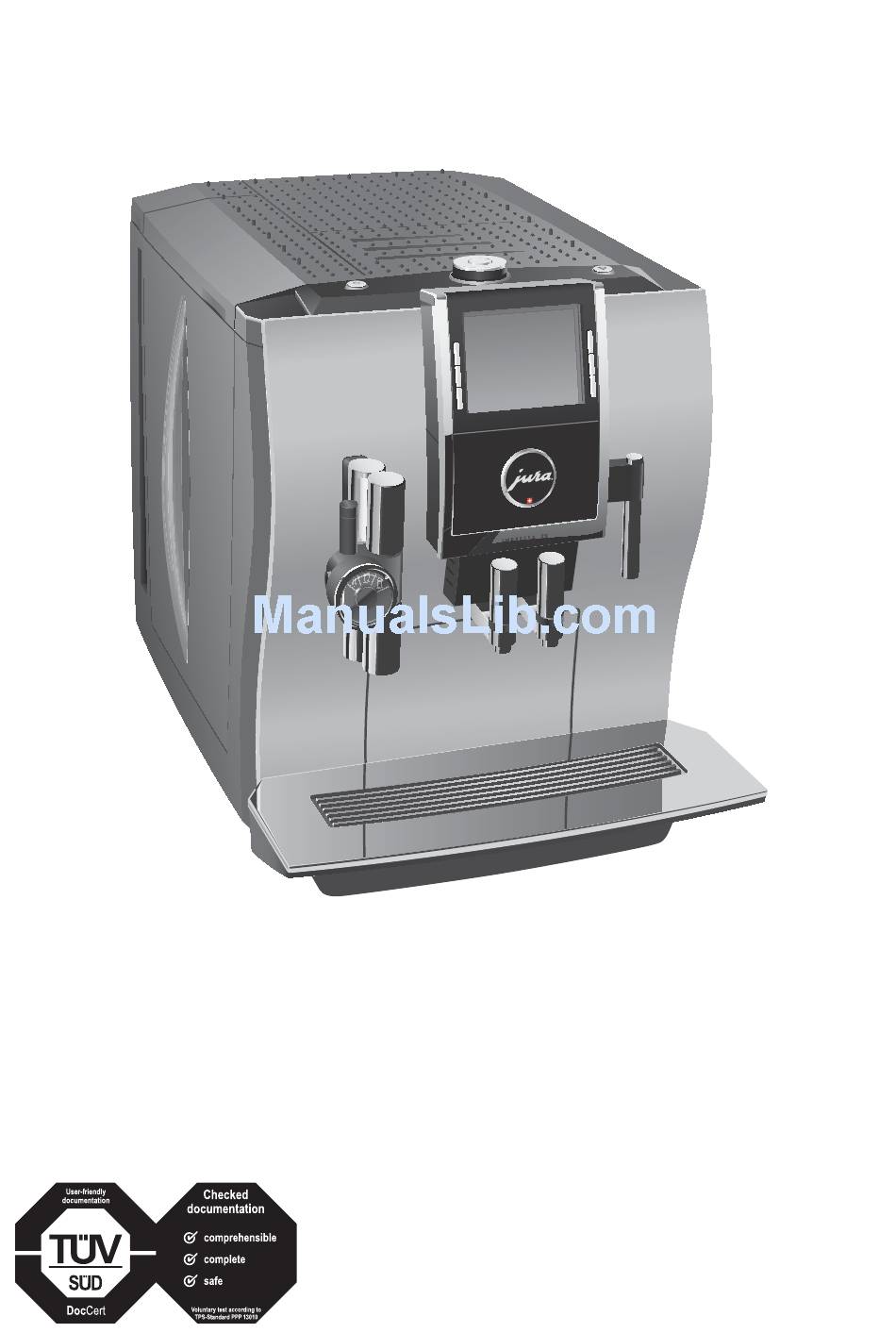

- Page 1 IMPRESSA Z9 One Touch TFT Instructions for Use The Instructions for Use has been awarded the seal of approval by the independent German Technical Inspection Agency, TÜV SÜD, due to its easy-to-understand style, its thoroughness and coverage of safety aspects.
-
Page 2: Table Of Contents
Table of contents Your IMPRESSA Z9 One Touch TFT Control elements Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10... - Page 3 8 Transport and environmentally friendly disposal Transport / Emptying the system ......................51 Disposal ................................51 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings Always take note of any information marked with the words CAUTION or J WARNING WARNING and a warning sign.
-
Page 4: Control Elements
Control elements Control elements Bean container cover Grinder adjustment switch Water tank cover Bean container with aroma preservation Water tank cover Power switch and mains cable (side of Filler funnel cover machine) Filler funnel for ground coffee Height-adjustable cappuccino frother Hot-water spout Coffee grounds container Height- and width-adjustable coffee spout... - Page 5 Control elements Top of the machine Front On/Off button Display g Rotary Switch Multi-function buttons (button function P button (programming) depends on what is shown in the display)
-
Page 6: Important Information
JURA service. If the mains cable of this machine is damaged, it must be repaired either directly by JURA or by an authorised JURA service centre. Make sure that the IMPRESSA and the mains cable are not located close to hot surfaces. - Page 7 The machine contains live parts. If opened, there is a danger of potentially fatal injury. Repairs may only be carried out by authorised JURA service centres, using original spare parts and accessories. To completely and safely disconnect the...
- Page 8 (see Chapter 9 ‘Technical data’). Please only use original JURA maintenance products. Use of products that are not explic- itly recommended by JURA could damage the IMPRESSA. Do not use any coffee beans treated with addi- tives or caramelised coffee beans.
- Page 9 Important information Children aged 8 and over may only use the machine without supervision if they have been instructed in how to use it safely. Children must be aware of and understand the possible dangers caused by misusing the machine. People, including children, who do not have the physical, sensory or mental capabilities to use the machine safely or...
-
Page 10: Preparing And Using For The First Time
JURA on the Internet Visit us on the Internet. You can download short operating instruc- tions for your machine from the JURA website (www.jura.com). You will also find interesting and up-to-date information on your IMPRESSA and on every aspect of coffee. - Page 11 1 Preparing and using for the first time Precondition: The bean container has been filled. T Insert the mains plug into a power socket. 3 T Switch on the IMPRESSA using the power switch on the left- hand side of the machine. ...
- Page 12 Rinsing of the filter stops automatically after approximately 500 ml. ‘Filter rinsing complete’ ‘System is filling.’, the system fills up with water. ‘Welcome to JURA’ ‘Machine is heating.’ ‘Press the Rotary Switch.’, the Rotary Switch lights up. T Empty the receptacle and place it under the coffee spout.
-
Page 13: Determining The Water Hardness
T Fill the water tank with fresh, cold water and reinsert the tank. ‘System is filling.’, the system fills up with water. ‘Welcome to JURA’ ‘Machine is heating.’ ‘Press the Rotary Switch.’, the Rotary Switch lights up. T Place a receptacle under the coffee spout. -
Page 14: Adjusting The Grinder
1 Preparing and using for the first time Adjusting the grinder You can adjust the grinder on a continuous scale to suit the degree of roast of your coffee. CAUTION If you adjust the consistency of grind when the grinder is not oper- ating, the grinder adjustment switch could be damaged. -
Page 15: Filling The Water Tank
T Connect the other end of the milk pipe to a milk container or immerse it in a milk carton (Figure: JURA 0.6 litre stainless steel vacuum milk container). -
Page 16: Preparation
– and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –... -
Page 17: Espresso And Coffee
2 Preparation The following additional products are shown in the product selector: ‘Ristretto’ ‘2 ristretti’ ‘2 espressi’ ‘2 coffees’ ‘Special coffee’ In coffee à la carte mode: Briefly press the Rotary Switch once to enter ‘coffee à la carte’ mode. In this mode you can select the coffee strength and amounts before preparation. -
Page 18: Preparation In 'Coffee À La Carte' Mode
2 Preparation Preparation in ‘coffee à la Briefly press the Rotary Switch once to enter ‘coffee à la carte’ mode. carte’ mode In this mode you can select the coffee strength and amounts before preparation. E The settings made in ‘coffee à la carte’ mode are one-off set- tings and are not stored. -
Page 19: Special Coffee
Milk is connected to the cappuccino frother. T Place a glass under the cappuccino frother (Figure: JURA 0.6 litre stainless steel vacuum milk container). E Ensure that the level of the milk is no higher than the milk pipe connection on the cappuccino frother. -
Page 20: Warm Milk And Milk Foam
2 Preparation Coffee preparation starts. The preset amount of water for espresso flows into the glass. Preparation stops automatically. ‘Please select product:’ appears on the display. To ensure that the cappuccino frother always works properly, you must clean it daily when you have been preparing milk (see Chap- ter 5 ‘Maintenance –... -
Page 21: Permanently Setting Amounts For The Cup Size
2 Preparation E If you did not fill the machine with a sufficient amount of ground coffee, ‘Not enough ground coffee.’ is displayed and the IMPRESSA stops the operation. E The desired speciality coffee must be prepared within approx- imately one minute after filling with the ground coffee. Otherwise the IMPRESSA stops the operation and is once more ready for use. - Page 22 2 Preparation T Place a cup under the coffee spout. T Press and hold the ‘Coffee’ button. ‘Coffee’ and the fill volume are displayed. T Hold the ‘Coffee’ button down until ‘Enough coffee? Press button.’ appears. T Release the ‘Coffee’ button.
-
Page 23: Hot Water
2 Preparation Hot water The following temperatures can be selected for preparing hot water: ‘Normal’, ‘High’, ‘Low’. CAUTION There is a danger of scalding from hot water splashes. T Avoid direct contact with the skin. Example: Proceed as follows to prepare hot water. Precondition: ‘Please select product:’... -
Page 24: Daily Operation
Precondition: Your IMPRESSA is switched on at the power switch. T Place a receptacle under the coffee spout. Q T Press the On/Off button to switch the IMPRESSA on. ‘Welcome to JURA’ appears on the display. ‘Machine is heating.’ ‘Press the Rotary Switch.’, the Rotary Switch lights up. -
Page 25: Switching Off
3 Daily operation T Wipe the surface of the machine with a clean, soft, damp cloth (e.g. microfibre cloth). E In the interests of hygiene, we recommend changing the milk pipe on a regular basis (approx. every 6 months). Replacement pipes are available from specialised dealers. -
Page 26: Permanent Settings In Programming Mode
4 Permanent settings in programming mode 4 Permanent settings in programming mode Press the P button to enter programming mode. You can navigate through the programme items and permanently save the required settings simply by turning the Rotary Switch and using the multi- function buttons. -
Page 27: Product Settings
4 Permanent settings in programming mode Product settings In the programme item ‘Product settings (3/7)’ / ‘Programming’ can make individual settings for all speciality coffees, milk and hot water. The following permanent settings can be made: Product Temperature Coffee strength Amount Ristretto, ‘High’, Volume: ‘25 ml’ – ‘240 ml’... -
Page 28: Adding Products To The Start Screen
4 Permanent settings in programming mode g T Turn the Rotary Switch to change the setting for the amount of milk to ‘20 sec.’. T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. T Press the ‘Next’ button. T ... -
Page 29: Renaming A Product
4 Permanent settings in programming mode T Press the ‘Classic-library’ button. ‘Classic-library’ E Next select the button of the product you want to move to the start screen. No product is prepared at this point. E Select the ‘No product’ button if you want to leave a position on the start screen empty. -
Page 30: Energy-Saving Mode
4 Permanent settings in programming mode k T Press the Rotary Switch to confirm the letter ‘M’. T Press the ‘abc’ button to change to lower case. g T Turn the Rotary Switch until the letter ‘y’ is highlighted. ... -
Page 31: Automatic Switch-Off
4 Permanent settings in programming mode T Press the ‘Save energy’ button. ‘Save energy’ T Press the ‘Save Level 2’ button. T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. ‘Machine settings (4/7)’ O T Press the P button to exit programming mode. ‘Please select product:’... -
Page 32: Language
4 Permanent settings in programming mode Language In the programme item ‘Machine settings (4/7)’ / ‘Choose language’ you can select the language used by your IMPRESSA. E If you choose the wrong language by mistake, you can easily reset the machine to ‘Deutsch’: Press the P button to enter programming mode. -
Page 33: Rinses
4 Permanent settings in programming mode Example: Proceed as follows to reset the values for ‘Espresso’ to the factory settings. Precondition: ‘Please select product:’ is displayed. O T Press the P button. ‘Maintenance status (1/7)’ g T Turn the Rotary Switch until the programme item ‘Machine settings (4/7)’... -
Page 34: Setting The Water Hardness
4 Permanent settings in programming mode T Press the ‘Rinse the milk system’ button. ‘Rinse the milk system’ T Press the ‘Automatic’ button. T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. ‘Maintenance settings (6/7)’ O T Press the P button to exit programming mode. ‘Please select product:’... -
Page 35: Unit For Amount Of Water
4 Permanent settings in programming mode Unit for amount of water In the programme item ‘Machine settings (5/7)’ / ‘Units’ you can select the unit used for the amount of water. Example: Proceed as follows to change the unit for the amount of water from ‘ml’... -
Page 36: Querying Information
4 Permanent settings in programming mode O T Press the P button to exit programming mode. ‘Please select product:’ E The set background is only displayed on the start screen. Querying information In the programme item ‘Information (7/7)’ you can view the follow- ing information. -
Page 37: Maintenance
5 Maintenance 5 Maintenance Your IMPRESSA has the following integrated maintenance pro- grammes: Rinsing the machine (‘Rinse the coffee system’) Rinsing the cappuccino frother (‘Rinse the milk system’) Cleaning the cappuccino frother (‘Clean the milk system’) Changing the filter (‘Change the filter’) Cleaning the machine (‘Clean’) Descaling the machine (‘Descale’) (only if filter is not acti-... -
Page 38: Rinsing The Cappuccino Frother
If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water. T Use only original JURA maintenance products. E JURA Cappuccino Cleaner is available from specialised dealers. Precondition: ‘Please select product:’ is displayed. -
Page 39: Dismantling And Rinsing The Cappuccino Frother
T Dismantle the cappuccino frother into its individual parts. T Rinse all parts of the cappuccino frother thoroughly under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in JURA Cappuccino Cleaner and then rinse them thoroughly. T Reassemble the cappuccino frother. -
Page 40: Inserting And Activating The Filter
5 Maintenance Inserting and activating Your IMPRESSA no longer has to be descaled if you are using the the filter CLARIS Blue filter cartridge. If you did not activate the filter cartridge the first time you used the machine, you can do this now as follows. E Perform the ‘inserting the filter’... -
Page 41: Changing The Filter
‘Change the filter’ button. ‘Approximate duration 2 min.’ T Press the ‘Start’ button. ‘Use only original JURA maintenance products!’ T Press the ‘Start’ button again. ‘Change filter.’ T Remove and empty the water tank. T Open the filter holder and remove the old CLARIS Blue filter cartridge. -
Page 42: Cleaning The Machine
T Use only original JURA maintenance products. E The cleaning programme lasts approximately 20 minutes. E Do not interrupt the cleaning programme. The quality of cleaning will be impaired if you do so. E JURA cleaning tablets are available from specialised dealers. - Page 43 ‘Add cleaning tablet.’. T Open the cover of the filler funnel for ground coffee. T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel. ‘Press the Rotary Switch.’, the Rotary Switch lights up.
-
Page 44: Descaling The Machine
T Clean up any splashes immediately. E The descaling programme lasts approximately 45 minutes. E JURA descaling tablets are available from specialised dealers. E If you use a CLARIS Blue filter cartridge and this is activated, you will not be prompted to descale. - Page 45 5 Maintenance T Completely dissolve the contents of one blister (3 JURA des- caling tablets) in a receptacle holding 600 ml of water. This may take several minutes. T Pour the solution into the empty water tank and insert it into the machine.
-
Page 46: Cleaning The Bean Container
5 Maintenance Cleaning the bean Coffee beans may be covered with a slight oil film which remains on container the walls of the bean container. These traces may negatively affect the coffee result. For this reason clean the bean container from time to time. -
Page 47: Display Messages
6 Display messages 6 Display messages Message Cause/Result Action ‘Fill water tank.’ The water tank is empty. You cannot T Fill the water tank (see Chapter 1 prepare any products. ‘Preparing and using for the first time – Filling the water tank’). ‘Empty coffee The coffee grounds container is full. - Page 48 6 Display messages Message Cause/Result Action ‘Clean machine.’ The IMPRESSA is prompting you to T Perform cleaning (see Chapter 5 ‘Clean machine clean it. ‘Maintenance – Cleaning the now.’ machine’). ‘Decalcify The IMPRESSA is prompting you to T Perform descaling (see Chapter 5 machine.’...
-
Page 49: Troubleshooting
7 Troubleshooting 7 Troubleshooting Problem Cause/Result Action When preparing a latte – T Turn the setting wheel of the cappuccino macchiato, the typical frother to the far right and the Milk Foam three layers do not position ü. form. T Change the length of the interval to at least 30 seconds in programming mode (see Chapter 4 ‘Permanent settings in programming mode –... - Page 50 Contact customer support in your played. country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).
-
Page 51: Transport And Environmentally Friendly Disposal
8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your IMPRESSA. It should be used to protect system the machine during transport. In order to protect the IMPRESSA from frost during transport, the system must be emptied. -
Page 52: Technical Data
9 Technical data 9 Technical data Voltage 220–240 V ~, 50 Hz Power 1350 W Conformity mark Energy consumption ‘Save No’ Approx. 26 Wh Energy consumption ‘Save Level 1’ Approx. 13 Wh Energy consumption ‘Save Level 2’ Approx. 17 Wh Pump pressure Static, max. 15 bar Holding capacity of water tank 2.8 l Holding capacity of bean container 280 g... - Page 53 10 Index 10 Index Consistency of grind Adjusting the grinder 14 Adding products to the start screen 28 Grinder adjustment switch 4 Addresses 56 Contact details 56 Aroma preservation cover Counter 36 Bean container with aroma preservation Cover cover 4 Bean container 4 Automatic switch-off 31 Filler funnel for ground coffee 4...
- Page 54 Ground coffee 20 In coffee à la carte mode 18 Internet 10 Latte macchiato 19 Milk 20 Milk foam 20 JURA Special coffee 19 Contact details 56 Two speciality coffees 17 Internet 10 Using the product selector 16 Preparation options 16...
- Page 55 10 Index Renaming a product 29 Warm milk 20 Rinses 33 Water hardness Rinsing Determining the water hardness 13 Cappuccino frother 38 Setting the water hardness 34 Machine 37 Water tank 4 Rotary Selection 16 Descaling 46 Rotary Switch 5 Filling 15 Website 10 Safety 6...
-
Page 56: Jura Contact Details / Legal Information
Art. 70892/Z9/en/201312 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com. The machine complies with the following directives: Directives 2006/95/EC –...
