TABLE OF CONTENTS
1. INTRODUCTION...................................................................................................
2. IMPORTANT SAFETY PRECAUTIONS................................................................
3. ASSEMBLING YOUR TREADMILL......................................................................
List of Parts...........................................................................................................
4. TREADMILL ASSEMBLY.......................................................................................
Pedestal and Handle Assembly Steps.................................................................
Display Installation Steps......................................................................................
Connect to Power..................................................................................................
5. T670 DISPLAY......................................................................................................
Display Features...................................................................................................
Display Features..................................................................................................
Button Functions..................................................................................................
Safety Key............................................................................................................
6. HOW TO USE YOUR T670 TREADMILL............................................................
Quick Start............................................................................................................
Workout Setup.....................................................................................................
Operating Prodcedure during Excercise..............................................................
Cool Down ..........................................................................................................
7. PROGRAMS.......................................................................................................
Program List........................................................................................................
User Parameter Setting.......................................................................................
8. GUIDELINES FOR EXERCISE...........................................................................
.
9. ADJUST THE WALK BELT..................................................................................
10. FLOOR LEVEL ADJUSTMENT.........................................................................
11. MAIN FUSE FAILURE.......................................................................................
12. ERROR MESSAGE...........................................................................................
13. WIRING SCHEMATIC........................................................................................
1
2
4
4
6
6
9
11
12
12
12
13
15
16
16
16
17
18
19
19
20
22
23
25
26
27
28
Advertisement
Table of Contents
Related Manuals for SportsArt Fitness Xtrema T670
Summary of Contents for SportsArt Fitness Xtrema T670
-
Page 1: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION....................2. IMPORTANT SAFETY PRECAUTIONS..............3. ASSEMBLING YOUR TREADMILL..............List of Parts......................4. TREADMILL ASSEMBLY..................Pedestal and Handle Assembly Steps..............Display Installation Steps..................Connect to Power....................5. T670 DISPLAY...................... Display Features....................Display Features....................Button Functions....................Safety Key......................6. -
Page 2: Introduction

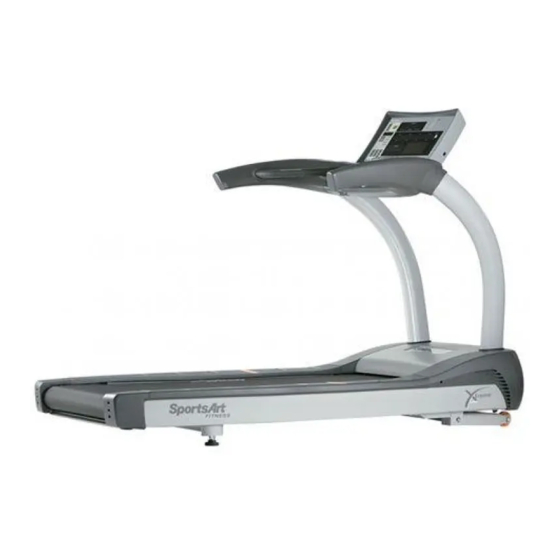

SPORTSART T670 COMMERCIAL TREADMILL INTRODUCTION Congratulations on purchasing one of the finest pieces of commercial exercise equipment on the market today, the SportsArt T670 Commercial Treadmill. The T670 is designed with the end-user in mind and constructed of high quality materials and designed for years of trouble-free use. -
Page 3: Important Safety Precautions
Your SportsArt treadmill was designed and built for optimum safety. However, certain precautions apply when ever you use your treadmill. Please read the entire manual before assembly and operation. Also, please note the following safety precautions: IMPORTANT SAFETY PRECAUTIONS Please read the instruction carefully and install the treadmill as instructed ˙... - Page 4 Keep all air ventilation areas free of blockage. ˙ Never drop or insert any object into any opening. ˙ DO NOT operate where aerosol (spray) products are being used or where ˙ oxygen is being administered. The weight limit for this treadmill is 150 KG (330 LB) ˙...
-
Page 5: Assembling Your Treadmill
ASSEMBLING YOUR TREADMILL Thank you for purchasing our product. Even though we go to great efforts to ensure the quality of each product, occasional errors and/or omissions do occur. In any event should you find the product to be defective or missing a part please contact your local dealer. - Page 6 14. One double open end wrench (22/24) (In vacuum-packed container) 15. One fuse 15A(110v) / 10A(220v) (In vacuum-packed container) 16. Six M8*L18 socket-head screws (For pedestals-On the treadmill) 17. Six M8 spring washers (For pedestals-On the treadmill) 18. Four D18*d8.5*t2-mm serrated washers (For pedestals-On the treadmill) 19.
-
Page 7: Treadmill Assembly
TREADMILL ASSEMBLY PEDESTAL AND HANDLE ASSEMBLY STEPS When you remove the treadmill from its box, first check to make sure all of the parts are present. Then, read through the assembly instructions before you begin. STEP 1 . Use the PHILLIPS-HEAD SCREWDRIVER to remove the screws (3 pcs) from the side plates of the motor cover (both left and right) and remove... - Page 8 STEP 3. Use the PHILLIPS-HEAD SCREWDRIVER to remove left and right cup holders. (See Fig. 3.) Fig.3 STEP 4. Hold the handlebars onto the bracket on the pedestals. Then pull the data cable on the right pedestal through the right handle (C D E). Remove the →...
- Page 9 STEP 5. Use the ALLEN WRENCH WITH THE L-SHAPED HANDLE (6 mm) securely tighten the pedestal screws in place; then put the side covers (both left and right) in place (FG) and secure them with the Phillips-head screws. Finally, set the waterproof rings in place near the hood. (See Fig. 5.) Fig.5...
-
Page 10: Display Installation Steps
DISPLAY INSTALLATION STEPS STEP 1. Use the ALLEN WRENCH WITH THE T-SHAPED HANDLE (5 mm) remove the four bolts from location (A) shown below. Hold the display into position and connect data cables. (See Fig. 6-1~6-3.) Use the CABLE WRENCH to secure the cable. - Page 11 STEP 2. Rotate the display upward and fit it onto the handlebars. Using points (A), pivot the display back without pinching the wires. (See Fig. 7.) Fig.7 STEP 3. With one hand behind the display for support, push the display down gently until it connects securely.
-
Page 12: Connect To Power
STEP 4. Use the HEX ALLEN WRENCH WITH THE T-SHAPED HANDLE (5 mm) secure the display with the bolts as shown below. (See Fig. 9.) Fig.9 CONNECT TO POWER Connect the power cable as indicated in Fig.10, and secure it by tightening the screws. -
Page 13: T670 Display
T670 DISPLAY: DISPLAY FEATURES Heart Rate LED Workout Goal Personal CardioAdvisor Programs Setting Window Dot Matrix Display Information Window Numeric Keypad Workout Goal Percentage Completed DISPLAY FUNCTIONS 1. SPEED: 0.1 to 15.0 MPH or 0.2 to 24.0 KPH in 0.1 increments 2. -
Page 14: Button Functions
7. METS (Metabolic burn rate): 0.0 to 99.0 8. PACE: 1/ Speed 9. PROGRAM: Track, Random, Glute, Interval (1:1, 1:2, 2:2), 5K (Flat, Hill), 10K (Flat, Hill), Wt Loss, Cardio, Custom HR and Fit Test (Bruce or Gerkin) 9. DOT MATRIX DISPLAY: Displays program profiles and information BUTTON FUNCTIONS 1. - Page 15 11. RANDOM Press RANDOM to generate different courses. 12. GLUTE This program is specifically designed to exercise the gluteus muscles of the body. 30 and 45 minute programs run you through a specific incline-based program. 13. INTERVAL There are three kinds of INTERVALs (1:1, 1:2 and 2:2). For example, in 1:2, 1 = one minute of rest;...
-
Page 16: Safety Key
b. Under any status: Hold this button to reset to the banner display. 23. FAN Press the fan control button to select one of three speeds. 24. DISPLAY LOCK/UNLOCK a. Press this button to view different feedback modes: SCAN/FEEDBACK /FEEDBACK . ↑... -
Page 17: How To Use Your T670 Treadmill
HOW TO USE YOUR T670 TREADMILL QUICK START If you select QUICKSTART, "TREAD STARTING" appears on the display and the walk belt moves at 0.1mph/0.2kph, after which the speed can be modified. The user information default is 165lbs/75kgs. WORKOUT SETUP Input user information to obtain accurate information on caloric burn, heart rate control (range is generated by age entered), and to accumulate total use time, miles, and calories burned (PROGRAM/AGE/WEIGHT). -
Page 18: Operating Prodcedure During Excercise
2. WEIGHT: From 50 to 400LB / 20 to 140 KG (default value: 165LB / 75KG). a. Press or the numeric keypad to select your weight. ▲ ▼ b. Press ENTER to confirm your choice. D. PROGRAM SETTING PROCEDURE 1 When the previous selected program is Custom HR, the range of the TARGET HR is 84 ~ 200 bpm (default value: 120 bpm). -
Page 19: Cool Down
2. 'Workout goal percentage complete' window shows the percentage of the workout completed. 3. Wt Loss Training Zone & Cardio Training Zone windows show target heart rates according to age. 4. Setup window displays the selected WORKOUT GOAL. C. Users can adjust settings while working: Programs can be changed during exercise. -
Page 20: Programs
PROGRAMS Program List 1. TRACK One lap is equal to 400M (0.25 Mile). 2. RANDOM The random program includes an infinite number of programs. Continue to press this button until you find a course to your liking. 3. GLUTE The GLUTE program is specifically designed to exercise the gluteus muscles. Press to choose between 30- and 45-minute programs in this incline-based exercise mode. -
Page 21: User Parameter Setting
B. HRC (Heart rate control) mode: 1. The message row displays "ENTER TARGET HR" when you select Custom HR. In the setup window, "120" flashes. Press or use the numeric ▲ ▼ keypad (0 to 9) to adjust heart rate. Press ENTER to confirm your choice. 2. - Page 22 3. Display the total accumulative time. The message row will display "TIME XXXXXX HOUR". Press ENTER to confirm your choice or press STOP to quit (without changing parameters). 4. Display the version of the software: a. The message row will display the version of the control board "CTL XXXXX-XX". Press ENTER to confirm your choice or press STOP to quit (without changing parameters).
-
Page 23: Guidelines For Exercise
GUIDELINES FOR EXERCISE How hard should I exercise? Studies show that to achieve the benefits of aerobic exercise, it is necessary to work within your training zone. Your training zone depends on your age and level of fitness. The above chart indicates the recommended Heart Rate training zones (darkened area of the chart). -
Page 24: Adjust The Walk Belt
ADJUSTING THE WALK BELT For optimum performance, the walk belt must track in the center of the deck. Failure to align the belt properly could cause the belt to tear or fray, which is not covered under the warranty. Caution: To avoid injury, special care must be taken when adjusting the walk belt. - Page 25 6. If the belt is too far right, turn the right adjustment bolt clockwise 1/4 turn, then turn the left adjustment bolt counterclockwise 1/4 turn. Turn on the treadmill. Press the SPEED button to increase the speed until the speed reaches 2.0 mph/3.2kph on the display.
-
Page 26: Floor Level Adjustment
Periodically monitor the position of the belt to ensure peak performance To avoid injury, special care must be taken when adjusting the walk belt. Remove any loose clothing or shoes lace and tie back your hair. Be very careful to keep your fingers or any other objects clear of the belt and rollers. -
Page 27: Main Fuse Failure
Turn the fuse holder clockwise to secure the fuse in place. (See Fig. 13-2 to Fig. 13-4.) Fig.13-1 Fig.13-2 Fig.13-4 Fig.13-3 If the unit does not work after changing the fuse, please contact your authorized SportsArt Fitness service technician for more information. -
Page 28: Error Message
ERROR MESSAGES 1. Display format: 2. Explanations for each error message: ERROR_1_1_ The AC servo motor encoder is out of order. Please re-start the unit. ERROR_1_2_ The AC servo motor is overheated. Speed is restricted to half. ERROR_1_3_ The AC servo motor suddenly accelerated. Please re-start the unit. ERROR_2_1_ The IGBT current is too high. -
Page 29: Wiring Schematic
Wiring Schematic: T670 Your Authorized Distributor...
