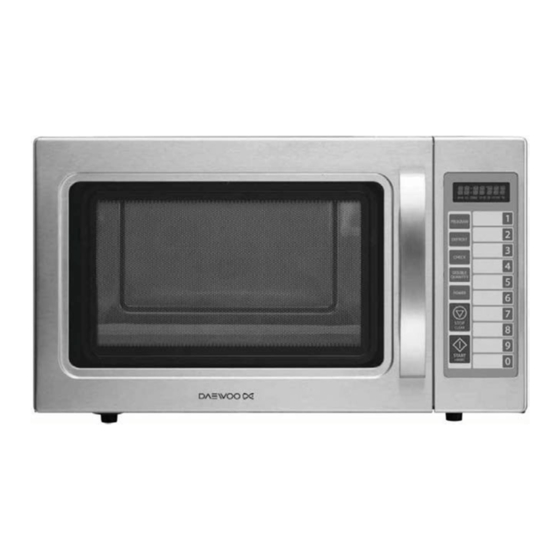

Daewoo kom-9p11 microwave oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

USE AND CARE MANUAL
COMMERCIAL MICROWAVE OVEN
KOM-9P11
* CUSTMER SERVICE HELP LINE
Before operating this oven, please read these instructions completely.
An evaluation version of
novaPDF
was used to create this PDF file.
Purchase a license to generate PDF files without this notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOM-9P11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo KOM-9P11

Summary of Contents for Daewoo KOM-9P11

  • Page 1 USE AND CARE MANUAL COMMERCIAL MICROWAVE OVEN KOM-9P11 * CUSTMER SERVICE HELP LINE Before operating this oven, please read these instructions completely. An evaluation version of novaPDF was used to create this PDF file. Purchase a license to generate PDF files without this notice.

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (A) DO NOT ATTEMPT TO OPERATE THIS OVEN WITH THE DOOR OPEN SINCE OPEN- DOOR OPERATION CAN RESULT IN HARMFUL EXPOSURE TO MICROWAVE ENERGY. IT IS IMPORTANT NOT TO DEFEAT OR TAMPER WITH THE SAFETY INTERLOCKS. (B) DO NOT PLACE ANY OBJECT BETWEEN THE OVEN FRONT FACE AND THE DOOR OR ALLOW SOIL OR CLEANER RESIDUE TO ACCUMULATE ON SEALING SURFACES.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY..... 1 TABLE OF CONTENTS ..........................2 EARTHING INSTRUCTIONS........................3 INSTALLATION ............................3 SPECIFICATIONS ............................4 IMPORTANT ............................... 4 IMPORTANT SAFETY INSTRUCTIONS ....................... 5 FEATURES DIAGRAM..........................6 OPERATION PROCEDURE ......................... 8 CONTROLS ..............................

  • Page 4: Earthing Instructions

    EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.

  • Page 5: Specifications

    SPECIFICATIONS POWER SUPPLY 240V AC 50Hz SINGLE PHASE WITH EARTHING POWER CONSUMPTION 1600 W MICROWAVE OUTPUT POWER 1100 W FREQUENCY 2450 MHZ OUTSIDE DIMENSIONS (W x H x D) 542 x 329 x 461 (21.34 x 12.95 x 18.15 in.) CAVITY DIMENSIONS (W x H x D) 350 x 230 x 357 (12.78 x 3.06 x 14.06 in.) NET WEIGHT...

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1.

  • Page 7: Features Diagram

    FEATURES DIAGRAM 1 Safety Interlock System. 5 Door Seal - Door seal maintains the microwave energy within the oven cavity 2 Door Viewing Screen - Allows viewing of and prevents microwave leakage. food. The screen is designed so that light 6 Plate Tray - Made of special heat resistant can pass through, but not the microwaves.
  • Page 8 FEATURES DIAGRAM (continued) 1 MICROWAVE indicator, showing 7 TIME SET PAD - Used to set the cooking microwaving in progress. time. 2 DEFROST indicator, showing defrosting in 8 CHECK - Used to check cooking data. progress. 9 DOUBLE QUANTITY - Used to extend 3 PERCENTAGE of power indicator.

  • Page 9: Operation Procedure

    OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3- pronged 230V AC 50Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray must always be in place during cooking.

  • Page 10: Controls

    CONTROLS TIME DEFROSTING When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Touch DEFROST pad. The DEFROST indicator lights and " : 0" is DEFROST displayed.

  • Page 11: Cooking In One Stage

    COOKING IN ONE STAGE 1. Touch POWER pad. The MICROWAVE and % indicators light. POWER (Select desired power level.) The display will show what you touched. 2. Touch the number pads for the This example shows power level 60. cooking time. The display will show the numbers you pressed in the order you touched.

  • Page 12: Memory Function

    MEMORY FUNCTION This microwave oven has 20 programmable pads (1~20). 1. Touch PROGRAM pad. The display will show “PROGRAM”. PROGRAM 2. Touch the number pads. ex)5 The display will show “PROG-05”. 3. Touch POWER pad. (Select The MICROWAVE and % indicators light. desired power level.) 4.

  • Page 13: +30 Sec

    +30 SEC +30 SEC allows you to reheat for 30 seconds at 100% (full power) by simply touching the +30 SEC pad. By repeatedly touching the +30 SEC pad, you can also extend reheating time to 5 minutes by 30 second increments.

  • Page 14: Child Safety Lock

    CHILD SAFETY LOCK The safety lock prevents unwanted oven operation such as by small children. To set, press and hold STOP/CLEAR for 3 seconds, LOCK indicator lights. To cancel, press and hold STOP/CLEAR for 3 seconds, LOCK indicator goes off. POWER SAVE MODE This function is used for saving energy.

  • Page 15: Cooking Instruction

    COOKING INSTRUCTIONS Only use utensils that are suitable for use in microwave ovens. UTENSILS TEST Place the utensil in question next to a glass measure filled with water, in the microwave oven. Microwave at high power for 1-2 minutes. If the water heats up, but the utensil remains cool, the utensil is microwave-safe. However if the utensil becomes warm, microwaves are being absorbed by the utensil and it should not be in the microwave oven.

  • Page 16: Microwaving Principles

    MICROWAVING PRINCIPLES Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones. HOW MICROWAVES COOK FOOD Microwave oven is a Group 2 ISM equipment in which radiofrequency energy is intentionally generated and used in the form of electromagnetic radiation for the treatment of material.

  • Page 17: Cooking Techniques

    COOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and cakes, The colder the food, the longer it takes to heat up. require standing time(inside or outside of the oven) Food from a fridge takes longer to reheat than food after cooking, to allow heat to finish conducting to at room temperature.

  • Page 18: Defrosting Chart

    DEFROSTING CHART Item and Weight Defrosting Time Standing Time Special Techniques BEEF Break apart and remove thawed Mineed beef 5-7 min. 5-7 min. portions with fork. 454g (1 lb.) Stew Meat Separate and rearrange once. 681 (1 1 /2 lbs.) 6-8 min.

  • Page 19: Cooking Chart

    COOKING CHART Check time per 1lb. in chart below and multiply by the weight of the item. MEAT ITEM POWER LEVEL COOKING TIMER PER 500g Beef Standing/rolled Rib - Rare 6-8 min. - Medium 7-9 min. - well done 8-10 min. Ground Beef(to brown for casserole) 5-7 min.

  • Page 20: Reheating Chart

    VEGETABLE ITEM POWER LEVEL PREPARATION QUANTITY COOKING TIME STANDING TIME Asparagus, fresh -in.pieces 500g(1 lb.) 3-5 min. 3 min. Asparagus, frozen Whole spears 280g(10 oz. pkg) 5-7 min. 3 min. Broccoli, fresh Spears 500g(1 lb.) 3-5 min. Broccoli, frozen Whole or cut 280g(10 oz.
  • Page 21 ITEM QUANTITY POWER LEVEL COOKING TIME SPECIAL INSTRUCTION 2 pieces 1-2 min. Fried chicken 4 pieces 2-4 min. Arrange, on paper tower lined paper 6 pieces 3-5 min. plate, covered with paper tower. 2 fillets 1-2 min. Fried fresh fillets 4 fillets 2-4 min.

  • Page 22: Caring For Your Microwave Oven

    CARING FOR YOUR MICROWAVE OVEN Turn the oven off before cleaning. Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended.

  • Page 23: Use Your Microwave Oven Safely

    USE YOUR MICROWAVE OVEN SAFELY General Use Do not attempt to defeat or tamper with safety interlocks. Do not place any object between the oven front frame and the door or allow residue to build up on sealing surfaces. Wipe with a mild detergent, rinse and dry. Never use abrasive powders or pads. Do not subject the oven door to strain or weight such as a child hanging on an open door.

  • Page 24: Before You Call For Service

    BEFORE YOU CALL FOR SERVICE Refer to following checklist, you may prevent an unnecessary service call. * The oven doesn't work; 1. Check that the power cord is securely plugged in. 2. Check that the door firmly closed. 3. Check that the cooking time is set. 4.

  • Page 25: Disposal Of Used Electrical & Electronic Equipment

    QUESTIONS AND ANSWERS (continued) Q : Why is standing time recommended after the cooking operation has been completed? A : Standing time is very important. With microwave cooking, the heat is in the food, not in the oven. Many foods build up enough internal heat to allow the cooking process to continue, even after the food is removed from the oven.
