2.2.3 Dielectric Strength Testing

Units which are to have dielectric strength testing (HIPOT testing) done in the field must have the

braided ground cable disconnected during the test. This is required in order to prevent the surge

suppression circuitry, which is connected to surge ground, from being activated.

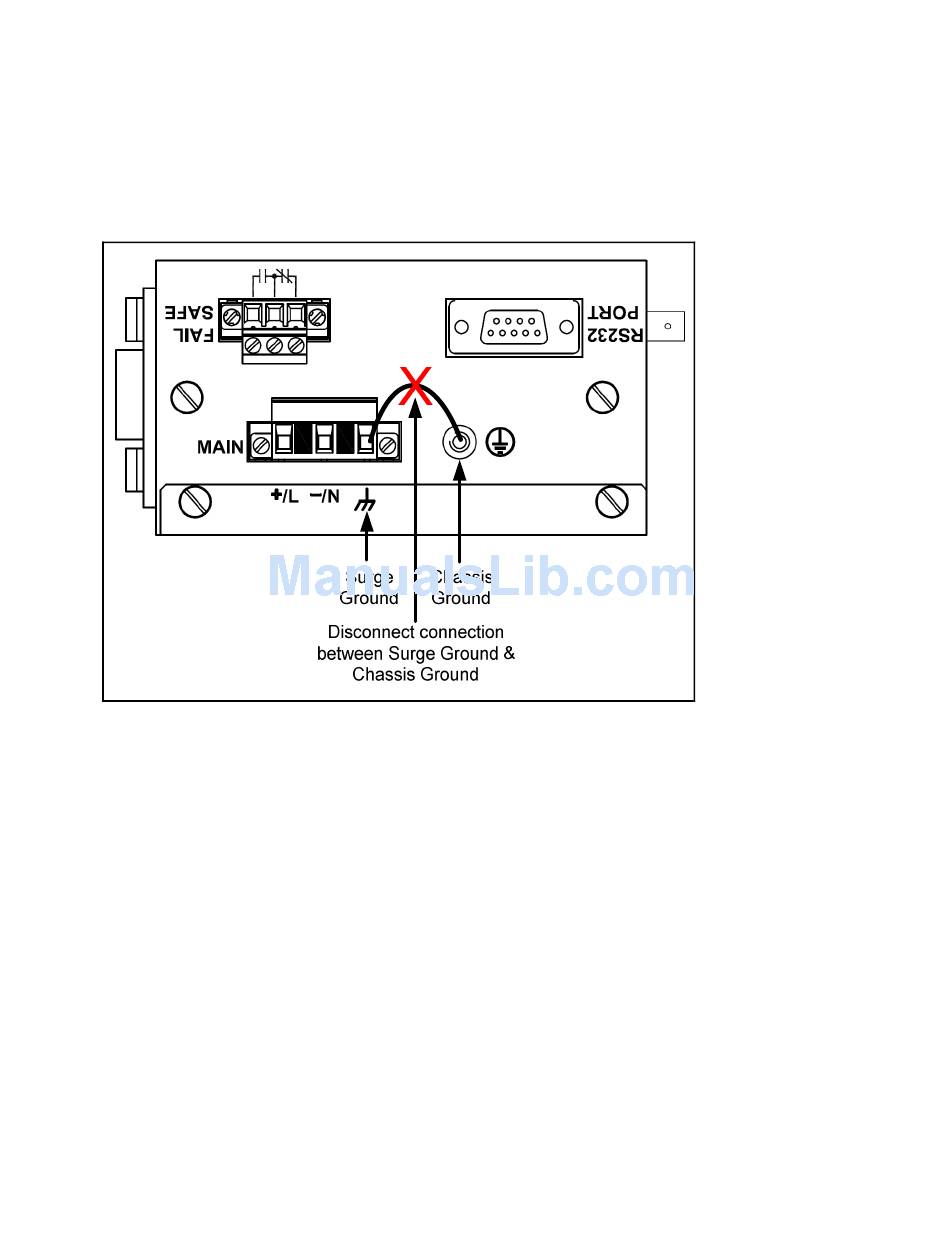

Figure 6 - Dielectric Strength Testing

Rev100
