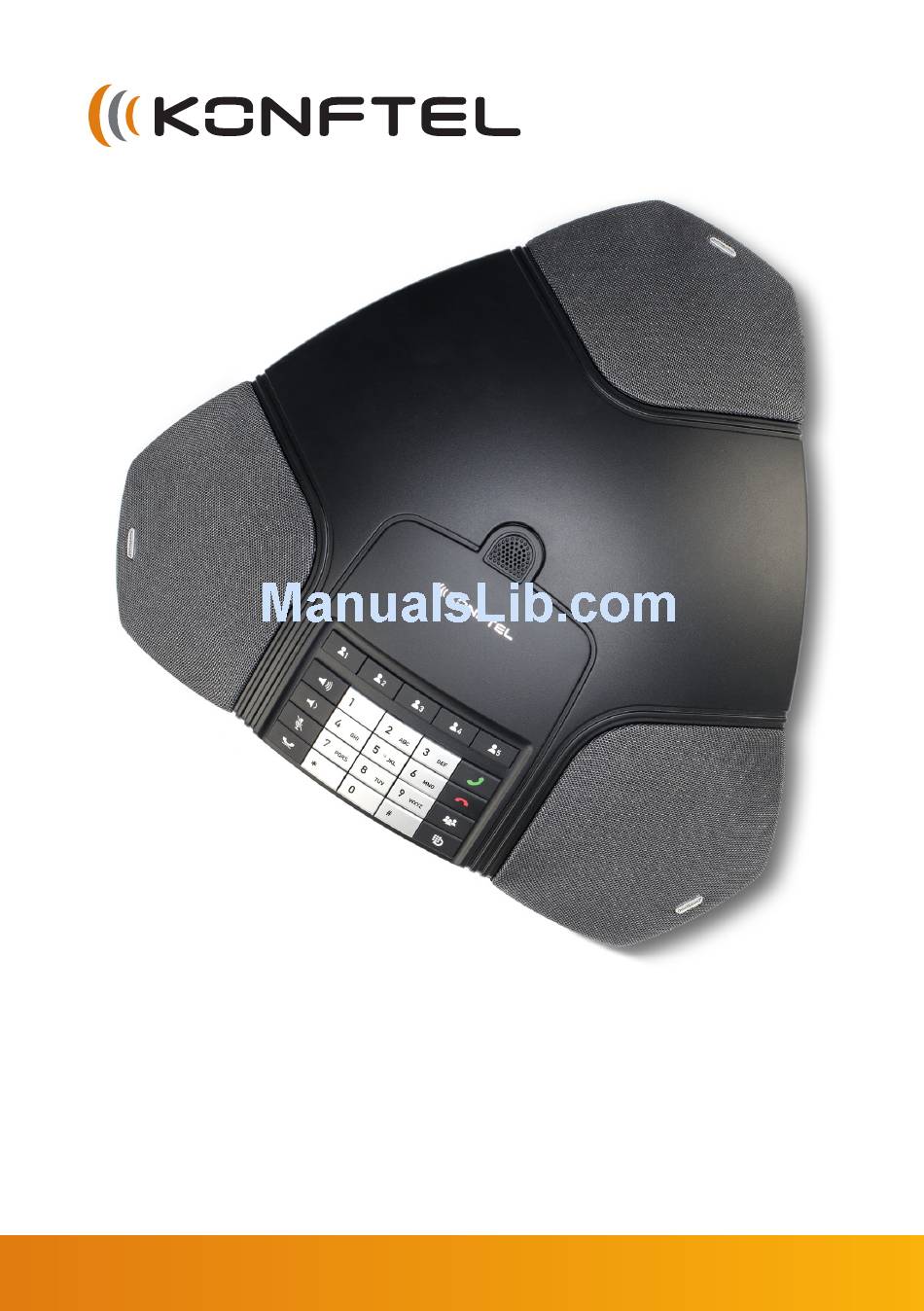

- Page 1 User Guide Konftel 220 ENGLISH...
-
Page 2: Maintenance
It’s as close as you can get to natural sound. Konftel AB hereby declares that this conference phone is in conformity with all the essential requirements and other relevant provisions of Directive 1999/5/EC. - Page 3 DESCRIPTION Speaker Microphone Keypad LEDs Analogue line connection LEDs Flashing blue Incoming call Steady blue Call in progress Security lock Flashing red Hold, microphone and speaker port turned off Steady red Mute, microphone turned off Power supply port Call speed dial numbers Answering/connecting calls and Flash During a call: Press to call a...
-
Page 4: Connecting And Installing The Unit
Place the conference phone in the middle of the table. SELECT YOUR REGION The first time the Konftel 220 is started, you will be required to select the region in which you are located. The Konftel 220 then automatically configures to the telephone network for that region. -
Page 5: Answering And Making Calls
ANSWERING AND MAKING CALLS ANSWERING CALLS A ring tone will be heard and the blue LEDs start flashing. Press to answer. The LEDs show a steady blue light. MAKING CALLS Press Dial the number. The number is called and the LEDs show a steady blue light. Redialling ... -
Page 6: Making Three-Way Calls
ANSWERING AND MAKING CALLS MAKING THREE-WAY CALLS During a call, the key acts as Flash/R-pulse, which means it transmits commands to the PBX to get a new dialling tone. Different PBXs may require different signals. Please contact your telephone administrator or service provider if you experience problems making multi-party calls. -
Page 7: During A Call
DURING A CALL ADJUSTING THE SPEAKER VOLUME Adjust the speaker volume using the keys. PLACING CALLS ON TEMPORARY HOLD Mute Press to turn the microphone off. The LEDs change from blue to red. The other party cannot hear what you are saying. ... -
Page 8: Adjusting The Ring Volume
SETTINGS ADJUSTING THE RING VOLUME The phone needs to be in stand-by mode ( ) when you change this setting. Press the keys. The ring volume changes each time you press. There are six levels. You will hear the ring tone for each level you select. CHANGING THE CONFERENCE KEY A request must be sent to the PBX to connect a three-way call. - Page 9 Select your region (3) The first time the Konftel 220 is started, you must select the region in which you are located. The Konftel 220 then automatically configures to the telephone network for that region. This setting can be changed later.
-
Page 10: Technical Data
TECHNICAL DATA Size Diameter 240 mm, height 77 mm Weight 1 kg Colour Charcoal black Keypad Alphanumerical 0–9, *, handset off/F, handset on, mute, hold, volume up, volume down, 5 keys for speed dial, redial and conference (three-way) Anti-theft protection Kensington security slot Connectivity Analogue telephone connectivity Modular 6/6 modular (RJ11) to a public analogue telecom munication network or an analogue PBX Power supply... -
Page 11: Service And Warranty
SERVICE AND WARRANTY If anything is wrong with your Konftel unit, please contact the place of purchase. Warranty We give a two-year warranty on our conference telephones. Service Service is offered after the expiration of the warranty. Please contact your reseller and ask for a cost estimate. - Page 12 , our patented audio technology, into all Konftel telephones. Our products ® are marketed worldwide under the Konftel name via our head offices in Umeå. Find out more about the company and our products at www.konftel.com Konftel AB, Box 268, SE-901 06 Umeå, Sweden Tel.: +46 90 706 489 Fax: +46 90 131 435 E-mail: info@konftel.com...
