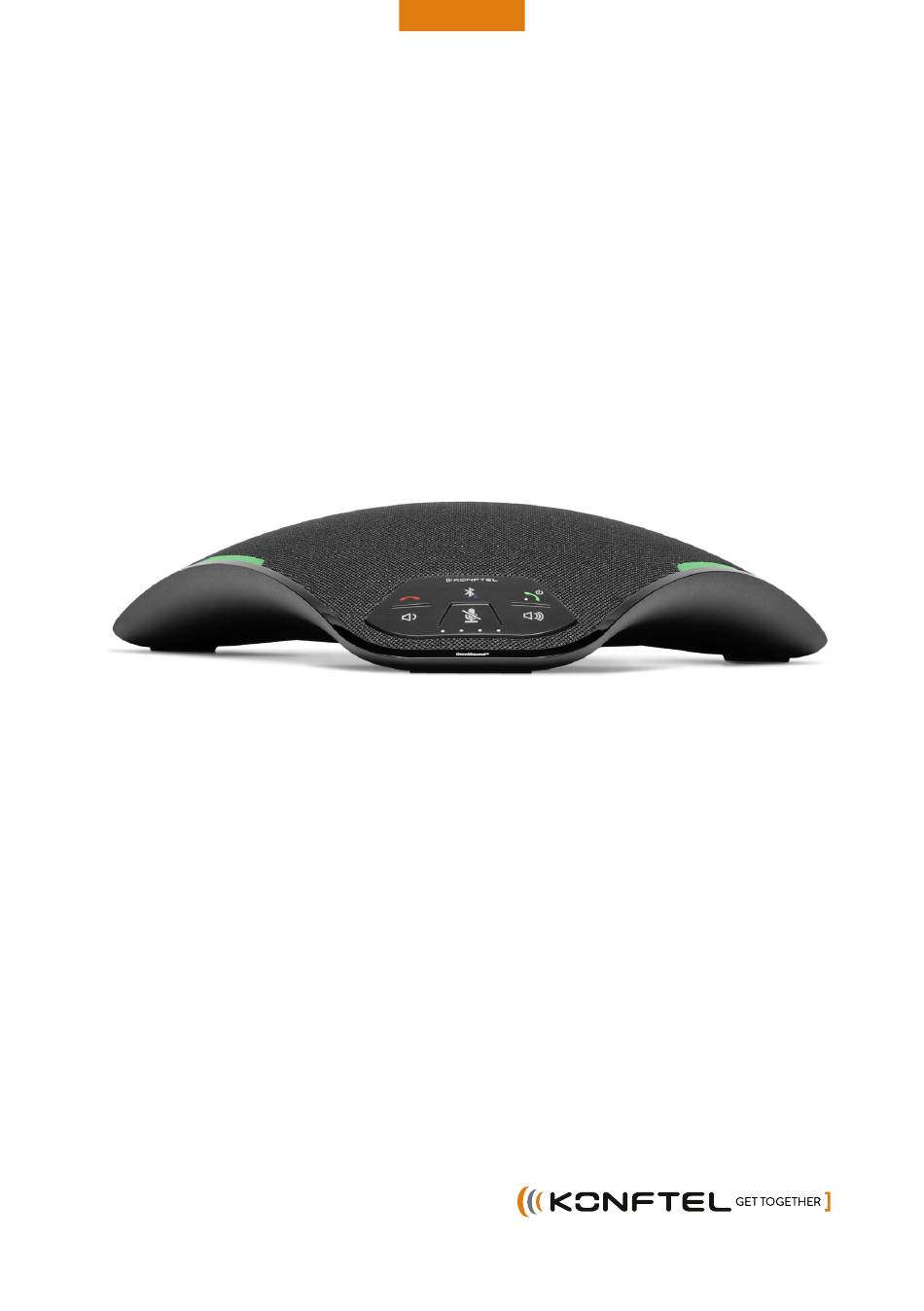

- Page 1 K O N F T E L . C O M User Guide Konftel 70 E N G L I S H...
- Page 2 Konftel AB hereby declares that this conference phone is in conformity with all the essen- tial requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU (RED). Please visit www.konftel.com to view the complete declaration of conformity. Warning! Do not expose the Konftel 70 to water or moisture.
-
Page 3: Table Of Contents
Table of contents Introduction Maintenance Purpose............4 Firmware upgrade.........23 Installing Konftel Upgrade Utility....23 Overview Upgrading firmware........23 Konftel 70 overview........5 Hardware reset..........24 Physical layout..........6 Index Connection layout........... 8 Dimensions and weight........9 Touch buttons..........9 LED status indicators........10 LED battery state indicators......11 Specifications..........11... -
Page 4: Introduction
INTRODUCTION PURPOSE This document describes the procedures for using Konftel 70 and is primarily intended for the end users. -
Page 5: Overview

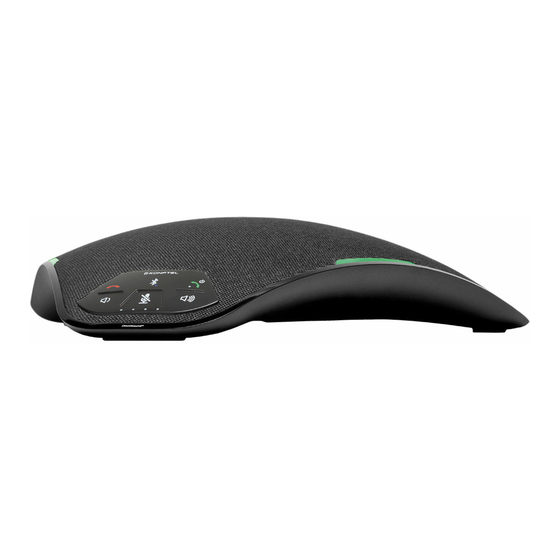

OVERVIEW KONFTEL 70 OVERVIEW Konftel 70 is a speakerphone that you can use to conduct virtual meetings and listen to music with excellent quality with OmniSound® audio optimization technology. It provides an improved user experience with full-duplex and echo cancellation functionality. -
Page 6: Physical Layout
OVERVIEW PHYSICAL LAYOUT Figure 1: Front view of Konftel 70. The following table lists the touch buttons and the other elements of Konftel 70. Callout number Description Bluetooth ® touch button On hook touch button Off hook touch button Volume down touch button... - Page 7 OVERVIEW Callout number Description Volume up touch button Mute touch button Power touch button (shares the same touch area with the Off hook button) NFC tag for Bluetooth ® connectivity LED Indicator for call status LED indicator for power mode LED indicator for battery status LED indicator for Bluetooth ®...
-
Page 8: Connection Layout
OVERVIEW CONNECTION LAYOUT Figure 2: Connection layout of Konftel 70 The following table lists the sockets and ports available on Konftel 70 for connection. Callout number Description Power cable socket USB Type micro B Kensington® security lock port... -
Page 9: Dimensions And Weight
Dimension Width 278 mm Length 250 mm Height 59 mm Konftel 70 net weight is 700 grams. The weight of the complete package is 1300 grams. TOUCH BUTTONS Touch buttons of Konftel 70 Icon Name Description To switch the speakerphone on and off. -
Page 10: Led Status Indicators
OVERVIEW Icon Name Description ® Bluetooth To indicate an active Bluetooth connection and manage Bluetooth ® pairing and connections. LED STATUS INDICATORS The LEDs on the speakerphone indicate the call status, the power connection, the battery state, the Bluetooth ® connection, and the music mode. -
Page 11: Led Battery State Indicators
OVERVIEW LED BATTERY STATE INDICATORS Four step battery state indicators at the bottom of the touch keypad of Konftel 70 show the battery charge state. If the phone has a USB or power connection and is fully charged, all four LED indicators are off. -
Page 12: Safety Guidelines
LED indicators for call and battery status, power and Bluetooth ® connection Interoperability • Windows 10 • MacOS • • Android SAFETY GUIDELINES Ensure that you are familiar with the following safety guidelines before using, installing, configuring, and administering Konftel 70. - Page 13 TV sets, radios, computers, and microwave ovens to avoid interference. In case Konftel 70 and the corresponding accessories are damaged, the device does not operate normally or exhibits a distinct change in performance, refer for servicing to the qualified service personnel.
-
Page 14: Connectivity
® host. The computer normally activates the speaker in Konftel 70, if no other software that can use the microphone is running. Here, Konftel 70 functions as a powerful speaker to play music. When you make or take a call, the music mode automatically turns off, and Konftel 70 enables the microphone and acts as a conference unit. -
Page 15: Connecting To A Computer
Connect Konftel 70 to the computer using a suitable USB cable. Cable retention The Konftel 70 device has a retention mechanism for connection of the USB and power cables. When pulling, the cable retention mechanism prevents disconnection of the USB and power cables. The cable retention feature ensures that data communication between Konftel 70, the computer, and the device battery charging does not abruptly end. -
Page 16: Pairing And Connecting With Nfc
CONNECTIVITY You can pair a maximum of eight devices with Konftel 70. To pair a new host that already has eight other paired devices in the list, Konftel 70 deletes the oldest pairing information. Pairing and connecting with NFC You can pair Konftel 70 with your Bluetooth ®... - Page 17 CONNECTIVITY The connection breaks up in the following cases: ® • The devices are far apart. Konftel 70 Bluetooth range is about 20 meters. ® ® • You turn off Bluetooth on your Bluetooth host. Konftel 70 and your Bluetooth ®...
-
Page 18: Speakerphone Operations
Volume Up MUTING THE MICROPHONE DURING A CALL Use this procedure to mute the microphone on your Konftel 70 during a call. Make sure you have an active call. To mute the microphone during a call, press the button. -
Page 19: Putting A Call On Hold
The LEDs on Konftel 70 start flashing red. To continue the call, press the button again. Answer ENDING CALLS Use this procedure to end an active call from your Konftel 70. Make sure you have an active call. On Konftel 70, press the button. Hang Up The green LEDs on the Konftel 70 turn off. -
Page 20: Power Supply Characteristics
Hibernate mode. The speakerphone consumes negligible power. Konftel 70 waits for its activation. The white power LED indicator is off. • Idle mode. Konftel 70 works on battery, USB power or DC power. In this case ® the speakerphone is in operation but it has no Bluetooth or USB connections. -
Page 21: Power Supply Priority
USB connection or DC power connection. You cannot replace the battery pack. Charge the battery in Konftel 70 either through the power adapter or using the USB Type A cable. If the battery is empty, it charges to the full over the following time: •... -
Page 22: Charging The Battery Through The Power Adapter
Charge the battery in your Konftel 70 using the USB Type A cable. Plug the USB cable into the USB port on the back of your Konftel 70 device. Connect the other end of the USB cable to a computer or a wall charger. -
Page 23: Maintenance
MAINTENANCE FIRMWARE UPGRADE You can upgrade your Konftel 70 using the Konftel Upgrade Utility firmware file through a USB-connected PC with Microsoft ® Windows ® or MacOS ® For more information about the Konftel Upgrade Utility, see https:// www.konftel.com/en/support. Installing Konftel Upgrade Utility Go to https://www.konftel.com/en/support. -
Page 24: Hardware Reset
When the installation process ends, the speakerphone reboots. Click Finish HARDWARE RESET If you need to reset your Konftel 70, you can do it by pressing the touch Power button for more than 8 seconds. In this case all the speakerphone's settings return to the default ones. - Page 25 Index answering incoming calls physical layout audio optimization technology power adapter power modes active operation battery hibernate mode battery charging idle mode battery pack power off Bluetooth connection 14, standby mode buttons power supply priority purpose cable retention putting on hold charging battery unholding power adapter...
- Page 26 Collaboration Solutions. Our audio technology OmniSound is built into all Konftel ® Conference phones and devices. The products are sold globally under the Konftel brand and our headquarters are based in Sweden. Read more about the company and our products at konftel.com.
