Sena SNOWTALK User Manual

Snow sports bluetooth headset & intercom
Hide thumbs Also See for SNOWTALK:
Table of Contents

Advertisement

Quick Links

SNOWTALK
Snow Sports Bluetooth ® Headset & Intercom
User's Guide
www.sena.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNOWTALK and is the answer not in the manual?

Questions and answers

Related Manuals for Sena SNOWTALK

Summary of Contents for Sena SNOWTALK

  • Page 1 SNOWTALK Snow Sports Bluetooth ® Headset & Intercom User's Guide www.sena.com...
  • Page 2 These trademarks may not be used without the express permission of Sena. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc.

  • Page 3: Table Of Contents

    8. TWO-WAY INTERCOM ............. 15 8.1 Start Two-way Intercom ............15 2. PACKAGE CONTENTS ............. 6 8.2 End Two-way Intercom ............15 3. INSTALLING THE SNOWTALK ON YOUR HELMET ....8 8.3 Intercom Reconnection ............15 4. BASIC FUNCTIONS ..............8 9. THREE-WAY CONFERENCE INTERCOM ....... 16 4.1 Powering On/Off ................8...
  • Page 4 SNOWTALK 14. FIRMWARE UPGRADE ............23 15. OPERATION QUICK REFERENCE .......... 24 CERTIFICATION AND SAFETY APPROVALS ....... 25 FCC Compliance Statement ............25 FCC RF Exposure Statement ............25 FCC Caution ..................25 CE Declaration of Conformity ............25 Industry Canada Statement ............26 Bluetooth License ................26 WEEE (Waste Electrical and Electronic Equipment) ......26...

  • Page 5: Introduction

    Bluetooth mobile phone, listen to stereo music and have intercom • Optional attachable external microphone conversations in full duplex with other Snowtalk users. The Snowtalk is compliant with the Bluetooth 3.0 supporting the following • Firmware upgradeable profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio...

  • Page 6: Package Contents

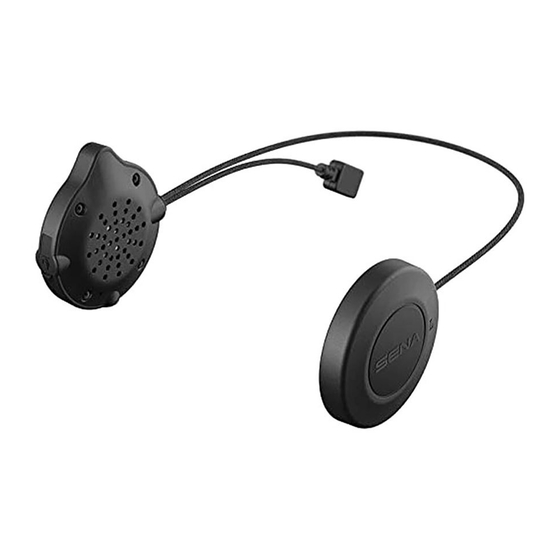

    SNOWTALK 2. PACKAGE CONTENTS Speakers Snowtalk Headset USB Power & Data Cable Charging LED (L) Button DC Power Charging & MP3 Port** Firmware Upgrade Port • Enter into intercom pairing • Start and end intercom conversation Status LED • Play and pause Bluetooth stereo device (R) Button • Track-back (Stereo Music)
  • Page 7 SNOWTALK Left Hand Right Hand Intercom Phone Pairing, start, stop Pairing, call, redial Music Volume Play, pause Volume up/down...

  • Page 8: Installing The Snowtalk On Your Helmet

    4.1 Powering On/Off Place the left and right speakers in the ear pockets of your helmet. Make To power on the Snowtalk, press the (L) Button and the (R) Button sure the speakers are facing towards your ears. simultaneously for one second to power on. You will hear ascending beeps and “Hello”.

  • Page 9: Checking The Battery Level

    SNOWTALK 4.4 Volume Adjustment Note: You can adjust the speaker volume using the (R) Button. To increase 1. The USB Power & Data Cable is also used for firmware upgrade of the volume, press the (R) Button once. To decrease volume, quickly press the Snowtalk.

  • Page 10: Pairing The Snowtalk With Bluetooth Devices

    5. If the pairing process is not completed within three minutes, the headset will return to stand-by mode. Before using the headset with any of Bluetooth devices for the first time, you need to pair them together. The Snowtalk can pair with Bluetooth 5.2 Second Mobile Phone Pairing mobile phones, Bluetooth stereo devices such as MP3, and with other Typical Bluetooth headsets can connect with only one HFP (Hands-Free Sena Bluetooth headsets.

  • Page 11: Bluetooth Stereo Device Pairing

    5.4 Intercom Pairing with other Snowtalk headsets Pairing A & B The Snowtalk can be paired with up to three other headsets for Bluetooth intercom conversation. 1. Turn on the two Snowtalk headsets (A and B) that you would like to pair with each other.
  • Page 12 1. The Snowtalk can be paired with all other Sena headset models such as the above. SMH10 and the EXPAND for intercom conversation. Please follow the same procedure as above to pair with these headset models. 2. The SMH5 cannot participate in three-way or four-way conference intercom with the Snowtalk. The SMH5 has a limited capability of having two-way intercom. Pairing A & C Pairing A & D 5. The intercom pairing queue is ‘Last-Come, First-Served’. If a headset has multiple paired headsets for intercom conversations, the last paired headset is set as first intercom friend.

  • Page 13: Mobile Phone Call Making And Answering

    SNOWTALK 6. MOBILE PHONE CALL MAKING AND Answer Tap the (R) Button ANSWERING Press and hold the (R) Button for 1 second while calling 1. When you have an incoming call, simply tap the (R) Button to answer. Press and hold the (R) Button for 1 second while...

  • Page 14: Stereo Music

    7.1 By Bluetooth Wireless Stereo during an intercom conversation. The Bluetooth audio device must be paired with the Snowtalk by following 2. You and your intercom friend will listen to or terminate shared music. the “Bluetooth Stereo Device Pairing” procedures described in section 3.

  • Page 15: Two-Way Intercom

    8.1 Start Two-way Intercom noise. In this case, the Snowtalk automatically tries to reestablish the connection every 15 seconds with high-tone double beeps. If you do not You can start an intercom conversation with one of any intercom friends wish to reconnect, tap the (L) Button to stop the attempt.

  • Page 16: Three-Way Conference Intercom

    9.1 Start Three-way Intercom You (A) can have a three-way conference intercom with two other Snowtalk friends (B & C) by establishing two intercom connections at the same time. While a three-way conference intercom is in progress, First Friend...

  • Page 17: End Three-Way Intercom

    For example, by single tapping the (L) Button, you can just terminate the intercom 4. Now you (A) and two Snowtalk intercom friends (B & C) are having a connection with the first intercom friend (B). However, you still have three-way conference intercom.

  • Page 18: Four-Way Conference Intercom

    1. Press the (L) Button for 1 second until you hear a beep to terminate You can have four-way conference intercom with three other Snowtalk four-way conference intercom. It terminates the intercom connections users by adding one more intercom participant to the three-way intercom.

  • Page 19: Intercom And Mobile Phone Call

    SNOWTALK 3. You can make an intercom call to the intercom friend by tapping the 11. INTERCOM AND MOBILE PHONE CALL (L) Button to form a three-way conference call with the person on the mobile phone line. To disconnect the intercom first and go back to your private mobile phone call, terminate the intercom by tapping the 1.

  • Page 20: Snowtalk Configuration Setting

    3. You can enable or disable the feature or execute the command by Sidetone Phone pairing Button tapping the (R) Button. 4. If none of the buttons is pressed within 10 seconds, the Snowtalk will exit the configuration and goes back to stand-by. Delete all pairings Exit configuration 5. If you want to exit the configuration immediately, press the (L) Button until you hear a voice prompt “Exit configuration”, and tap the (R)

  • Page 21: Mobile Phone Pairing

    SNOWTALK 12.1 Mobile Phone Pairing 12.3 Enabling/Disabling Voice Prompt Voice Prompt Voice Prompt “Phone pairing” “Voice prompt” Factory Default Factory Default Enable Enable / Disable Tap the (R) Button To go into mobile phone pairing mode, tap the (L) Button until you hear the voice prompt, “Phone pairing”.

  • Page 22: Delete All Bluetooth Pairing Information

    Tap the (R) Button Execute Tap the (R) Button To delete all Bluetooth pairing information of the Snowtalk, tap the (R) To exit voice configuration menu and return to stand-by mode, tap the (R) Button when you hear a voice prompt, “Delete all pairings”. Button when you hear a voice prompt, “Exit configuration”.

  • Page 23: Fault Reset

    SNOWTALK 13. FAULT RESET 14. FIRMWARE UPGRADE When the Snowtalk is not working properly or is in faulty status for any The Device Manager allows you to upgrade the firmware and configure reason, you may reset by pushing the pin-hole reset button at the back the device settings directly from your PC. It is available to download for of the right speaker.

  • Page 24: Operation Quick Reference

    SNOWTALK 15. OPERATION QUICK REFERENCE Type Operation Button Duration Beep Type Operation Button Duration Beep Power on (R) + (L) Button 1 sec Ascending Beeps Intercom pairing (L) Button 5 sec Double tone beeps Power off (R) + (L) Button...

  • Page 25: Certification And Safety Approvals

    This product is CE marked according to the provisions of the R&TTE the instructions, may cause harmful interference to radio communications. Directive (99/5/EC). Hereby, Sena declares that this product is in compliance However, there is no guarantee that interference will not occur in a particular with the essential requirements and other relevant provisions of Directive installation.

  • Page 26: Industry Canada Statement

    ® uncontrolled waste disposal, please do not dispose of these products as and any use of such marks by Sena is under license. Other trademarks and unsorted municipal waste, but hand it in at an official collection point for trade names are those of their respective owners.

  • Page 27: Safety Information

    SNOWTALK SAFETY INFORMATION Product Use • In some regions, it is prohibited by law to ride motorcycles or bicycles Please ensure that the product is properly used by observing the warnings while wearing headsets. Therefore be certain to comply with all relevant and cautions below to prevent any risk and/or damage to property.

  • Page 28: Battery

    SNOWTALK • When using the product, drive at a low speed (slower than 35km/h) for • Store the battery at temperatures of 15°C~25°C (59°F~77°F). Higher safety. In addition, be certain to conform to laws regarding the use of or lower temperatures may reduce the capacity and life of the battery, communications devices while driving.

  • Page 29: Product Warranty And Disclaimer

    Here, product warranty extends to the product only. Sena product. Use of this product will constitute consent to this agreement, and will not be liable for any loss, damage of human life, or loss of property forfeiture of rights to all claims.

  • Page 30: Warranty Exclusions

    Further, Sena will not be liable for any substantial damage not • Use of the product on the road may cause such risks as fracture, related to the, condition, environment, or malfunction of the product.

  • Page 31: Warranty Service

    In addition to damages which may occur due to the use of the product, to protect the product. In order to get a refund or replacement, you must Sena will not be liable for damages of the product which occur due to the include the whole package as it was purchased.

  • Page 32: Return For Full Refund

    Unless you return the product within 14 days from the purchase date, you will have read and agreed to all the terms and conditions explained above, and Sena will not be liable for any claim for damages related with the product.
  • Page 33 1.0.0 www.sena.com User's Guide for Firmware v1.0...
