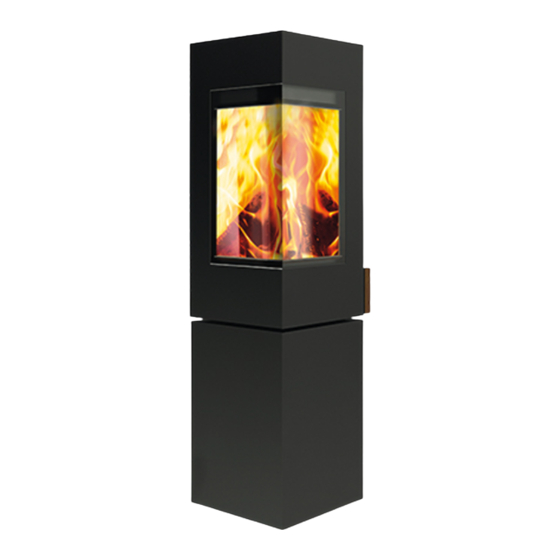

English RAIS/ - User manual for Q-BE Revision : Date 25th august 2014 IntRoDuctIon ........................60 WaRRanty ..........................61 SpecIfIcatIonS ........................62 DIStanceS ..........................63 InStallatIon InStRuctIonS ....................64 convectIon .........................65 cHImney ..........................65 InStallatIon ........................66 InStallatIon of Stove WItH SWIvel baSe .................67 InStallatIon DIStance ......................68 noRmal Set-up (coRneR SettIng) - combuStIble Wall ...........69... -
Page 6: Introduction
English RAIS/ - User manual for Q-BE Introduction attika thank you for purchasing a RaIS/ wood burning stove. attika a RaIS/ wood burning stove is more than just a heat source. It also shows that you care about design and quality in your home. -
Page 7: Warranty
In the event of repair, we ensure proper and profes- sional execution. Warranty claims submitted for additionally delivered or repaired parts are subject to na- tional/eu laws and regulations in terms of renewed warranty periods. please contact RaIS a/S for the applicable warranty provisions. -
Page 8: Specifications
English RAIS/ - User manual for Q-BE Specifications Q-be nominal output (kW): min./max. output (kW): 4 - 8 Heating area (m 60 - 120 Stove’s width/depth/height (mm): 373-373-1370 combustion chamber’s width/depth/height (mm): 239-239-505 Recommended amount of wood when fuelling (kg). -
Page 9: Distances
English RAIS/ - User manual for Q-BE DIstances all dimensions are stove dimensions without handle and set screws. placing the stove on set screws/rotary base, will affect the height. Distance from floor to centre smoke outlet top Distance from back side to air intake bottom (air system) -
Page 10: Installation Instructions
• If this appliance is installed into an existing chimney, the chimney must first be swept and examined for soundness and suitability before the appliance is installed (see also section headed “chimney”). note!! this appliance may only be installed by a qualified RaIS dealer/installer. See www.rais.com for dealer list. -
Page 11: Convection
English RAIS/ - User manual for Q-BE convection attika RaIS/ stoves are convection stoves. this means that the stove’s back and side panels are not over-heated. convection means that there is a circulation of air, which ensures that the heat is distributed more evenly throughout the entire room. the cold air is sucked in at the base of the stove up through the convection channel, which runs along the stove’s combustion chamber. -
Page 12: Installation
When you choose where to set up your RaIS/attika wood burning stove, you should con- sider the heat distribution to the other rooms. this will enable you to get the best use out of your stove. -
Page 13: Installation Of Stove With Swivel Base
English RAIS/ - User manual for Q-BE Installation of stove with swivel base Swivel base for 90° turning. open the backplate of the base. Remove the 2 wing screws (lock screws). check that the stove can rotate. Swivel base for 360° turning. -
Page 14: Installation Distance
English RAIS/ - User manual for Q-BE Installation distance to determine whether the wall next to where the stove is going to be installed is flam- mable, you should contact your building contractor or the local building authorities. the hearth should be able to accommodate the weight of the stove. the chimney must be independently supported by wall brackets or a ceiling support plate. -
Page 15: Normal Set-Up (Corner Setting) - Combustible Wall
English RAIS/ - User manual for Q-BE normal set-up (corner setting) - combustible wall uninsulated flue a. Distance to furniture (min.) 750 mm Distance to flammable materials (min.) b. in front (floor) if distances are not shown, national/local regulations are followed c. -
Page 16: Normal Set-Up (Corner Setting) - Non-Combustible And Combustible Wall
English RAIS/ - User manual for Q-BE normal set-up (corner setting) - non-combustible and combustible wall uninsulated flue Distance (min.) to non- Distance (min.) to flam- flammable materials (X) mable materials (y) 50 mm 325 mm 100 mm 250 mm... -
Page 17: Corner Setting 45°- Combustible Wall
English RAIS/ - User manual for Q-BE corner setting 45°- combustible wall uninsulated flue a. Distance to furniture (min.) 750 mm Distance to flammable materials (min.) b. in front (floor) if distances are not shown, national/local regulations are followed c. -
Page 18: Corner Setting 45°- Non-Combustible Side Wall With Combustible Wall
English RAIS/ - User manual for Q-BE corner setting 45°- non-combustible side wall with combustible wall uninsulated flue Distance (min.) to non- Distance (min.) to flam- flammable materials (X) mable materials (y) 50 mm 650 mm 100 mm 600 mm... -
Page 19: Installation Distance - Combustible Ceiling
English RAIS/ - User manual for Q-BE Installation distance - combustible ceiling uninsulated flue Distance to flammable materials (min.) H. to the ceiling 500 mm... -
Page 20: 360° Swivel Base
English RAIS/ - User manual for Q-BE 360° swivel base uninsulated flue a. Distance to furniture (min.) 750 mm Distance to flammable materials (min.) b. in front (floor) if distances are not shown, national/local regulations are followed c. to the side (floor) -
Page 21: Installation Distance In Case Of Non-Combustible Wall
English RAIS/ - User manual for Q-BE Installation distance in case of non-combustible wall We recommend a minimum distance to non-combustible material of 50 mm (f) for cleaning considerations. It should always be possible to access the access door. -
Page 22: For The Installer
English RAIS/ - User manual for Q-BE for the Installer finally before firing the stove for the first time a check should be made to ensure that the assembly and stove installation has been satisfactory and that there are no leaks in any seals in the appliance and appliance connections to the chimney. -
Page 23: Drying And Storage
English RAIS/ - User manual for Q-BE ONLY USE RECOMMENDED FUELS the following table shows the calorific value of different types of wood, which have been stored for 2 years, and which have a residual moisture of 15-17%. Wood Kg dry wood pr. -
Page 24: Automatic Regulation Of Combustion Air (Cleverair)
English RAIS/ - User manual for Q-BE automatic regulation of combustion air (cleverair) this stove is equipped with an independent and self-regulating air damper. Hence there is no damper handle. you only need to place dried wood and light it. the rest is done by the cleverair technique. -
Page 25: First Usage
English RAIS/ - User manual for Q-BE first usage a careful start pays off. Start with a small fire, so that the wood burning stove can get accustomed to the high temperature. this gives the best start and any damage is avoided. -
Page 26: Lighting And Fuelling
English RAIS/ - User manual for Q-BE lighting and fuelling note: If airsystem is connected, the valve must be open. tIpS before firing up: open a door or window close to the wood burning. If there is a “storm” in the stove... -
Page 27: Control
When refueling, open the door carefully to avoid smoke escaping. never add wood while it is burning (flames!) in the stove. RaIS recommends to refuel with 2 pieces wood - approx. 1 ½ kg - within 1½ hours (inter- mittent operation). - Page 28 Advarsel Advarsel attika English RAIS/ - User manual for Q-BE Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der Warning!! uforbrændte røggasser.
-
Page 29: Cleaning And Care
English RAIS/ - User manual for Q-BE cleaning and care glass most woodstoves use a ceramic glass product which is resistant to heat but requires clean- ing to keep its appearance. Soot or opaque marks can easily cleaned if the marks are fresh, however If you leave the... -
Page 30: Cleaning The Combustion Chamber
English RAIS/ - User manual for Q-BE cleaning the combustion chamber Scrape/shovel the ash out and store it in a non-flammable container until it has cooled down. you can dispose of ash with your normal household waste. RemembeR!! never remove all the ashes from the combustion chamber - the wood will burn at its best with a layer of ashes of approx. -
Page 31: Interruption Of Operation
English RAIS/ - User manual for Q-BE lift off the smoke barrier, pull forward, lower and remove. Remove dirt and dust, and mount the parts in reverse order. note!! be careful when replacing the smoke converter plate and smoke chikane... -
Page 32: Spare Parts Q-Be
• the firewood should not be smouldering. Spare parts Q-be If spare parts other than those recommended by RaIS are used, the warranty is voided. all replaceable parts can be bought as spare parts from your RaIS distributor. for reference see spare parts drawing (front of manual). -
Page 33: Accessories Q-Be
Phone +45 98 47 90 33 - Fax +45 98 47 92 91 Soapstone, Speckstein, Material: 0.1 0.1 0.2 0.3 0.5 0.8 1.2 E-mail: info@rais.dk - Homepage: www.rais.dk Fedtsten TILLADTE AFVIGELSER FOR VINKELMÅL Heat storage Drawing name: KORTESTE SIDE 0-10 10-50 50-120120-400 > 400 ... - Page 35 ATTIKA FEUER AG Brunnmatt 16 CH-6330 Cham Switzerland www.attika.ch RAIS A/S Industrivej 20 DK-9900 Frederikshavn Denmark www.rais.com...
