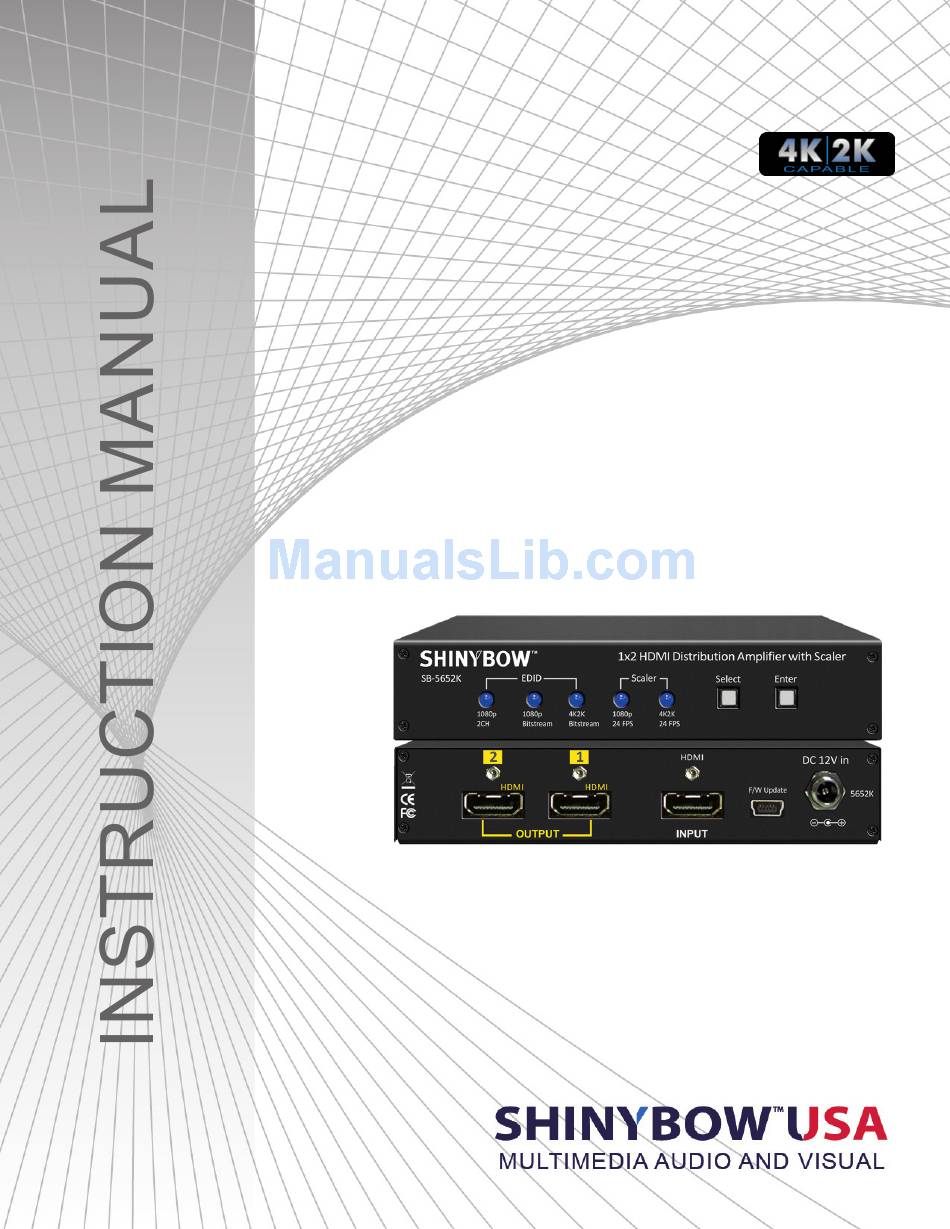

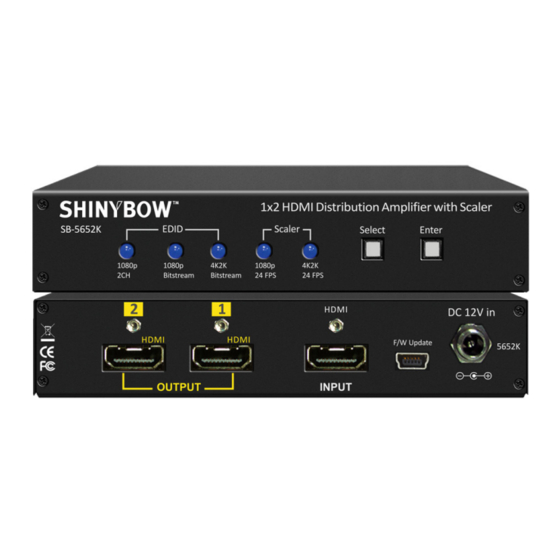

- Page 1 SB-5652K 1x2 HDMI - UHD 4K2K Distribution Amplifier w/ Scaler...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI-4K2K Distribution Amplifier series Thank you for purchasing the SB-5652K HDMI Distribution Amplifier with Scaler. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 1x2 HDMI 4K2K Distribution Amplifier. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • (1)x HDMI 4K2K Standard input distribution To (2)x HDMI 4K2K Distribution Amplifier • HDMI digital Video w/embedded HDCP, DVI format and CEC/HDCP 2.0 compliant • Build in three (3) worldwide Embedded EDID modes control HDMI full 4K2K (24/25/30Hz) resolutions •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. EDID MODE 1 : 1080P-2CH: Digital Video 1080p (1920x1080)@60Hz, Digital Audio Multi-Channel Audio 2CH. 2. EDID MODE 2 : 1080P-BITSTREAM: Digital Video 1080p (1920x1080)@60Hz Digital Audio Multi-Channel Audio: Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH). -
Page 6: Rear Panel
BACK PANEL BACK PANEL 1. POWER INPUT: Power Socket : The Switcher is fitted with a DC power plug input DC Jack - inner OD Ø 2.1mm (+ ) connector. Ensure that the used is of an approved type and is Outside OD Ø... -
Page 7: Edid Functions
EDID FUNCTION EMBEDDED EDID & SCALER MODES FOR HDMI DISTRIBUTION AMPLIFIER EDID / Scaler setup To change the EDID & Scaler modes The display will show the currently selected EDID mode Step 1. Press SELECT button The button will flash blue and the display will show the current Embedded EDID & Scaler Status. -
Page 8: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Using the press button to select the Embedded EDID modes or Scaler modes to control HDMI Distribution Amplifier SB-5652K via SELECT and ENTER press buttons. NOTE: 1. Update TX/RX chip Firmware via a PC USB. 2. Up-Scaling to 4K2K@24Hz mode requires a source Input signal to be 1080p@24Hz only. -
Page 9: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 10 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
