Summary of Contents for Shinybow USA SB-1110

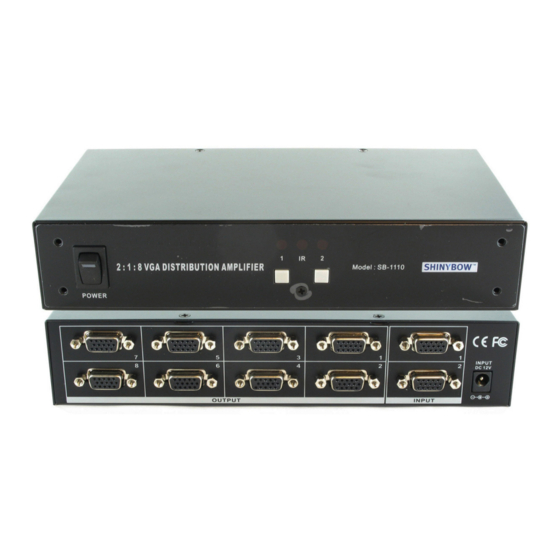

- Page 1 SB-1110 2x1x8 VGA Matrix Switcher + VGA Distribution Amplifier...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
VGA RGBHV Distribution Amplifiers Series Thank you for purchasing the SB-1110 2x1x8 VGA Matrix Switcher + VGA Distribution Amplifier. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this amplifier. -
Page 4: Features
• Suitable for XGA, SXGA, UXGA, WUXGA(1920x1200) resolution displays SPECIFICATIONS • Model Number: SB-1110 2x1x8 VGA DISTRIBUTION AMPLIFIER • Type of Amplifier: (2) inputs to (8) outputs VGA Distribution Amplifier • Video Bandwidth: 380MHz, (-3 dB) 200mVp-p; 310MHz, (-3 dB) 2Vp-p •... -
Page 5: Typical Hookup And Operation
TYPICAL HOOKUP AND OPERATION SB-1110 Safeguards and Precautions A. Keep this unit away from fire, extremely hot areas, water or moisture of any kind. B. Do not place this unit on any support that is not firm, level and strong. -
Page 6: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 8 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
