M ULT I MEDI A AU DIO A N D VI SU A L

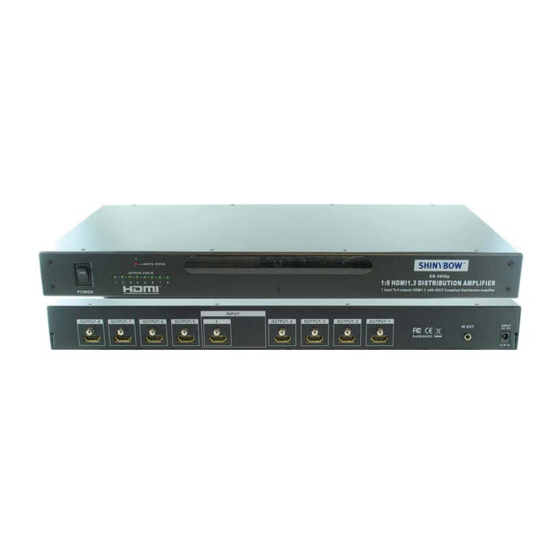

1x8 HDMI DISTRIBUTION AMPLIFIER
INSTRUCTION MANUAL
MODEL : SB-5658p
1x8 HDMI DISTRIBUTION AMPLIFIER
HDMI DISTRIBUTION AMPLIFIER Series
Thank you for purchasing the SB-5658p 1x8 HDMI DISTRIBUTION AMPLIFIER. You will fi nd this unit easy to
install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this
distribution amplifi er.
Advertisement
Related Manuals for Shinybow USA SB-5658p
Summary of Contents for Shinybow USA SB-5658p
- Page 1 HDMI DISTRIBUTION AMPLIFIER Series Thank you for purchasing the SB-5658p 1x8 HDMI DISTRIBUTION AMPLIFIER. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
INTRODUCTION The SB-5658p is high quality HDMI distribution amplifi er, HD high performance designed to distribution HDMI signal. Providing I/O as following: 1x input : 1x HDMI (Digital Video-TMDS and Audio) 8x outputs : 8x HDMI (Digital Video-TMDS and Audio) -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Support 1x8 HDMI Distribution Amplifi er • I/O Signals : HDMI with HDCP Digital Video and Digital Audio (PCM) • HDMI and HDCP compliant • Support link speeds of up to 2.25 Gbps (link clock rate of 225 MHZ) •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL POWER SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power SOURCE DEVICE STATUS DISPLAY Source 1 to LED illuminates blue to indicate that a video source is present on that input. SOURCE DEVICE STATUS DISPLAY Channel 1-8 show by LED display. -
Page 6: Rear Panel
REAR PANEL REAR PANEL DC POWER INLET Power Jack: The distributor is fi tted with a DC power plug-park input connector. DC Jack - Inner OD ᴓ 2.1mm (+ ) Please ensure that the plug-park used is of an approved type and Outside OD ᴓ... -
Page 7: Remote Control
REMOTE CONTROL Before making any connections to the SB-5658p. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug- Pack (+/- 10%) > Power up all source and destination audio-visual sources >... -
Page 8: Typical Application
6. HDMI - HDMI connector with fi x screw 7. HDMI - HDMI connector with fi x screw 8. HDMI - HDMI connector with fi x screw SB-5658p SUPPORTS ONE HDMI INPUT TO EIGHT HDMI DISTRIBUTOR OUTPUTS SUPPORT IR & IR EXTENDER PORT... - Page 9 TYPICAL APPLICATION REAR PANEL IR EXTENDER PORT IR EXTENDER PACKAGE: HOW TO SETUP THE IR EXTENDER COMPONENTS...
-
Page 10: Limited Warranty
SHINYBOW WARRANTY SHINYBOW Technology warrants this product against defects in materials and workman ship for a period of 3 years from the date of purchase. Please be sure to send in your warranty registration card promptly, as the warranty will not be active without registration. - Page 11 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
