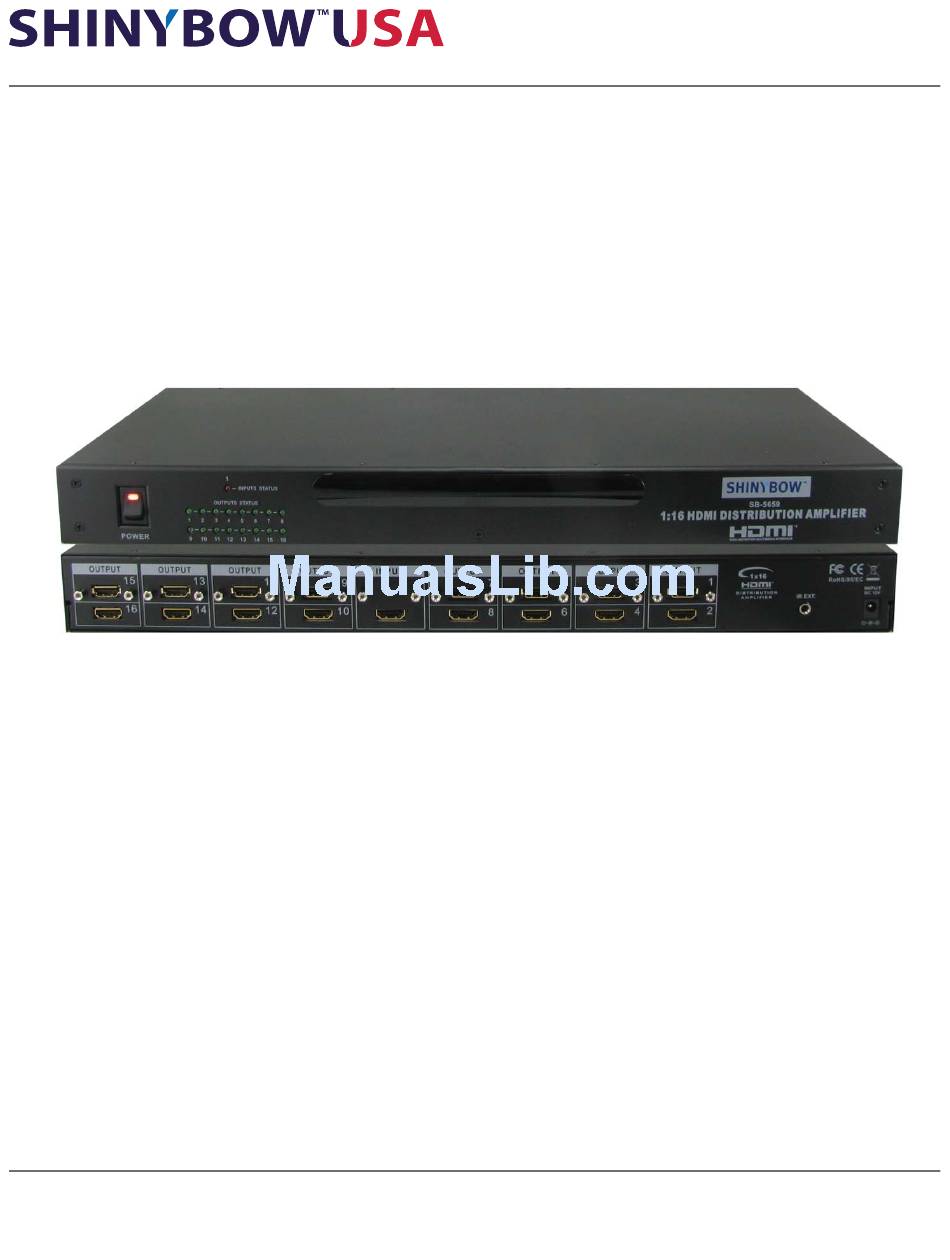

INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5659

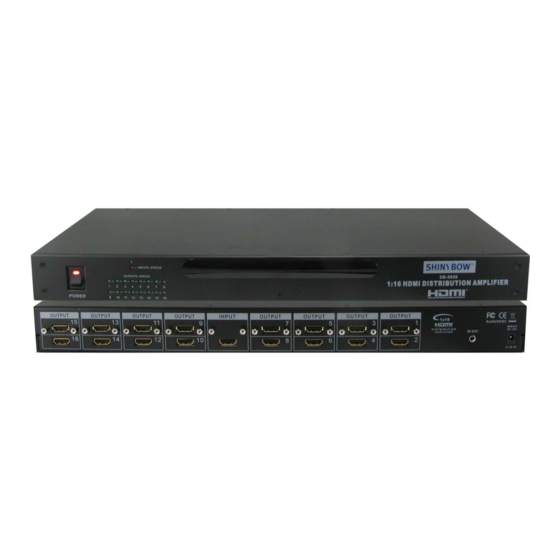

1x16 HDMI DISTRIBUTION AMPLIFIER
1x16 HDMI DISTRIBUTION AMPLIFIER
HDMI DISTRIBUTION AMPLIFIER Series
Thank you for purchasing the SB-5659 1x16 HDMI DISTRIBUTION AMPLIFIER. You will fi nd this unit easy to
install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this
distribution amplifi er.
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-5659
Summary of Contents for Shinybow USA SB-5659
- Page 1 HDMI DISTRIBUTION AMPLIFIER Series Thank you for purchasing the SB-5659 1x16 HDMI DISTRIBUTION AMPLIFIER. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
• Do not attach the power supply cabling to building surfaces. • Use only the supplied power supply unit (PSU). Do not use the The SB-5659 is high quality HDMI distribution amplifi er, HD high PSU if it is damaged. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Support 1x16 HDMI Distribution Amplifi er • I/O Signals : HDMI with HDCP Digital Video and Digital Audio (PCM) • HDMI and HDCP compliant • Support link speeds of up to 2.25 Gbps (link clock rate of 225 MHZ) •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power 2. INPUT SOURCES STATUS DISPLAY Source 1 to LED illuminates blue to indicate that a video source is present on that input. 3. -
Page 6: Rear Panel
REAR PANEL REAR PANEL 1. DC POWER INLET The distributor is fi tted with a DC power plug-park input connector. Power Jack: DC Jack - Inner OD ᴓ 2.1mm (+ ) Please ensure that the plug-park used is of an approved type and Outside OD ᴓ... -
Page 7: Remote Control
REMOTE CONTROL Before making any connections to the SB-5659. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug- Pack (+/- 10%) > Power up all source and destination audio-visual sources >... -
Page 8: Typical Application
15. HDMI - HDMI connector with fi x screw 8. HDMI - HDMI connector with fi x screw 16. HDMI - HDMI connector with fi x screw SB-5659 SUPPORTS ONE HDMI INPUT TO SIXTEEN HDMI DISTRIBUTOR OUTPUTS SUPPORT IR & IR EXTENDER PORT... -
Page 9: Ir Extender
IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2. - Page 10 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
-
Page 11: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 12 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
