INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L

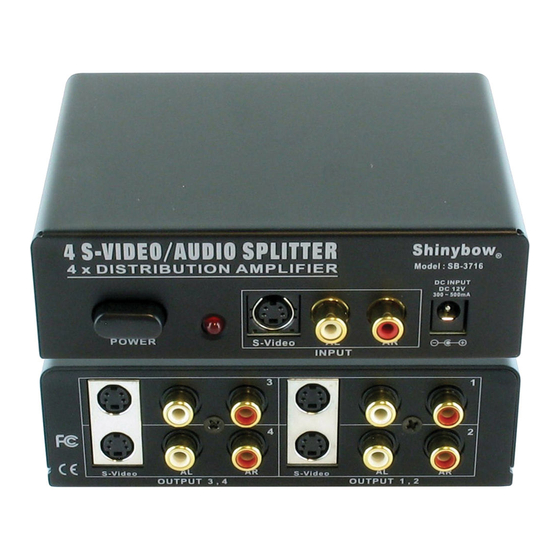

MODEL : SB-3716
S-Video Distribution Amplifi er
4 Way S-Video Distribution Amplifier
1 x 4 S-Video (Y/C)/Stereo Audio (AR,AL)
S-Video / Stereo Audio Splitter Series
Thank you for purchasing the SB-3716 S-Video 4 Way Distribution Amplifi er. You will fi nd this unit easy to install
and highly reliable but it is essential that you read this manual thoroughly before attempting to use this amplifi er.
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-3716
Summary of Contents for Shinybow USA SB-3716
- Page 1 S-Video / Stereo Audio Splitter Series Thank you for purchasing the SB-3716 S-Video 4 Way Distribution Amplifi er. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this amplifi er.
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. - Page 3 • Never spill liquid of any kind on or into this product. • Never push an object of any kind into this product through any Congratulations on your purchase of one of the SB-3716. The 1x4 openings or empty slots in the unit, as you may damage parts S-Video/Stereo Audio Distribution Amplifi...
-
Page 4: Specifications
FEATURES & SPECIFICATIONS FEATURES • Input: 1x S-Video (Y/C), 1x Stereo Audio (RCA) • Output: 4x S-Video (Y/C), 4x Stereo Audio (RCA) • On/Off Power Switch • Video Bandwidth >110 Mhz SPECIFICATIONS Input - Video x 1: S-Video (Y/C), on Min-Din-9p Connectors, 75 0hms,1Vpp Input - Audio x 1: Stereo Audio (R/L), -20db 50K 0hms, RCA Connectors Output-Video x 4: S-Video (Y/C), on Min-Din-9p Connectors, 75 0hms,1Vpp Output - Audio x 4: Stereo Audio (R/L), -20db 50K 0hms, RCA Connectors... - Page 5 TYPICAL HOOKUP AND OPERATION SB-3716 Inputs: 1 x S-Video / Audio (R/L) Outputs: 4 x S-Video / Audio (R/L) DC Input: 12V @300mA~660mA Power SW: on/off Safeguards and Precautions A. Keep this unit away from fi re, extremely hot areas, water or moisture of any kind.
-
Page 6: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 7 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
