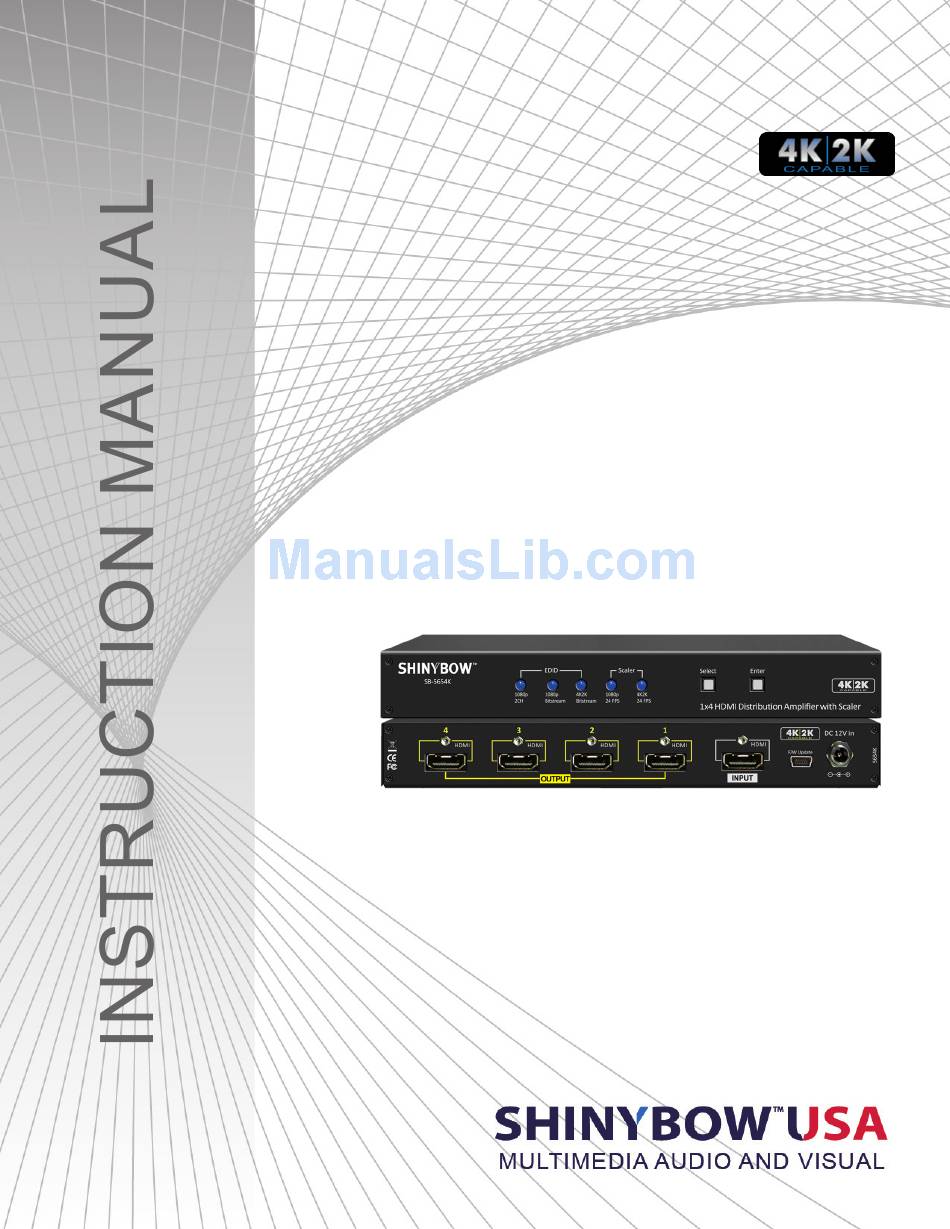

- Page 1 SB-5654K 1x4 HDMI - UHD 4K2K Distribution Amplifier w/ Scaler...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI-4K2K Distribution Amplifier series Thank you for purchasing the SB-5654K HDMI Distribution Amplifier with Scaler. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use the 1x4 HDMI 4K2K Distribution Amplifier. -
Page 4: Features
FEATURES FEATURES • (1) HDMI 4K2K standard Input to (4) HDMI 4K2K Outputs • HDMI digital video w/ embedded HDCP, DVI formats and CEC/HDCP 2.0 compliant • Build-in (3) worldwide embedded EDID control modes for full HDMI 4K2K (24/25/30Hz) resolutions •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI DA: (1) Input to 4x Outputs HDMI Distribution Amplifier with Scaler • Inputs: 1x HDMI (HDMI or DVI digital source) • Outputs: 4x HDMI (to Destination) • Audio Outputs: Multi-channel Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) •... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. EDID MODE 1 : 1080P-2CH: Digital video 1080p (1920x1080)@60Hz, Digital audio Multi-Channel audio 2CH 2. EDID MODE 2 : 1080P-BITSTREAM: Digital video 1080p (1920x1080)@60Hz. Digital audio Multi-Channel audio: Multi audio formats 5.1 / 7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) 3. -
Page 7: Rear Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The switcher is fitted with a DC power plug input connector. Ensure that the plug used is of an approved type and DC Jack - Inner OD ᴓ 2.1mm (+ ) is of sufficient current carrying connector capacity with the correct Outside OD ᴓ... -
Page 8: Edid Functions
EDID FUNCTION EMBEDDED EDID & SCALER MODES FOR HDMI DISTRIBUTION AMPLIFIER EDID / Scaler setup To change the EDID & Scaler modes The display will show the currently selected EDID mode Step 1. Press SELECT button The button will flash blue and the display will show the current Embedded EDID & Scaler Status. - Page 9 EDID FUNCTION EDID MODE RESOLUTION & MULTI-CHANNEL AUDIO FORMATS: EDID MODES RESOLUTIONS MULTI-CHANNEL FORMATS: MODE # 1 1080p@60Hz (NATIVE) LPCM-2ch, 32kHz ~ 48kHz, 16/20/24 bits 1080p@50Hz 1080p@30Hz 1080p@25Hz 1080p@24Hz 1080i@60Hz 1280x720@60Hz 720p@60Hz 720i@60 480p@60 MODE # 2 1080p@60Hz (NATIVE) LPCM-8ch, 32kHz ~ 192kHz, 16/20/24 bits 1080p@50Hz AC-3 6ch, 32kHz ~ 192kHz, 640kHz 1080p@30Hz...
-
Page 10: Typical Application
INSTALLING DIAGRAM Samples Connection : Using the SELECT and ENTER buttons to select the Embedded EDID modes or Scaler modes to control HDMI Distribution Amplifier SB-5654K. NOTE : 1. Update TX/RX chip Firmware via a PC USB. 2. Scaling up 4K2K@24Hz mode : Support 1080p@24Hz Input resolution only. -
Page 11: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 12 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
