Mendota FV41 ARCH Installation And Operating Instructions Manual

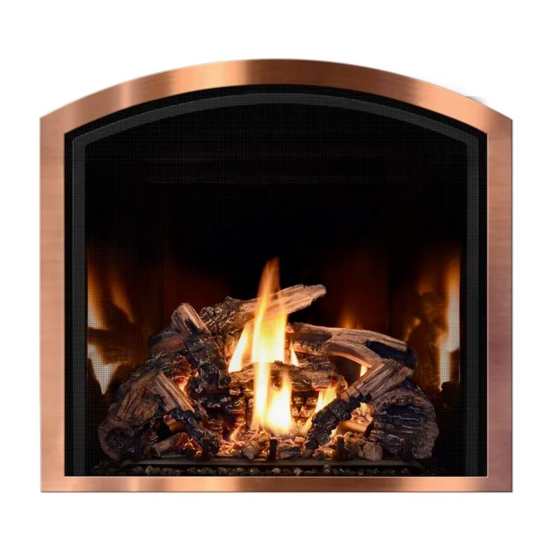

Fullview direct vent gas fireplace heater
Hide thumbs Also See for FV41 ARCH:
Table of Contents

Advertisement

Quick Links

MODEL NO. AA-11-03057 FV41 ARCH FULLVIEW DIRECT VENT GAS FIREPLACE HEATER
WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may
result causing property damage, personal injury or
loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not
use any phone in your building.
Immediately call your gas supplier from a
•
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call
•
the fire department.
- Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gasses, unless a
certified kit is used.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and must be installed.
Installation and Operating Instructions
85-03-01103-G
AVERTISSEMENT. Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d'incendie ou d'explosion ou pour
éviter tout dommage matériel, toute blessure ou la mort.
Ne pas entreposer ni utiliser d'essence ni d'autres vapeurs
ou liquids inflammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bâtiment où vous trouvez.
• Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incendies.
- L'installation et l'entretien doivent être assurés par un
installateur ou un service d'entretien qualifié ou par le
fournisseur de gaz.
Cet appareil peut être installé dans une maison
préfabriquée (É.-U. seulement) ou mobile déjà installée à
demeure si les règlements locaux le permettent.
Cet appareil doit être utilisé uniquement avec les types de
gaz indiqués sur la plaque signalétique. Une trousse de
conversion est fournie avec cet appareil.
Une barrière conçue pour réduire le risque de brûlures
du verre chaud est fournie avec cet appareil et doit être
installée.
FV41 ARCH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV41 ARCH and is the answer not in the manual?

Questions and answers

Related Manuals for Mendota FV41 ARCH

Summary of Contents for Mendota FV41 ARCH

  • Page 1 Installation and Operating Instructions MODEL NO. AA-11-03057 FV41 ARCH FULLVIEW DIRECT VENT GAS FIREPLACE HEATER WARNING: If the information in these instructions AVERTISSEMENT. Assurez-vous de bien suivre les is not followed exactly, a fire or explosion may instructions données dans cette notice pour réduire au...
  • Page 2 HOMEOWNER NOTES 85-03-01103 FV41 ARCH Page 2...

  • Page 3: Hot Surfaces Are Normal

    See chapter Instructions. Read and 3.1.1 Mendota Fireplace Curing follow all instructions given in this Chapter and perform the 3-step curing cycle. After the 3-step curing cycle has been completed, all smoking will have stopped. Some slight odors may remain. With subsequent use of this Fireplace, odors will slowly dissipate and disappear.

  • Page 4: Table Of Contents

    ........3 URFACES ARE ORMAL 1.4 P ..3 ERIODIC AND ANNUAL CLEANING ARE REQUIRED 2.1 SAFETY AND WARNING INFORMATION ....6 3.2.5.3.1 Mendota Cool Wall .............. 35 2.2 S ..........7 AFETY ARNINGS 3.2.5.3.2 Versiheat ................36 3.2.5.3.3 FlexHeat ................37 2.3 R...
  • Page 5 4.10 N LPG C ......56 ATURAL AS TO ONVERSION 5.9 O ........78 PERATING NSTRUCTIONS 5.10 T ......78 AS TO IREPLACE 5.11 FREQUENTLY ASKED QUESTIONS ..... 79 4.11 V ............60 ENTING 6.1 R ......83 EQUIRED ERIODIC NSPECTIONS 6.2 C ........

  • Page 6: Safety And Warning Information

    Building Permit & Inspection Requirements All installations of Mendota Fireplaces must comply with all the requirements stated in this Installation and Operating Manual. The dealer and/or installer must obtain all required building permits and inspection approvals from the local building inspection department or the local jurisdiction.

  • Page 7: Safety Warnings

    HIGH-ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7,500 ft., understand the need for gas input derating. Contact your local gas company to see if your gas type is already derated for your altitude or contact Mendota Technical Service for support.
  • Page 8 Never obstruct the flow of combustion and ventilation air. Keep the front of the fireplace clear of all obstacles and materials for servicing and proper operation. Use only Mendota approved Screens, Fronts and Trim Kits. Due to high temperature, the fireplace should be located out of traffic areas and away from furniture and draperies.
  • Page 9 été plongée dans l’eau. Do not use any fronts or doors with this fireplace unless they are certified by Mendota and installed by a certified installer.

  • Page 10: Requirements For Thec

    A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation Page 10 85-03-01103 FV41 ARCH...

  • Page 11: General Technical References

    If pilot goes out, always wait 5 minutes before attempting to relight pilot. Never block off convection air openings or paths. Trim panels or surrounds shall not seal ventilation openings in the fireplace. Always use Mendota decorative fronts and Mendota approved vent systems and vent caps only. Keep the flue warm...
  • Page 12 ATTENTION It is important that the blowers are turned on during this step to prevent the curing smoke from staining the wall finish above the fireplace. Mendota recommends completing Step 1 prior to installation of wall finish materials. Visible smoke and strong odor are to be expected during this step. If desired, disable smoke alarms before this step, smoke from the initial curing cycle will set off smoke alarms.

  • Page 13: Mechanical Technicalr

    3.2 MECHANICAL TECHNICAL REFERENCES Planning the installation This Mendota Fireplace must be installed and serviced by a qualified installer, service agency, or the gas supplier. When planning on appliance installation, it is necessary to determine the following information before installing: Where the appliance is to be installed.
  • Page 14 The listing label is in the air gap below the Fireplace. It is secured to a chain and left loosely in the air gap and can be pulled out to be viewed. Figure 3-1 Listing Label Page 14 85-03-01103 FV41 ARCH...
  • Page 15 A few warnings and caution labels are attached to this appliance body and door glass as required per code to inform you of important facts. Make certain you heed all the warning and caution statements during installation and maintenance of this appliance. Figure 3-3 Figure 3-2 Figure 3-5 Figure 3-4 Figure 3-6 Figure 3-7 Figure 3-8 Page 15 85-03-01103 FV41 ARCH...
  • Page 16 Figure 3-9 Figure 3-10 Page 16 85-03-01103 FV41 ARCH...
  • Page 17 FV41 ARCH Fireplace Ratings Information This Mendota Fireplace can be installed directly on top of a metal, masonry or wood structural surface. ELECTRICAL REQUIREMENTS: 120 Volts AC, 1.5 Amps (minimum line voltage allowed 110 Volts AC) REQUIRED GAS SUPPLY PRESSURE: NAT.
  • Page 18 HINT: To greatly reduce surface temperatures surrounding this Fireplace during operation, Mendota recommends operating the integrated convection air blowers which aid in cooling all surrounding surfaces. Mendota Fireplaces comply with ANSI Z21.88-2017 Standards for maximum surface temperatures (ambient plus 117 F) on exposed “combustible”...
  • Page 19 NOTE: For every 1" this fireplace is raised off the floor, the non-combustible hearth protection pad may be reduced by 2". If this fireplace is raised off the floor more than 6", No hearth protection pad is required. Page 19 85-03-01103 FV41 ARCH...
  • Page 20 ADJUSTMENT GAS SUPPLY INLET (1/2"M NMP) REAR BURNER AIR SHUTTER CONTROL SERIAL # AND LIGHTING INSTRUCTION PLATE 110 VAC INLET FRONT BURNER AIR SHUTTER CONTROL FRAMING ATTACH BRACKETS REMOTE SYNC SWITCH & MASTER ON/OFF SWITCH Page 20 85-03-01103 FV41 ARCH...
  • Page 21 To use the lifting handles, remove one screw that secures the upper section of the lifting handles and pull top section outward. Slide hands into the opening of the lifting handle, grip top U-shaped section tightly and lift. Figure 3-13 Lifting Handles Page 21 85-03-01103 FV41 ARCH...
  • Page 22 Height 50-1/2” the framing cavity with a 90 -elbow installed Depth 19-1/2” on the top starter collar. After the FV41 ARCH Vent opening height 10-3/4” Fireplace is inserted into the rough framed Vent opening width 10-3/4” cavity, install one 2x4 on each side adjacent to the side of this fireplace’s body and one 2x4 on top of the top framing standoffs to close the air gap and to act as...
  • Page 23 Clearance from Appliance Side Walls 0" CLEARANCE FROM TOP STANDOFFS 1/2" CLEARANCE FROM BACK 1/2" CLEARANCE FROM SIDES Page 23 85-03-01103 FV41 ARCH...
  • Page 24 NPFA 211 Approved: Install an R-1 rated ceramic board or R-1 rated mineral board on the wall you are attempting to protect. by using this method of protection, if the required horizontal clearance was 16”, the resulting clearance will be reduced by 50% to 8” between the heat source and the R-1 Rated wall board. Page 24 85-03-01103 FV41 ARCH...
  • Page 25 Doing so can lead to a severe fire hazard. Note: The distance from the Floor Level of this Fireplace to the Top Air Gap is 34”. Figure 3-17 Mantel Clearances NON-COMBUSTIBLE ZONE Figure 3-18 Allowable Mantel Profile Chart Page 25 85-03-01103 FV41 ARCH...
  • Page 26 If these materials are used it is recommended that the fireplace is raised at least 12” above the floor. Mendota does not guarantee any materials used around the fireplace. Mendota disclaims any and all liability for any damage to finishing materials including warping, discoloring, cracking, peeling or flaking.
  • Page 27 If the hearth pad being used is thicker than the dimension “A” the fireplace will need to be raised. For example, if the distance “A” from the bottom of the fireplace to the bottom guide is 1 1/2" and the hearth pad being used is 4” thick the fireplace would need to be raised 2 1/2”. Page 27 85-03-01103 FV41 ARCH...
  • Page 28 1”. This is the depth of the finishing guides on the fireplace and will result in the best final appearance. Mendota does not guarantee any materials used around the fireplace. Mendota disclaims any and all liability for any damage to finishing materials including warping, discoloring, cracking, peeling or flaking.
  • Page 29 Ceramic or Porcelain Tile Use of ceramic or porcelain tiles as facing materials around a Mendota fireplace is approved. If selecting a mosaic tile where tiles are held together with a webbing, ensure the webbing is a non-combustible material like fiberglass. Also ensure that the tiles are not attached to the webbing with a glue or epoxy that will off gas and smell when heated.

  • Page 30: Paint Types Approved For Use

    Mendota fireplaces. Mendota further cautions that proper adhesives be used to attach stone facings. Pay attention to the potential of off gassing of chemical vapors from mastic and other adhesives.
  • Page 31 Please read the following instruction before installing the finishing material on the front of this fireplace. If you have any questions about finishing the fireplace, contact a Mendota dealer or the Mendota Service Department. To prevent damage, remove any decorative front, screen, or door from the fireplace and mask the fireplace •...
  • Page 32 This option allows the front to mount with any finish material. The front will fit inside the guides. Allowing the front to be recessed into the wall. If you are unsure of which option to use this option as there are no restrictions on the type of finishing material that can be used. 85-03-01103 FV41 ARCH Page 32...
  • Page 33 Many television manufacturers specify in their installation instructions that the television must not be installed near or above a heat source. The decision to install a television near or above a Mendota fireplace rests solely on the consumer. It is the consumers responsibility to satisfy television specifications and insure the television will not exceed maximum operation temperatures.
  • Page 34 Recommendation 3: Install a heat transfer system Mendota Hearth offers three heat transfer systems that take heat from the fireplace and redirect it to another area. When used correctly these heat transfer systems can make it possible to mount a television above the fireplace without installing a mantel or creating a recessed cavity.

  • Page 35: Mendota Cool Wall

    Mendota Cool Wall The Mendota Cool Wall system uses natural convection to take heat off the wall directly above the fireplace and redirects it up and away from surrounding areas. Testing has shown that when using a Cool Wall system, temperatures above the fireplace are reduced making it possible to mount a television 15”...

  • Page 36: Versiheat

    Because the Versiheat system must be running to reduce temperatures the fireplace cannot be operated during a power outage. Testing has shown that when using two Versiheat systems temperatures above the fireplace are reduced making it possible to mount a television 15” above the fireplace’s top air gap. Page 36 85-03-01103 FV41 ARCH...

  • Page 37: Flexheat

    Because the FLexHeat system must be running to reduce temperatures the fireplace cannot be operated during a power outage. Testing has shown that when using the FlexHeat system temperatures above the fireplace are reduced making it possible to mount a television 12” above the fireplace’s top air gap. Page 37 85-03-01103 FV41 ARCH...
  • Page 38 Venting The FV41 ARCH Fireplace must be vented to the outside and must use one of the approved coaxial rigid Do Not Use any silicone sealants at pipe joints. Stove gasket cements may be used ducting systems. at pipe joints but is not required The FV41 ARCH Fireplaces requires coaxial rigid- 5”...
  • Page 39 45º GALVANIZED ELBOW ADJUSTABLE WALL THIMBLE ATTIC INSULATION SHIELD 12" ROOF FLASHING (0/12 TO 6/12) 9,10 ROOF FLASHING (7/12 TO 12/12) STORM COLLAR VERTICAL VENT CAP SUPPORT BAND HORIZONTAL VENT CAP FIRE STOP SPACER 1,2,3,4,5 Page 39 85-03-01103 FV41 ARCH...
  • Page 40 ZERO VERTICAL DUAL 90° ELBOWS VERTICAL TERMINATION APPROVED APPROVED APPROVED VERTICAL RISE THREE HORIZONTAL DISCHARGE TRIPLE 90° ELBOWS 90° ELBOWS APPROVED w/ RESTRICTIONS VERTICAL TERMINATION VERTICAL RISE TRIPLE 90° ELBOWS HORIZONTAL TERMINATION APPROVED APPROVED APPROVED Page 40 85-03-01103 FV41 ARCH...
  • Page 41 (45 cm) minimum ) Clearance to inside corner - 12 inches (30 cm). Minimum 24” horizontal clearance to any surface, Vinyl surfaces require 24” min (60 cm). such as an exterior surface, for vertical terminations. Page 41 85-03-01103 FV41 ARCH...
  • Page 42 Masonry Conversion Kit # AA-11-03539 Mendota masonry conversion kit #AA-11-03539 is tested and approved for use with all Mendota ZC models that employ a 5” X 8” Coaxial Vent system. This kit can be ordered directly from Mendota Fireplaces. This kit employs a 5” flexible aluminum duct to expel exhaust. It is required that the existing masonry chimney and masonry liners be cleaned and fully inspected and repaired to guarantee structural integrity prior to installation of this vent kit.

  • Page 43: Lectrical Echnical Eferences

    ½” and the braided wire end ¾”. Twist the braided wire around the solid copper wire end before applying the wire nut. Place connected wire ends within junction box then close and secure the junction box cover plate. AC Power Connection STEP 1 STEP 2 STEP 3 Figure 3-27 Wire Connections Page 43 85-03-01103 FV41 ARCH...
  • Page 44 Instruct homeowner to retain the DC battery pack and the connecting harness in a safe and secure place for use during power outages Figure 3-29 BACKUP DC POWER INLET Figure 3-28 Backup DC Power Junction Box Installation Figure 3-30 DC Backup Power Connection Page 44 85-03-01103 FV41 ARCH...
  • Page 45 Label all wires prior to disconnection when servicing control. Replacement wires must have the same type and size of Wiring Errors can cause improper and dangerous operation. insulation as the original. Verify proper operation after servicing. Page 45 85-03-01103 FV41 ARCH...

  • Page 46: Lumbing Technical References

    TRAIN. ADHERE STRICTLY TO LOCAL AND NATIONAL CODES. Gas Supply Line Sizing This Mendota Gas Fireplace comes equipped with a 1/2" N.P.T. Female inlet. Gas supply piping must enter the Fireplace cabinet on the left side. Use the table, below, to determine the proper gas line diameter that must be installed to run from the supply regulator to the factory installed manual shutoff valve.
  • Page 47 Local requirements supersede all other codes. Figure 3-34 Keyed Manual Gas Shutoff Valve Page 47 85-03-01103 FV41 ARCH...
  • Page 48 The gas inlet fitting supplied with this Fireplace provides a 1/2” female NPT fitting. This requires you to supply a ½” NPT male fitting for connection to this appliance. Based on the gas line size you have selected use an appropriate NPT fitting to adapt and connect to the 1/2” male NPT flex end adapter. Page 48 85-03-01103 FV41 ARCH...
  • Page 49 This appliance has been converted for use at an altitude of: Orifice size: Manifold Pressure: Input (Btu/h): Fuel Type: Date of conversion: Converted by: Cet appreeil a été converti au ____ Injecteur ________ Pression à la tubulure d'alimentation _____________ Déoit calorifique ______________ Page 49 85-03-01103 FV41 ARCH...

  • Page 50: Installation Checklist

     Adjust exhaust damper to match vertical chimney length. See 4.11.14 Vent Damper Adjustments  Co-axial vent rigid pipe, wall vent cap or roof vent cap is installed by a Mendota approved  serviceperson in accordance with instructions. All joints are secured, "twist-locked" and leak-proof.

  • Page 51: Unpacking The Fireplace

    Lift the outer box vertically straight upward until lower edge of the box clears the top of the unit body. Set the box aside. Mendota recommends recycling the outer box. Figure 4-1 Outer Box Removal Page 51...

  • Page 52: Contents Of The Manual Packet

    Once the outer box is removed, you will find the Fireplace body and a manual packet white box. This manual packet white box includes the items shown in the table, below. Contact Mendota Technical Service if any parts are missing.

  • Page 53: Ending Up The Shipping Clips

    3. Remove screw driver. Insert screw driver tip into one hole in clip. Lift screw driver up. To break clip off, repeat up down motion of screw driver seven to eight times. Figure 4-4 Shipping Clip STEP 1 & STEP 2 STEP 3 Figure 4-6 Bend Up Clip 2 Figure 4-5 Bend Up Clip 1 Page 53 85-03-01103 FV41 ARCH...

  • Page 54: O Remove Door

    4. Use the tool provided to connect the spring latches to the glass frame. Insert tool into hole in spring latch, pull latch towards you, rotate latch so the hook is facing downward then release latch to hook to door frame. Door is now connected and sealed to unit. Page 54 85-03-01103 FV41 ARCH...

  • Page 55: Nstallation

    Warning: Use a 3/8” hex hand driver to tighten nuts.DO NOT over tighten the nuts. Doing so can crack the light lens. HA-58-04606 ACCENT LIGHT HOUSING 10-11-00020 LIGHT BULB, G9 XENON, 25W Figure 4-9 Accent Light Bulb & Lens Installation 10-11-00025 ACCENT LIGHT LENS-2016 HA-88-00168 LENS RETAINER BRACKET WITH GASKET HA-77-00357 LIGHT COVER CLIP Page 55 85-03-01103 FV41 ARCH...

  • Page 56: Natural Gas To Lpg C

    Orifice sizes requirement A Natural Gas to LPG conversion kit #HA-92-00014 must be ordered and installed to convert the FV41 ARCH Fireplace to burn LPG. LP Conversion Kit # HA-92-00014 contains the following parts: One motorized LP pressure regulator #907.012 and two cap orifices (drill #54).
  • Page 57 Warning: Correct operation of the system cannot be guaranteed if the conversion kit or value have been dropped or sustained strong impact. Figure 4-13 Pressure Regulator Conversion Page 57 85-03-01103 FV41 ARCH...
  • Page 58 CAUTION: Always use one 7/16” open end wrench and one large pliers or vice grips tool to hold, loosen and tighten pilot hood base to prevent damage to pilot mount bracket. Figure 4-16 Pilot Orifice Selection Figure 4-15 Pilot Body Figure 4-17 Pinch Pilot Base with Vice Grips Page 58 85-03-01103 FV41 ARCH...
  • Page 59 Verify that the burner tubes ignite quickly and the burner flames propagate smoothly along the entire length of the burners. Figure 4-18 Pilot Flames Figure 4-19 Pilot Flame and Burner Ports Page 59 85-03-01103 FV41 ARCH...

  • Page 60: Venting

    Fireplace. Oversights or failure to conform to all installation requirements will void the applicable warranty. The FV41 ARCH Fireplace must be vented to the outside and must use one of the approved rigid coaxial ducting systems. This heater must be properly connected to a venting system in accordance with the manufacturer's installation instructions.
  • Page 61 FV41 ARCH Master Venting Chart 1. 18 inches maximum horizontal pipe run allowed with a 90 -elbow connected directly to this fireplace’s flue starter collar. 2. Maximum Vertical Run allowed is 61 feet. 3. Maximum Vent System length allowed is 65 feet.
  • Page 62 Using 90 Elbows in Zone “B” The FV-41 Fireplace by MENDOTA allows maximum flexibility in the use of 90 elbows in the vent system. The length of the first straight vertical section directly connected to the fireplace’s starter collar determines the maximum horizontal run and the number of 90 elbows allowed for this fireplace.
  • Page 63 SUPPORT: Horizontal runs of pipe will require one vent support for every 3 ft. of pipe. ZERO RISE HORIZONTAL TERMINATION The FV-41 Fireplace must be installed by a qualified Mendota approved serviceperson. A Maximum Horizontal Run allowed is 18 inches if a 90-degree elbow is connected directly to this fireplace’s flue starter collar.
  • Page 64 NOTE: The horizontal run of vent pipe must be level or have a ¼" rise for every 1' of run toward the termination. Never allow the vent to run downward. This will cause high temperatures and the possibility of a fire. This FV-41 Fireplace must be installed by a qualified Mendota service person 1. Position fireplace in desired location. See for guidelines on proper 3.2.18.5 Exterior Vent Locations and Restrictions...
  • Page 65 NOTE: DO NOT SEPARATE TELESCOPING SECTIONS. THEY MUST BE USED AS COMPLETE ASSEMBLIES. Page 65 85-03-01103 FV41 ARCH...
  • Page 66 The FV41 Arch Fireplace must be installed by a qualified Mendota approved serviceperson. 1. Place the fireplace in its desired location. Drop a plum bob from the ceiling to the position of the fireplace flue exit. Mark the location where the vent will penetrate the ceiling.
  • Page 67 FEET MAXIMUM Page 67 85-03-01103 FV41 ARCH...
  • Page 68 Mendota has spent considerable time and effort in the design of this fireplace and its venting system. Through this effort, Mendota has been able to certify the use of Four 90 elbows.

  • Page 69: Log Set/ Media Installation

    Installation Instructions for each log set are included with the individual log set. Follow those instructions to install one log set. Note: Installer, save and give the copy of the Log Set Installation Instructions to the homeowner for future references. Page 69 85-03-01103 FV41 ARCH...

  • Page 70: Lighting Checklist

    ☐ DO NOT proceed with operation unless burner cycles "on/off" without delays and the flame is "stable" and not "lifting" off burner after 5 minutes of initial ignition. Caution: If ignition system goes into lockout mode, be sure to wait a minimum of five minutes before attempting to relighting. Page 70 85-03-01103 FV41 ARCH...

  • Page 71: Lame Appearance

    IMPORTANT: Try each new shutter setting approx. ½ hr. before making additional changes. NOTE: Changes in front burner flame can be made by re-arranging the coals and front burner air shutter opening. Page 71 85-03-01103 FV41 ARCH...

  • Page 72: Aesthetic Considerations

    We are committed to quality and satisfaction for all Mendota owners. Thank you for choosing a Mendota to be a source of comfort and beauty in your home.
  • Page 73 (Note: If you do not hear any beeps when you press the sync button, contact your Mendota dealer or installer for assistance.) Within seven seconds, press the “on” button on the remote control. The fireplace will beep four times to indicate that the remote control’s command is accepted and sets to the particular code of that controller.
  • Page 74 3. Up/Down Button: This button is used to increase or decrease the thermostat temperature, flame height, fan speed, and accent light intensity. This also controls the rear burner on/off. 4. Mode Selection Button: This button is used to toggle between the various function icons: flame height, fan speed, accent light, and rear burner. Page 74 85-03-01103 FV41 ARCH...

  • Page 75: Remote Control Operating

    Understanding Your Remote-Control Icons Your remote control displays and controls the following functions. See below for detailed control explanations. Note: the “AUX On” function is not used in this fireplace. Figure 5-4 Remote Control Icons Page 75 85-03-01103 FV41 ARCH...
  • Page 76 The flame height of the front burner will not change when you turn the rear burner on or off. The flame height can only be changed in the Flame Height mode. 85-03-01103 FV41 ARCH Page 76...

  • Page 77: Ipi And Cpi Modes

    Note: The snowflake icon will be visible on the display at all times when in CPI mode. Recommended: Mendota recommends that CPI mode is used during the winter months when the average daily high temperature falls below 50 F.

  • Page 78: Instructions

    4. Turn OFF the external manual shutoff valve if was required and supplied by installer and mounted adjacent to fireplace. 5. Turn OFF all electric power to the fireplace if service is to be performed. Page 78 85-03-01103 FV41 ARCH...

  • Page 79: Frequently Asked Questions

     If you cannot reach your gas supplier, call the fire department for assistance. Where can I find the model and serial numbers? When requesting service, you will be asked to provide the model number and serial number to your Mendota dealer. This information will expedite the warranty verification process.
  • Page 80 3” to 12” long area) and the gasket adhesive in no longer functional to stick to glass, then replace the gasket. 9. Visually inspect the vent terminal (vent cap) for leaves, twigs and other debris accumulation. Clean if required. 10. Clean door glass. 11. Clean enamel firebox lining, if one is installed. Page 80 85-03-01103 FV41 ARCH...
  • Page 81 These adjustments should be made by a qualified technician to achieve the best flame performance. Contact your installer or Mendota dealer if you feel your fireplace is not burning correctly. Improper setup and adjustment is not covered under warranty.
  • Page 82 This should clear the lockout mode. Turn on the remote and start the fireplace. Ensure the master switch is in the run/on position. After completing these steps, contact your Mendota dealer if fireplace won’t turn on. What happens when I first light my fireplace? When you first light your fireplace, the initial curing phase is initiated.

  • Page 83: Required Periodic Inspections

    Check joints between the gasket pieces at the corners. They should butt against each other to create a seal. Gaps between gasket pieces can cause exhaust leaks and lead to acrid smell concerns. 85-03-01103 FV41 ARCH Page 83...
  • Page 84 If you are using a “backyard” Natural Gas well as the gas source, you must submit formal gas analysis data sheets to Mendota Fireplaces for review and calculation of proper main burner orifice sizes prior to first firing. It is known that unpurified Natural Gas from “backyard” wells can contain high energy levels causing over firing.

  • Page 85: Replacement Parts Information

    Accent Light: The accent light is mounted in the firebox top center area. The accent light wire harness is run from the light housing to the left side and then down to the ignition control module. Please contact your Mendota Dealer for parts availability and parts pricing. General Replacement Parts List Please contact your Mendota Dealer for parts availability and parts pricing.
  • Page 86 Convection Air Blower System Parts Figure 6-3 FV41 ARCH BLOWER ASSY, LEFT Figure 6-4 FV41 ARCH BLOWER ASSY, RIGHT ITEM # PART NO. DESCRIPTION 65-02-00134 GASKET, BLOWER COVER, FV41 ARCH 50-06-00130 SPACER, FOR GROMMET 50-06-00129 GROMMET, RUBBER 50-03-00067 NUT, 10-24 KEPS, ZINC PLATED 50-01-00156 HHSMS, #8-18 X 1/2"...
  • Page 87 Elbow 90 Deg, 3/8 Flared Tube X 3/8" NPT Male, Brass 65-07-00012 BCF,3/8 TBE X 3/8MPT COMP ELBW 55-02-00089 3/8" FLARED FLEXTUBE, SS X 9" 55-02-00073 TUBING, 3/8" OD X 10" SS 304 55-02-00088 TUBING, 3/8" OD X 30" SS 304 Page 87 85-03-01103 FV41 ARCH...
  • Page 88 ACCENT LIGHT HOUSING 10-11-00020 LIGHT BULB, G9 XENON, 25W 10-11-00025 ACCENT LIGHT LENS-2016 HA-88-00168 LENS RETAINER BRACKET WITH GASKET Figure 6-6 Accent Light Bulb & Lens Installation HA-77-00357 LIGHT COVER CLIP Figure 6-7 Accent Light Lens Installation Page 88 85-03-01103 FV41 ARCH...
  • Page 89 GLASS FRAME ASSEMBLY REPLACEMENT PARTS LIST ITEM PART NUMBER DESCRIPTION FRAME, WELDMENT, GLASS, FV41 HA-92-00012 ARCH GASKET, TADPOLE, 5 /8” BULB, 65-02-00103 3/4” TAIL, 110” 65-06-01366 GLASS, CERAMIC, FV41 ARCH Page 89 85-03-01103 FV41 ARCH...

  • Page 90: Final Installation And Homeowner Checklist

     Burner flames are “stable” and are not “lifting” off burner.  Inform owner that an initial curing step is required. Read and follow Mendota Fireplace and Insert Curing Instructions (found on unit and in owner’s manual). Smoke will emit during initial curing step.

  • Page 91: Warranty Policy Statement

    7.2 WARRANTY POLICY STATEMENT Mendota Fireplace, a division of Johnson Gas Appliance Company, extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below.

  • Page 92: Conditions

    Owner accepts that this appliance requires close monitoring of children and vulnerable individuals who are in the vicinity of this appliance when it is in operation. Mendota does not assume or accept any liability claims for burns or other physical or material damages resulting from touching hot glass surface and hot metal surfaces that are part of this appliance or other adjacent object such as hearth pads and mantels that may heat up during operation of this appliance.
  • Page 93 How to Obtain Warranty Service 1. If you discover a problem that you believe to be covered by the warranty, you must report to your Mendota Dealer within 30 days, with proof of purchase, purchase date, model name and serial number.
  • Page 94 Owner Registration After installation, Mendota fireplace owners must register with Mendota to qualify for the Lifetime Limited Warranty within 30 days. Product registration will activate your Lifetime Limited Warranty. Owners should complete the forms available at: mendotahearth.com/warranty Note: Your Mendota dealer can assist with warranty applications and information.
  • Page 96 Johnson Gas Appliance Company 520 E Avenue NW Cedar Rapids, Iowa 52405 Mendota Warranty Registration...
