Wireless router
Operating Temperature : -10ºC ~50ºC
Storage Humidity: 5% ~95% RH Non-condensing
Operating Humidity: 10% ~90% RH Non-condensing

1.3 System Requirements

An Ethernet-Based Cable or DSL modem
10/100M Ethernet Card on PC
TCP/IP network protocol for each PC
RJ45 Twisted-pair cable
Internet browser: Microsoft Internet Explorer, Firefox, Opera or Chrome

Chapter 2 Hardware Installation

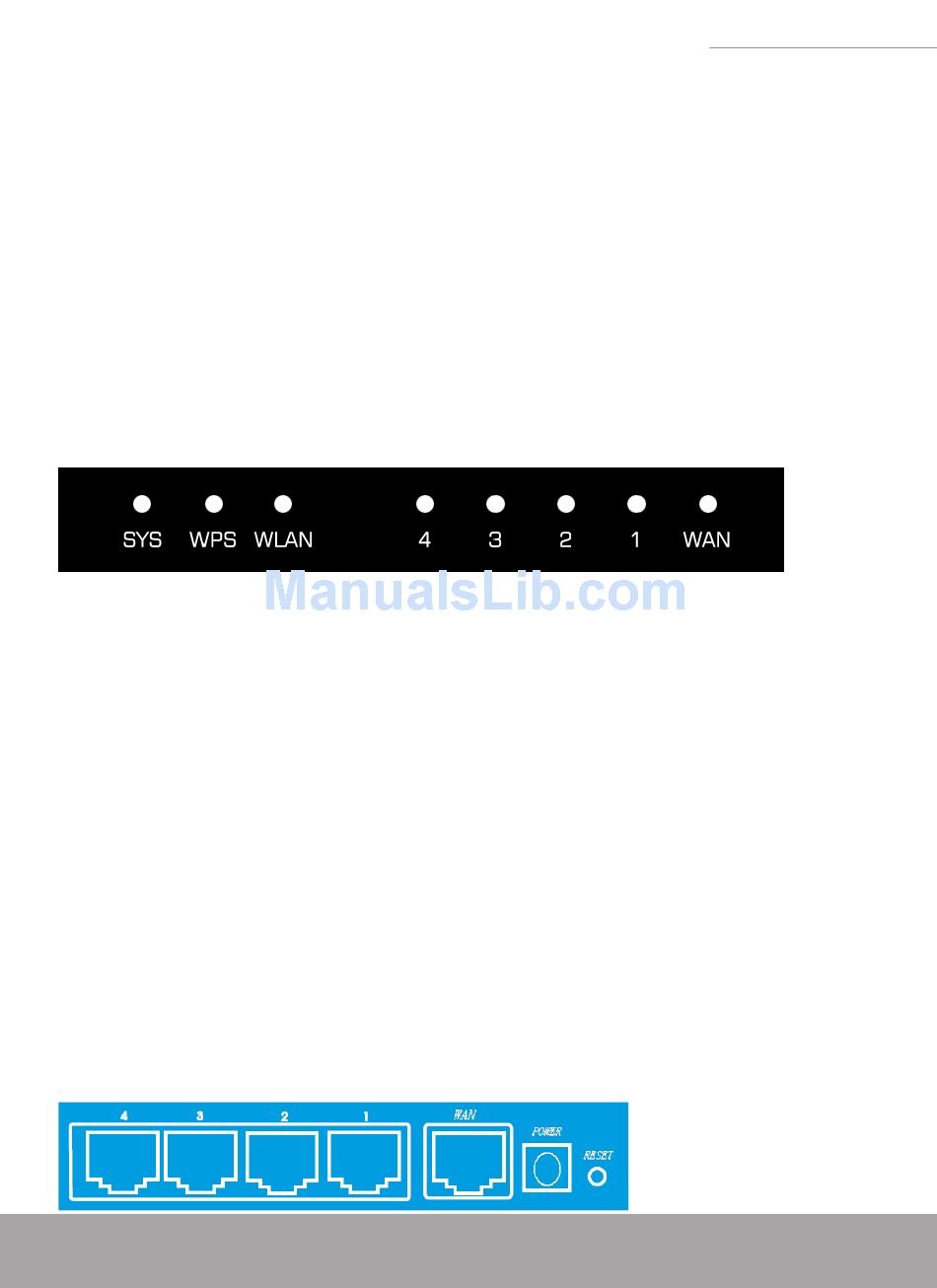

2.1 Led indicators

SYS/Power (Red): Flickering light indicates a proper connection to the power
supply.
While resetting the SYS LED will flash differently (shine for 2 seconds and stop
for 1 second).
WPS (Green): The Led will flicker for about two minutes when WPS session
is active .
WLAN (Wireless LAN) (green): The LED is flickering during wireless activity.
LAN 1,2,3,4 (green): The Link/Act LED serves two purposes. If the LED is con-
tinuously illuminated, the Router is successfully connected to a device through
the corresponding port. If the LED is flickering, the Router is actively sending or
receiving data over that port.
WAN (Green):The Link/Act LED serves two purposes. If the LED is continu-
ously illuminated, the Router is successfully connected to a device through the
corresponding port. If the LED is flickering, the Router is actively sending or
receiving data over that port.

2.2 Back Panel Features

5
