Wireless router

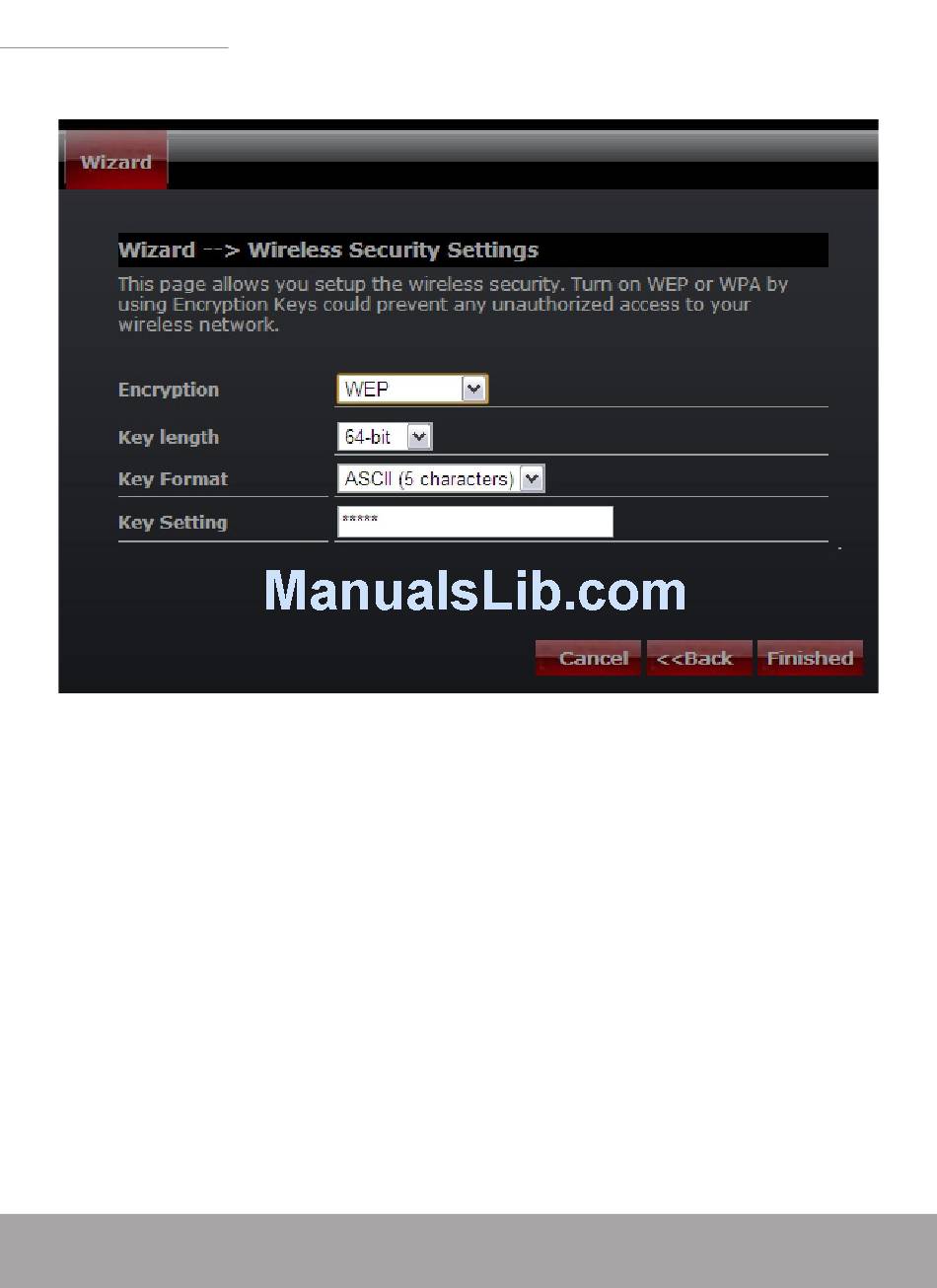

The following picture shows how to set the WEP security.
Key length: WEP supports 64-bit or 128-bit security key.
Key Format: User can enter key in ASCII or Hex format.
Key Setting: Enter the key, accordingly to chosen format.
The keys are used to encryption data transmitted in the wireless network.
Fill in the text box by following rules below:
• 64-bit: Input any 5 ASCII characters or 10 digit Hex values (in the "A-F",
"a-f", and
"0-9" range) as the encryption keys. It is advised to use digits and both low-
ercase and uppercase characters - for example: "012345aEfG"
• 128-bit: Input any 13 ASCII characters or 26 digit Hex values (in the
"A-F", "a-f", and "0-9" range) as the encryption keys. For example:
01234567890123456789aBcDEf"
The following picture shows how to set WPA-PSK security, you can select
WPA(TKIP), WPA2(AES) and Mixed mode.
