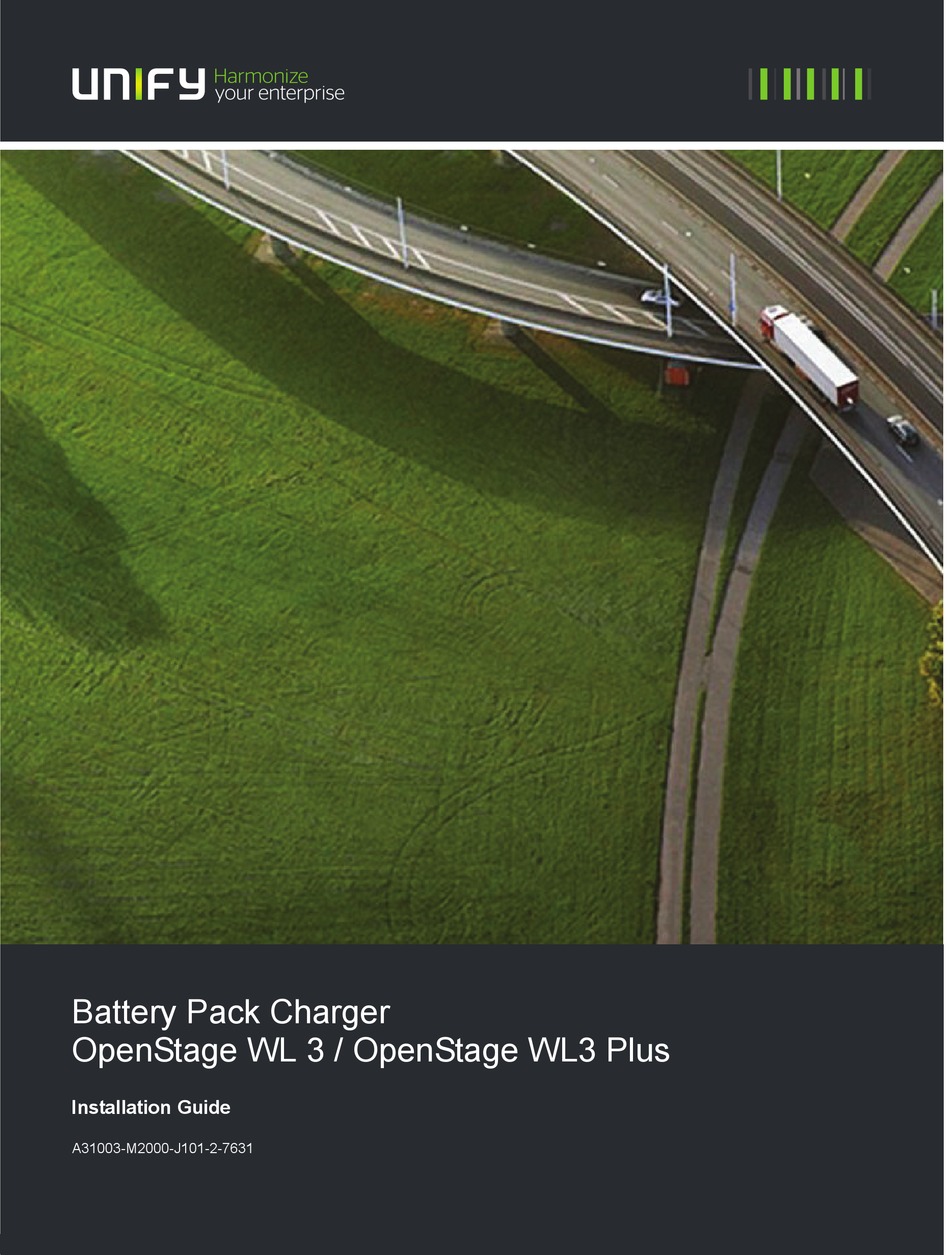

- Page 1 Battery Pack Charger OpenStage WL 3 / OpenStage WL3 Plus Installation Guide A31003-M2000-J101-2-7631...
- Page 2 Availability and technical specifications are subject to change without notice. Unify, OpenScape, OpenStage and HiPath are registered trademarks of Unify GmbH & Co. KG. All other company, brand, product and service names are trademarks or registered trademarks of their respective holders.
-
Page 3: Table Of Contents
Inhaltsverzeichnis Inhaltsverzeichnis Introduction ........4 Safety . -
Page 4: Introduction
Introduction Introduction This document describes how to install and operate the Battery Pack Charger. Each Battery Pack Charger charges six batteries simultaneously. Figure 1 The Battery Pack Charger Supply voltage: 100-240VAC/0.7A 50/60 Hz Building fuse for fixed installation: 10 A max. Single Unit The Battery Pack Charger can be installed as a single unit. -
Page 5: Safety
Introduction Safety • It is not allowed to supply more than one unit by the power cord with the C14 connector. • The safety covers on top of the supply voltage terminal blocks must be mounted to prevent ha- zardous situations, like electric shock. •... -
Page 6: Regulatory Compliance Statements (Usa/Canada Only)
Installation Regulatory Compliance Statements (USA/ Canada only) FCC Compliance Statements for USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 7: Mounting
Installation Required Tools etc. • Screwdrivers • Cutting pliers • Multimeter • Screws and wall plugs for wall mounting. Make sure the screws and wall plugs have the correct length for the type of wall used. Wall material Plug length Screw diameter Single plasterboard Thorsman TP1... -
Page 8: Electrical Installation
Installation Figure 3 Removing the top cover Electrical Installation Install Single Unit NOTE: It is not allowed to supply more than one unit by the power cord with the C14 connector. Figure 4 IEC C14 connector and extension cord with IEC C13 connector... -
Page 9: Install Multiple Units
Installation Test Installation 1. Connect the power cord to the wall outlet. 2. Place a battery in the charging slot. 3. A yellow LED indicates that charging starts while a green LED indicates a fully charged battery. Install Multiple Units NOTE: Maximum five units may be connected in a fixed electrical installation. - Page 10 Installation Figure 6 Remove safety cover 4. Mount the cable support holder at the unused opening on the previous unit. The cable support holder is provided in the parts bag. Figure 7 Remove safety cover 5. Remove the C14 connector from the additional unit. 6.
- Page 11 Installation Figure 8 Terminal block for power cord 9. Secure the power cord with two screws, which are provided in the parts bag. Figure 9 Securing the power cord 10.Mount the safety cover and fasten it with one screw. 11. Replace the top cover. 12.Fasten the power cord to the wall depending on local regulations.
-
Page 12: Operation
Operation Operation When the charger is connected to external power supply, normal operation is done as follows: Charging 1. Connect the charger to the AC power supply. 2. Place a battery in the charging slot to start charging. Secure the battery by moving the lock switch.
