Web interface

Every GigaCore switch embeds a built-in web server, which exclude the need of a dedicated application to configure the
unit. Browsers such as Chrome, Internet Explorer (IE 9 minimum), Firefox or Safari can be used to reach the web server.
Luminex recommends to always use the latest version of your favorite web browser for the best user experience.
Every unit comes with a default IP address, visible at the rear of the unit. Set your computer with an IP address compliant
with the one set on the switch. Here are some examples :
■
Example 1: Switch IP address: 192.168.1.1, Netmask: 255.255.255.0
Computer IP address: 192.168.1.2, Netmask 255.255.255.0
■
Example 2: Switch IP address: 192.168.2.112, Netmask: 255.255.0.0
Computer IP address: 192.168.2.113, Netmask 255.255.0.0
Connect your computer to the switch, and launch your favorite web browser. Type the IP address of the switch in the
address field, and press enter. You'll be prompted to enter a login: Use admin in the login field, and leave the password
field blank. You reach the status page of the GigaCore switch.
■

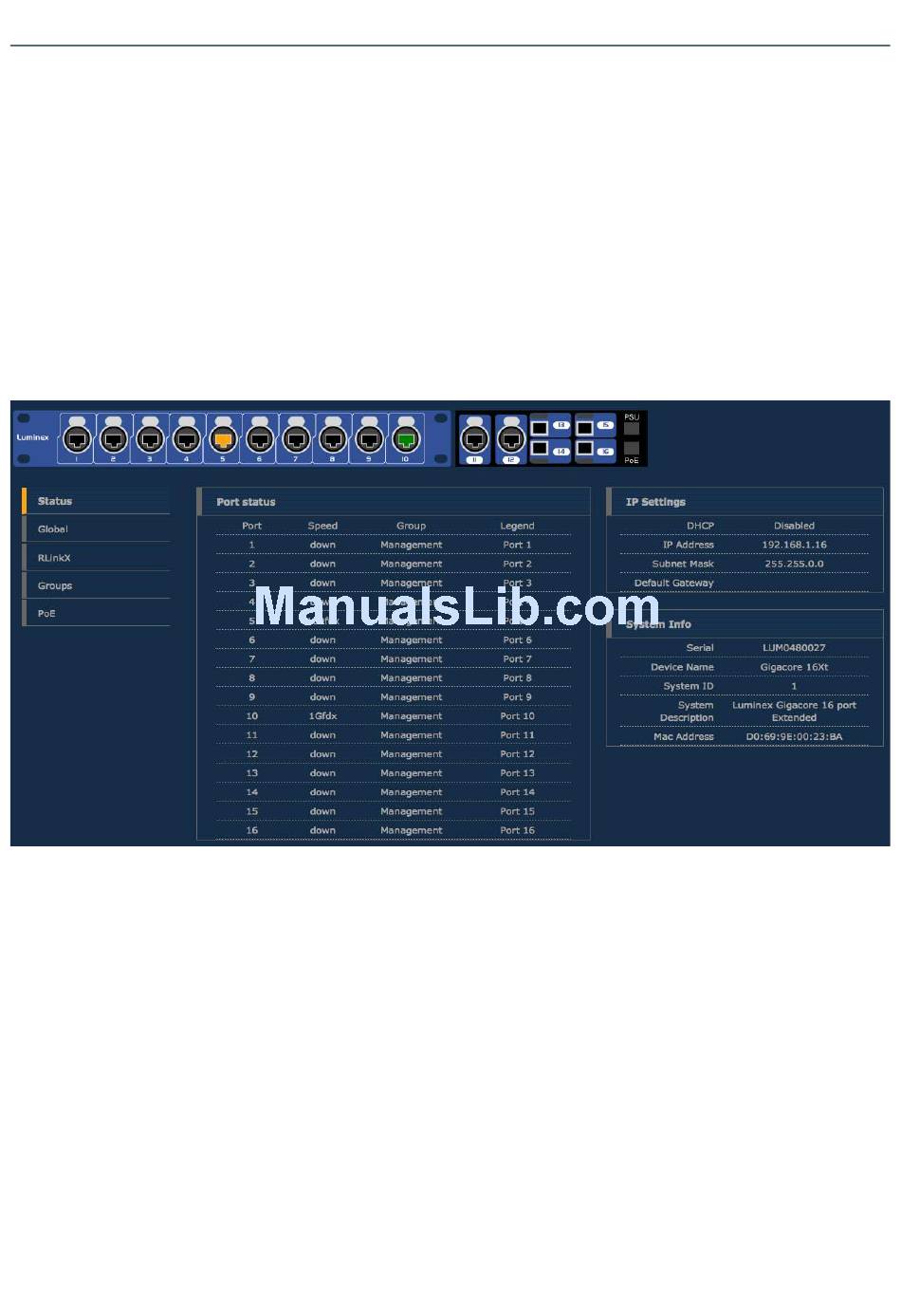

Status Page
The status page is split into several panes that will be described below:
Switch image :
The top image gives you a quick overview of the switch port status (front and rear). Actives ports are filled with the
following colours:
■
Orange: 100Mbps link
■
Green: 1000Mbps link
Main menu :
On the left hand side, you can find the main menu. Click on any tab to reach the corresponding menu.
Port status :
This table gives you a quick overview of the switch ports settings. Parameters such as port speed and legend can be
modified in the following menu: Global > Port Settings
IP Settings :
Find here all the network settings of the switch. These parameters can be modified in the following menu:
Global > Device Settings
System Info :
Find here all the device info such as serial number, device name, system identifier and system description.. This
information can be modified in the following menu: Global > Device Settings
Ports are surrounded by the color of the group they're part of
(default colours is management group colour)
