- Page 1 SAFETY INSTRUCTIONS & QUICKSTART GUIDE GIGACORE PRODUCT FAMILY GigaCore 30i Range THANKS FOR CHOOSING LUMINEX...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS: Read these instructions. ƒ Keep these instructions. ƒ Heed all warnings. ƒ Follow all instructions. ƒ Do not use this apparatus near water. ƒ Clean only with dry cloth. ƒ Do not block any ventilation openings. Install in accordance with the ƒ... -
Page 3: Précautions Concernant La Sécurité
PRÉCAUTIONS CONCERNANT LA SÉCURITÉ : Lire ces instructions. ƒ Conserver ces instructions. ƒ Tenir compte de tous les avertissements. ƒ Suivre toutes les instructions. ƒ Ne pas utiliser ce produit à proximité d’eau. ƒ Nettoyer uniquement avec un chiffon propre et sec. ƒ... -
Page 4: Ventilation Openings
To prevent your product from overheating, do not operate it in an area that ƒ exceeds the maximum recommended ambient temperature of 50°C for the GigaCore 30i and for the GigaCore 30i with PoE. The equipment must be installed and protected from rain and humidity. ƒ... -
Page 5: Disconnect Device
DISCONNECT DEVICE: The plug-IEC socket combination must be accessible at all times, because it serves as the main disconnecting device. Disconnect the power cord during installation of the device. SAFETY CLASSIFICATION OF MAINS POWER INPUT: Mains input - IEC connection has a safety status of PRIMARY CIRCUIT ƒ... - Page 6 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 7 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Luminex Lighting Control Equipment nv may void your authority, granted by the FCC, to use the product. This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
- Page 8 This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. GigaCore 30i Safety & Quickstart Guide (LU 77 00242 rev.1.0.4)

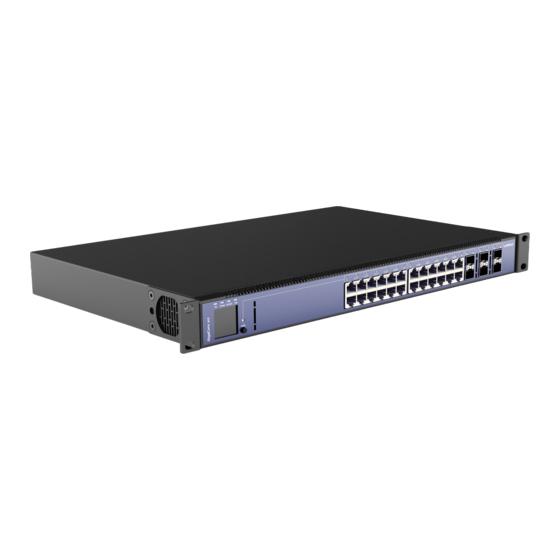

- Page 9 QUICKSTART GUIDE Welcome to your GigaCore 30i. Upon unpacking your new GigaCore, the E-ink display will display a QR-code. After scanning this QR-code, the safety manual and quick start guide will be opened on the device used for scanning. Once the device has been powered up and booted, this QR-code will disappear and not come back on a following bootup.
- Page 10 1. INSTALLING/REMOVING PSU’s The GigaCore 30i is equiped with two slots for slide-in power supply units (PSU). MOUNTING A PSU Slide a PSU, suitable for your setup, in PSU slot 1 (left-hand slot). Make sure ƒ the label is at the top! Secure the PSU with the thumb screw fasteners.
-
Page 11: Mounting The Device
2. MOUNTING THE DEVICE 2.1 Rack mount In case you want to mount your GigaCore 30i in a standard 19-inch rack, you need 4 rack screws to mount the device. 3. POWER UP THE DEVICE Power-up the device with a power cable with IEC connection (J) (please contact your local dealer if you don’t have a suitable power cable on hand). - Page 12 OK: Indicates the general status of the switch. ƒ PoE: Indicates the status of the PoE functionality and the PoE ƒ supplies (GigaCore 30i with PoE only). RLinkX: Indicates the RLinkX status. ƒ Power: Indicates the status of the power supply.
- Page 13 4.2 Rear Panel (F) Serial port: 1x RS232 console port on USB-C. ƒ (G) LED Extension Port: 1x LED extension port for optional LED panel on USB-C. ƒ (H) Fans: 3x Fan. ƒ (I) Power: Options for up to 2x slide-in power supply. ƒ...
-
Page 14: Led Indicators
5. LED INDICATORS There are various LEDs on the GigaCore 30i. Here is a list of the LEDs, the possible colours, and the meaning of each colour: SWITCH LED COLOUR DESCRIPTION OK (General status) Green All OK Unit is writing to the flash. - Page 15 SWITCH LED COLOUR DESCRIPTION Power LED Green 2x PSU inserted. Only 1x PSU inserted. Orange 2x different type PSU inserted. PSU inserted but no cable connected. Red flashing PSU error. PORT LED STATUS DESCRIPTION Link No Link Green Gigabit connection Orange 10/100 Mbps connection Blink...
-
Page 16: Installing Sfp+ Transceivers
6. INSTALLING SFP+ TRANSCEIVERS The GigaCore 30i is equiped with six SFP+ cages at the front of the unit. Insert the transceiver into the SFP+ cage. Once properly engaged, the transceiver can’t be removed. Bail wire delatch Dust cap Device shown with dust cap and bail wire delatch. - Page 17 Open the bail wire to disengage and remove the SFP+ transceiver. Bail wire delatch For any other model of SFP+ transceiver, please refer to the transceiver manual. For recommended transceivers please visit our website at: www.luminex.be...
-
Page 18: Connecting To The Web Interface
Sometimes it is required to get more help with your device or application. There is a knowledge base available online that gets updated on a regular basis at: https://support.luminex.be If you need to ask our team for more help or you need to return a device to Lu- minex for diagnostics or repair, you can also find the option on this page to re- quest an RMA or start a support ticket. - Page 19 Luminex.The information in this docu- mentation is supplied without warranty of any kind, either directly or indirectly, and is subject to change without prior written notice. Luminex, its employees or appointed representatives will not be held responsible for any damages to soft- ware, hardware, or data, howsoever arising as a direct or indirect result of the product(s) mentioned herein.
- Page 20 GigaCore 30i Safety & Quickstart Guide (LU 77 00242 rev.1.0.4) Slamstraat 13 | 3600 Genk | Belgium | T +32 11 812 189 info@luminex.be | www.luminex.be...
