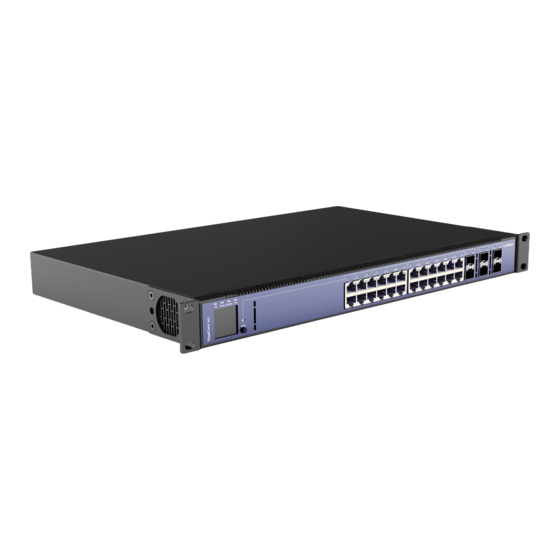

Summary of Contents for Luminex GigaCore 30i

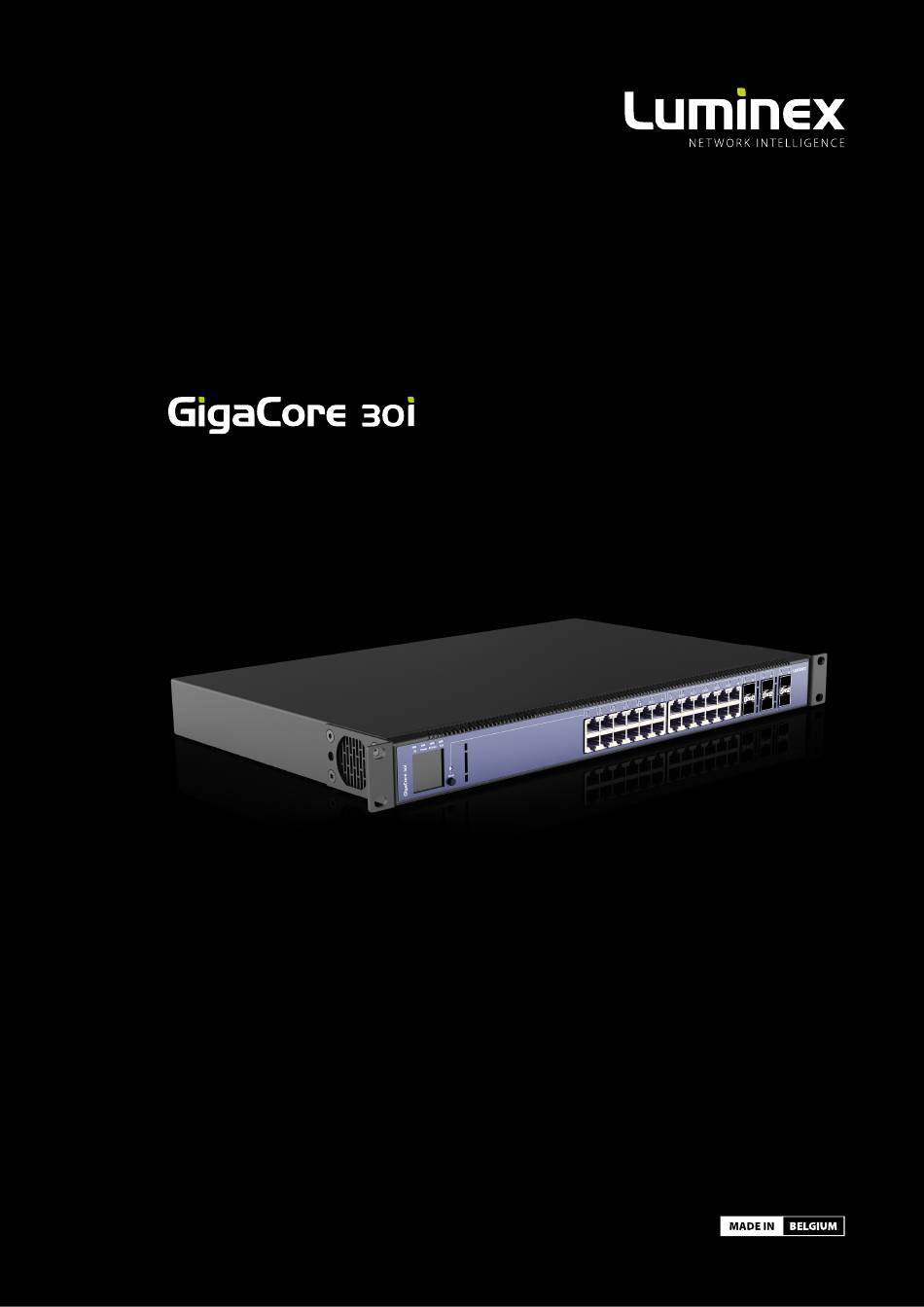

- Page 1 Description: User Manual GigaCore 30i. REVISION: 20221104-REV 1.0.0 USER MANUAL GIGACORE PRODUCT FAMILY GigaCore 30i THANKS FOR CHOOSING LUMINEX...
-
Page 2: General Information
IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Luminex Lighting Control Equipment nv may void your authority, granted by the FCC, to use the product. -
Page 3: Warranty Information
Returning under warranty Please contact your dealer when products need to return to Luminex for repair. Luminex can only accept returns accompanied by a valid RMA number issued by Luminex and requested by your dealer or distributor. Any product returned to Luminex must be packaged in a suitable manner to ensure adequate protection of the parts. -
Page 4: Important Safety Instructions
ƒ To prevent your product from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 50°C for the GigaCore 30i and for the GigaCore 30i with PoE. ƒ The equipment should be installed in an area that it is unlikely for children to have access to the equipment. - Page 5 WELCOME TO YOUR GIGACORE 30i. Upon unpacking your new GigaCore 30i, the E-ink display will display a QR-code. After scanning this QR- code, the safety manual and quick start guide will be opened on the device used to scan the QR code.
-
Page 6: Table Of Contents
Table of Contents GENERAL INFORMATION ......2 WARRANTY INFORMATION ......3 IMPORTANT SAFETY INSTRUCTIONS . - Page 7 ......31 GigaCore 30i - 10G ......34...
-
Page 8: Applications
Araneo will boost your productivity and confidence in the network and reduce commissioning times significantly. GigaCore 30i is an indispensable part of any AV network where reliability and a quick and easy setup are needed. As a user, you don’t need to make choices nor trade-offs as GigaCore handles most AV protocols for you... -
Page 9: Application Examples
1 | applIcatIons 1G APPLICATION EXAMPLES AUDIO/LIGHTING Audio console Stage box staGe ob Van Amplifier rack Intercom Audio mixing console LUMINODE Storage Lighting console Audio console VLAN ID 1 Gigabit fiber Audio | Dante, AES67 PoE++ Light | sACN... -
Page 10: Application Examples
1 | applIcatIons 10G APPLICATION EXAMPLES... - Page 11 1 | applIcatIons ob Van...
-
Page 12: Installation
2. Installation 2.1 Installing/removing psu’s The GigaCore 30i is equipped with two slots for slide-in power supply units (PSU). MOUNTING A PSU ƒ Slide a PSU suitable for your setup in PSU slot 1 (left-hand slot). Make sure the label is at the top! ƒ... -
Page 13: Removing A Psu
2 | InstallatIon REMOVING A PSU ƒ Unscrew the thumb screw fasteners (l) by turning them anti-clockwise. ƒ Use the bracket (m) to slide the PSU out of the main device as shown in the image below. PART NUMBERS FOR PSU’S LU 70 00639: GigaCore Slide-in PSU 100W LU 70 00640: GigaCore Slide-in PSU 550W... -
Page 14: Mounting The Device
GigaCore 30i is designed to be rack mounted. Please read the following instructions to make sure the device is mounted and secured correctly. RACK MOUNT The GigaCore 30i is designed to be fitted in a standard 19-inch rack, you need 4 rack screws to mount the device. 2.3 power up the device Power-up the device with a power cable with IEC connection (K) (please contact your local dealer if you do not have a suitable power cable at hand). -
Page 15: Description
ƒ Power: indicates the status of the power supply. ƒ RLinkX: indicates the RLinkX status. ƒ PoE: indicates the status of the PoE functionality and the PoE supply (GigaCore 30i with PoE only). (B) E-ink Display: ƒ E-ink display: indicates the options the switch has and the IP address (unless disabled in the settings). -
Page 16: Led Indicators
2 | InstallatIon 2.5 leD indicators Power RLinkX Power RLinkX There are various LEDs on the GigaCore 30i. Here is a list of the LEDs, the possible colours, and the meaning Power Power RLinkX RLinkX Power Power RLinkX RLinkX of each colour:... -
Page 17: Connection To The Web Interface
2.6 connection to the web interface ƒ The GigaCore 30i IP address can be found at the rear of the unit or on the E-ink display. ƒ Set your computer with a compliant IP address (do not use the same IP address!). -
Page 18: Installing Sfp+ Transceivers
Open the bail wire delatch to disengage and remove the SFP+ transceiver Bail wire delatch In order to get the best performance, Luminex recommends the use of the following transceivers: LU 90 01116 Luminex 10GBase-SR SFP+ MMF Transceiver 850nm, 300m, LC, DMI. -
Page 19: Configuration
Use admin in the user field and leave the password field blank. 3.1 Status Page (A) Identify: Clicking on the Luminex logo will identify your GigaCore in the network. The switch LEDs will flash green for 5 seconds. In the web-UI, the text “Identified” will be displayed under the logo. - Page 20 3 | confIGuratIon (D) PSU’s: On the right-hand side of the switch image, two icons indicate the status of the installed PSU’s. Here is a list of the icons, the possible colours, and the meaning of each colour: Non PoE models Green PSU present and online.
-
Page 21: Groups/Trunks
ƒ Group 2 onwards: These are the generic groups to be used for any purpose such as sound, lighting, intercom, video..The GigaCore 30i offers 20 pre-defined groups but if required, the user can add more groups in the Edit groups section. -
Page 22: Group/Vlan Advanced Settings
3 | confIGuratIon GROUP/VLAN ADVANCED SETTINGS To change the settings for a group, click on the Edit groups option. With the group selected you can: ƒ Change the name for ease of identification. ƒ Set the VLAN ID (default is group number x 100). ƒ... -
Page 23: Delete A Trunk
3 | confIGuratIon DELETE A TRUNK To delete a custom trunk, select the trunk you wish to delete in the Edit trunks window and click the delete button. All ports that were assigned to the custom trunk are automatically re-assigned to the Management group. -
Page 24: Device Settings
3 | confIGuratIon 3.4 Device settings The device settings page is divided in eight sub menus: IP SETTINGS Assign here the IP mode and IP address of your switch. This IP address will be used to reach the switch’s web interface. The default IP address can be found at the rear of the device or on the E-ink display. There is one IP mode available: ƒ... -
Page 25: Snmp
3 | confIGuratIon ƒ Power mode: Redundant, the second PSU is used as redundancy in case an error occurs with the first PSU. Shared, the output power of both PSU’s is combined to offer a higher total output power available across all the switch ports. -
Page 26: Toolbox
A maximum of forty profiles can be saved on a GigaCore 30i switch. The switch also offers to export or import a profile through a computer, providing the user with an easy way to exchange profiles between switches. -
Page 27: Reset
3 | confIGuratIon FIRMWARE UPGRADE You can upgrade the GigaCore 30i with our latest firmware. The quickest and most convenient way to upgrade your device(s) is with the Araneo software. Alternatively, you can upgrade the device via the build-in web-UI. To upgrade the device, please apply the following procedure: ƒ... -
Page 28: Reset
Default login: admin Default password: No password ƒ Factory Reset: With a factory reset the device is fully reset to the state it left Luminex and ALL data will be erased. Default login: admin... -
Page 29: Reload Defaults
4 | reset 4.2 reload defaults Condition 1: The device is currently running. Condition 2: The profile stored in slot one needs to be locked through the device settings menu. Hold the mode button for at least five seconds until the four status LEDs start flashing green. Releasing the mode button whilst the status LEDs are flashing green will reboot the switch into the profile stored in slot one. -
Page 30: Technical Support
If you need to ask our team for more help or you need to return a device to Luminex for diagnostics or repair, you can also find the option on this page to request an RMA or start a support ticket. -
Page 31: Technical Specifications
6. Technical Specifications 6. Technical Specifications GIGACORE 30I - 1G MECHANICAL Enclosure Robust all metal housing Dimensions (W x D x H) 482 x 283.1 x 43.2 mm (482 x 308.8 x 43.2 mm with inserted PSU) Material thickness 2 mm... - Page 32 6 | tecHnIcal specIfIcatIons POWER OVER ETHERNET 802.3af Standards 802.3at 802.3bt 802.3af, 802.3at, 802.3bt PoE Ports On ports 1-24 500 W (1x slide in PSU) Total PoE power budget 1000W (2x slide in PSU) LLDP Support User configurable: Power allocation x Priority per port x Consumption vs Class/LLDP based x Total power budget firmware limit - port shutdown at overload based on port priority...
- Page 33 6 | tecHnIcal specIfIcatIons Audio protocol compliance Yes, low jitter and hardware timestamping (IEEE 1588-2008) Ethernet switch type Full non-blocking wire-speed switching performance Memory Flash 1 Gb RAM - 8 Mb NOR flash 4 Gb EMMC storage MAC Address table 16384 entries Address learning / aging Self learning, Auto aging...
-
Page 34: Gigacore 30I - 10G
6 | tecHnIcal specIfIcatIons GIGACORE 30I - 10G MECHANICAL Enclosure Robust all metal housing Dimensions (W x D x H) 482 x 283.1 x 43.2 mm (482 x 308.8 x 43.2 mm with inserted PSU) Material thickness 2 mm Mounting type... - Page 35 6 | tecHnIcal specIfIcatIons POWER OVER ETHERNET 802.3af Standards 802.3at 802.3bt 802.3af, 802.3at, 802.3bt PoE Ports On ports 1-24 500 W (1x slide in PSU) Total PoE power budget 1000W (2x slide in PSU) LLDP Support User configurable: Power allocation x Priority per port x Consumption vs Class/LLDP based x Total power budget firmware limit - port shutdown at overload based on port priority...
- Page 36 6 | tecHnIcal specIfIcatIons Audio protocol compliance Yes, low jitter and hardware timestamping (IEEE 1588-2008) Ethernet switch type Full non-blocking wire-speed switching performance Memory Flash 1 Gb RAM - 8 Mb NOR flash 4 Gb EMMC storage MAC Address table 16384 entries Address learning / aging Self learning, Auto aging...
-
Page 37: Disclaimer
6 | tecHnIcal specIfIcatIons DISCLAIMER Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject to change without notice. - Page 38 Slamstraat 13 | 3600 Genk | Belgium | T +32 11 812 189 | info@luminex.be | www.luminex.be...
