Summary of Contents for Luminex GigaCore 14R

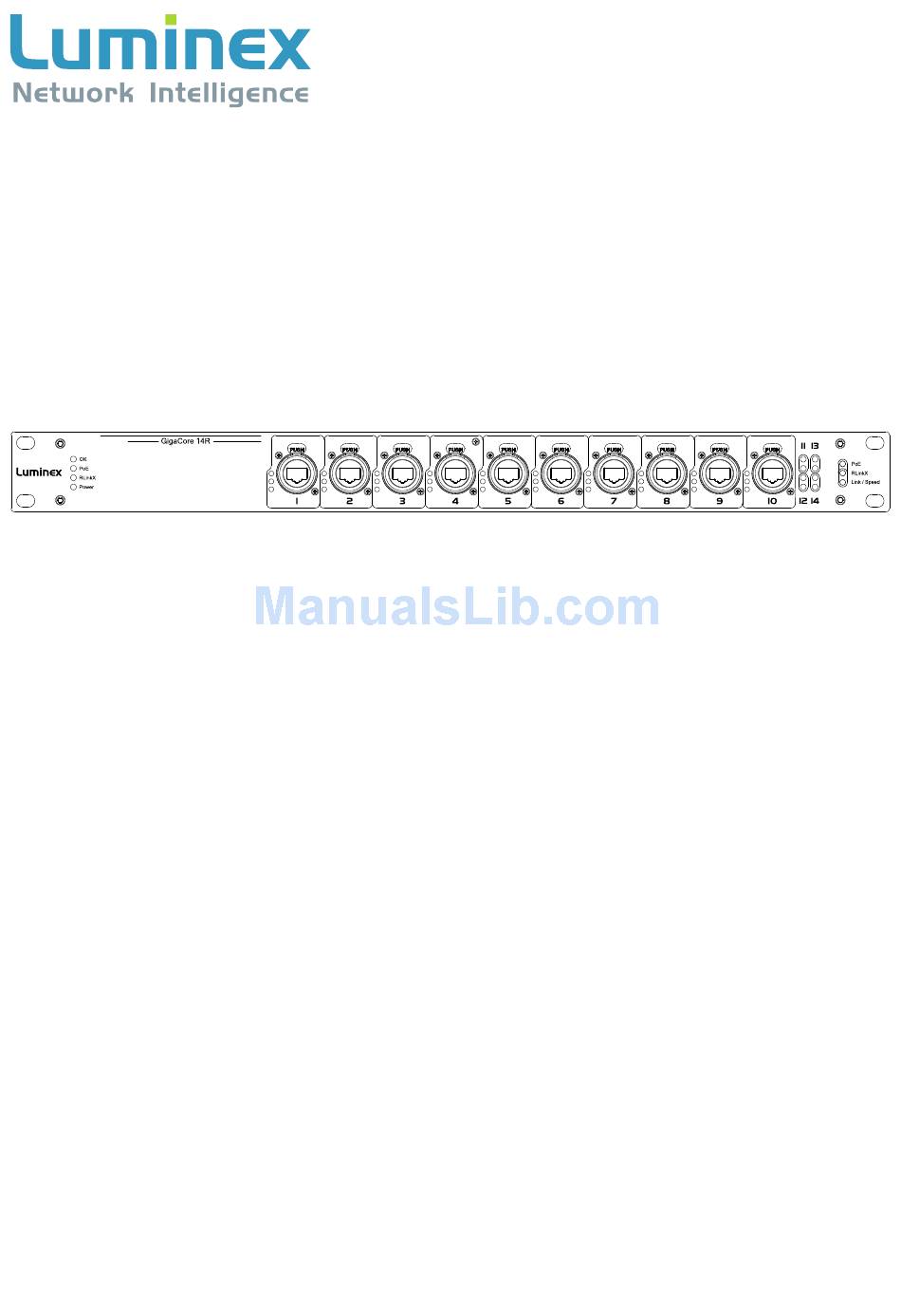

- Page 1 GigaCore 14R Gigabit Ethernet Switch for the entertainment industry Quick Start Guide V2.0.0 Rev4 English...
-
Page 2: Table Of Contents
The information in this documentation is supplied without warranty of any kind, either directly or indirectly, and is subject to change without prior written notice. Luminex, its employees or appointed representatives will not be held responsible for any damages to software, hardware, or data, howsoever arising as a direct or indirect result of the product(s) mentioned herein. -
Page 3: Safety Instructions
Safety Instructions CAUTION: TO REDUCE THE RISK OF WARNING: TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, DO NOT REMOVE THE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS COVER. NO USER SERVICEABLE PARTS APPLIANCE TO RAIN OR MOISTURE. INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 4: Compliance Information
EMC (Electromagnetic Compliance) This model GigaCore 14R complies with the following standards regulating interference and EMC: • EN 55103-1, environment E2 • EN 55103-2, environment E2... - Page 5 CE Compliance (EMC and Safety) Luminex is authorized to apply the CE mark on this compliant equipment thereby declaring conformity to EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
-
Page 6: Warranty Information
Returning under warranty Any Product unit or parts returned to Luminex LCE must be packaged in a suitable manner to ensure the protection of such product unit or parts, and such package shall be clearly and prominently marked to indicate that the package contains returned product units or parts. -
Page 7: Description
Description Front panel LED indication of switch status : Front port status : - OK - PoE - PoE sourcing - RlinkX - RlinkX - Link speed - Power Rear port status : - RlinkX - Link speed 10/100/1000Mbps shielded Neutrik Ethercon port ■... -
Page 8: Rear Panel
Rear panel SFP cages for Mini-GBIC (SFP) compliant transceiver - IEC inlet 10/100/1000Mbps - Fuse holder shielded Neutrik Ethercon port with RLinkX and Link/Speed LED. Console port (serial) Redundant fans: In the unlikely Reset button of a fan failure, the other fan (Clip hole) will switch to 100%, so one fan Backup power inputs :... -
Page 9: Led Indicators
Led indicators The LED indicators of the GigaCore 14R include status, Poe, RlinkX, power, link/speed. The following shows the LED indicators for the GigaCore 14R along with an explanation of each indicator. Switch LED Status Meaning OK (General status LED) -
Page 10: Installing Mini Gbic (Sfp) Transceivers
Installing Mini GBIC (SFP) transceivers The GigaCore 14R comes with four SFP cages at the rear of the unit. These cages accept mini GBIC transceivers. Check our web site for more information about available transceivers. Insert the transceiver into the SFP cage. -
Page 11: Connecting The Backup Power Supply
Connecting the backup power supply The GigaCore 14R comes with two backup power inlets at the rear. This inputs are meant to connect external power supply units for both mains and Power Over Ethernet. This providing redundancy on power level. -
Page 12: Connection To The Web Interface
5 to 95 % RH RoHS Compliance Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject to change without notice.
