- Page 1 GigaCore Range Gigabit Managed AV Ethernet Switch User Manual V 2.3.0 Rev 1 English...
-
Page 2: Safety Instructions
Safety Instructions The lightning flash with arrowhead symbol, The exclamation point within an equilateral within an equilateral triangle, is intended to triangle is intended to alert the user to the alert the user to the presence of uninsulated presence of important operating and maintenance “dangerous voltage”... - Page 3 THIS APPARATUS MUST BE EARTHED CET APPAREIL DOIT ÊTRE RELIÉ À LA TERRE AVERTISSEMENT: Evitez les décharges éléctriques et les risques d’incendie. WARNING: Avoid electric shock and fire Ne pas modifier le système de sécurité de la hazard! Do not defeat the safety purpose fiche polarisée ou de la fiche de terre.
-
Page 4: Compliance Information
EMC: • EN 55103-1, environment E2 • EN 55103-2, environment E2 CE Compliance (EMC and Safety) Luminex is authorized to apply the CE mark on this compliant equipment thereby declaring conformity to EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. -
Page 5: Warranty Information
Returning under warranty Any Product unit or parts returned to Luminex LCE must be packaged in a suitable manner to ensure the protection of such product unit or parts, and such package shall be clearly and prominently marked to indicate that the package contains returned product units or parts. -
Page 6: Table Of Contents
Table of Content ■ Safety Instructions ■ Compliance information ■ Disposal of Waste Equipment by users in the European Union ■ EMC (Electromagnetic Compliance) ■ CE Compliance (EMC and Safety) ■ Warranty information ■ Limited warranty ■ Returning under warranty ■... -
Page 7: Fcc Compliance For The United States Of America
■ Starting ■ Connection to the web interface ■ Status Page ■ Global Page ■ RLinkX ■ Groups ■ ■ Profile Manager ■ Reset the unit ■ Reset ■ Reload Default ■ Factory Reset ■ Specifications ■ Additional documentation... -

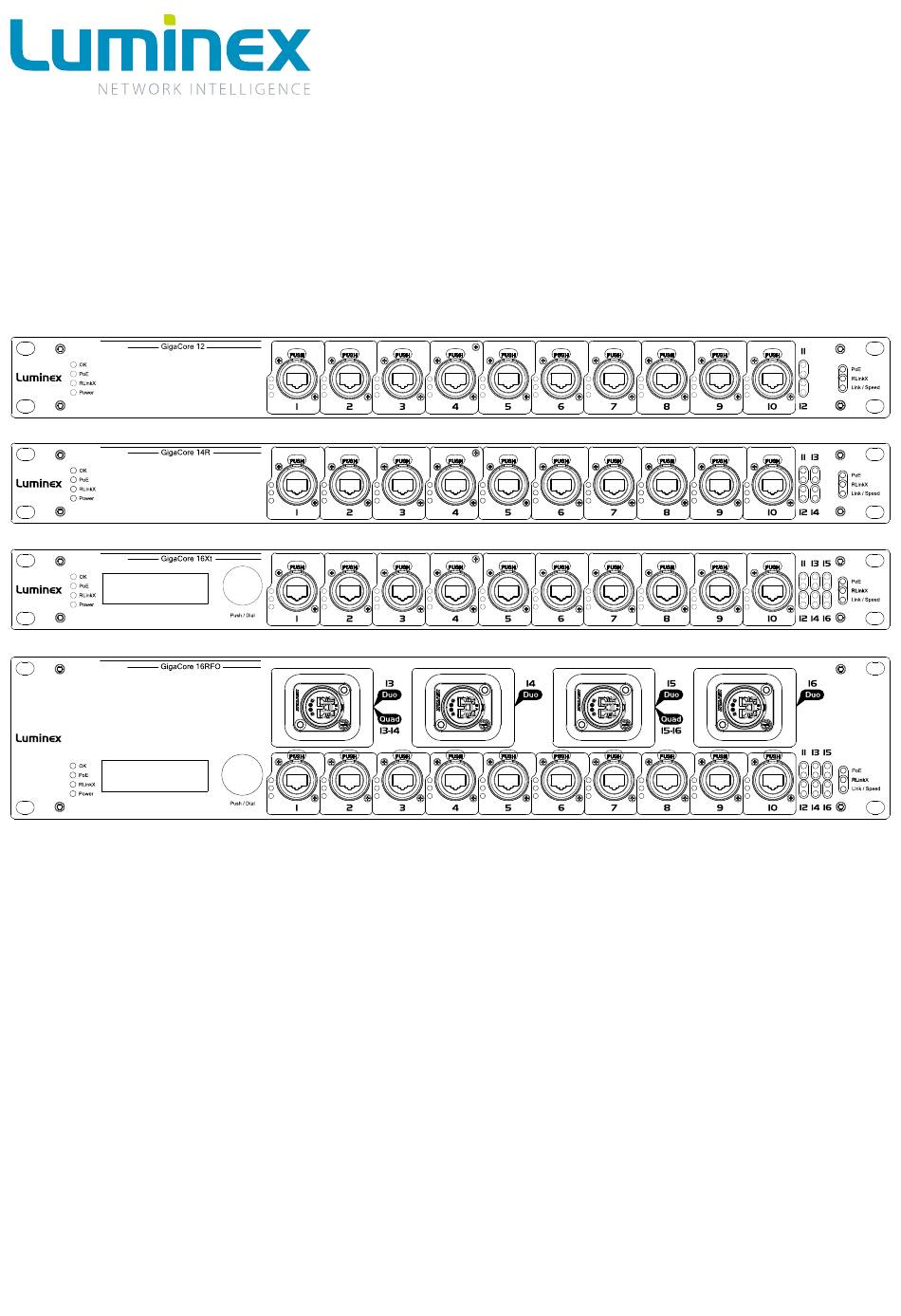

Page 8: Description
Description Front panel (GigaCore 12) LED indication of switch status : Front port status : - OK LED - PoE - PoE sourcing - RlinkX - RlinkX - Link speed - Power Rear port status : - RlinkX - Link speed 10/100/1000Mbps shielded Neutrik Ethercon port... -
Page 9: Rear Panel (Gigacore 12)
Rear panel (GigaCore 12) 10/100/1000Mbps shielded Neutrik - IEC inlet Ethercon port with - Fuse holder RLinkX and Link/Speed LED. Reset button (Clip hole) Fan: The fan will run at a minimum of 30% (noiseless) ■ 2 x 10/100/1000Mbps shielded Neutrik Ethercon connector ■... -
Page 10: Front Panel (Gigacore 14R)
Front panel (GigaCore 14R) LED indication of switch status : Front port status : - OK - PoE - PoE sourcing - RlinkX - RlinkX - Link speed - Power Rear port status : - RlinkX - Link speed 10/100/1000Mbps shielded Neutrik Ethercon port ■... -
Page 11: Rear Panel (Gigacore 14R)
Rear panel (GigaCore 14R) SFP cages for Mini-GBIC (SFP) compliant transceiver - IEC inlet 10/100/1000Mbps - Fuse holder shielded Neutrik Ethercon port with RLinkX and Link/Speed LED. Console port (serial) Redundant fans : In the unlikely Reset button of a fan failure, the other fan (Clip hole) will switch to 100%, so one fan Backup power inputs :... -

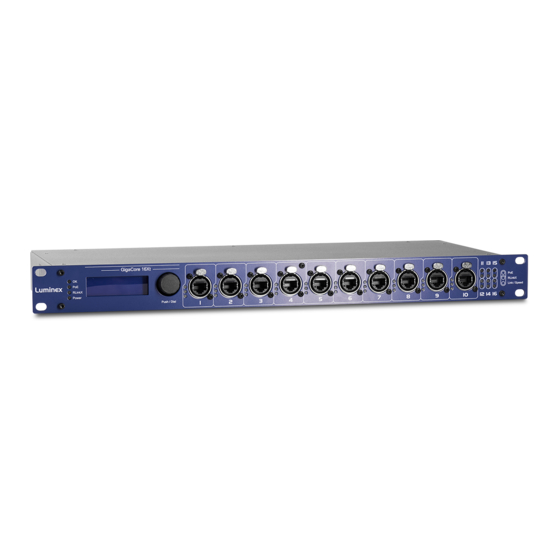

Page 12: Front Panel (Gigacore 16Xt)
Front panel (GigaCore 16Xt) LED indication of switch status : Front port status : - OK LED - PoE - PoE sourcing - RLinkX - RLinkX - Link speed - Power Display + jog Rear port status : (16Xt only) - RlinkX - Link speed 10/100/1000Mbps... -
Page 13: Rear Panel (Gigacore 16Xt)
Rear panel (GigaCore 16Xt) SFP cages for Mini-GBIC (SFP) compliant transceiver (14R and 16Xt only) - IEC inlet 10/100/1000Mbps - Fuse holder shielded Neutrik Ethercon port with RLinkX and Link/Speed LED. - Serial console port (14R and 16Xt only) - Extension port (16Xt only) Redundant fans : both fans will Reset button run at 50% when processor... -
Page 14: Front Panel (Gigacore 16Rfo)
Front panel (GigaCore 16RFO) The GigaCore 16RFO offers several different fibre port configuration. Your configuration may differs from the one detailed below. This configuration is used as a reference only. LED indication of switch status : - OK LED Rugged fibre connector - PoE sourcing - RlinkX - Power... -
Page 15: Rear Panel (Gigacore 16Rfo)
Rear panel (GigaCore 16RFO) PowerCon True1 for Slots for rugged Type redundant power supply fibre connector 10/100/1000Mbps shielded Neutrik Ethercon port RS232 port ■ 2 x 10/100/1000Mbps shielded Neutrik Ethercon connector ■ 4 x slots for D type rugged fibre connectors ■... -
Page 16: Led Indicators
Luminex recommends the use of a power cable, fitted with a locking mechanism to ensure a reliable connection to the device. Luminex also recommends to use power cable in accordance with the standards and the relevant authorities of your country. -
Page 17: Installing Mini Gbic (Sfp) Transceivers (14R And 16Xt Only)
Bail wire delatch For any other model of mini-GBIC transceiver, please refer to the transceiver manual. Recommended transceivers In order to get best the performances, Luminex recommends the use of the following transceivers: LU 90 00871 GigaCore 1.25Gd Multi-Mode fiber transceiver LU 90 00872 GigaCore 1.25Gd Single Mode fiber transceiver... -
Page 18: Connecting The Redundant Power Supply Unit
Connecting the Redundant Power Supply Unit (14R and 16xt only) The GigaCore 14R and 16Xt provide a connector to an optional Luminex Redundant Power Supply Unit, providing redundancy on power level for both the mains as the PoE power. Attach only the following RPSU to the RPSU connector: LU 01 00054 GigaCore RPSU. -
Page 19: Gigacore Features Explained
These features will be explained in the following pages : RLinkX : RLinkX, which stands for Redundant Link by LumineX, is an automated system to easily create redundant paths between your GigaCore switches. Switches automatically create active and backup paths, providing an effortless methode to create safe networks. - Page 20 Groups : Groups function allows the user to segment the network into several subnets. The main benefit of this function is that no subnet will affect the other ones, on protocol side. The user can create several groups on the network, and each device included in a group will be able to communicate with devices of this group only.
-
Page 21: Front End Display (16Xt And Rfo Only)
Front end display (16Xt and RFO only) The front end display offers basic information and configuration of the GigaCore 16Xt, such as network settings, ports info and groups assignation. Please find below the flowchart of the menu: <> left & right navigation Press Press &... -
Page 22: Starting
Starting Connection to the web interface Every GigaCore switch embeds a built-in web server, which excludes the need of a dedicated application to configure the unit. Browsers such as Chrome, Internet Explorer (IE 9 minimum), Firefox or Safari can be used to reach the web server. -
Page 23: Status Page
Wink: The feature allows you to easily identify a GigaCore switch in a stack of device. Click on the Luminex Logo on the switch image, all four status LEDs on the left hand side of the switch will start blinking three times. -
Page 24: Global Page
Global Page The global page contains four sub menus that are described below: Device setttings This menu allows you to change IP and ID settings of the unit, and also the brightness of the front panel’s LEDs. IP settings: Assign here the IP address of your switch. This IP address will be used to reach the switch’s web interface. If your network is equipped with a DHCP server, you can enable the DHCP client of the switch, for it to receive automatically an IP address from the DHCP server. - Page 25 Port settings This menu allows you to change the port’s speed, and add a legend to each port. Port speed drop down menu offers the folowing speed : ■ Disabled : Disable the port. Port will appeared grayed out on the top switch image ■...
- Page 26 Utilities This page brings you the tool to reset your unit in different ways, and to set some default security parameters. Reset This menu allows the user to bring the switch into different levels of reset. Preserve IP settings Tick the upper check box if you wish to bring the unit back to the default settings, and keep the actual IP parameters set on the switch.
- Page 27 Firmware This menu allows you to upload a new firmware to the switch. Please visit the support section of our web site to get the latest firmware available for your GigaCore switch. To upgrade the switch, simply click on the Upload Firmware button, and select the firmware on your computer. The upgrade procedure takes about 4 minutes to complete.
-
Page 28: Rlinkx
RLinkX RLinkX Settings RLinkX is meant to provide a trully plug and play redundant system (see “RLinkX” on page 28) This menu allows you to enable / disable RLinkX on each port of the switch. An enabled RLinkX port is represented by a blue ring around the port. -
Page 29: Groups
Groups Groups : Groups is a technology which offers the user to easily segment its network into several subnets (see “Groups” on page This menu allows you to assign ports into the 20 embedded groups of the switch. A group is a combination of port, and user can assign as many port as wanted into a group. The GigaCore range offers three types of groups : ■... - Page 30 The advanced pane offers the user to access extended parameters such as : VID : Luminex groups technology relies on the 802.1Q VLAN protocol. By default, Luminex groups have a default VLAN ID. If required, user can change the VID of the group. Mind that if you wish to change this VID, you’ll need to change it on each switch using this group.
-
Page 31: Poe
PoE (Power over Ethernet) is a convenient way to transport both data and power over the same network cable, and thus powering a device with its data cable. Your GigaCore switch can then be a data connection box and power source for your end devices. - Page 32 Settings The setting page allows you to assign the following PoE parameters to the ten front ports : ■ Enable / Disable PoE per port ■ Assign a priority on the port To change the PoE parameters of one or several ports, please apply the following procedure : ■...
-
Page 33: Profile Manager
Profile Manager The profile manager allows the user to easily save / recall / export / import a configuration. A profile will contain the following parameters : ■ Device settings ■ Port settings ■ RLinkX settings ■ Groups settings ■ PoE settings. In this way, user can create a comprehensive configuration of a switch, save it as a profile, and recall it later when needed. - Page 34 Click on Ok. Your profile is now saved in the switch It is a good habit to always create a default configuration for your switch! ■ Recall a profile To recall a profile, select it amongst the ten available profiles in upper tab. Here, you can preview the content of this profile.
- Page 35 Once you’ve selected the profile you wish to recall, the switch will reboot, and will reload the requested profile. The recall process can take a minimum of 30 seconds, to a maximum of 2 minutes. If you intend to reload a profile with a different IP address, you can try to reach the newly loaded IP address after about 50 seconds, manually from the switche’s web interface.
- Page 36 ■ Profile import policy Please bear in mind the import policy between different models is available in the following conditions only : GigaCore 12 GigaCore 14R GigaCore 16Xt GigaCore 16 RFO GigaCore 12 GigaCore 14R GigaCore 16Xt GigaCore 16 RFO WHEN USER SAVE A PROFILE, THE OK LED WILL BLINK FOR ABOUT 5 SECONDS, TO INDICATE THE WRITING PROCESS TO THE FLASH MEMORY;...
-
Page 37: Reset The Unit
Reset the unit In the case you need to reset the unit without the web interface, the GigaCore range of Ethernet switch offer different levels of reset, based on the ones you can find through the web interface. ■ Reset: The unit is brought back to its default configuration, with the default IP address printed at the back of the unit. Profiles stored in the unit are preserved. -
Page 38: Reload Default
Reload Default Condition 1: Unit is currently running Condition 2: Profile stored in slot 1 needs to be locked through the utility menu (see “Default Profile” on page 17) Hold the reset button at the rear of the unit for at least five seconds to see the four status’ LED blinking green. If you release the button while the status’... -
Page 39: Specifications
Specifications Sheet 1/2 ■ ■ ■ ■ Connectivity GigaCore 12 GigaCore 14R GigaCore 16Xt GigaCore 16RFO ■ 12 x 10/100/1000Mbps shielded ■ 12 x 10/100/1000Mbps shielded ■ 12 x 10/100/1000Mbps shielded ■ 12 x 10/100/1000Mbps shielded Neutrik Ethercon connectors Neutrik Ethercon connectors Neutrik Ethercon connectors Neutrik Ethercon connectors ■... - Page 40 ■ Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject to change without notice.
-
Page 41: Additional Documentation
The information in this documentation is supplied without warranty of any kind, either directly or indirectly, and is subject to change without prior written notice. Luminex, its employees or appointed representatives will not be held responsible for any damages to software, hardware, or data, howsoever arising as a direct or indirect result of the product(s) mentioned herein. - Page 42 Berkenlaan 8A T +32 11 812 189 3940 Hechtel-Eksel info@luminex.be Belgium support@luminex.be www.luminex.be...
