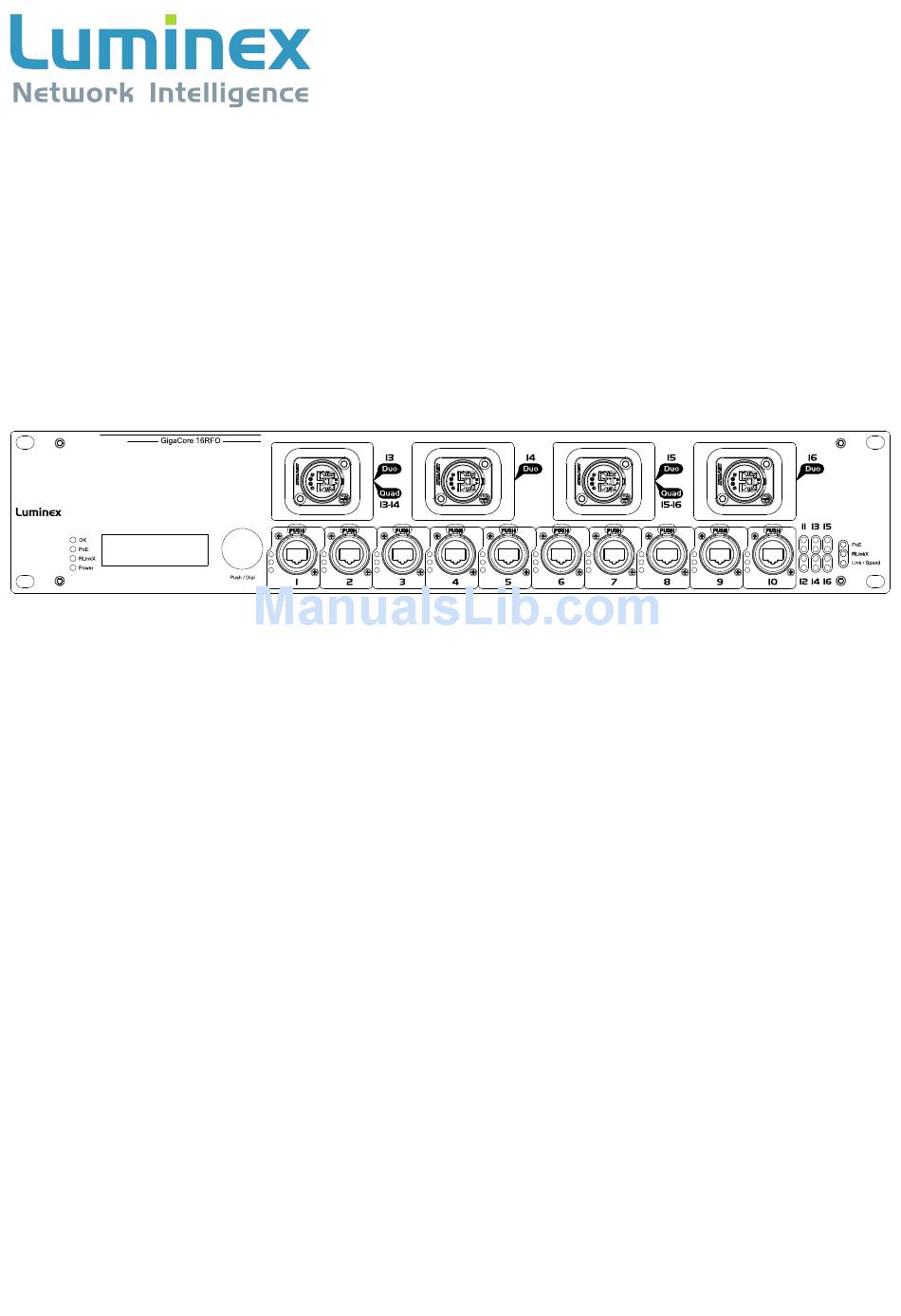

- Page 1 GigaCore 16RFO Gigabit Ethernet Switch for the entertainment industry Quick Start Guide V2.0.0 Rev2 English...
-
Page 2: Table Of Contents
The information in this documentation is supplied without warranty of any kind, either directly or indirectly, and is subject to change without prior written notice. Luminex, its employees or appointed representatives will not be held responsible for any damages to software, hardware, or data, howsoever arising as a direct or indirect result of the product(s) mentioned herein. -
Page 3: Safety Instructions
Safety Instructions CAUTION: TO REDUCE THE RISK OF WARNING: TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, DO NOT REMOVE THE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS COVER. NO USER SERVICEABLE PARTS APPLIANCE TO RAIN OR MOISTURE. INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 4: Compliance Information
EMC (Electromagnetic Compliance) This model GigaCore 16RFO complies with the following standards regulating interference and EMC: • EN 55103-1, environment E2 • EN 55103-2, environment E2... -
Page 5: Warranty Information
Returning under warranty Any Product unit or parts returned to Luminex LCE must be packaged in a suitable manner to ensure the protection of such product unit or parts, and such package shall be clearly and prominently marked to indicate that the package contains returned product units or parts. -
Page 6: Description
Description Front panel The GigaCore 16RFO offers several different fibre port configuration. Your configuration may differs from the one detailed below. This configuration is used as a reference only. LED indication of switch status : - OK LED Rugged fibre connector... -
Page 7: Rear Panel
Rear panel PowerCon True1 for Slots for rugged Type redundant power supply fibre connector 10/100/1000Mbps shielded Neutrik Ethercon port RS232 port ■ 2 x 10/100/1000Mbps shielded Neutrik Ethercon connector ■ 4 x slots for D type rugged fibre connectors ■ 1 x Serial console port on RJ45 ■... -
Page 8: Led Indicators
Led indicators The LED indicators of the GigaCore 16RFO include status, Poe, RlinkX, power, link/speed. The following shows the LED indicators for the GigaCore 16RFO along with an explanation of each indicator. Switch LED Status Meaning OK (General status LED) - Page 9 The front end display offers basic information and configuration of the GigaCore 16RFO, such as network settings, ports info and groups assignation. Please find below the flowchart of the menu: <> left & right navigation Press Press & Hold, turn left Press &...
-
Page 10: Starting
Two Neutrik PowerCon TrueOne chassis are located at the rear of the unit. Please use the attached Neutrik Powercon TrueOne female connectors to feed power to the unit. Luminex recommends to use a power cable in accordance with the standards and the relevant authorities of your country. -
Page 11: Connection To The Web Interface
5 to 95 % RH RoHS Compliance Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject to change without notice. - Page 12 Berkennlaan 8A 3940 Hechtel Eksel Belgium tel: +32 11 812 189 info@luminex.Be www..luminex.be...
