FDX55 SERIES
RS-232/422 DROP AND REPEAT
INSTALLATION INSTRUCTIONS
DATA TRANSCEIVER
ADDENDUM
The Comnet FDX55 Series has recently undergone some enhancements.
The three enhancements are summarized here. Please verify which version
of the FDX55 you have by examining the front and rear panels for the following
changes. These changes are reflected in this Installation and Operation
manual and will allow you to correctly configure the device for proper operation.
1) The silk screened printing on the front of each FDX55 Series device had
previously shown a "JABBER RESET" button. The silk screened printing was changed
and now reads "ANTI-STREAMING RESET" for this button.

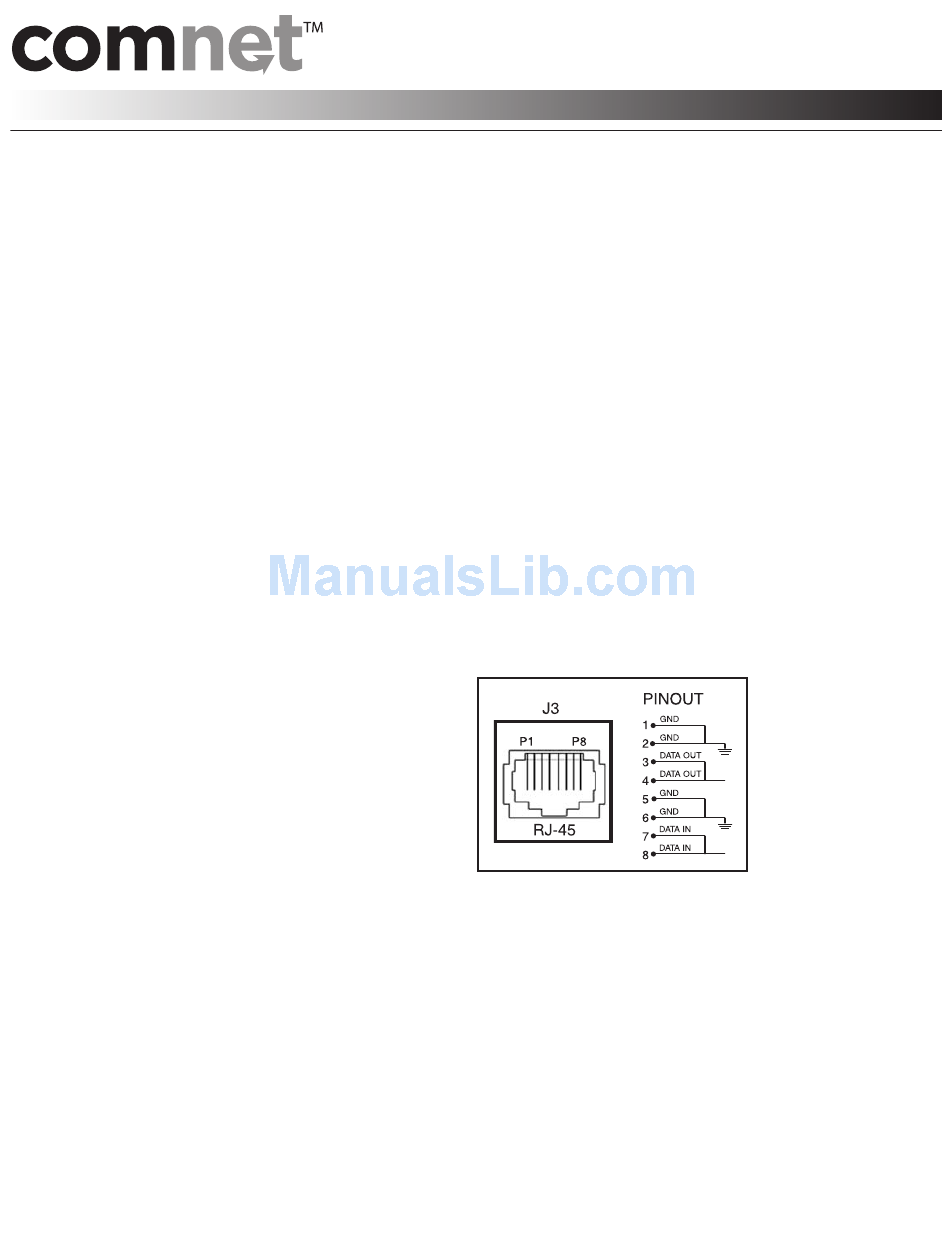

2) Linking port J3 originally used an RJ-45 receptacle.
This now has been changed to an RJ-11 receptacle.
3) The FDX55 was originally designed as a DCE device with a switch labeled "NA/DCE"
to allow for possible future use as a true "DCE/DTE" switch. The device has now changed to
allow for the selection of DCE or DTE via the front panel switch labeled DTE/DCE.
The setting of this switch is detailed later in this manual.
Advertisement
Related Manuals for Comnet FDX55M1
![Transceiver Comnet FDC24NL[SFP] Series Installation And Operation Manual](http://static.manualslib.com/public/img/no_image_60x60.svg)
Summary of Contents for Comnet FDX55M1
- Page 1 INSTALLATION INSTRUCTIONS DATA TRANSCEIVER ADDENDUM The Comnet FDX55 Series has recently undergone some enhancements. The three enhancements are summarized here. Please verify which version of the FDX55 you have by examining the front and rear panels for the following changes. These changes are reflected in this Installation and Operation manual and will allow you to correctly configure the device for proper operation.
- Page 2 Installation and Operation Instructions for the following ComNet ™ Model Numbers: FDX55M1, FDX55M1AE, FDX55M1BE, FDX55M2, FDX55M2E, FDX55S1, FDX55S1AE, FDX55S1BE, FDX55S2, FDX55S2E RS-232/422 DROP AND REPEAT DATA TRANSCEIVER FIG. 1 FIG. 2 FIG. 3 4-FIBER FIG. 4 2-FIBER LEDS: RED = “No Activity”...
- Page 3 FDX55 SERIES RS-232/422 DROP AND REPEAT INSTALLATION INSTRUCTIONS DATA TRANSCEIVER 1) ANTI-STREAMING SELECT SWITCH The anti-streaming function is provided to protect the communications channel in the event that a controller should go into a streaming or data-storming condition. If the anti-streaming is to be used, it must be set to a setting that will exceed the longest possible data transmission time that will exist on that channel.
- Page 4 FIG. 5 INS_FDX55_REVB 01/22/09 Page 3...
- Page 5 FIG. 6 INS_FDX55_REVB 01/22/09 Page 4...
- Page 6 FIG. 7 INS_FDX55_REVB 01/22/09 Page 5...
- Page 7 FIG. 8 INS_FDX55_REVB 01/22/09 Page 6...
- Page 8 FIG. 9 Page 7...
- Page 9 FDX55 SERIES RS-232/422 DROP AND REPEAT INSTALLATION INSTRUCTIONS DATA TRANSCEIVER FIG. 10 FIG. 11 INS_FDX55_REVB 01/22/09 Page 8...
- Page 10 FDX55 SERIES RS-232/422 DROP AND REPEAT INSTALLATION INSTRUCTIONS DATA TRANSCEIVER FIG. 12 Data Output (TX) Data Input (RX) FDX55 Series straight through Device Device* DCE/DTE cable* set at “DTE” FIG. 13 Data Input (RX) Data Output (TX) FDX55 Series straight through Device Device* DCE/DTE...
- Page 11 B optical A optical J1-DB25 A optical A optical B optical J1-DB25 B optical FIG. 17 OPTICAL OPTICAL Communication Networks 3 Corporate Drive • Danbury, CT 06810 • USA INS_FDX55_REVB Tel: 203-796-5300 • Toll Free: 1-888-678-9427 01/22/09 www.comnet.net Page 10...
- Page 12 When the RESET button is pressed, the FAIL LIGHT switches to RED and the RTS/CTS works again. ANTI-STREAMING 16 SECONDS (Factory Default) 32 SECONDS 4 SECONDS 8 SECONDS 64 SECONDS ANTI-STREAMING TIMER Communication Networks 3 Corporate Drive • Danbury, CT 06810 • USA INS_FDX55_REVB Tel: 203-796-5300 • Toll Free: 1-888-678-9427 01/22/09 www.comnet.net Page 11...
