Mechanical Installation Instructions

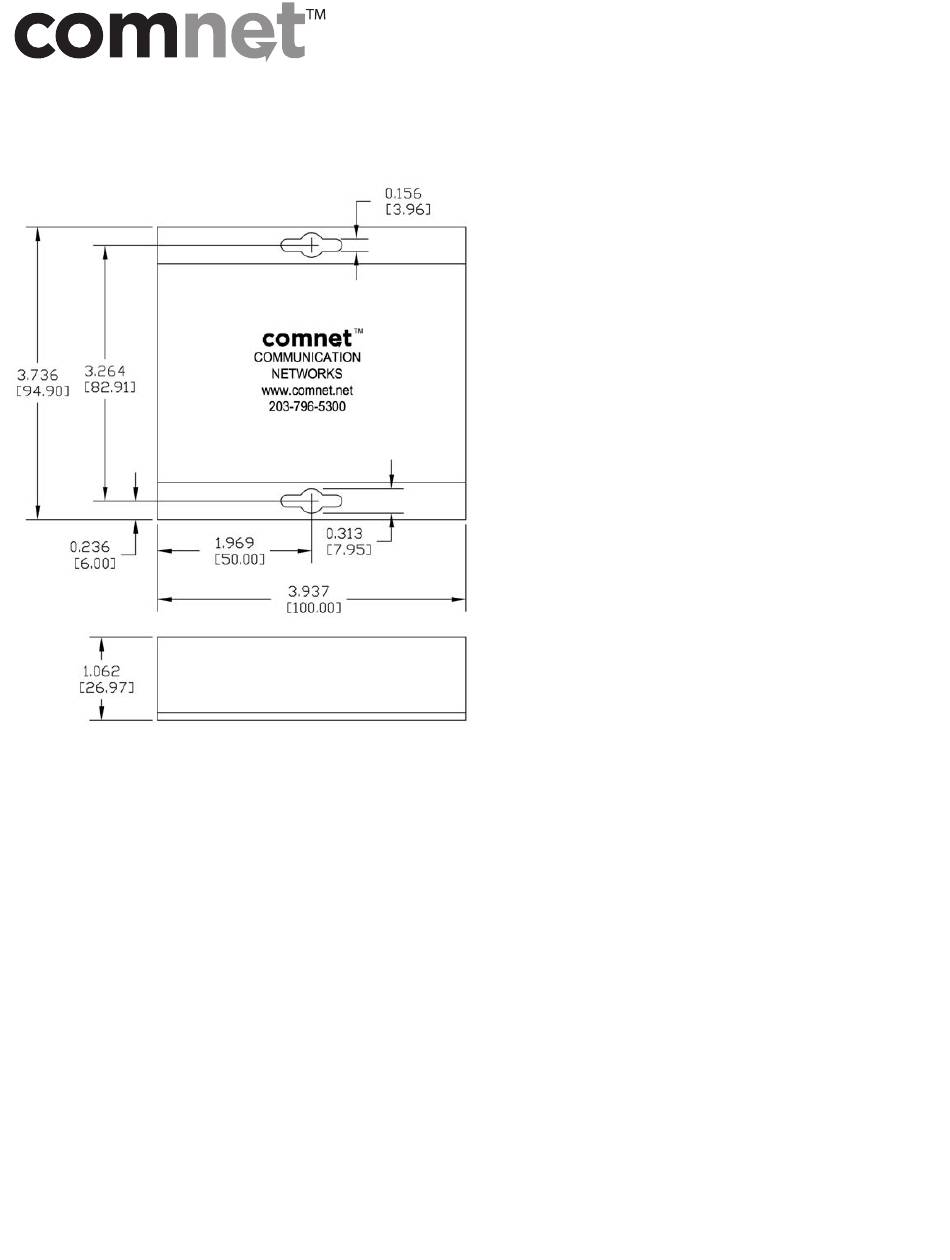

Figure 1: Dimensions are for a ComNet
Power Sources - The product should only be operated from the recommended power source.
Use only a UL Class 2 indoor/dry or Class 3 outdoor/wet power supply.
WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated 9-12 VDC @ 1A.
WARNING: This unit should be installed in a restricted access location; available through the use
of a lock and key or other means of security. Access should be limited to service personnel who
have been instructed about the reasons for the restrictions to the location. Any and all
precautions should be taken and controlled by the authority responsible for the location.
surface mount unit.
FDX50M2

Installation Considerations

This fiber-optic link is supplied as
a Standalone module. Units should be
installed in dry locations protected
from extremes of temperature and
humidity.

Standalone Module:

The unit is provided with a mounting
plate with a hole for two No. 6 pan
head screws (3-mm or 3.55-mm).
Attach the module to a solid piece
of wood using two No. 6 pan head
wood screws with a minimum
penetration into the wood of
3/4 inch. (Screws not supplied)
See figure 1.
1. Determine where the module will be
installed, and ensure that there is
adequate space at both ends for
making the various cable
connections and for reading the
diagnostic LEDs.
2. Attach the module to a flat surface
using two mounting screws.
(Not Supplied)
INS_FDX50M2_REVA
01/20/09
Page 1
