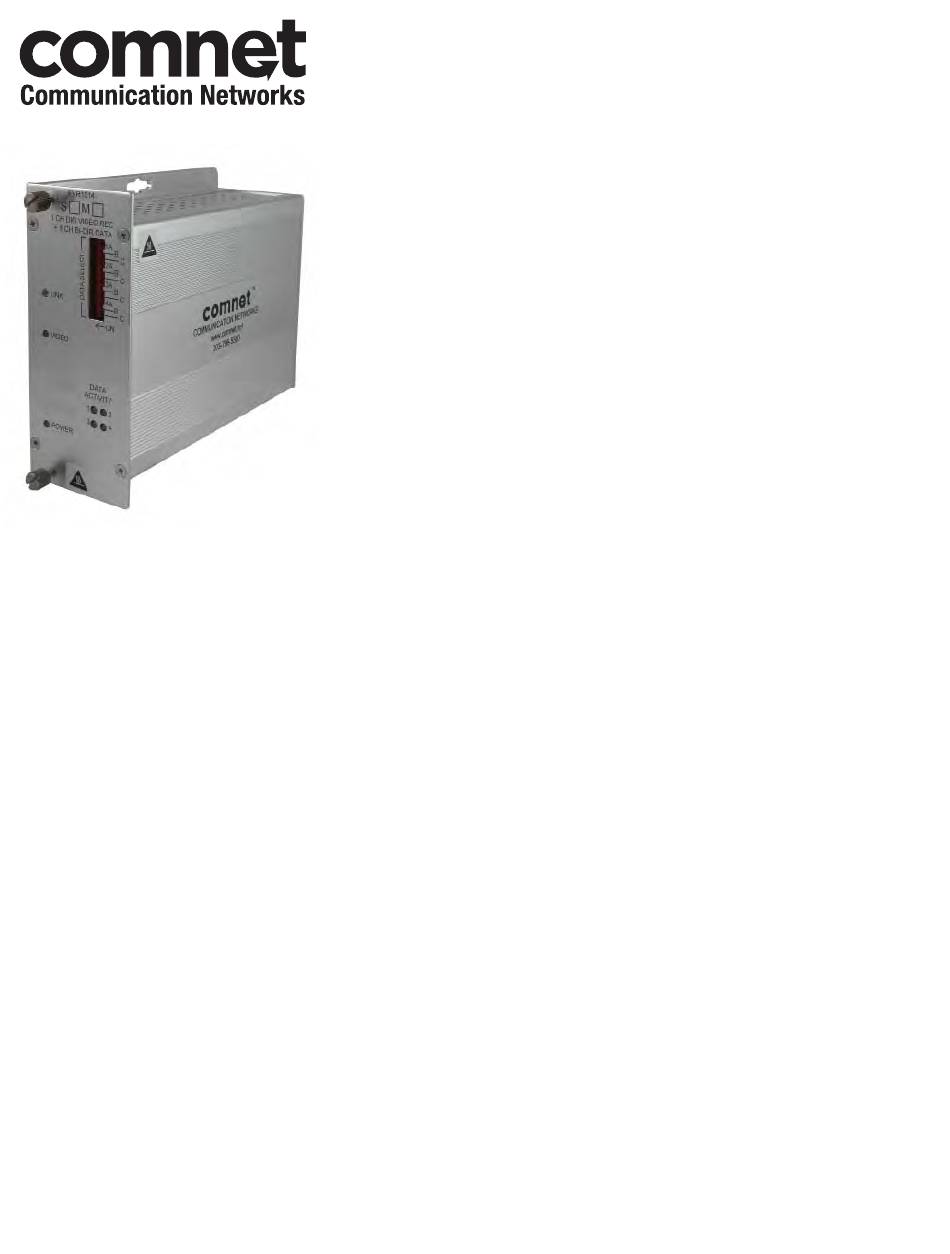

INSTALLATION AND OPERATION MANUAL
FVT/FVR1014
1-CHANNEL 10-BIT DIGITALLY ENCODED VIDEO
+ 4 BI-DIRECTIONAL DATA CHANNELS
The FVT/FVR1014 is a ten (10) bit video transmission system. It transmits one
(1) video signal as a high speed digital stream over one optical fiber.
The link also transmits four channels of bi-directional data over the same fiber.
Each data channel can be configured for an electrical interface of RS232,
RS422 or RS485 (2- or 4-Wire).

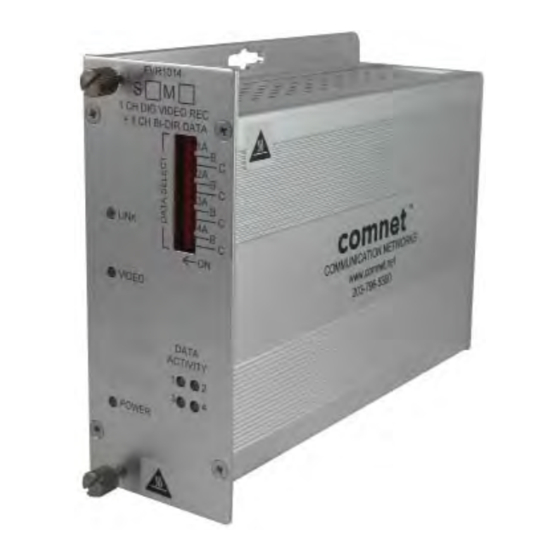

There is also a RELAY connector on both the Video Transmitter and Video Receiver
modules which indicates that the optical communication link is operating
properly. The Relay is CLOSED when the optical communication is good.
The Data Channels are labeled A, B, C and D. Each data channel is configured
for the electrical interface by means of the "DATA SELECT" switch on the front
panel. Figure 5 on Page 4 illustrates the switch settings to set the type of data
for each channel.
Figure 4 on Page 3 illustrates the data electrical connections from the RJ45 Data
connectors and also the connection cable and "breakout box" connections.
Figure 6 on Page 4 illustrates the specific data connections for RS232, 2-Wire
RS485 and RS422/4-Wire RS485. (This last data connection also applies to
Manchester & Bi-Phase data transmission.)
Figure 7 on Page 5 illustrates the electrical connections between the
"Customer Equipment" and the FVT1014 and FVR1014.
INS_FVT/FVR1014_REVA
05/10/10
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FVT1014 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comnet FVT1014

  • Page 1 Figure 6 on Page 4 illustrates the specific data connections for RS232, 2-Wire RS485 and RS422/4-Wire RS485. (This last data connection also applies to Manchester & Bi-Phase data transmission.) Figure 7 on Page 5 illustrates the electrical connections between the “Customer Equipment” and the FVT1014 and FVR1014. INS_FVT/FVR1014_REVA 05/10/10 PAGE 1...
  • Page 2 FVT/FVR1014 FIGURE 1 – FVT/FVR1014 TRANSMITTER AND RECEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE FIGURE 2 – FVT1014 TRANSMITTER FIGURE 3 – FVR1014 RECEIVER FRONT PANEL REAR PANEL FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units...
  • Page 3 INSTALLATION AND OPERATION MANUAL FVT/FVR1014 FIGURE 4 – RJ45 BREAK-OUT 5 pc. Factory Supplied INS_FVT/FVR1014_REVA 05/10/10 TECH SUPPORT: 1.888.678.9427 PAGE 3...
  • Page 4 INSTALLATION AND OPERATION MANUAL FVT/FVR1014 FIGURE 5 – SWITCH POSITIONS The mode for each data channel is configured using a set of three switches on the front panel of the unit. FIGURE 6 – SWITCH SETTINGS RS232 RS485 (2W) RS422, RS485 NC = No Connection 1 NC &...
  • Page 5 INSTALLATION AND OPERATION MANUAL FVT/FVR1014 FIGURE 7 – DATA CONNECTIONS See Page 4 for Switch Settings Customer Customer FVT1014 Equipment Equipment FVR1014 Data Transmit DIN(-) DOUT(-) Data Receive RS232 Data Receive DOUT(-) Data Transmit DIN(-) Signal Ground Signal Ground Data Out (+)
  • Page 6: Installation Considerations

    8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVT/FVR1014_REVA 05/10/10 © 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 6...
