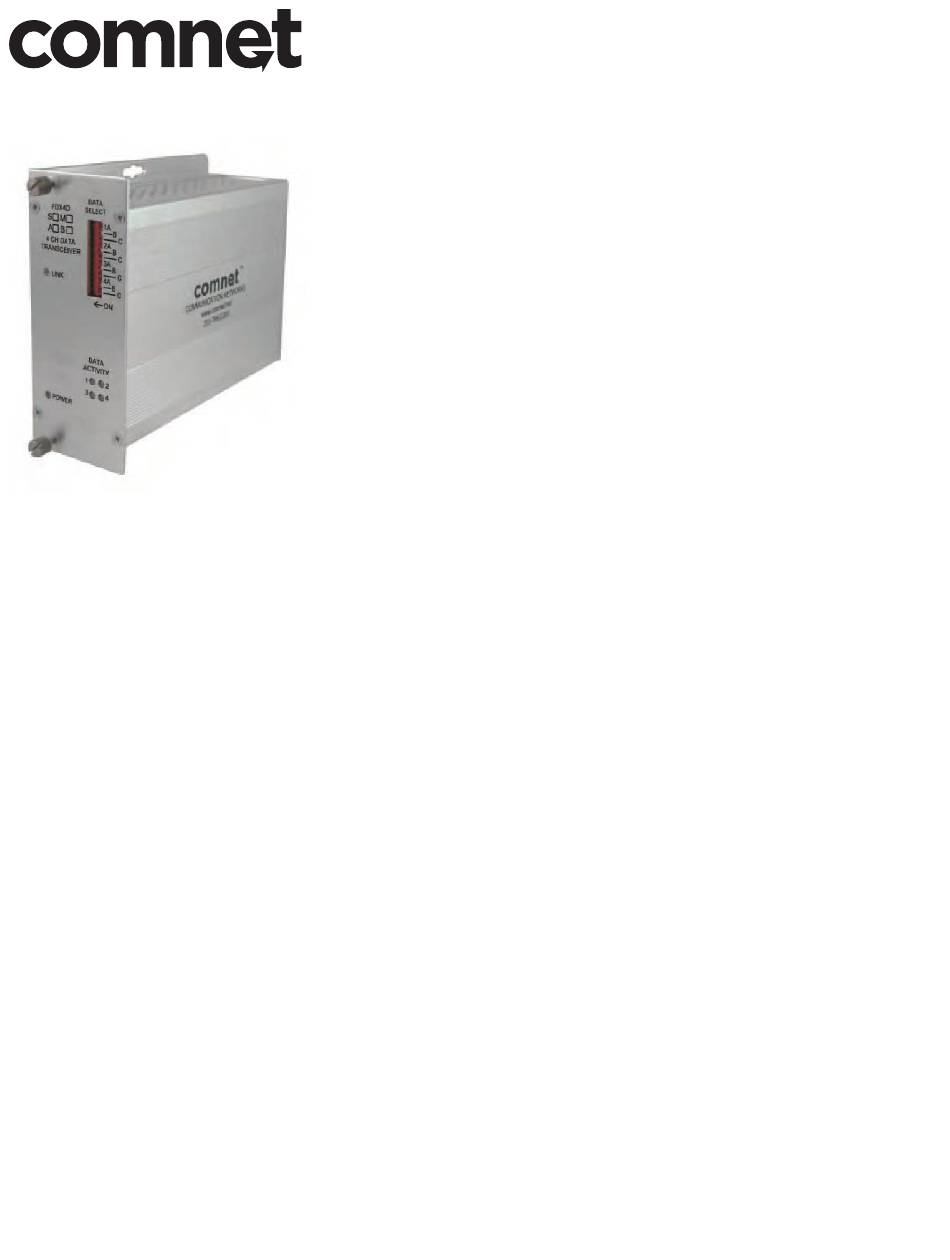

INSTALLATION AND OPERATION MANUAL
FDX4D(M)(S)1
4 bI-DIREctIoNAl DAtA chANNElS

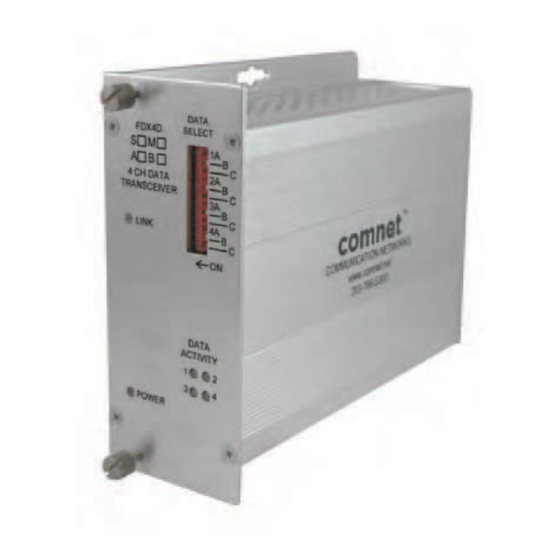

the comNet™ FDX4D(M)(S)1 Series data transceiver series provide
transmission of four bi-directional data channels over one optical fiber and are
ideal for use in unconditioned roadside or out-of-plant installations. the data
channels can be set independently for RS232, RS422 and 2 or 4-wire RS485
with tri-state support. See Figures 3 – 5 starting on Page 3 for a description of
data settings.
Each transceiver incorporates a bi-color (Red/Green) indicating lED for
monitoring proper system operation. See Figure 6 on Page 5 for lED Indicator
explanations.
the FDX4D(M)(S)1 may be directly plugged into the comNet Rack (Part c1) or
can operate as a standalone module. See Figure A on Page 6 for mounting
instructions.
See Figures 1 – 6 for complete installation details.
INS_FDX4D_REV–
08/23/10
PAGE 1
Advertisement
Table of Contents
Related Manuals for Comnet FDX4DM1A
Summary of Contents for Comnet FDX4DM1A
- Page 1 See Figure 6 on Page 5 for lED Indicator explanations. the FDX4D(M)(S)1 may be directly plugged into the comNet Rack (Part c1) or can operate as a standalone module. See Figure A on Page 6 for mounting instructions.
- Page 2 INSTALLATION AND OPERATION MANUAL FDX4D(M)(S)(-M) FIGURE 1 – FDX4D 1 FIBER TRANSCEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE/RED Power Supply: Surface Mount: 8–15 VDC @ 3W Rack Mount: From Rack FIGURE 2 – FDX4D 1 FIBER TRANSCEIVER FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units...
- Page 3 INSTALLATION AND OPERATION MANUAL FDX4D(M)(S)(-M) FIGURE 3 – RJ45 BREAK-OUT 5 pc. Factory Supplied INS_FDX4D_REV– 08/23/10 TEch SUPPORT: 1.888.678.9427 PAGE 3...
- Page 4 INSTALLATION AND OPERATION MANUAL FDX4D(M)(S)(-M) FIGURE 4 – SWITCH POSITIONS INS_FDX4D_REV– 08/23/10 TEch SUPPORT: 1.888.678.9427 PAGE 4...
- Page 5 INSTALLATION AND OPERATION MANUAL FDX4D(M)(S)(-M) FIGURE 5 – DATA SETTINGS Customer Customer Equipment FDX4D FDX4D Equipment Data Transmit DIN(–) DOUT(–) Data Receive Data Receive DOUT(–) DIN(–) Data Transmit RS232 Signal Ground Signal Ground Data Out (+) DIN(+) DOUT(+) Data In (+) Data Out (–) DIN(–) DOUT(–)
- Page 6 8 TURNbERRy PARk ROAD | GILDERSOME | MORLEy | LEEDS, Uk LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@cOMNET.NET INS_FDX4D_REV– 08/23/10 © 2011 communications Networks corporation. All Rights Reserved. “comNet” and the “comNet logo” are registered trademarks of communication Networks, llc. PAGE 6...
