INSTALLATION AND OPERATION MANUAL
FDX60(M)(S)(-M)
SINGLE OR DUAL
RS232/RS422/RS485(2/4W)
DATA TRANSCEIVER

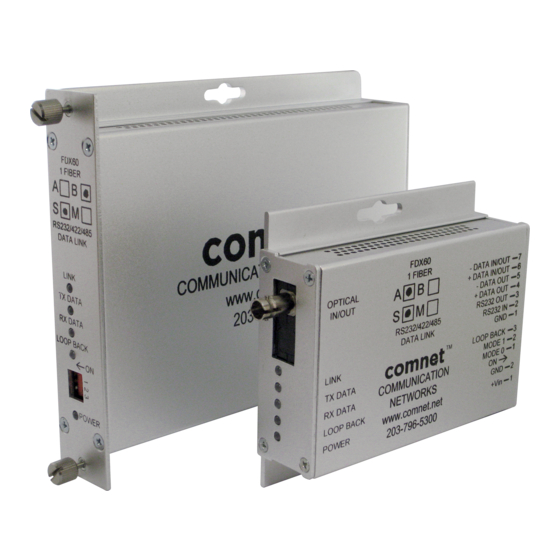

The ComNet™ FDX60(M)(S)(-M) data transceivers provide point-to-point
transmission of simplex or duplex EIA RS232/RS422/RS485 (2W/4W) data
signals over one or two optical fibers. The transceivers are transparent to data
encoding allowing for broad-range compatibility. Models within this series are
available for use with multimode or single mode optical fiber.
Each transceiver incorporates a bi-color (Red/Green) indicating LED for
monitoring proper system operation. See Figure 8 on Page 6 for LED Indicator
explanations.
The FDX60(M)(S)(-M) has a built-in fiber link test feature that allows for the
testing of the fiber. See Figure 13 on Page 8 for an explanation of the Loop
Back Test Mode.
The FDX60(M)(S) may be directly plugged into the ComNet Rack (Part C1) or
they can operate as standalone modules. The FDX60(M)(S)-M has a small
footprint and is designed for surface mounting. See Figures A and B on
Page 9 for mounting instructions.
See Figures 1 – 13 for complete installation details.
INS_FDX60_REV–
04/23/10
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDX60M1A-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comnet FDX60M1A-M

Summary of Contents for Comnet FDX60M1A-M

  • Page 1 See Figure 13 on Page 8 for an explanation of the Loop Back Test Mode. The FDX60(M)(S) may be directly plugged into the ComNet Rack (Part C1) or they can operate as standalone modules. The FDX60(M)(S)-M has a small footprint and is designed for surface mounting.

  • Page 2: Front Panel

    INSTALLATION AND OPERATION MANUAL FDX60(M)(S)(-M) FIGURE 1 – FDX60 1 FIBER TRANSCEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE/RED FIGURE 2 – FDX60 1 FIBER TRANSCEIVER FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units INS_FDX60_REV–...
  • Page 3 INSTALLATION AND OPERATION MANUAL FDX60(M)(S)(-M) FIGURE 3 – FDX60 2 FIBER TRANSCEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE/RED FIGURE 4 – FDX60 2 FIBER TRANSCEIVER FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units INS_FDX60_REV–...
  • Page 4 INSTALLATION AND OPERATION MANUAL FDX60(M)(S)(-M) FIGURE 5 – FDX60-M 1 FIBER TRANSCEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE/RED FIGURE 6 – FDX60-M 1 FIBER TRANSCEIVER FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units INS_FDX60_REV–...
  • Page 5 INSTALLATION AND OPERATION MANUAL FDX60(M)(S)(-M) FIGURE 7 – FDX60-M 2 FIBER TRANSCEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE/RED FIGURE 8 – FDX60-M 2 FIBER TRANSCEIVER FRONT PANEL REAR PANEL NOTE: Remove Electrical Connector for Rack Mount Units INS_FDX60_REV–...
  • Page 6 INSTALLATION AND OPERATION MANUAL FDX60(M)(S)(-M) FIGURE 9 – LED INDICATORS LINK DATA (TX/RX) LOOP BACK (Test Mode) POWER GREEN Unit In Sync Activity Fiber Link Connections are Correct Unit Powered Up Unit Not In Sync No Acvitiy Fiber Link Issue Exists (Head End) –...
  • Page 7 INSTALLATION AND OPERATION MANUAL FDX60(M)(S)(-M) FIGURE 11 – DATA CONNECTIONS – Data In/Out + Data In/Out – Data Out + Data Out RS232 Out RS232 In FIGURE 12 – DATA SETTINGS Customer FDX60 Customer FDX60 Equipment Signal – Pin Equipment Signal –...
  • Page 8 INSTALLATION AND OPERATION MANUAL FDX60(M)(S)(-M) FIGURE 13 – LOOP BACK TEST MODE 1. On one end (Head End), put unit into Loop Back Mode by setting Switch 3 to “OFF.” Switch 1 and 2 can be in any position. Data will not pass during Loop Back Test, LEDs may flash if data is sent during Loop Back Test.

  • Page 9: Installation Considerations

    8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FDX60_REV– 04/23/10 © 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 9...
