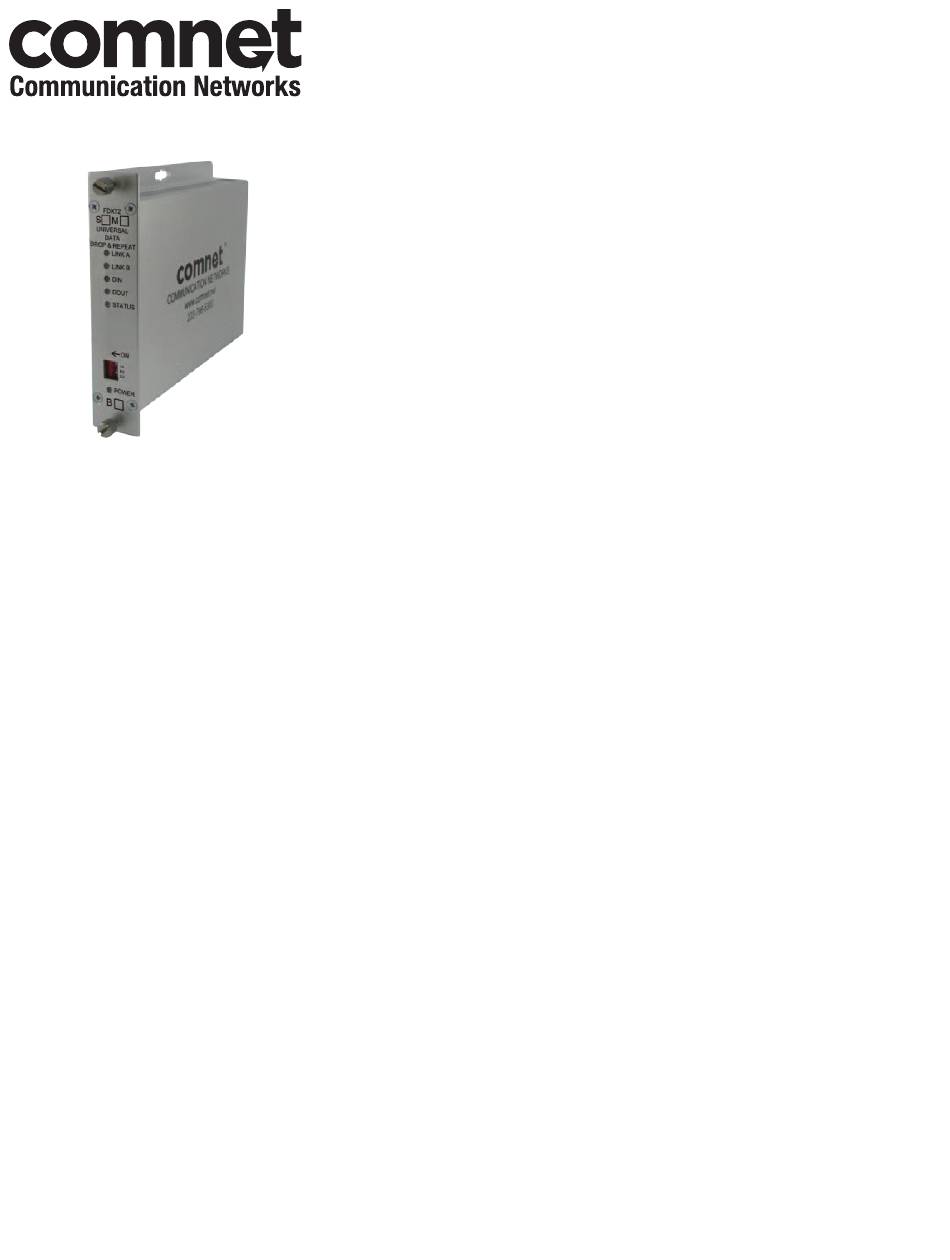

INSTALLATION AND OPERATION MANUAL
FDX72(M,S)1
multI-PRotocol RS232/422/485 DAtA tRANScEIVER
FEAtuRING lINEAR DRoP-INSERt-REPEAt
the comNet™ FDX72(m,S)1 series transceiver unit is a fully-digital transceiver
designed for implementing full RS232, RS422 or RS485 2 or 4-wire traffic
signalization/communications data networks of the highest possible reliability.
A network of FDX72 units, used with the comNet FDX70E(A,B)(m,S)1 series
products as end points, can support one full-duplex data channel or two half-
duplex data channels. these transceivers also feature data translation to convert
between data protocols. Full data re-clocking and regeneration permit an almost
unlimited number of transceiver/controller units to be used within the network.
these environmentally hardened transceivers are ideal for use in unconditioned
out-of-plant or roadside installations.
utilizing wave division multiplexing technology (WDm), only one optical fiber is
required between units
Bi-color (Red/Green) lED indicators are provided for rapidly ascertaining equipment
operating status. See Figure 8 on Page 5 for an explanation of lED indications.
these units are interchangeable between stand-alone or card-cage mount
configurations. See Figure A on Page 7 for mounting instructions.
See Figures 1 – 9 for complete installation details.
INS_FDX72_REV–
02/29/12
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FDX72 1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comnet FDX72 1 Series

Summary of Contents for Comnet FDX72 1 Series

  • Page 1 RS232, RS422 or RS485 2 or 4-wire traffic signalization/communications data networks of the highest possible reliability. A network of FDX72 units, used with the comNet FDX70E(A,B)(m,S)1 series products as end points, can support one full-duplex data channel or two half- duplex data channels.

  • Page 2: Front Panel

    INSTALLATION AND OPERATION MANUAL FDX72(M,S)1 FIGURE 1 – FDX72 FIBER CONNECTIONS MULTIMODE OR SINGLE MODE OPTICAL FIBER (DEPENDING ON MODEL) Optical Port A must be connected to Optical Port B on another FDX72 unit. Similarly, Optical Port B must be connected to Optical Port A on another FDX72 unit.
  • Page 3 INSTALLATION AND OPERATION MANUAL FDX72(M,S)1 FIGURE 3 – DATA FORMAT SWITCH POSITIONS RS422, Bi-Phase or RS232 Data Manchester Data Switch Located on front panel. The first two switches set the data type, the third sets the Master/Remote Mode. RS485 2-Wire, Sensornet RS485 Data 4-Wire Data...
  • Page 4 INSTALLATION AND OPERATION MANUAL FDX72(M,S)1 FIGURE 6 – DATA CONNECTIONS Customer Customer Equipment FDX72 FDX72 Equipment Data Transmit DIN(–) DOUT(–) Data Receive Data Receive DOUT(–) DIN(–) Data Transmit RS232 Signal Ground Signal Ground Data Out (+) DIN(+) DOUT(+) Data In (+) Data Out (–) DIN(–) DOUT(–)
  • Page 5 The pattern repeats indefinitely until the fault is resolved. Note Use of a FDX72 unit as an end point will always result in a fault condition. Use ComNet parts FDX70EA and FDX70EB as end points in this system for accurate fault reporting.

  • Page 6: Installation Considerations
