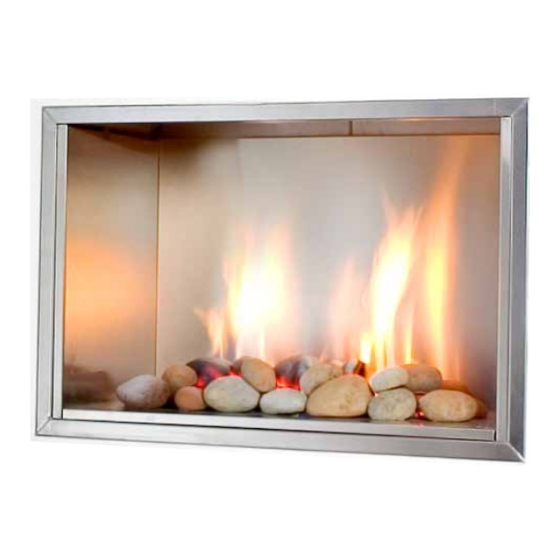

European Home Vision Installation, Operation And Owner's Manual

European Home Vision Installation, Operation And Owner's Manual

Gas stones vent free with fusion basket

Advertisement

GAS STONES VENT FREE with FUSION BASKET
Installation, Operation and Owner's Manual
This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and venti-
lating air must be provided. Refer to page 6.
This heater may be installed in an aftermarket,
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This heater is only for use with the type of gas
indicated on the rating plate. This heater is not
convertible for use with other gases.
INSTALLER: Leave this manual with the heater.
END USER: Retain this manual for future
reference.
Report Number 284-L-04-5
Nov. 2014
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department. Installation and
service must be performed by a qualified
installer, service agency or the gas
supplier.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision and is the answer not in the manual?

Questions and answers

Summary of Contents for European Home Vision

  • Page 1 GAS STONES VENT FREE with FUSION BASKET Installation, Operation and Owner’s Manual This is an unvented gas-fired heater. It uses air WARNING: If the information in these (oxygen) from the room in which it is installed. instructions is not followed exactly, a fire Provisions for adequate combustion and venti- or explosion may result causing property lating air must be provided.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information Specifications and Dimensions Fireplace Requirements Installing the Burner Gas Supply Stone Configuration Operating Instructions Maintenance Troubleshooting Parts List Warranty Programming the Remote Control Appendix A...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION Read these instructions carefully before installing or trying to operate this Vent Free gas heater. • Any change to this heater or its controls can be dangerous. • Improper installation or use of the heater can cause serious injury or death from fire, burns, explosion or carbon monoxide poisoning.
  • Page 4 IMPORTANT SAFETY INFORMATION Read these instructions carefully before installing or trying to operate this Vent Free gas heater. 11. Do not install the heater in a bathroom or bedroom. 12. Correct installation of the ceramic stones, proper location of the heater, and annual cleaning are necessary to avoid potential problems with sooting.
  • Page 5 IMPORTANT SAFETY INFORMATION Read these instructions carefully before installing or trying to operate this Vent Free gas heater. 21. The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
  • Page 6 GENERAL INSTALLATION INFORMATION CODES Adhere to all local codes or, in their absence, the latest edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1 or NFPA54 which can be obtained from… American National Standards Institute, Inc. 1430 Broadway New York, NY 10018 National Fire Protection Association, Inc.
  • Page 7 Maximum BTU/hr. my space will support (use formula above) 1) __________________ BTU/hr. of European Home Gas Stones Vent Free 2) ____39,000________ If the answer to 1) is greater than 2) then your space will support the installation of the Gas Stones Vent Free; if 1) is less than 2) then your space will not support a Gas Stones Vent Free.
  • Page 8 Manufactured by European Home, Inc. Malden, MA 02148 (781) 324-8383 Listing Label for Gas Stones Vent Free Natural Gas Burner...
  • Page 9: Specifications And Dimensions

    SPECIFICATIONS and DIMENSIONS Fuel Type: Natural Gas ONLY Manifold Pressure: 3.5” (0.87 kPa) Minimum Supply Pressure: 4.0” (1.0 kPa) Maximum Supply Pressure: 7.0” (1.7 kPa) Orifice Size: 6 Port #55 DMS Input: High Fire - 39,000 BTU/hr. Low Fire - 27,000 BTU/hr. Gas Stones with 24”...
  • Page 10 SPECIFICATIONS and DIMENSIONS...
  • Page 11 SPECIFICATIONS and DIMENSIONS 0.75 0.75 22.50 3.00 Room Rear of Fireplace Premise gas supply should terminate within shaded area, shown on plan view, above.
  • Page 12: Fireplace Requirements

    FIREPLACE REQUIREMENTS Your Gas Stones Vent Free with Fusion Basket is for installation in a solid-fuel burning fireplace or UL 127 factory-built fireplace or in a listed ventless firebox enclosure. Exception: DO NOT install this appliance in a factory-built fireplace that includes instructions stating that it has not been tested or should not be used with unvented gas logs.
  • Page 13 MANTEL CLEARANCES 12.0” 5.0” 25.0” 23.0” Top of existing fire- place opening Existing fireplace opening Figure 2a Combustible mantels may be no closer to the fireplace opening than the distances shown in the Figure 2a side view, above.
  • Page 14: Installing The Burner

    INSTALLING THE BURNER Place 4 AA batteries in the battery case and con- nect the battery case to the receiver as shown in Figure 3a. Ensure that the wiring is connected as shown in Figure 3b. RESET Red-tipped button Yellow-tipped Wire (TC) Wire (SW) Figure 3b...
  • Page 15 The Gas Stones Vent Free with Fusion Basket must be isolated from the gas supply piping system by closing the main control valve during any pressure testing of the gas supply system at test pressures equal to or less than 1/2 psi (3.5 kPa). After the gas supply has been connected, open the main supply and apply a soapy water solution to all the fittings to check...
  • Page 16: Stone Configuration

    STONE CONFIGURATION The Gas Stones Vent Free with Fusion Basket can be operated with, or without, the decorative stones and/or the embers. The following is the recommended stone/ember configuration. Slight differences in the placements are acceptable. When using the stones and embers, begin by placing one layer of the embers evenly over the en- tire burner top as shown in Figure 6.
  • Page 17 The stones installation must be per these instructions. This heater must use only the stones provided by European Home. An excess amount of stones may adversely affect the performance of the heater. All previously applied loose material must be removed prior to...
  • Page 18: Operating Instructions

    OPERATING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING! WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand.
  • Page 19 LIGHTING THE FIRE 1. STOP! Read the safety information above. 2. This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand. 3. Push the OFF button on the remote control to insure the LARGE appliance is off.
  • Page 20: Maintenance

    MAINTENANCE A qualified service agency should conduct an annual inspection and maintenance of your Gas Stones Vent Free with Fusion Basket, the fireplace, chimney, and the installation to keep it running safely. The following procedures should be performed only by a qualified service person. The gas supply should be turned off whenever a maintenance procedure is performed.
  • Page 21: Troubleshooting

    TROUBLESHOOTING OBSERVED PROBLEM: POSSIBLE CAUSE: REMEDY: A. No transmission (motor does not 1. Receiver must learn new code. 1. Reset system as above. turn) 2. Dead batteries. 2. Replace batteries. 3. The receiver is surrounded by 3. Change the position of the antenna. metal, reducing the transmission range.
  • Page 22 OBSERVED PROBLEM: POSSIBLE CAUSE: REMEDY: D. No pilot flame and control contin- 4. Over tightened thermocouple. 4. Replace valve and thermocouple inter- ues to spark rupter. 5. Receiver 5. Replace receiver and reprogram code as above. E. Pilot is lit and control continues 1.
  • Page 23: Parts List

    Make a periodic visual inspection of the pilot and main burner flames. The flames should look similar to those in the picture above. PARTS LIST Burner Module, NG GS-VF-BM-NG-01 Stone Kit V-VF-PK-01 Pilot Assembly V-VF-PA-01 Fusion Basket V-SB-01 For replacement parts and customer service, contact: EUROPEAN HOME +1 (781) 324-8383...
  • Page 24: Warranty

    PRODUCT INSTALLATION RECORD Installer: Please complete this form. Customer: Please retain this information. Purchased From Date of Purchase Installed By Date of Installation Fireplace Serial Number Fuel Type...
  • Page 25: Programming The Remote Control

    Appendix A PROGRAMMING THE REMOTE CONTROL Note: The system shuts off the appliance completely if there is no change in the flame height for 5 days. Setting °C/24 Hour or °F/12 Hour Clock. Press OFF and SMALL FLAME to toggle between °F/12 hr and °C/24 hr clock. Setting the time.
  • Page 26 Appendix A Timer mode. The appliance must be in standby mode; pilot ignited. The Timer setting allows you to set 2 burner Temp times and 2 burner Temp times every 24 hrs. For Temp to operate as a thermostat, TEMP must be set at 4°C or higher. If the Temp setting is decreased to - -, the motor will turn the valve to the standby position in the moon times and await the next burner Temp cycle.
  • Page 27 NOTES...
  • Page 28 EUROPEAN HOME a division of Europa Ja, Inc. 376 Washington Street Suite 203 Malden, MA 02148 www.europeanhome.com rev.141125...
