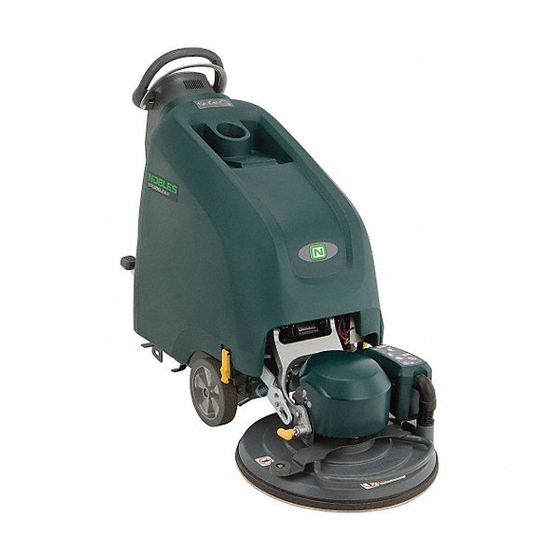

Nobles SPEEDGLEAM 5 Operator's Manual
  1. Manuals
  2. Brands
  3. Nobles Manuals
  4. Floor Machine
  5. SPEEDGLEAM 5
  6. Operator's manual

Nobles SPEEDGLEAM 5 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ENGLISH
®
SPEEDGLEAM 5 / 7
®

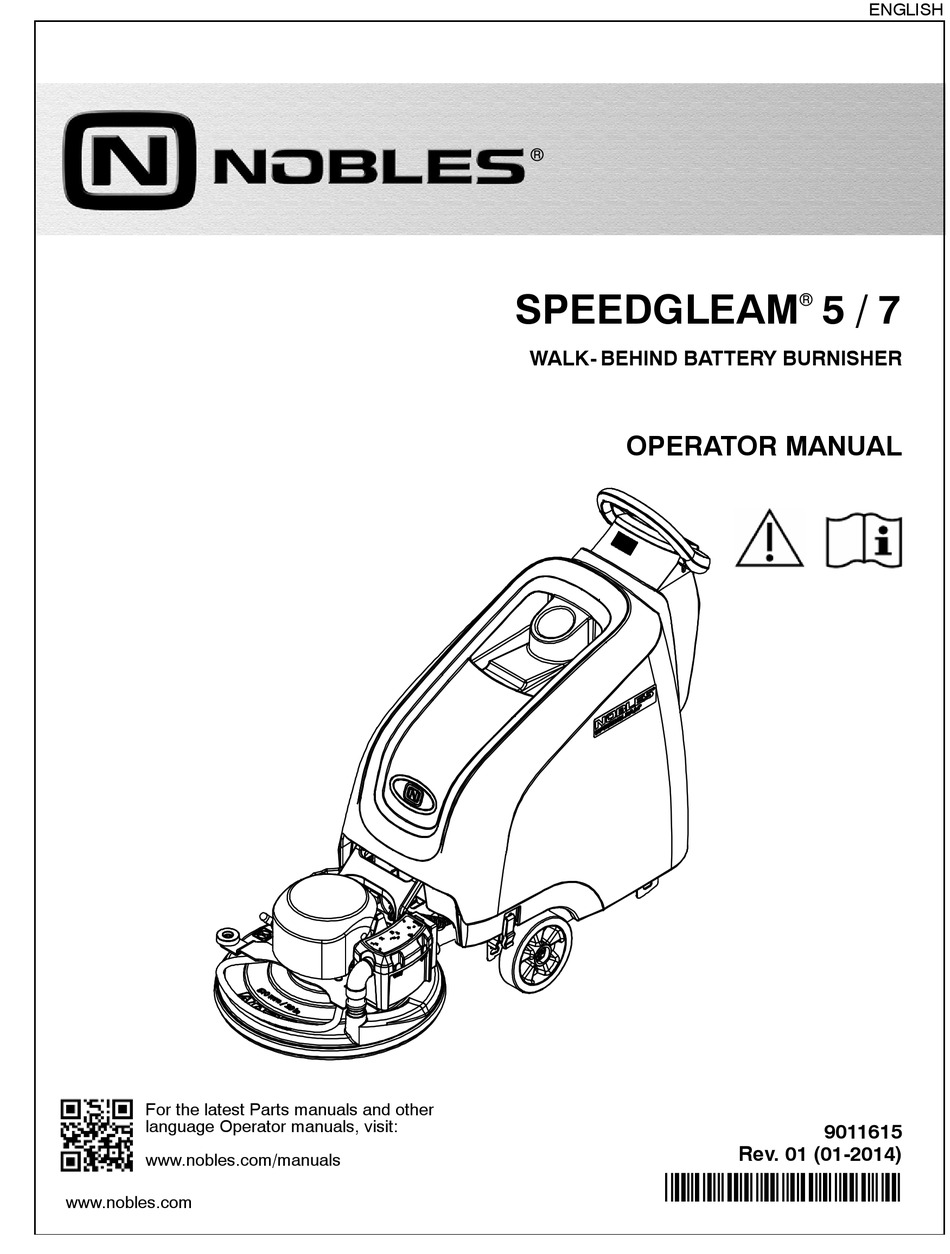

WALK- BEHIND BATTERY BURNISHER
OPERATOR MANUAL
For the latest Parts manuals and other
language Operator manuals, visit:
9011615
Rev. 01 (01-2014)
www.nobles.com/manuals
*9011615*
www.nobles.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPEEDGLEAM 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nobles SPEEDGLEAM 5

Summary of Contents for Nobles SPEEDGLEAM 5

  • Page 1 ENGLISH ® SPEEDGLEAM 5 / 7 ® WALK- BEHIND BATTERY BURNISHER OPERATOR MANUAL For the latest Parts manuals and other language Operator manuals, visit: 9011615 Rev. 01 (01-2014) www.nobles.com/manuals *9011615* www.nobles.com...

  • Page 2: Introduction

    “Set and Forget” is a trademark of Tennant Company. Trojan and HydroLINK are registered trademarks of Trojan Battery Company. Specifications and parts are subject to change without notice. Original Instructions. Copyright E2014 Tennant Company. All rights reserved. Printed in U.S.A. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 3: Table Of Contents

    ....CHARGING BATTERIES ....BATTERY CHARGER SETTINGS ..Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 4: Operation

    Do not use outdoors or on wet surfaces. Store indoors. This machine is for dry use only. This machine is not suitable for picking up hazardous dust. Spinning pad, keep hands away. Nobles SpeedGleam 5 / 7 (01- 2014)
  • Page 5 Use a hoist or jack that will support the weight of the machine. Wear personal protection equipment as needed and where recommended in this manual. For Safety: wear protective gloves. For Safety: wear eye protection. For Safety: wear protective dust mask. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 6: Safety Labels

    Explosion or fire can result. Keep sparks and open flame away when charging. Located on backside of machine cover. WARNING LABEL - Disconnect battery cables before servicing machine. Located on control board cover. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 7: Machine Components

    14. Control Handle 32. Motor Overheat Indicator 15. Start Bail 33. Battery Discharge Indicator 16. Main Power On/Off Key Switch 34. Check Dust Bag Indicator 17. USB Program Port 18. Emergency Stop Button (Drive Model) Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 8: Machine Installation

    2. Unlatch the battery compartment hood latches and lift the hood backwards (Figure 2). 3. With adequate assistance carefully install the batteries into the battery compartment. Arrange the batteries as shown (Figure 3). FIG. 1 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 9: How The Machine Works

    Tennant. The use of other pads may impair safety. 1. Park the machine on a level surface, turn machine off and remove the key. BLACK FIG. 3 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 10: Pad Pressure Setting (Models Equipped With Mechanical Pad Pressure Adjustment)

    10 seconds (Figure 8). The LED’s will ripple then a single light will appear confirming the current pad pressure setting. See the following chart for down pressure settings. FIG. 6 FIG. 8 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 11: Installing Dust Collection Bag And Hepa Filter

    (Figure 12). The HEPA filter is included with the Active Dust Collection model. FIG. 10 6. Repeat steps 1- 3 and adjust the pin until desired down pressure is achieved. FIG. 12 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 12: Machine Operation

    - Select proper burnishing pad. REVERSE - Check condition of burnishing pad. FIG. 17 - Check dust collection bag for fullness. - Check vacuum hose connection at bag compartment. - Check machine for proper operation. Nobles SpeedGleam 5 / 7 (01- 2014)
  • Page 13 (Figure 20). For optimal FIG. 22 performance set the pad pressure indicator to the center LED setting. FIG. 20 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 14: Emergency Shut- Off Button (Drive Models)

    Likely cause, pad pressure is set too high or wrong pad type. Reduce pad pressure or change pad type. 3 - Check Dust Bag Indicator - Reminder to check dust bag for fullness. Replace bag when half full. Recycle key to reset indicator. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 15: Battery Discharge Indicator

    The hour meter records the number of hours the machine is in operation. Use the hour meter to perform specific maintenance procedures and to record service history. The hour meter is located on the control console (Figure 25). FIG. 25 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 16: Service Indicator Codes

    Propel wiring, connector or control board Contact service. F F f f f problem. Start bail is pulled before turning machine on. Release start bail before turning machine on. f F f F f Nobles SpeedGleam 5 / 7 (01- 2014)
  • Page 17 Charger not communicating with machine. Restart charger. If fault code persists, contact F f f f F service. Charger timer exceeded maximum charging Replace Batteries. F f f F f time. Interrupts charging cycle. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 18: Charging Batteries

    (i.e. wet/lead acid, sealed, AGM batteries, grounded wall outlet (Figure 28). etc.), the battery charger and the machine’s battery discharge indicator (BDI) must be reprogrammed to prevent battery damage. See BATTERY CHARGER SETTINGS. FIG. 28 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 19: Battery Charger Settings

    FIG. 32 always disconnect the AC power supply cord first before disconnecting charger from machine. 3. Carefully peel up the charger display label to access the dial settings (Figure 33). FIG. 31 FIG. 33 Nobles SpeedGleam 5 / 7 (01- 2014)
  • Page 20 Gel, Sonnenschein 150- 250 AH 4. Re- apply the display label. 5. Replace the control console. 6. To set the BDI to the new battery type, plug the on- board battery charger cord into an electrical outlet. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 21: Maintenance

    (Active Dust Control Model) 750 Hours Propel motor (Drive Model) Replace carbon brushes 1000 Hours Head lift bushings, 4 points Inspect, replace bushings Pad motor Replace carbon brushes O = Operator T = Trained Personnel Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 22: Machine Maintenance

    2. Check the dust collection bag for fullness. Replace bag when half full (Figure 36). AFTER WEEKLY USE Check the electrolyte level in all batteries (Figure 39). See BATTERY MAINTENANCE. FIG. 39 FIG. 36 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 23: After Every 50 Hours Of Use

    2. Replace the HEPA filter if model is equipped with the active dust control collection option (Figure 44). FIG. 41 3. Clean the outside surface of the machine with an all purpose cleaner and damp cloth (Figure 42). FIG. 44 FIG. 42 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 24: After Every 1000 Hours Of Use

    FOR SAFETY: When servicing machine, keep all metal objects off batteries. SEALED AGM BATTERIES The sealed AGM batteries are maintenance free and do not require any attention other than routine charging as described in this manual. FIG. 47 Nobles SpeedGleam 5 / 7 (03- 08)

  • Page 25: Hydrolink Battery Watering System (Option)

    FIG. 51 6. After adding water, replace the dust cap on the battery fill hose and store the hand pump hose inside the machine’s battery compartment for future use. FIG. 48 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 26: Machine Jacking

    (Figure 53). FIG. 55 6. When unloading machine, carefully back the FIG. 53 machine down the ramp. Do not unload machine going in the forward direction. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 27: Storing Machine

    WARNING: To Reduce the Risk of Fire, Explosion, Electric Shock or Injury do not expose the machine to rain, store indoors. 5. For storage areas with limited space, raise the head as shown (Figure 56). FIG. 56 Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 28: Troubleshooting

    Defective battery or end of battery life Replace batteries Battery discharge indicator (BDI) See CHARGING BATTERIES programmed incorrectly Pad pressure too high Decrease pad pressure See Setting Pad Pressure Faulty charger Replace battery charger Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 29: Specifications

    <2.5 m/s Machine vibration uncertainty K 0.2 m/s 0.2 m/s Ambient operating temperature Min: 32F/0C Min: 32F/0C Max: 110F/43C Max: 110F/43C Values per EN 60335- 2- 72 Specifications are subject to change without notice. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 30: Speedgleam 7 General Machine Dimensions/Capacities/Performance

    <2.5 m/s Machine vibration uncertainty K 0.2 m/s 0.2 m/s Ambient operating temperature Min: 32F/0C Min: 32F/0C Max: 110F/43C Max: 110F/43C Values per EN 60335- 2- 72 Specifications are subject to change without notice. Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 31: Speedgleam 5 Machine Dimensions

    SPECIFICATIONS SPEEDGLEAM 5 MACHINE DIMENSIONS 24.5 in / 622 mm 43 in 1,092 mm 59 in / 1,499 mm Nobles SpeedGleam 5 / 7 (01- 2014)

  • Page 32: Speedgleam 7 Machine Dimensions

    31.5 in / 800 mm (27 in / 690 mm Model) 43 in 1,092 mm 61.5 in / 1,562 mm (24 in / 610 mm Model) 63 in / 1,602 mm (27 in / 690 mm Model) Nobles SpeedGleam 5 / 7 (01- 2014)
  • Page 33 ® SPEEDGLEAM 5 ® TennantTrueR Parts WALK- BEHIND BATTERY BURNISHER PARTS MANUAL 9011614 Rev. 00 (01-2014) For the latest Parts manuals and other language Operator manuals, visit: *9011614* www.nobles.com/manuals...
  • Page 34 - identifies parts included in assembly Installation Date - Tennant Company PO Box 1452 Minneapolis, MN 55440 Phone: (800) 553- 8033 or (763) 513- 2850 www.nobles.com Specifications and parts are subject to change without notice. Copyright E 2014 TENNANT Company, Printed in U.S.A.
  • Page 35 WIRE HARNESS, BAIL SWITCH ....WIRE HARNESS, KEY SWITCH ....Nobles SpeedGleamR 5 (01- 2014)

  • Page 36: General Recommended Maintenance Items

    383725 (00000000- Circuitbreaker, 30.0a, Resetable 9012826 (00000000- Controller, Drive, Afmkt, W/ Usb Cable (Drive Model)  9012788 (00000000- Software Kit, Installation, W/Usb Cable 1205323 (00000000- Switch, 0.1a, Spdt [Micro, Straight]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)
  • Page 37 Cord, Power, Blk [4.5meter, Uk] 1032849 (00000000- Cord, Power, Blk [4.5meter, Ce] 1026325 (00000000- Cord, Power, 1.0mm2/3 Blk[2.5meter, Aus] 1026330 (00000000- Cord, Power, 1.0mm2 [2.5meter, China] 1048304 (00000000- Cord, Power [4.5meter, India, S.Africa]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 38: Cover Group

    STANDARD PARTS COVER GROUP 355220 Nobles SpeedGleamR 5 (01- 2014)
  • Page 39 Stud, Ball, 10mm Ball, M8x1.25 Stud 1205533 (00000000- Damper 49697 (00000000- Screw, Pan, Phl, M4 X 0.70 X 10, Ss 10 02938 (00000000- Washer, Lock, Int, 08, Ss 11 1205549 (00000000- Bracket, Stud, Ball, .389 Dia Nobles SpeedGleamR 5 (01- 2014)

  • Page 40: Frame Group, Push

    STANDARD PARTS FRAME GROUP, PUSH 355222 Nobles SpeedGleamR 5 (01- 2014)
  • Page 41 Adapter, Mtg, Axle, Alm [T3] 31 1028381 (00000000- Grommet, Axle [Tpu, T3 Push] 32 08713 (00000000- Nut, Hex, Lock, M8 X 1.25, Nl, Ss 33 1202931 (00000000- Axle, Wheel, Hex [B5 Push]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 42: Frame Group, Drive

    STANDARD PARTS FRAME GROUP, DRIVE 355223 Nobles SpeedGleamR 5 (01- 2014)
  • Page 43 Key, Woodruff, 5mm 32 612880 (00000000- Joint, Transaxle, Replmt 33 1212352 (00000000- Motor, Transaxle, 24vdc, Ul  34 1212351 (00000000- Brush, Kit, Carbon, Transaxle, Ul (1 Pkg = 4 Brushes)  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 44: Head Group, 510 Mm (20 In)

    STANDARD PARTS HEAD GROUP, 510 MM (20 IN) 355221 Nobles SpeedGleamR 5 (01- 2014)
  • Page 45 Pad, 20.0[Burnish, Hairblend,1pick=1ctn] (Qty 5 Pads) 27 41186 (00000000- Washer, Flat, Belleville, .31 28 25732 (00000000- Washer, Flat, 0.36b 1.25d .09, Pl 29 1016399 (00000000- Screw, Hex, M8 X 1.25 X 30, Nl, Ss  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 46: Head Lift Group

    STANDARD PARTS HEAD LIFT GROUP 355224 Nobles SpeedGleamR 5 (01- 2014)
  • Page 47 Screw, Btn, Torx, M5 X 0.8 X 16, 8.8, Nl 11 1208531 (00000000- Nut, T, M8 X 1.25 12 1020341 (00000000- Screw, Hex, M8 X 1.25 X 20, Ss, Sems 13 1204894 (00000000- Guide Wldt, Rod  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 48: Down Pressure Group, Automated

    STANDARD PARTS DOWN PRESSURE GROUP, AUTOMATED 355225 Nobles SpeedGleamR 5 (01- 2014)
  • Page 49 (00000000- Washer, Flat, 0.38b 0.88d .08, Ss 17 08713 (00000000- Nut, Hex, Lock, M8 X 1.25, Nl, Ss 18 1204575 (00000000- Bracket Wldt, Rod 19 1205738 (00000000- Bracket, Bellcrank 20 1203198 (00000000- Bracket Wldt, Bellcrank Nobles SpeedGleamR 5 (01- 2014)

  • Page 50: Down Pressure Group, Mechanical

    STANDARD PARTS DOWN PRESSURE GROUP, MECHANICAL 355226 Nobles SpeedGleamR 5 (01- 2014)
  • Page 51 Washer, Flat, 1.06b 1.42d .09thk, Nyl 15 1205567 (00000000- Ring, Retaining, Ext, 26mmd 16 1204575 (00000000- Bracket Wldt, Rod 17 1208110 (00000000- Plate, Spring 18 1020341 (00000000- Screw, Hex, M8 X 1.25 X 20, Ss, Sems Nobles SpeedGleamR 5 (01- 2014)

  • Page 52: Dust Control Group, Active

    STANDARD PARTS DUST CONTROL GROUP, ACTIVE 355244 Nobles SpeedGleamR 5 (01- 2014)
  • Page 53 Screw, Hex, M6 X 1.00 X 16, Ss, Sems 15 1210869 (00000000- Bag, Dust, Paper[1 Pick=1 Pkg] (1 Pkg=10 Bags) (Standard) 16 1206015 (00000000- Cover, Dust Control, Spg 17 1206014 (00000000- Base, Dust Control, Spg Nobles SpeedGleamR 5 (01- 2014)

  • Page 54: Dust Control Group, Passive

    STANDARD PARTS DUST CONTROL GROUP, PASSIVE 355230 Nobles SpeedGleamR 5 (01- 2014)
  • Page 55 Bag, Dust, Cloth (Optional for Passive Dust Control Only) 1034731 (00000000- Screw, Hex, M6 X 1.00 X 16, Ss, Sems 1204900 (00000000- Hose, Assy, 1.50 Id 1206014 (00000000- Base, Dust Control, Spg 1211826 (00000000- Guard, Wldt, Dust Box Nobles SpeedGleamR 5 (01- 2014)

  • Page 56: Electrical Components Group

    STANDARD PARTS ELECTRICAL COMPONENTS GROUP 355227 Nobles SpeedGleamR 5 (01- 2014)
  • Page 57 Screw, Pan, Phl, M3 X 0.50 X 20, 4.8 43 1205323 (00000000- Switch, 0.1a, Spdt [Micro, Straight] 44 601359 (00000000- Plate, Backing, Switch 45 1016603 (00000000- Nut, Clinch, M3 X 0.5, Nl  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 58: Console Group, Push, Off Board Charger

    STANDARD PARTS CONSOLE GROUP, PUSH, OFF BOARD CHARGER 355251 Nobles SpeedGleamR 5 (01- 2014)
  • Page 59 Gauge, Hourmeter, 05- 277 Volt, Ac / Dc 28 1208644 (00000000- Charger, 36vdc, 25a 85- 265vac [Offboard]  29 130155 (00000000- Connector, Battery, 6ga 50a, Gray[2cont] 30 1073882 (00000000- Cord, Power, 16/3, 15a, 15ft Blk [Us]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 60: Console Group, Push, On Board Charger

    STANDARD PARTS CONSOLE GROUP, PUSH, ON BOARD CHARGER 355252 Nobles SpeedGleamR 5 (01- 2014)
  • Page 61 Cover, Console, Afmkt, W/ Label [Na] 27 9012790 (00000000- Cover, Console, Afmkt, W/ Label [Jp] 27 9012791 (00000000- Cover, Console, Afmkt, W/ Label [Ce] 28 1064038 (00000000- Gauge, Hourmeter, 05- 277 Volt, Ac / Dc  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 62: Console Group, Base, Drive, Off Board Charger

    STANDARD PARTS CONSOLE GROUP, BASE, DRIVE, OFF BOARD CHARGER 355249 Nobles SpeedGleamR 5 (01- 2014)
  • Page 63 (00000000- Cord, Power, Blk [4.5meter, Ce] 35 1026325 (00000000- Cord, Power, 1.0mm2/3 Blk[2.5meter, Aus] 35 1026330 (00000000- Cord, Power, 1.0mm2 [2.5meter, China] 35 1048304 (00000000- Cord, Power [4.5meter, India, S.Africa]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 64: Console Group, Base, Drive, On Board Charger

    STANDARD PARTS CONSOLE GROUP, BASE, DRIVE, ON BOARD CHARGER 355250 Nobles SpeedGleamR 5 (01- 2014)
  • Page 65 30 9012791 (00000000- Cover, Console, Afmkt, W/ Label [Ce] 31 1011735 (00000000- Switch, Safety, Shutoff 32 1064038 (00000000- Gauge, Hourmeter, 05- 277 Volt, Ac / Dc 33 1205496 (00000000- Hook, Cord  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 66: Console Group, Power, Drive, Off Board Charger

    STANDARD PARTS CONSOLE GROUP, POWER, DRIVE, OFF BOARD CHARGER 355253 Nobles SpeedGleamR 5 (01- 2014)
  • Page 67 (00000000- Cord, Power, Blk [4.5meter, Ce] 35 1026325 (00000000- Cord, Power, 1.0mm2/3 Blk[2.5meter, Aus] 35 1026330 (00000000- Cord, Power, 1.0mm2 [2.5meter, China] 35 1048304 (00000000- Cord, Power [4.5meter, India, S.Africa]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 68: Console Group, Power, Drive, On Board Charger

    STANDARD PARTS CONSOLE GROUP, POWER, DRIVE, ON BOARD CHARGER 355254 Nobles SpeedGleamR 5 (01- 2014)
  • Page 69 Spring, Cmpr, 0.40od .05wir 00.5l, Pl,Mw 30 1207290 (00000000- Cover, Charger 31 1011735 (00000000- Switch, Safety, Shutoff 32 1064038 (00000000- Gauge, Hourmeter, 05- 277 Volt, Ac / Dc 33 1205496 (00000000- Hook, Cord  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 70: Battery Group, 185Ah Wet Lead Acid

    STANDARD PARTS BATTERY GROUP, 185AH WET LEAD ACID 355231 Nobles SpeedGleamR 5 (01- 2014)
  • Page 71 Battery, Wet, 12vdc 185ah C/20, W/Ca 1203979 (00000000- Tray, Battery [B5] 630375 (00000000- Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 1072365 (00000000- Cable, 02ga 21.6l Red [M8 Ring / And.] 1072935 (00000000- Cable, Assy, Fuse [B5, 100a, Propel] Nobles SpeedGleamR 5 (01- 2014)

  • Page 72: Battery Group, 225Ah Wet Lead Acid

    STANDARD PARTS BATTERY GROUP, 225AH WET LEAD ACID 355232 Nobles SpeedGleamR 5 (01- 2014)
  • Page 73 Tray, Battery [B5] 630375 (00000000- Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 1072365 (00000000- Cable, 02ga 21.6l Red [M8 Ring / And.] 1072935 (00000000- Cable, Assy, Fuse [B5, 100a, Propel]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 74: Battery Group, 234Ah Agm Sealed

    STANDARD PARTS BATTERY GROUP, 234AH AGM SEALED 355233 Nobles SpeedGleamR 5 (01- 2014)
  • Page 75 Tray, Battery [B5] 630375 (00000000- Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 1072365 (00000000- Cable, 02ga 21.6l Red [M8 Ring / And.] 1072935 (00000000- Cable, Assy, Fuse [B5, 100a, Propel]  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 76: Hydrolinkr Battery Watering System Kit

    STANDARD PARTS HYDROLINK BATTERY WATERING SYSTEM KIT 355255 Nobles SpeedGleamR 5 (01- 2014)
  • Page 77 (00000000- Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D  ASSEMBLY INCLUDED IN ASSEMBLY *THIS KIT IS INTENDED FOR USE WITH TROJAN LEAD ACID BATTERIES ONLY. HYDROLINK IS A REGISTERED TRADEMARK OF TROJAN BATTERY COMPANY. Nobles SpeedGleamR 5 (01- 2014)

  • Page 78: Parking Brake Group

    STANDARD PARTS PARKING BRAKE GROUP 355228 Nobles SpeedGleamR 5 (01- 2014)
  • Page 79 Screw, Weld, M6 X 1.00 X 25, Thru, Ss 24265 (00000000- Screw, Pan, Phl, M4 X 0.70 X 16, Ss 1034731 (00000000- Screw, Hex, M6 X 1.00 X 16, Ss, Sems  ASSEMBLY INCLUDED IN ASSEMBLY Nobles SpeedGleamR 5 (01- 2014)

  • Page 80: Label Group

    STANDARD PARTS LABEL GROUP Ref. Part No. Serial Number Description Qty. 1206306 (00000000- Label, Set, Info/Hzrd [Na/Ce] 1206330 (00000000- Label, Set, Operational 1035550 (00000000- Label, Model [Nobles Speedgleam] 1206159 (00000000- Label, Logo, 05.5l [Nobles] Nobles SpeedGleamR 5 (01- 2014)

  • Page 81: Document Group

    9011616 (00000000- Instr, Wall Chart [Sg5/Sg7] 1206167 (00000000- Guide, Onboard Use And Care To view, print, order, download the latest Parts manual, other language Operator manuals, and Use and Care Guides (wall charts), visit: www.nobles.com/manual Nobles SpeedGleamR 5 (01- 2014)

  • Page 82: Electrical Diagram, Push Model

    STANDARD PARTS ELECTRICAL DIAGRAM, PUSH MODEL (Page 1 of 4) 1073083_00 Nobles SpeedGleamR 5 (01- 2014)
  • Page 83 STANDARD PARTS ELECTRICAL DIAGRAM, PUSH MODEL (Page 2 of 4) 1073083_00 Nobles SpeedGleamR 5 (01- 2014)
  • Page 84 STANDARD PARTS ELECTRICAL DIAGRAM, PUSH MODEL (Page 3 of 4) 1073083_00 Nobles SpeedGleamR 5 (01- 2014)
  • Page 85 STANDARD PARTS ELECTRICAL DIAGRAM, PUSH MODEL (Page 4 of 4) 1073083_00 Nobles SpeedGleamR 5 (01- 2014)

  • Page 86: Electrical Diagram, Drive Model

    STANDARD PARTS ELECTRICAL DIAGRAM, DRIVE MODEL (Page 1 of 4) 1073082_00 Nobles SpeedGleamR 5 (01- 2014)
  • Page 87 STANDARD PARTS ELECTRICAL DIAGRAM, DRIVE MODEL (Page 2 of 4) 1073082_00 Nobles SpeedGleamR 5 (01- 2014)
  • Page 88 STANDARD PARTS ELECTRICAL DIAGRAM, DRIVE MODEL (Page 3 of 4) 1073082_00 Nobles SpeedGleamR 5 (01- 2014)
  • Page 89 STANDARD PARTS ELECTRICAL DIAGRAM, DRIVE MODEL (Page 4 of 4) 1073082_00 Nobles SpeedGleamR 5 (01- 2014)

  • Page 90: Wire Harness, Main, Push Model

    STANDARD PARTS WIRE HARNESS, MAIN, PUSH MODEL 355256 DETAIL A Nobles SpeedGleamR 5 (01- 2014)
  • Page 91 STANDARD PARTS WIRE HARNESS, MAIN, PUSH MODEL - CONT’D 355256 DETAIL A - CONTD Ref. Part No. Serial Number Description Qty. 1072291 (00000000- Harness, Main, Ele [Volga, B5, Push] Nobles SpeedGleamR 5 (01- 2014)

  • Page 92: Wire Harness, Main, Drive Model

    STANDARD PARTS WIRE HARNESS, MAIN, DRIVE MODEL 355256 DETAIL A Nobles SpeedGleamR 5 (01- 2014)
  • Page 93 STANDARD PARTS WIRE HARNESS, MAIN, DRIVE MODEL - CONT’D 355256 DETAIL A - CONT'D Ref. Part No. Serial Number Description Qty. 1072287 (00000000- Harness, Main, Ele [Volga, B5, Propel] Nobles SpeedGleamR 5 (01- 2014)

  • Page 94: Wire Harness, Console, Push Model

    STANDARD PARTS WIRE HARNESS, CONSOLE, PUSH MODEL 355259 Ref. Part No. Serial Number Description Qty. 1072293 (00000000- Harness, Ele [B5/B7, Op.Station, Push] Nobles SpeedGleamR 5 (01- 2014)

  • Page 95: Wire Harness, Console, Drive Model

    STANDARD PARTS WIRE HARNESS, CONSOLE, DRIVE MODEL 355260 Ref. Part No. Serial Number Description Qty. 1072282 (00000000- Harness, Ele [B5/B7, Op.Sta., W/Propel] Nobles SpeedGleamR 5 (01- 2014)

  • Page 96: Wire Harness, Bail Switch

    STANDARD PARTS WIRE HARNESS, BAIL SWITCH 355261 Ref. Part No. Serial Number Description Qty. 1072524 (00000000- Harness, Ele [Bail Switch] Nobles SpeedGleamR 5 (01- 2014)

  • Page 97: Wire Harness, Key Switch

    STANDARD PARTS WIRE HARNESS, KEY SWITCH 355262 Ref. Part No. Serial Number Description Qty. 1073037 (00000000- Harness, Ele [Key Sw.,Static Gnd] Nobles SpeedGleamR 5 (01- 2014)
