Nobles SpeedGleam Operator And Parts Manual

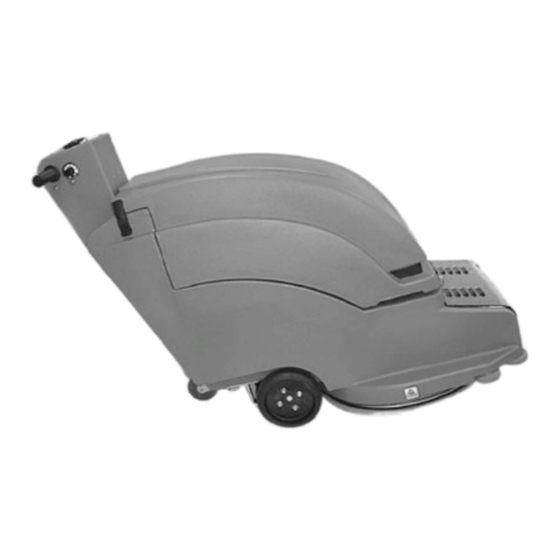

36 volt dust control burnisher
Hide thumbs Also See for SpeedGleam:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual , Operator and Parts Manual

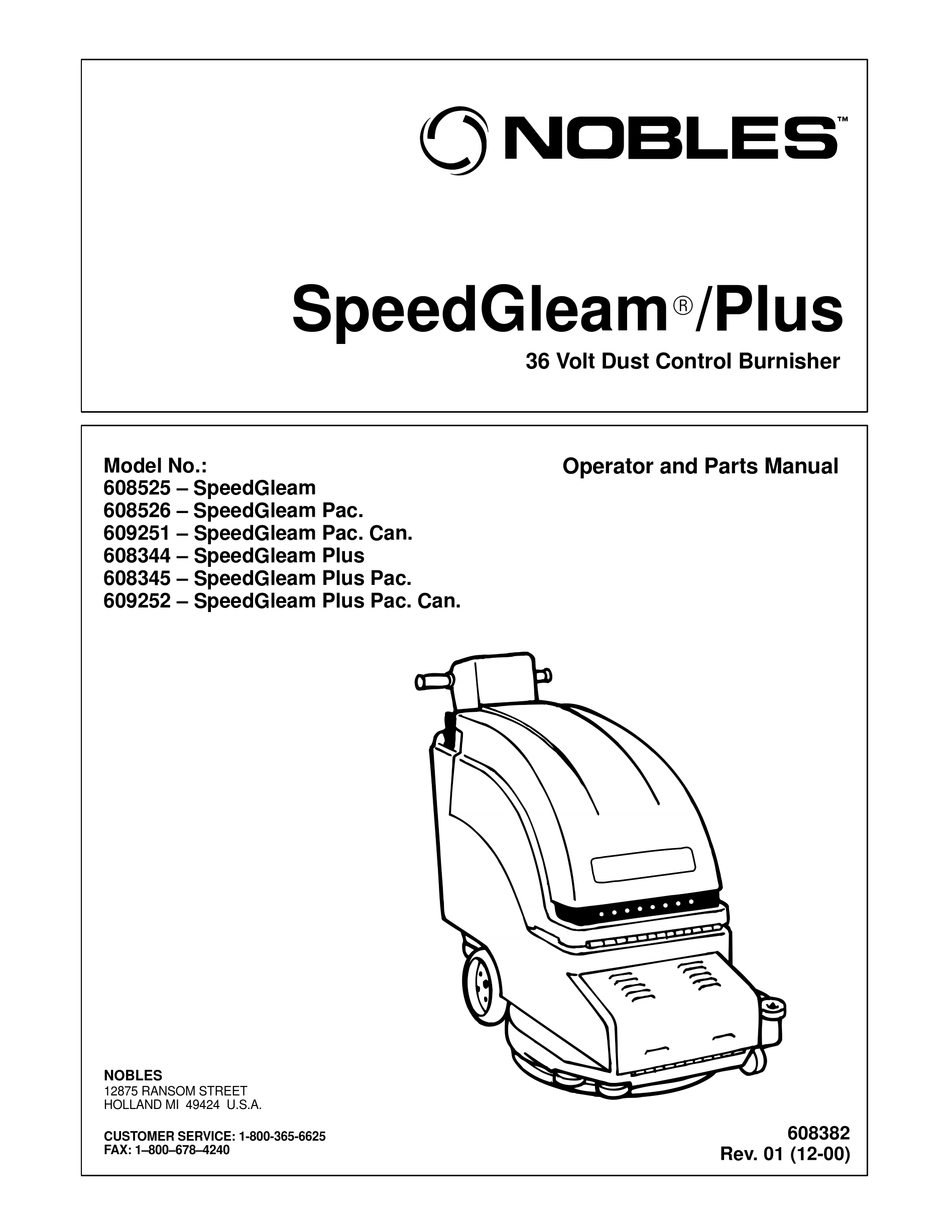

SpeedGleam
/Plus
R
36 Volt Dust Control Burnisher
Model No.:
Operator and Parts Manual
608525 – SpeedGleam
608526 – SpeedGleam Pac.
609251 – SpeedGleam Pac. Can.
608344 – SpeedGleam Plus
608345 – SpeedGleam Plus Pac.
609252 – SpeedGleam Plus Pac. Can.
NOBLES
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
608382
CUSTOMER SERVICE: 1-800-365-6625
FAX: 1–800–678–4240
Rev. 01 (12-00)
Home Find... Go To..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpeedGleam and is the answer not in the manual?

Questions and answers

Related Manuals for Nobles SpeedGleam

Summary of Contents for Nobles SpeedGleam

  • Page 1 Operator and Parts Manual 608525 – SpeedGleam 608526 – SpeedGleam Pac. 609251 – SpeedGleam Pac. Can. 608344 – SpeedGleam Plus 608345 – SpeedGleam Plus Pac. 609252 – SpeedGleam Plus Pac. Can. NOBLES 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. 608382 CUSTOMER SERVICE: 1-800-365-6625 FAX: 1–800–678–4240...
  • Page 2 OPERATION This manual is furnished with each new model. It provides necessary operation, machine maintenance MACHINE DATA instructions and parts list. Read this manual completely and understand the Please fill out at time of installation for future machine before operating or servicing it. reference.

  • Page 3: Table Of Contents

    OPERATION TABLE OF CONTENTS SAFETY PRECAUTIONS ....TROUBLE SHOOTING ..... . MACHINE COMPONENTS .

  • Page 4: Safety Precautions

    OPERATION 5. When servicing machine: SAFETY PRECAUTIONS – Avoid moving parts. Do not wear loose jackets, shirts, or sleeves. – Block machine tires before jacking This machine is intended for commercial use. It is machine up. designed to burnish smooth floors in an indoor –...

  • Page 5: Machine Components

    OPERATION MACHINE COMPONENTS 1. Adjustable Control Console 13. Emergency Stop Switch (Optional – 2550 Model) 2. Control Grips 14. Hour Meter (Optional) 3. Console Height Adjustment Levers 15. Rear Tilt Wheels – for pad installation 4. Main ON/OFF Switch 16. Automatic Safety Shut–Off Switch –...

  • Page 6: Machine Installation

    OPERATION 1. Park machine on a level surface and set parking brake, if equipped (Figure 1). MACHINE INSTALLATION UNCRATING MACHINE Carefully check carton for signs of damage. Report damages at once to carrier. Check Machine Contents to ensure package is complete.

  • Page 7: Machine Setup

    OPERATION 5. Connect cables to battery posts as shown, ATTENTION: Do not leave machine tilted back for RED TO POSITIVE & BLACK TO NEGATIVE an extended time, battery acid may leak. (Figure 4). 2. Remove plastic center lock from pad driver by CHARGER PLUG turning lock counterclockwise.

  • Page 8: Adjusting Control Grip Height

    OPERATION ADJUSTING CONTROL GRIP HEIGHT BURNISHING WITH 2510 MODEL The machine has three control grip height settings. 1. Turn on key, if equipped then turn on main power switch. 1. Locate two spring loaded levers below console. 2. Twist control grips forward to lower pad to floor 2.

  • Page 9: Burnishing With 2550 Model

    OPERATION NOTE: If machine vibrates, realign pad. BURNISHING WITH 2550 MODEL ATTENTION: Keep machine moving at all times to prevent floor damage. 1. Release parking brake lever, if equipped. 6. To stop machine, release grips. The pad will 2. Turn on key, if equipped, then turn on main power automatically raise to the transport position.

  • Page 10: Emergency Stop Switch (Option)

    OPERATION ATTENTION: Do not operate machine in red zone, floor damage and brush motor overload may result. 6. If pad motor circuit breaker trips, reduce pad pressure and/or replace soiled pad. FOR SAFETY: Before leaving or servicing machine, stop on level surface, turn off machine, and set parking brake, if equipped.

  • Page 11: Machine Maintenance

    OPERATION 3. Unlatch battery hood and open battery 6. Then, plug charger’s power supply cord into a compartment (Figure 18). grounded wall outlet (Figure 21). FOR SAFETY: Do not operate charger unless cord is properly grounded. GROUNDED 3 HOLE OUTLET GROUND PIN FIG.

  • Page 12: Daily Maintenance

    OPERATION DAILY MAINTENANCE WEEKLY MAINTENANCE (Every 4 Hours of Use) (Every 20 Hours of Use) 1. Remove burnishing pad and clean or replace 1. Clean battery tops of corrosion (See BATTERY (Figure 23). MAINTENANCE). 2. Check for loose or corroded battery cables. MONTHLY MAINTENANCE (Every 80 Hours of Use) 1.

  • Page 13: Battery Maintenance

    OPERATION BATTERY MAINTENANCE TRANSPORTING MACHINE WARNING: Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and When transporting machine by use of trailer or truck, open flame away. Keep battery compartment open be certain to follow tie–down procedures below: when charging.

  • Page 14: Trouble Shooting

    OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION No Power Faulty main switch. Contact Service Center. Faulty key switch, if equipped. Contact Service Center. Faulty battery(s). Replace battery(s). Loose battery cable. Tighten loose cables. Improper battery cable connection. See Installing Batteries. Tripped Main circuit breaker. Determine cause and reset breaker.

  • Page 15: Specifications

    OPERATION SPECIFICATIONS Model 2510 2550 LENGTH 1321mm (52 in) 1321mm (52 in) WIDTH 609mm (24 in) 609mm (24 in) HEIGHT 1016mm (40 in) 1016mm (40 in) WEIGHT WITH BATTERIES 238 Kg (525 lb) 245 Kg (540 lb) DRIVE SYSTEM N/A (Pad assisted) .2 hp Transaxle DRIVE SPEED 0–73m (0–240 ft) per min.

  • Page 16: Electrical Diagrams

    OPTIONAL SWITCH LOW VOLTAGE NEGATIVE CUT-OFF STANDOFF MOTOR PAD MOTOR CONTACTOR PAD MOTOR SAFETY SWITCH AMMETER 80 AMP SHUNT PAD MOTOR CIRCUIT BREAKER WARNING LIGHTS (OPTIONAL) CHARGER PLUG (3) 12 VOLT BATTERIES 36 VDC SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 17 -RED- -BLK- -BLK- -BLK- -BLK- AMMETER CIRCUIT SHUNT BREAKER MOTOR -BLK- -RED- HOUR -36- -BLU- METER -36- -BLU- -RED- -BLK- -YEL- -BLK- -GRN- USED -WHT- -ORG- -RED- -GRN- OPTIONAL LOW VOLTAGE PAD INTERRUPT FUNTIONS SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 18 OPTIONAL STANDOFF CUTOFF LOW VOLTAGE SWITCH CUT-OFF MOTOR PAD MOTOR CONTACTOR PAD MOTOR SAFETY SWITCH AMMETER 80 AMP SHUNT PAD MOTOR CIRCUIT BREAKER WARNING LIGHTS (OPTIONAL) CHARGER PLUG (3) 12 VOLT BATTERIES 36 VDC SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 19 -RED- -BLK- -BLK- -BLK- -BLK- AMMETER SHUNT CIRCUIT BREAKER MOTOR -RED- -BLK- HOUR -36- -BLU- METER -36- -BLU- -RED- -BLK- -YEL- -BLK- -GRN- -WHT- USED -RED- -ORG- -GRN- LOW VOLTAGE PAD INTERRUPT OPTIONAL FUNTIONS SpeedGleam/Plus (12–00) Home Find... Go To..

  • Page 20: Parts List

    PARTS LIST MAIN HOUSING GROUP SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 21 NUT, 1/4 X 20 KEP DBAG, CLOTH (OPTION) 900210 578187000 SCREW, M6X1.0X12 DBAG, PAPER FILTER PK=10 604237 606684 STOP, MOTOR 608383 DECAL, SPEEDGLEAM PLUS 604276 BRACKET, MOTOR STOP 608459 DECAL, SPEEDGLEAM 630450 WHEEL, RUBBER DIA 76 X 23 WD 608379 CHASSIS, GREEN 603154 SCREW, M8X1.25X40...

  • Page 22: Pad Driver Group

    PARTS LIST PAD DRIVER GROUP 11 12 SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 23 SCREW, M6X1.0X20 PANPHL 600191 BUSHING, 3/8X1/2X.260 130162 TERMINAL, RING 1/4 8GA RED 140028 WASHER, 3/8 FLAT 25732 WASHER, FLAT 1.25X.359X.093 140017 WASHER, 3/8 SPLIT LOCK ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS SpeedGleam/Plus (12–00) Home Find... Go To..

  • Page 24: Drive Group, 2550 Model

    PARTS LIST DRIVE GROUP (Plus Model) SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 25 SCREW, 3/8–16X1 HXHDCP DCARBON BRUSH (36V) 630504 140829 SCREW, 6–32X1 PANPHL DCAP, (36V) 630503 DSWITCH, SNAP 25A LEVER 069764009 140431 SPRING, EXT 1X.095X5 140539 NUT, 6–32 KEP 609450 BRACKET, SPRING D RECOMMENDED STOCK ITEMS SpeedGleam/Plus (12–00) Home Find... Go To..

  • Page 26: Wheel Group, 2510 Model

    PARTS LIST WHEEL GROUP (Standard Model) SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 27 140431 SPRING, EXT 1.0X5 140539 NUT, 6–32 KEP 609450 BRACKET, SPRING 140055 WASHER, FLAT .343X1.25X.057 600952 ACTUATOR 140277 SCREW, M10X1.50X20 604076 PIN, CLEVIS 10X28MM 611023 SLEEVE, SPRING 578421 PIN, COTTER D RECOMMENDED STOCK ITEMS SpeedGleam/Plus (12–00) Home Find... Go To..

  • Page 28: Control Console Group

    PARTS LIST CONTROL CONSOLE GROUP (Plus Model) Wire Harnesses SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 29 PIN, HANDLE ADJUSTMENT 140540 NUT, 6–32 HEX STD 230710 PIN, HANDLE LOCK 605094 COLLAR, HANDLE 140415 SPRING, LOCK PIN 140859 SET SCREW ∇ ASSEMBLY 606549 DECAL, SPEED CONTROL INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS SpeedGleam/Plus (12–00) Home Find... Go To..

  • Page 30: Control Console Group, 2510 Model

    PARTS LIST CONTROL CONSOLE GROUP (Standard Model) Wire Harnesses SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 31 WRAP, LOOM .75DIA, 1FT 230649 PIN, HANDLE ADJUSTMENT (NOT SHOWN) 230710 PIN, HANDLE LOCK 140540 NUT, 6–32 HEX STD 140415 SPRING, LOCK PIN 605094 COLLAR, HANDLE 140155 BUSHING 140859 SET SCREW D RECOMMENDED STOCK ITEMS SpeedGleam/Plus (12–00) Home Find... Go To..

  • Page 32: Electrical/Battery Group

    PARTS LIST ELECTRICAL/BATTERY GROUP SpeedGleam/Plus (12–00) Home Find... Go To..
  • Page 33 ASM, WIRE #4 BLK X 6” 604940 PLUG, DOME 604794 DECAL, PAD MOTOR CIRCIUT BREAKER 130161 PLUG, DOME .875 611221 BOOT, BATTERY, BLACK 604298 TRAY, BATTERY D RECOMMENDED STOCK ITEMS 611222 BOOT, BATTERY, RED 611022 GASKET, BATTERY TRAY SpeedGleam/Plus (12–00) Home Find... Go To..

  • Page 34: Options

    ASM, WIRE #16X5” RED 1/4FX1/4F 603080 ASM., WIRE #18X8” BLACK 602997 ASM, WIRE #16X5” RED 1/4MX1/4F W/ TERM. RING ∇ 602993 KIT, KEYSWITCH 604643 ASM., WIRE #18X9” BLACK 607475 KEYSWITCH ∇ ASSEMBLY 607821 KEY, REPLACEMENT INCLUDED IN ASSEMBLY SpeedGleam/Plus (12–00) Home Find... Go To..

  • Page 35: Parking Brake Kit

    QTY. ∇ 604500 KIT, FLASHING LIGHTS 603440 LIGHT, SAFETY 603839 FLASHER, 36VDC 600298 SHIELD, LIGHT 100058 TAPE, ACRYLIC FOAM .08 FT. 578186000 WASHER, FLAT 606242 GASKET 200070340 SCREW, M4X.7X8 ∇ ASSEMBLY INCLUDED IN ASSEMBLY SpeedGleam/Plus (12–00) Home Find... Go To..
