Summary of Contents for Gold Medal Shavatron 1020

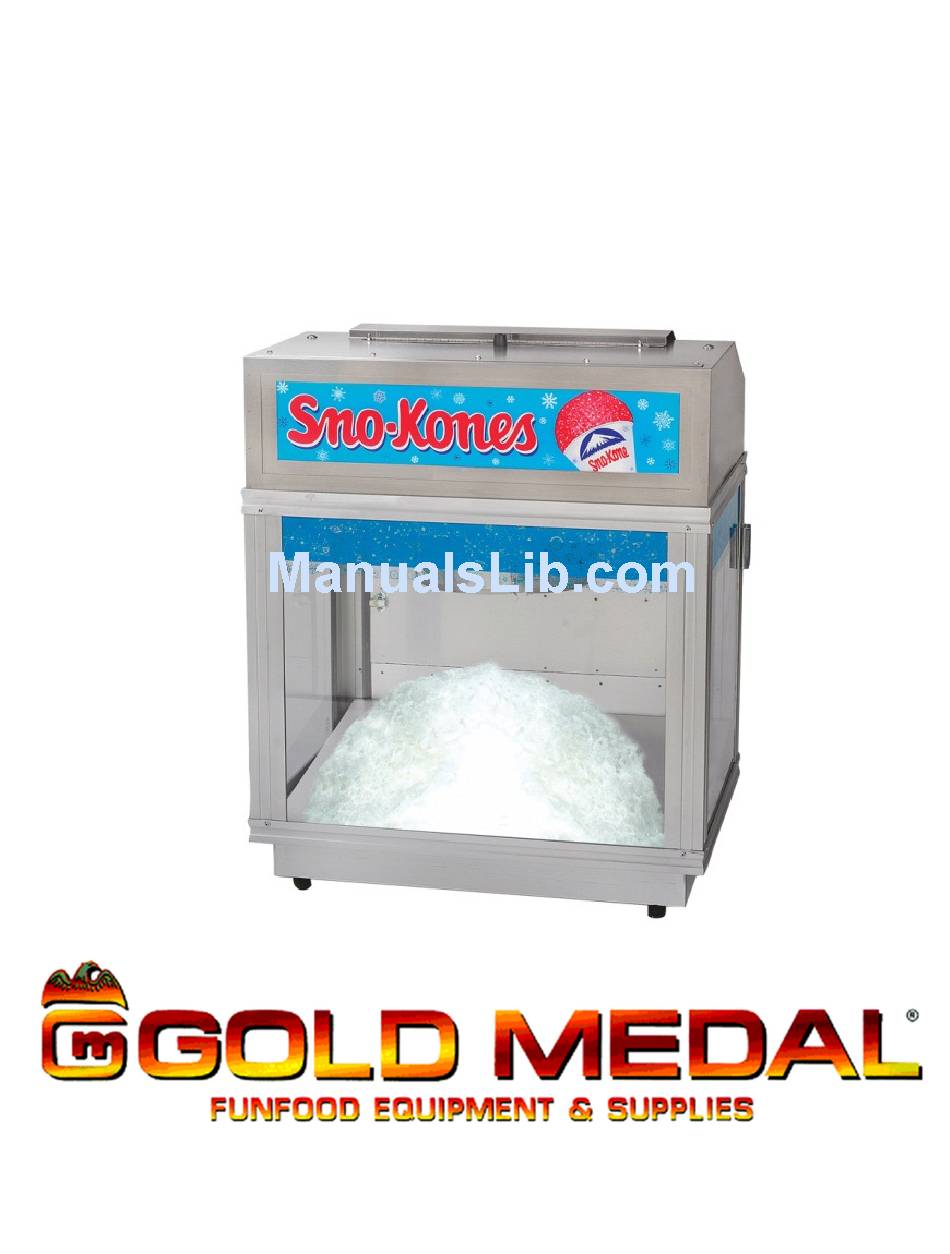

- Page 1 Part No. 39099 Shavatron Instruction Manual Model # Domestic: 1020, 1020T Export: 1020EX, 1020TEX Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS... -
Page 3: Installation Instructions
It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety risks and the ice shaver’s performance will be sacrificed/reduced. -
Page 4: Operating Instructions
Never put your fingers or any object into the shaver body while the unit is running. Since you can be seriously hurt by not following these instructions, Gold Medal does not assume any liability for injury due to careless handling or operation of this unit. -
Page 5: Maintenance Instructions
Shavatron Ice Shaver MAINTENANCE INSTRUCTIONS... -
Page 6: Blade Adjustment
Shavatron Ice Shaver Blade Adjustment Inspect your equipment before adjusting the blades. With the machine unplugged, use a flashlight to examine the blades in the shaver body. If the blades appear to be nicked or bent, then the blades should be replaced. Follow this procedure: 1. - Page 7 Shavatron Ice Shaver Motor Lubrication The drive motor bearings are sealed and require no lubrication. Do not oil the motor, it will cause more harm than good. Changing Fluorescent Lights Remove the sign retaining angle from the top of the dome, by removing the four screws that hold it into place, and then slide the sign out to access the light tube.
-
Page 8: Ordering Spare Parts
Shavatron Ice Shaver ORDERING SPARE PARTS Always speak to a Gold Medal Products Technical Service Advisor before ordering any parts to help ensure accuracy for your product. Included diagrams may not be the latest information. 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. -
Page 9: Parts Breakdown
Shavatron Ice Shaver Parts Breakdown 7, 8 Item Part No. Description 39112 Dome Assembly 39933 Sign 39052 Decal, Front 39043 Drain Pan Assembly 39019 Ice Drain Board 41282 Rubber Feet (x4) 39040 Strain Relief 22038 (Domestic) Lead-In Cord, 15 Amp Plug 42369 (Export) Power Supply Cord... - Page 10 1, 2 7, 8 Item Part No. Description 39113 Magnet Holder 87207 Set Screw 10-32 x 3/16 KCP w/Locking Patch 47155 Rubber Foot 3/4" High 39111 Lid, Weld Assembly 41013 Knob, Door 41020 Light Tube Holder (x4) 55292 Flourescent Light Tube 12502 Flourescent Tube Lock (x2) 55291...
- Page 11 Item Part No. Description 47201 (Domestic) Switch, Toggle SPST 74087 (Export) DPST Toggle Switch 38971 Momentary Switch 39053 Decal, Side (x2) 12045 Door Catch (x2) 41011 Door Catch 39002 Door Assembly 39134 Baffle 39120 Ice Shield...
- Page 12 4, 5, 6, 7, 8, 9, 10 Item Part No. Description 39022 (Domestic) Motor, 115/230 60 Hz * 39022EX (Export) 1/3 HP 50/60 Hz Motor* 39023 Drive Motor Pulley 39025 Drive Belt (Manufactured Before 3-95) 39122 Drive Belt (Manufactured Between 3-95 and 8-08) 67865 Drive Belt (Manufactured After 8-08) 39024...
- Page 13 2, 3, 4 Item Part No. Description 39118 Hopper and Bushing Assy. 55289 Switch, Lever 15A 1/2 HP (Manufactured After 6-07) 75036 Switch, Lever 15A 1/2 HP (Manufactured Before 6-07) 55288 Standoff, .75 IN. 4-40 (x2) (Manufactured After 6-07) 12186 4-40 x 3/4"...
- Page 14 Electrical Schematic – 1020 & 1020T...
- Page 15 Electrical Schematic – 1020EX & 1020TEX...
-
Page 16: Warranty
© 2013 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
