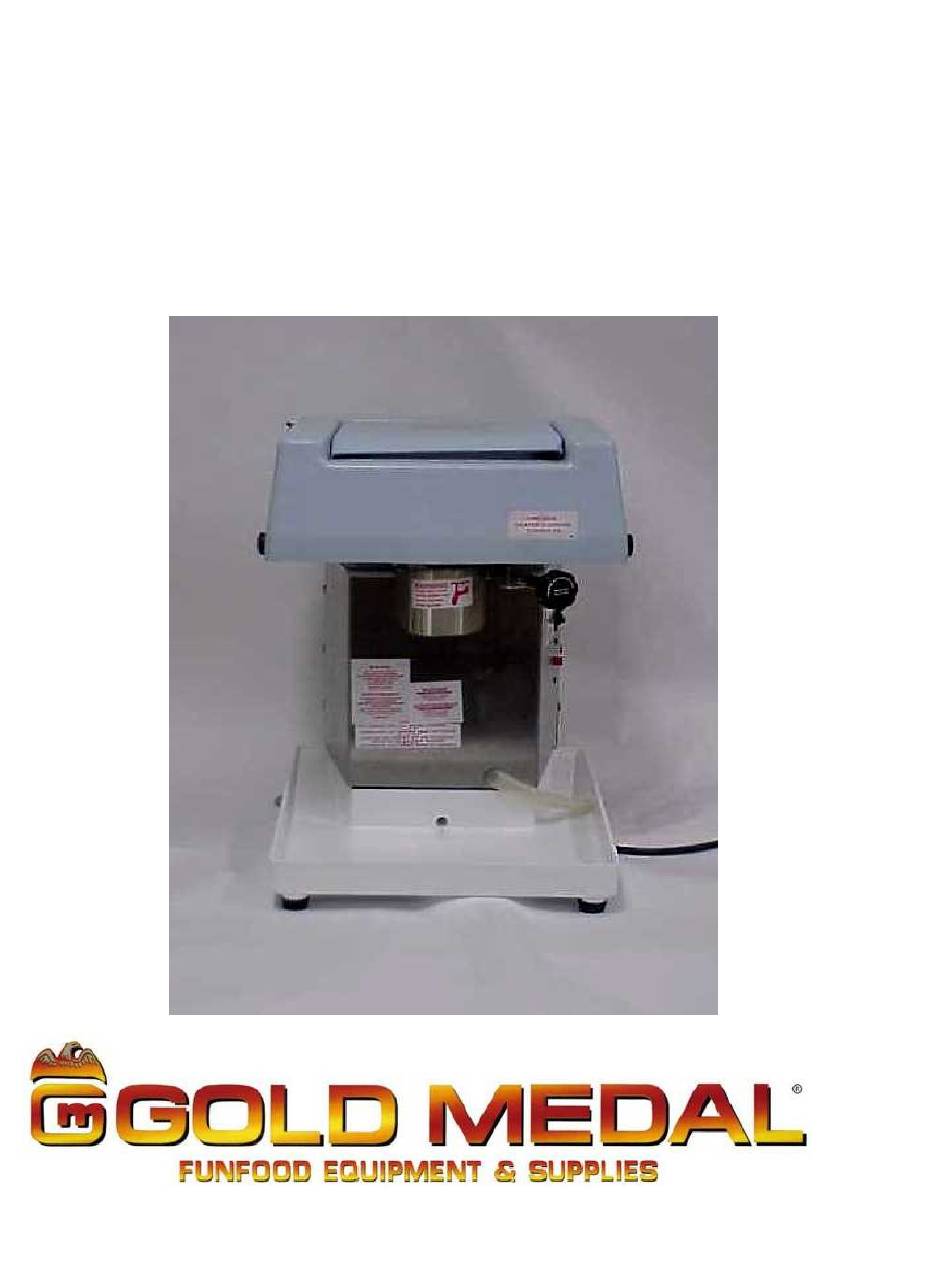

- Page 1 Part No. 12279 Hawaii's Finest Ice Shaver Instruction Manual Model #1047 Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Hawaii's Finest Ice Shaver SAFETY PRECAUTIONS All Models #1047... -
Page 3: Special Features
Hawaii's Finest Ice Shaver SPECIAL FEATURES 1. Model 1047 uses cubed ice. 2. Snow texture can be adjusted easily with adjustment knob. 3. Blade is easily removable for replacement. 4. Safety switch is installed in loading lid, preventing motor from operating while lid is open. 5. -
Page 4: Cleaning Instructions
Hawaii's Finest Ice Shaver CLEANING INSTRUCTIONS 1. Remove lid by removing the wingnut and hinge pin. 2. Remove four plastic button screws that hold top hopper cover, and lift and roll over. Disconnect wire harness at plug. NOTE: When reinstalling cover, you MUST reconnect plug! 3. -
Page 5: Maintenance Instructions
Hawaii's Finest Ice Shaver MAINTENANCE INSTRUCTIONS All Models #1047... -
Page 6: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 7 Hawaii's Finest Ice Shaver GENERAL SAFETY OPERATING TIPS WHEN USING A FOOTSWITCH Follow the appropriate wiring and safety requirements as set forth in the American National Standards Institute (ANSI) and National Electrical Code (NEC) or other appropriate standards. Use proper electrical circuits and circuit protection when wiring footswitch. Disconnect power before servicing.
- Page 8 Hawaii's Finest Ice Shaver SHAVER EXPLODED VIEW All Models #1047...
-
Page 9: Parts List
Hawaii's Finest Ice Shaver PARTS LIST #1047 Item No Part No Description 12088 Base 12556 Upper Basin 12090 Impeller 12091 Ball Bearing 12195 Blade Holder 12263 Blade 12643 Drain Tray 12097 Water Sheild 12098 Pusher 12104 Pusher Stud 12194 Drive Motor 12106 Nut, Impeller 12274... - Page 10 Hawaii's Finest Ice Shaver PARTS LIST #1047 Item No Part No Description 12158 Thumb Screw Drain Hose * 12159 12186 Screw #4-40 12183 Screw 5/16-18 12187 Jam Nut, 5/16-18 49133 Dead End Splice * Washer, 5/16" * 12184 76026 Strain Relief 12185 Screw, 1/4-20 Cord Clip *...
-
Page 11: Electrical Schematic
Hawaii's Finest Ice Shaver ELECTRICAL SCHEMATIC All Models #1047... -
Page 12: Warranty
