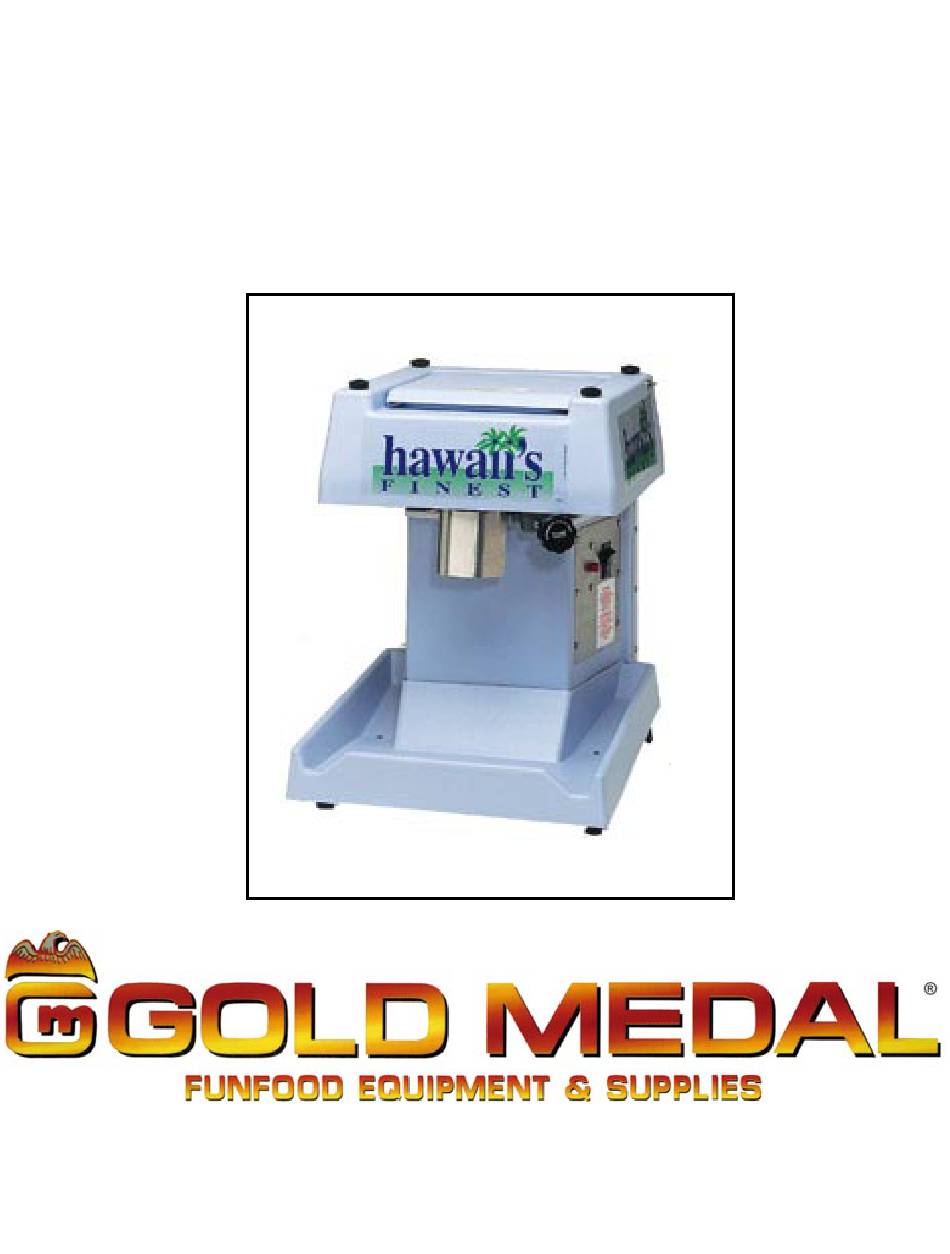

- Page 1 Hawaii’s Finest Part No. 12206 Revised June 1996 Ice Shaver Instruction Manual Model #1027EX Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Special Features
Hawaii's Finest Ice Shaver SPECIAL FEATURES 1. Model 1027EX uses cubed ice. 2. Snow texture can be adjusted easily with adjustment knob. 3. Blade is easily removable for replacement. 4. Safety switch is installed in loading lid, preventing motor from operating while lid is open. -
Page 4: Cleaning Instructions
Hawaii's Finest Ice Shaver CLEANING INSTRUCTIONS 1. Remove lid by removing the wingnut and hinge pin. 2. Remove four plastic button screws that hold top hopper cover, and lift and roll over. Disconnect wire harness at plug. NOTE: When reinstalling cover, you MUST reconnect plug! 3. -
Page 5: Maintenance Instructions
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 6 Hawaii's Finest Ice Shaver GENERAL SAFETY OPERATING TIPS WHEN USING A FOOTSWITCH Failure to use footswitch safely could result in personal injury. Footswitch should only used where adequate guards or other safety devices are in place for those applications where the use of a footswitch could cause personal injury.
- Page 7 Hawaii's Finest Ice Shaver SHAVER EXPLODED VIEW #1027 XPORT ODEL...
- Page 8 Hawaii's Finest Ice Shaver PARTS LIST – SHAVER ASSEMBLY Item No. Part No. Description 12088 Base 12089 Upper Basin 12090 Impeller 12091 Ball Bearing 12200 Support 12195 Blade Holder 12094 Blade 12096 Drain Tray 12097 Water Shield 12098 Pusher 12104 Pusher Stud 12115EX Drive Motor...
- Page 9 Hawaii's Finest Ice Shaver PARTS LIST – SHAVER ASSEMBLY ( continued ) Item No. Part No. Description 12149 Strain Relief 12151 Spacer 12152 Wing Nut, #6-32 12153 Jumper Wire 42369 Lead-In Cord 12155 Ice Decal 12156 Drain Tubing 12158 Thumb Screw 12159 Drain Hose 12186...
-
Page 10: Electrical Schematic
Hawaii's Finest Ice Shaver ELECTRICAL SCHEMATIC #1027 XPORT ODEL... -
Page 11: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
